ViewSonic LS832WU 5000-Lumen WUXGA Ultra-Short Throw Laser Projector - NJ Accessory/Buy Direct & Save

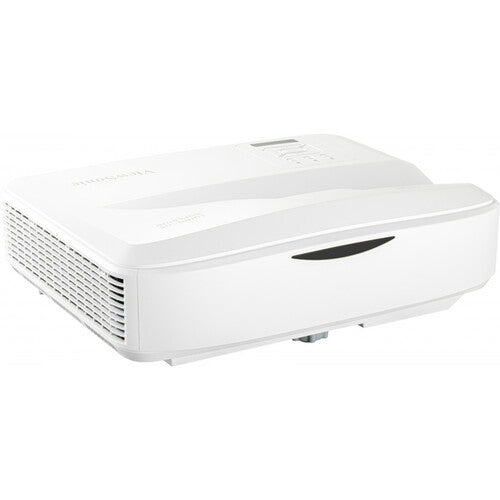

ViewSonic LS832WU 5000-Lumen WUXGA Ultra-Short Throw Laser Projector New

SKU LS832WU-N
Save 38% Save 38%
$6,256.00
$6,256.00 - $6,256.00
$6,256.00
$3,892.00
$3,892.00 - $3,892.00
$3,892.00

  • ViewSonic LS832WU 5000-Lumen WUXGA Ultra-Short Throw Laser Projector – New

    The ViewSonic LS832WU is a professional-grade ultra-short throw laser projector designed for bright, large-scale displays in classrooms, boardrooms, museums, and retail environments. With a powerful 5,000 lumens of brightness and a WUXGA (1920×1200) resolution, it delivers sharp, vibrant visuals even in well-lit spaces.

    Thanks to its 0.25 ultra-short throw ratio, the LS832WU can project a 120-inch image from just inches away, making it perfect for small rooms where traditional projectors are impractical. The long-lasting laser phosphor light source provides up to 30,000 hours of maintenance-free operation, while advanced SuperColor™ technology ensures rich, true-to-life colors.

    For connectivity, it features HDMI 2.0, HDBaseT, USB, and LAN control, making integration into professional AV systems seamless. With 360-degree installation flexibility, 24/7 operation support, and a robust chassis, this projector is built for demanding environments.

    Key Features:

    • Resolution: WUXGA (1920×1200) Full HD+ for crisp detail

    • Brightness: 5,000 ANSI lumens for clear images in bright spaces

    • Ultra-Short Throw Ratio (0.25): 120” display from just inches away

    • Light Source: Laser phosphor with up to 30,000 hours lifespan

    • Colors: ViewSonic SuperColor™ technology for vivid, accurate visuals

    • Connectivity: HDMI 2.0, HDBaseT, USB, LAN & RS232 for professional AV setups

    • Installation: 360° orientation, 24/7 operation ready

    Why It’s Unique:
    Unlike standard projectors, the LS832WU’s ultra-short throw lens and high brightness allow large, distortion-free images in tight spaces. Combined with its laser engine durability, it’s a reliable choice for continuous commercial or educational use.

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

ViewSonic LS832WU 5000-Lumen WUXGA Ultra-Short Throw Laser Projector New

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The ViewSonic LS832WU 5000-Lumen WUXGA Ultra-Short Throw Laser Projector is a lamp-free, high-brightness projector designed for commercial and education spaces. Create up to a 170" diagonal image from less than two feet away, ideal for public display applications, like museums, storefronts, and airports. ViewSonic's laser phosphor light source promises up to 30,000 hours of life, combined with DLP color, and an IP5X dust resistance rating, the LS832WU will provide years of maintenance-free use.

Dual HDMI 2.0b
Prevent display formatting issues with dual HDMI 2.0b ports and support for UHD 4K and HDR/HLG content from external devices. Enjoy total peace of mind knowing that your content will be displayed error-free.
0.25 Ultra-Short Throw
Designed to provide installation flexibility even in reduced spaces, the LS832WU's 0.253:1 ultra-short throw ratio enables a 100" screen projection from approximately 11 inches from the projection surface, offering immersive visuals without shadow casting or blinding lights for all commercial and public display applications. This easy-to-install projector allows for an image size of up to 170", offering a lower cost-per-inch compared to other types of commercial displays.
2nd Generation Laser Phosphor Technology
The LS832WU uses 2nd generation laser phosphor technology, offering up to a 30,000-hour lifespan, improved brightness, better heat resistance, and instant power on/off in a more compact format than its predecessors. The projector's eco-friendly, lamp-free design eliminates toxic mercury lightbulbs and the hassle of frequent lamp replacement, ensuring consistent image quality during extended commercial display applications.
Bright Images in All Lighting Conditions
The LS832WU's 5,000 ANSI Lumens and 3,000,000:1 dynamic contrast ratio ensure bright and vibrant visuals in all light conditions, even under ambient lighting, making it perfectly suited for digital display applications in public and commercial spaces such as in museums, airports, or shopping malls.
H/V Keystone and 4-Corner Adjustment
Horizontal and vertical keystone correction, along with four-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
Lighter Weight and Compact Size
The LS832WU is 41% lighter in weight and 47% smaller in size compared to its predecessor, greatly reducing the cost of transportation and increasing the ease of installation.
Comprehensive LAN Control
The LS832WU is compatible with Crestron, AMX, PJ Link, and Extron systems, allowing for centralized device management for better operational efficiency.
24/7 Continuous Operation
With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection. Please note, ViewSonic will warranty this projector for one year in cases where the use exceeds 14 hours per day and for three years where the use is under 14 hours per day.
IP5X Certified
Maintain crystal-clear image quality and product longevity with an advanced IP5X sealed design that prevents dust from entering and affecting internal components.
Additional Features
  • 3.5mm microphone input
  • 3.5mm audio in and out
  • VGA in and out
  • USB-A to power HDMI streaming stick
  • Built-in 10W speaker
  • RS-232 controllable
  • AV mute
  • Digital zoom
  • Three height-adjustable feet
  • Full HD 3D support
  • HDMI CEC
  • DICOM simulation mode
  • Edge blending capability

Item Includes

  • ViewSonic LS832WU 5000-Lumen WUXGA Ultra-Short Throw Laser Projector
  • Remote Control
  • 2 x AAA Battery
  • Power Cord
  • Limited 3-Year Manufacturer Warranty
  • Limited 1-Year Manufacturer Warranty (Where the Daily Use Exceeds 14 Hours)

Item Includes

Key Specs
Display System
1-Chip DMD DLP
Native Resolution
1920 x 1200
Maximum Brightness
5000 Lumens (ANSI)
Throw Ratio
0.253:1
Projection Size
80 to 170" / 2.0 to 4.3 m
HDR Support
Yes, HDR10/Hybrid Log Gamma
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8" / 3.5 mm Mini Audio Input
1x 1/8" / 3.5 mm Mini Audio Output
1x 1/8" / 3.5 mm Mini Microphone Input
1x RJ45 (Ethernet) Control, LAN Input
1x USB-B Service Input
1x USB-A Power Output
1x DE-9/DB-9 (RS-232) Control Input
Light Source
Laser Phosphor
Image Display
Display System
1-Chip DMD DLP
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness
5000 Lumens (ANSI)
Offset
133% ± 3% vertical
Aspect Ratio
Native: 16:10
Dynamic Contrast Ratio
3,000,000:1
DLP Link 3D
Yes
Supported 3D Formats
Frame Packing (up to 1080p)
Side by Side (up to 1080p)
Top Bottom (up to 1080p)
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 15 to 91 kHz
Vertical: 24 to 85 Hz
Latency
33.2 ms
Lens
Includes Lens
Yes
Focus
Manual
Aperture
f/2.44
Focal Length
3.7mm
Optical Zoom
No
Throw Distance
0.56 - 2.17' / 0.17 - 0.66 m
Throw Ratio
0.253:1
Projection Size
80 to 170" / 2.0 to 4.3 m
Features
Keystone Correction
Manual to Vertical: ± 10°
Manual to Horizontal: ± 10°
HDR Support
Yes, HDR10/Hybrid Log Gamma
Digital Zoom
2x
Multi-Input Support (PIP/PBP)
No
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
Yes (Mono)
Speaker Power
10 W
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8" / 3.5 mm Mini Audio Input
1x 1/8" / 3.5 mm Mini Audio Output
1x 1/8" / 3.5 mm Mini Microphone Input
1x RJ45 (Ethernet) Control, LAN Input
1x USB-B Service Input
1x USB-A Power Output
1x DE-9/DB-9 (RS-232) Control Input
HDCP Support
Yes, Version 2.2
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours
Fan Noise
Full Brightness: 34 dB
Low Brightness: 28 dB
Security
Cable Lock Slot
Password Protection
Supported Languages
Arabic
Czech
English
Finnish
French
German
Indonesian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 328 W
Standby Mode (Lamp Off): < 0.5 W
Operating Temperature
41 to 104°F / 5 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
10 to 85%
Storage Humidity
5 to 95% (Non-Condensing)
Dimensions (W x H x D)
15.0 x 5.2 x 12.5" / 382.0 x 132.0 x 318.0 mm
Weight
12.8 lb / 5.8 kg
Packaging Info
Package Weight
17.425 lb
Box Dimensions (LxWxH)
20.3 x 16.5 x 12.7"
