Epson ELPMB46 Wall Mount - White - 8G7267

Epson ELPMB46 Wall Mount - White - 8G7267

SKU 8G7267
Save 71% Save 71%
$615.00
$615.00 - $615.00
$615.00
$180.00
$180.00 - $180.00
$180.00
Key Features
  • For PowerLite/BrightLink/BrightLink Pro
  • Supports Select Ultra Short-Throw Models
  • For Interactive and Standard Whiteboards
  • Telescopic Arm for 53 to 100" Projection
  • Vertical and Horizontal Adjustments
  • Minimizes Shadow Interference and Glare

Product Overview

  • Brand: Epson
  • Color: White
  • Compatible Devices:
  • Compatible Phone Models:
  • Mounting Type: Wall Mount





STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Epson ELPMB46 Wall Mount - White - 8G7267

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

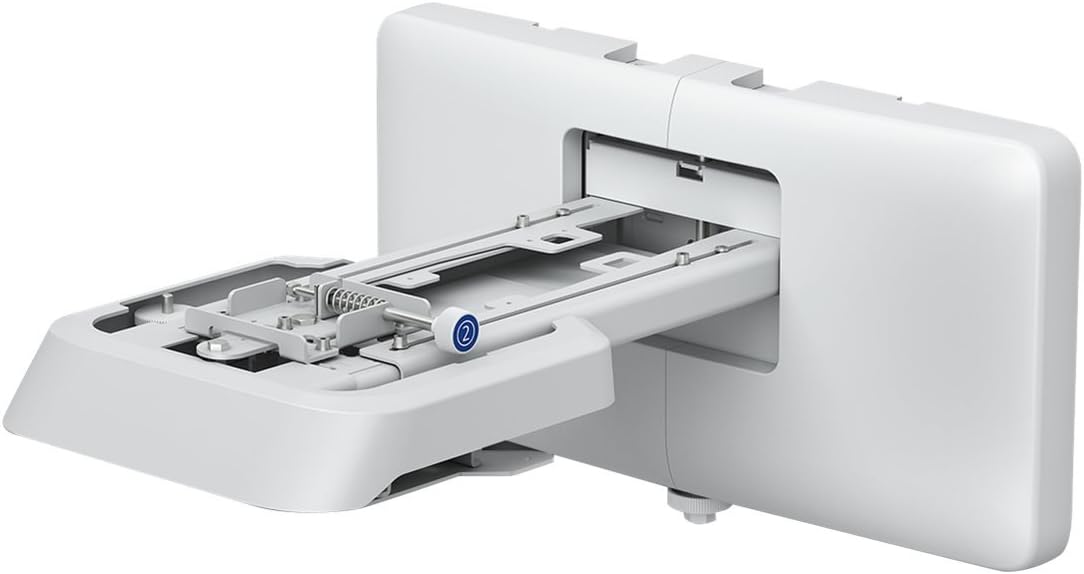

The ELPMB46 Ultra Short-Throw Projector Mount is designed to support Epson PowerLite, BrightLink, and BrightLink Pro ultra short-throw projectors for use with interactive and standard whiteboards. Please see below for a list of compatible projectors.

The mount features a telescopic arm that adjusts to allow a 53 to 100" diagonal image to be displayed from your projector. You can also adjust the vertical and horizontal positions of your projector to set an optimal angle. The mount's design ensures less shadow interference and glare, and it uses a wide mounting plate with a clean look to match an interactive whiteboard environment.

Compatible Epson Projectors
PowerLite 470, 475W, 480, 485W, 570, 575W, 580, 585W, 670, 675W, 680, 685W, 690U
BrightLink 475Wi, 485Wi, 575Wi, 585Wi, 595Wi 685Wi, 695Wi, 696Ui, 697Ui
BrightLink Pro 480i, 475Wi, 485Wi, 1410Wi, 1420Wi, 1430Wi, 1450Ui, 1460Ui

Item Includes

  • Epson ELPMB46 Ultra Short-Throw Projector Mount
  • Wall Mount
  • Wall Plate
  • Wall Plate Cover
  • 3-Axis Adjustment Unit and Slide Plate
  • Hexagonal Shaft
  • Template Sheet
  • VGA Cable
  • Installation Wrench
  • Hexagon Wrench
  • End Cap
  • Installation Hardware
  • Limited 2-Year Warranty

Item Includes

Load Capacity
20.9 lb / 9.5 kg
Image Display
53 to 100" / 135 to 254 cm
Vertical Slide Adjustment Range
±1.5"
Horizontal Slide Adjustment Range
±1.8"
Forward/Backward Adjustment Range
0.5 to 13.8" / 1.3 to 35 cm
Horizontal Roll Adjustment Range
±3°
Horizontal Rotation Adjustment Range
±8°
Vertical Tilt Adjustment Range
±3°
Dimensions
28.7 x 19.9 x 10.9" / 73 x 50.5 x 27.7 cm
Weight
15.9 lb / 7.2 kg
Packaging Info
Package Weight
20.5 lb
Box Dimensions (LxWxH)
18.5 x 13 x 11.3"
