JVC Triple 5" Rack Display Monitor With HDMI

Name: JVC Triple 5" Rack Display Monitor With HDMI
Brand: JVC
SKU: DT-X51HX3
Price: 3182.00 USD
Availability: InStock

SKU DT-X51HX3

$3,182.00 - $3,182.00

$3,182.00

$3,182.00 - $3,182.00

$3,182.00

Triple Monitor Display
500:1 Contrast Ratio
800 x 480 Resolution
16x9 Aspect Ratio (4:3 Adjustable)

Quantity

Our Customers & Partners

Features

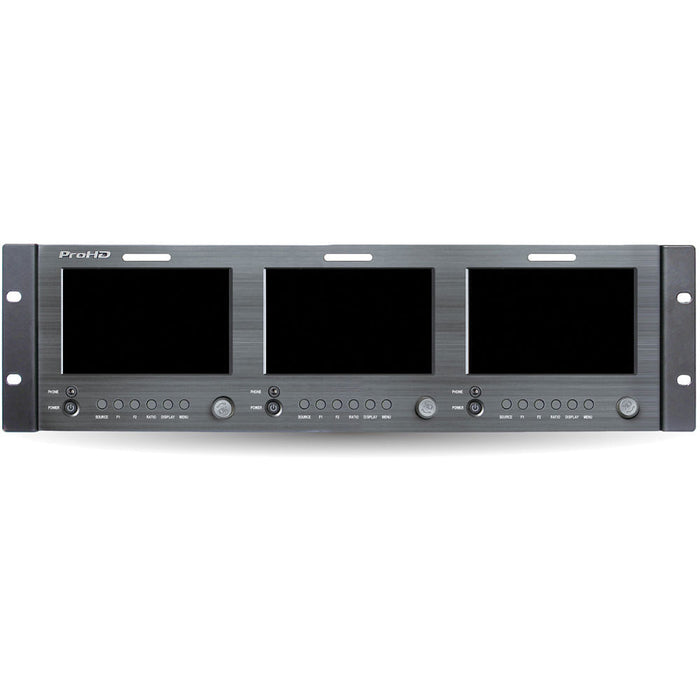

TheJVC DT-X51HX3 Triple 5" Rack Display Monitoris a 3RU standard rack mount LCD monitor with 3 high-resolution 5" LCD panels, independent input control, 800 x 480 resolution and a wide viewing angle of 140H by 120V.
Each LCD monitor accepts 1 - 3G/HD/SD-SDI, 1 - HDMI, and 1 - Composite video input, and has 1 - 3G/HD/SD-SDI, 1 - HDMI, and 1 - Composite video loop through output. The X51HX3 also supports SDI and HDMI embedded audio output and tally light control and display. The DT-X51HX3 also offers a high luminance level of 350 cd/m2 and a contrast ratio of 500:1.

Item Includes

JVC Triple 5" Rack Display Monitor With HDMI

AC Power Adapter

Limited 1-Year Warranty

Item Includes

Monitor Type	Triple 5" LCD Rack Display Monitor
Screen Size	Triple 5" LCD Panels
Resolution	800 x 480
Display Colors	RGB
Viewing Angle	140 H/120 V
Brightness	350 cd/m2
Contrast Ratio	500:1
Inputs/Outputs	Inputs: 1x - 3G/HD/SD-SDI input (for each display) 1x - Composite video input (for each display) 1x - HDMI input (for each display( Outputs: 1x - 3G/HD/SD-SDI loop through output (for each display) 1x - Composite video loop through output (for each display) 1x - HDMI loop through output (for each display)
Operating Temperature	32 - 104F (0 - 40C)
Power Requirements	12V DC supply (120V with provided adapter)
Power Consumption	Power consumption less than 24W
Dimensions (WxHxD)	19 x 5.2 x 3.15" (483 x 132 x 80 mm)
Weight	4.6 lb (2.1 kg)

Packaging Info

Package Weight	6.35 lb
Box Dimensions (LxWxH)	20.3 x 7.2 x 6"
