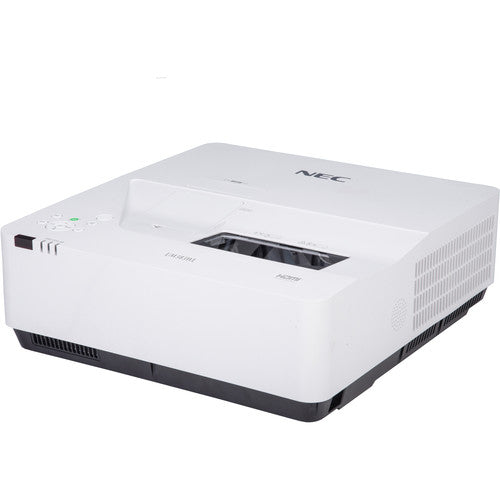

NEC UM383WL LED LCD UST Projector

NEC UM383WL LED LCD UST Projector

SKU UM383WL
Save 54% Save 54%
$4,470.00
$4,470.00 - $4,470.00
$4,470.00
$2,046.00
$2,046.00 - $2,046.00
$2,046.00
  • Maximum Brightness of 3800 Lumens
  • WXGA (1280 x 800) Native Resolution
  • 0.27 to 0.29:1 Ultra-Short Throw Ratio
  • Integrated Ethernet Connectivity
  • VGA, Composite Video, 2x HDMI Inputs
  • Analog Audio Input and Output
  • Dual Built-In 10W Speakers
  • Ethernet & RS-232 Controllable
  • Includes VGA Cable & IR Remote

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

NEC UM383WL LED LCD UST Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

3,800 Lumen, WXGA, LCD, HLD LED Ultra Short Throw Projector

NEC's UM383WL ultra short throw HLD LED projector is a low maintenance display solution for education and corporate customers that need up to 130" diagonal video and images at an affordable cost.

With its ability to be mounted to the wall directly above the screen on which it projects, this model helps eliminate the shadows and glare typically found with standard projection systems. The UM383WL includes LCD optics, a long lasting light source and full connectivity including RJ-45 for remote management over a network.

Item Includes

  • NEC NP-UM383WL 3800-Lumen WXGA Ultra-Short Throw Education & Corporate LCD Projector
  • Remote Control with Batteries
  • VGA Cable
  • Security Sticker
  • Power Cord
  • Limited 5-Year Warranty with Registration

Item Includes

Image Display
Display System
0.76" Micro Lens Array (MLA) LCD
Native Chip Resolution
1280 x 800 (WXGA)
Supported Resolutions
Maximum: WUXGA - 1920 x 1200
Maximum Brightness
3800 Lumens
Aspect Ratio
Native: 16:10
Dynamic Contrast Ratio
380,000:1
Scan
Horizontal: 15 to 100 kHz
Vertical: 50 to 120 Hz
Lens
Focus
Manual
Lens
f/1.78 - 1.83 (f = 4.92 - 5.18 mm)
Optical Zoom
1.05x
Throw Distance
16.14 - 29.88" / 41 - 75.9 cm
Throw Ratio
0.27 to 0.29:1
Projection Size
70 to 130" / 177.8 to 330.2 cm
Features
Keystone Correction
Horizontal: ± 10°
Vertical: ± 10°
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
Yes (Stereo)
Speaker Power
20W
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2 x HDMI Audio, Video Input
1 x DE-15/DB-15 (VGA) Video Input
1 x USB-A 2.0 Data Input
1 x RCA (Composite) Video Input
1 x 2RCA Audio Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x DE-9/DB-9 (RS-232) Control Input
1 x RJ45 (Ethernet) Control, LAN
General
Light Source
LED
Expected Lamp Life
Medium Brightness: 20,000 Hours
Fan Noise
Full Brightness: 37 dB
Medium Brightness: 33 dB
Low Brightness: 29 dB
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 4.9 A
Power Consumption
Full Brightness: 460 W
Medium Brightness: 374 W
Low Brightness: 248 W
Standby Mode (Lamp Off): W
Operating Altitude
0.0 to 8858' / 0 to 2700 m
Operating Temperature
41 to 104°F / 5 to 40°C
Storage Temperature
14 to 122°F / -10 to 50°C
Operating Humidity
20 to 80%
Storage Humidity
20 to 80%
Dimensions (W x H x D)
17.7 x 6.2 x 16.7" / 449.0 x 156.7 x 425.0 mm
Weight
23.6 lb / 10.7 kg
