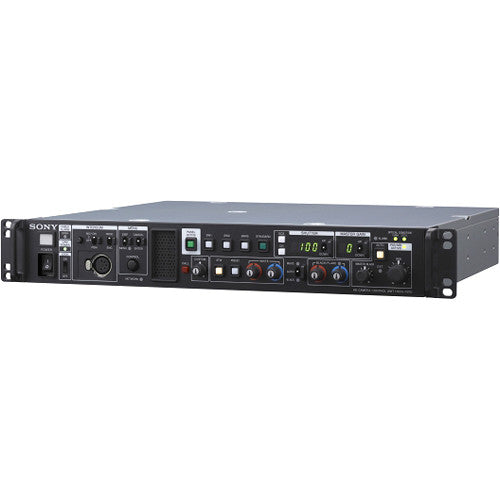

Sony HXCU-FB70 Optical Fiber Camera Control Unit

Sony HXCU-FB70 Optical Fiber Camera Control Unit

SKU HXCU-FB70
Save 51% Save 51%
$15,692.00
$15,692.00 - $15,692.00
$15,692.00
$7,718.00
$7,718.00 - $7,718.00
$7,718.00

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Sony HXCU-FB70 Optical Fiber Camera Control Unit

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

TheSony HXCU-FB70 Optical Fiber Camera Control Unitand its companion, the CA-FB70 camera adapter (sold separately), provide the fiber optic transmission system to the HXD-D70 HD studio camera system (sold separately).This system assists you in capturing high quality pictures and offers flexible integration.

Provides optical fiber transmission capability to the HXC-D70 Camera and PMW-320 / 350 / 500 Camcorders
High quality & long distance image transmission

Item Includes

Sony HXCU-FB70 Optical Fiber Camera Control Unit
  • Number plates (1 seat)
  • Operation instructions
  • CD-ROM
  • Warranty Booklet
  • 1-Year Warranty

Item Includes

Inputs & Outputs
CameraOptical multi-connector
IntercomD-sub 25-pin, female (1x)
Intercom (PROD and ENG), 4W / RTS / CC, 0 dBu
Tally: (R and G)
PGM: 1X system, -20 / 0 / +4 dBu
Remote8-pin (1x)
TrunkD-sub 9-pin (1x), female, RS-232C system (Only for HXC-D70 camera)
LANRJ-45 8-pin (1x) control
SDI OutputBNC (4x) HD / SD selectable at each pair of 2 outputs
Analog Video OutputBNC (3x) Selectable from HD (Y / Pb / Pr or R/G/B) or SD (Y / Cb / Cr or R/G/B)
S-Video OutputMini DIN 4-pin (1x)
OutputVBS: BNC (2x)
PIX (Monitor, VBS): BNC (1x)
Sync Output: BNC (1x)
Audio Outputs: XLR 3-pin (2x)
HDMIMonitor Output: Type A 19-pin (1x), HDMI version 1.3
InputReturn Input (VBS): BNC (2x)
Return Input (SDI): BNC (2x) HD / SD selectable
Prompter Input (VBS): BNC (1x) with loop-through output BNC (1x)
Reference input and Loop-Through: BNC (1x) with loop-through output BNC (1x)
HD: SMPTE-274M, tri-level sync, 0.6 Vpp, 75 Ω
SD: Black burst (NTSC: 0.286 Vpp, 75 Ω / PAL: 0.3 Vpp, 75 Ω)
IntercomHeadset: XLR 5-pin (1x)
General
Operation Temperature41 to 104F (5 to 40C)
Power Supply100 to 240 VAC, 50 / 60 Hz
Storage Temperature-4 to 140F (-20 to 60C)
Dimensions (W x H x D)19 x 2.62 x 14.37" (482.6 x 66.54 x 364.99 mm)
1.5 U rack-mount size
Weight14.33 lb (6.49 kg)
Packaging Info
Package Weight19.6 lb
Box Dimensions (LxWxH)21.5 x 21.0 x 9.0"
