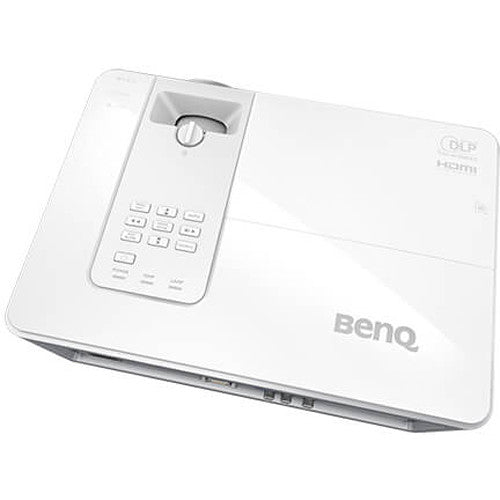

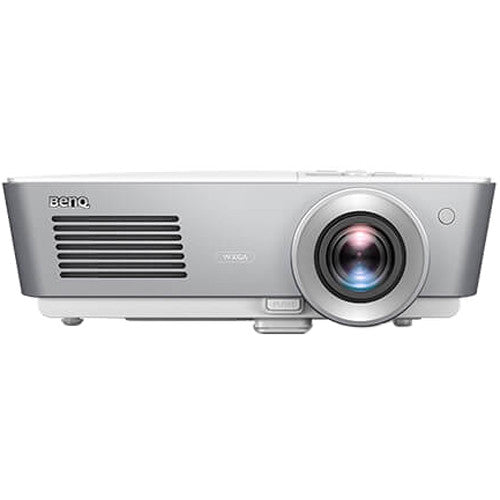

BenQ SU765 5500-Lumen WUXGA DLP Projector

Name: BenQ SU765 5500-Lumen WUXGA DLP Projector
Brand: BenQ
SKU: SU765
Price: 1751.00 USD
Availability: InStock

SKU SU765

Save 29%

$2,472.00

$2,472.00 - $2,472.00

$2,472.00

$1,751.00

$1,751.00 - $1,751.00

$1,751.00

Brightness of 5500 ANSI Lumens
WUXGA (1920 x 1200) Resolution
1.39-2.09:1 Throw Ratio
HDMI & VGA Video Ports
VGA Output for Loop-Through
LAN & RS-232 Control Ports
Built-In 5W Speaker
3D Sync Output

Quantity

Our Customers & Partners

Features

The SU765 WUXGA 5500-Lumen DLP Projector from BenQ is an installation projector that has a resolution of 1920 x 1200. It has a brightness of 5500 ANSI lumens and a contrast ratio of 10,000:1. This projector supports a throw ratio of 1.39-2.09:1 with a 1.5x zoom.

This projector features two HDMI ports, two VGA ports (one in and one out), an RCA composite video input, and a 3D sync output. There are 3.5mm audio input and output jacks along with a 5W built-in speaker. A 5.9' power cord, remote control, and two AAA batteries are included.

5500-lumen high brightness allows presenters and participants to conduct presentations in comfortably lit medium-sized conference rooms

Infographic mode can be used to showcase text and infographics in detail

Vivid mode provides enhanced color performance during video or image presentations

High fill factor sharpens images for increased clarity on black and white documents and colorful images alike while reducing eye strain

WUXGA (1920 x 1200) native resolution in expanded 16:10 aspect ratio delivers subtle details, ultra-sharp readability, and increased display capacity

InstaShow wireless presentation system and QCast mirror HDMI dongle available separately

Replaces projectors mounted anywhere from 14.76 to 21.98' from the screen and projects images of 120"

Digital image shrinking shrinks the image to 80% of the original size in 0.5% increments via OSD menu

Lens shift enables projected images to be moved up and down within the range of 13% of screen height

Two-dimensional keystone correction range of ±30° on both horizontal and vertical axes to counteract the trapezoid effect when the projector must be installed off-center

Corner fit control adjusts each corner independently for aligned image geometry

Compatible with leading projector control systems including Extron, Crestron, AMX, and PJ-Link for network control via LAN

Multiple Display Administrator (MDA) software provides powerful centralized multi-projector management that includes automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations

Signal power on turns your projector on automatically once an input signal from VGA or HDMI is detected

Instant restart provides presenters a 90-second window to reactivate the projector immediately in case it is mistakenly turned off

HDMI 2.0 port is compatible with 4K signal

Quick-release lamp door provides IT managers convenient access for efficient lamp maintenance without removing the projector from the ceiling mount

SmartEco mode analyzes input content to determine the brightness required for optimal color and contrast performance, conserving up to 70% of lamp power while delivering fine image quality

Eco Blank mode will automatically activate after three minutes of inactivity when the projector detects no source content

Eco Blank mode and SmartEco Mode can be activated directly using the remote control (included)

Auto power off after 20 minutes of inactivity

Keeps power consumption to a minimum with 0.5W standby power when inactive

Item Includes

BenQ SU765 5500-Lumen WUXGA DLP Projector
5.9' Power Cord
Remote Control
2 x AAA Battery
Limited 3-Year Manufacturer Warranty

Item Includes

Key Specs

Display System	1-Chip 0.67" DC3 DMD DLP
Native Chip Resolution	1920 x 1200 (WUXGA)
Maximum Brightness	5500 Lumens
Throw Ratio	1.39 to 2.09:1
Inputs/Outputs	2x HDMI Video 1x DE-15/DB-15 (VGA) Video Input 1x RCA (Composite) Video Input 1x 2RCA Audio Input 1x 1/8" / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8" / 3.5 mm Mini Audio Output 1x USB-A 2.0 Power Output 1x USB-B 2.0 Control 1x RJ45 (Ethernet) LAN 1x 12 V Trigger Control 1x DE-9/DB-9 (RS-232) Control 1x 3-Pin DIN (VESA 3D Sync) Control Output
Light Source	Lamp

Image Display

Display System	1-Chip 0.67" DC3 DMD DLP
Native Chip Resolution	1920 x 1200 (WUXGA)
Supported Resolutions	Maximum: WUXGA - 1920 x 1200 Minimum: VGA - 640 x 480
Maximum Brightness	5500 Lumens
Offset	108%
Aspect Ratio	Native: 16:10
Contrast Ratio	10,000:1
DLP Link 3D	Yes
Supported 3D Formats	Frame Sequential Frame Packing Side by Side Top Bottom
Color Depth	10-Bit (1.07 Billion Colors)
Scan	Vertical: 23 to 120 Hz Horizontal: 15 to 102 Hz

Lens

Focus	Fixed
Lens	f/2.42 - 2.97 (f = 20.7 - 31.05 mm)
Lens Shift	Vertical: + 13%
Optical Zoom	1.5x
Throw Ratio	1.39 to 2.09:1
Projection Size	30 to 300" / 76.20 to 762.00 cm

Features

Keystone Correction	Vertical: ± 30° Horizontal: ± 30°
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	Yes (Mono)
Speaker Power	5W

Input/Output Connectors

Inputs/Outputs

2x HDMI Video
1x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
1x 2RCA Audio Input
1x 1/8" / 3.5 mm Mini Audio Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x USB-A 2.0 Power Output
1x USB-B 2.0 Control
1x RJ45 (Ethernet) LAN
1x 12 V Trigger Control
1x DE-9/DB-9 (RS-232) Control
1x 3-Pin DIN (VESA 3D Sync) Control Output

Hardware

Wireless LAN / Wi-Fi

Yes, Built-in

General

Light Source	Lamp
Lamp Power	330 W
Expected Lamp Life	Full Brightness: 3000 Hours Medium Brightness: 5000 Hours Low Brightness: 6000 Hours
Fan Noise	Full Brightness: 39 dB Medium Brightness: 36 dB
Security	Keypad Lock Security Bar
Supported Languages	Arabic Bulgarian Croatian Czech Danish Dutch English Finnish French German Greek Hindi Hungarian Indonesian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 4.5 A
Power Consumption	Full Brightness: 440 W Medium Brightness: 420 W Low Brightness: 330 W Standby Mode (Lamp Off): < 0.5 W
Operating Altitude	9842' / 3000 m
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	10 to 90%
Storage Humidity	10 to 90%
Dimensions (W x H x D)	14.2 x 4.8 x 10.2" / 359.8 x 120.8 x 259.0 mm
Weight	8.16 lb / 3.7 kg

Packaging Info

Package Weight	12.05 lb
Box Dimensions (LxWxH)	17.9 x 14.7 x 9.5"
