Features
Three-Phase Fast Charging — Connect to a standard 380 V three-phase supply (USA 480 V 3 Phase) and unlock high-speed charging performance. Delivers up to 12,000 W for rapid battery replenishment.
Versatile Power Compatibility — Also supports single-phase input (200–264 V) with up to 3,000 W output—perfect for field use where three-phase isn’t available.

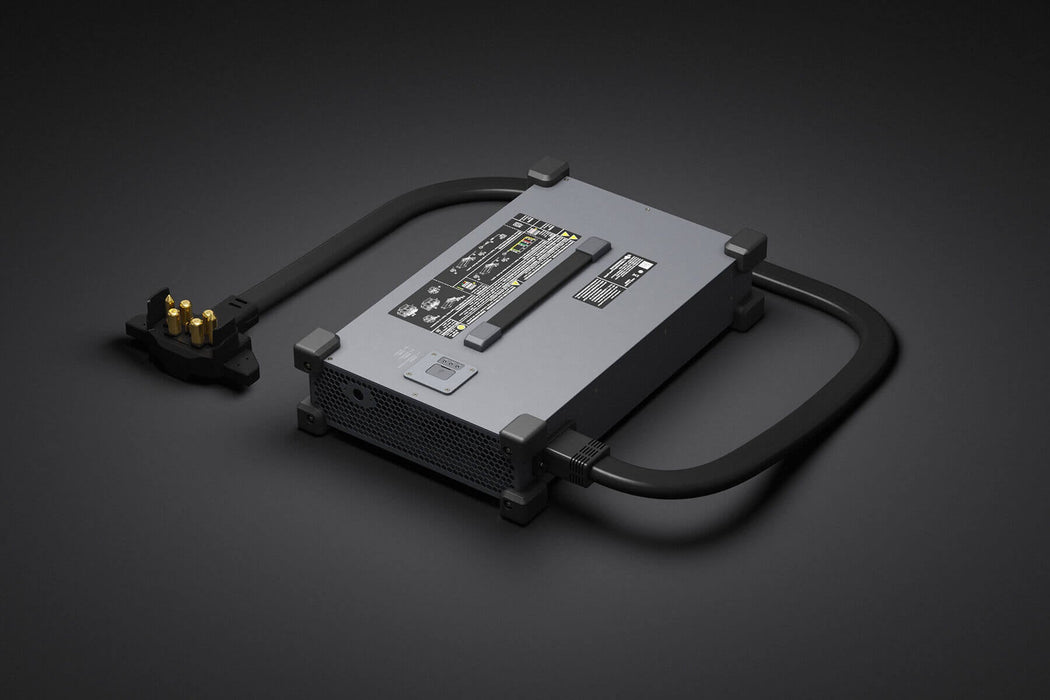

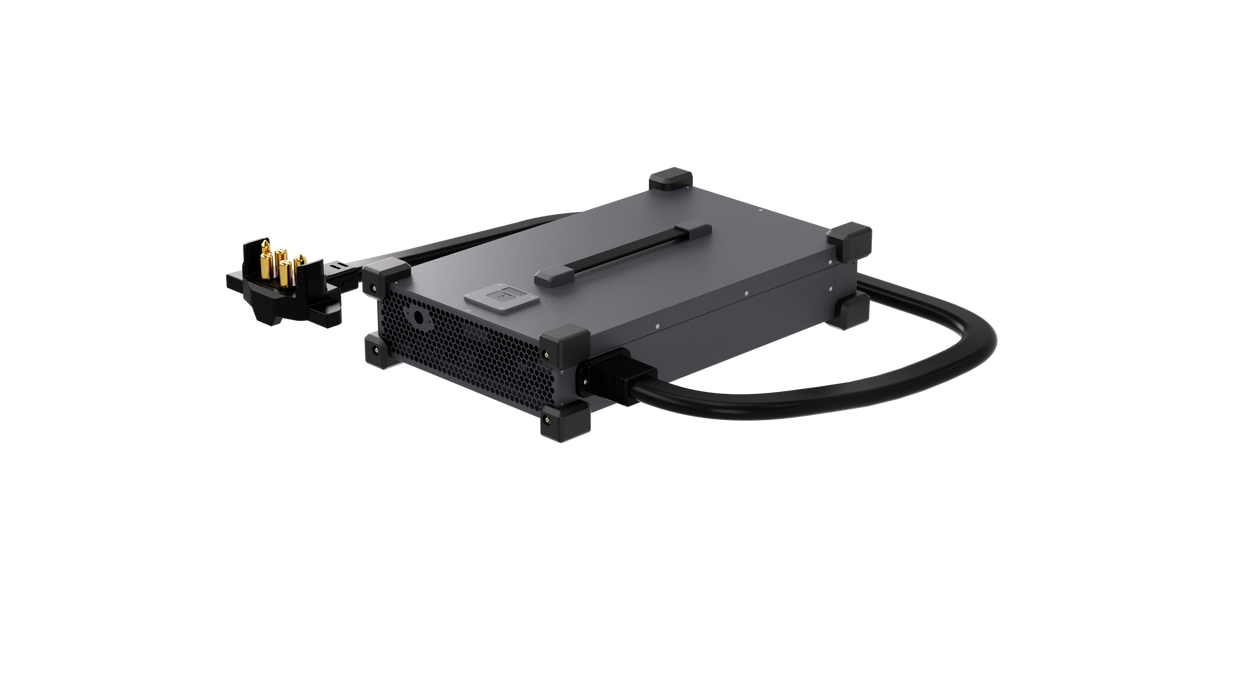

Rugged, Field-Ready Design — Compact (456 × 291 × 107 mm), durable casing, and a 1.8 m charging cable built to withstand challenging agricultural environments.
Smart Protection — Equipped with advanced safeguards for over-voltage, under-voltage, over-temperature, short circuit, and fan stall scenarios.
Rapid Charge Times — 30%→95% charge on a DB2160 Intelligent Flight Battery in just 8–9 minutes when using three-phase power.
Field Integration — Activates and updates seamlessly through your Agras remote for streamlined operations, even in remote locations.
Why It’s the Go-To Charger for Agras Fleets
In agricultural drone operations, downtime equals lost productivity—and precision timing can mean the difference between a successful spraying day and a costly delay. The DJI C12000's three-phase fast charging capability ensures your batteries recharge swiftly, so your fleet stays airborne and your workflow stays uninterrupted.
Compatible with DJI Agras T100 Sprayer Drone.
Item Includes
Input Voltage:
Three-Phase AC: 175 V – 520 V.
Single-Phase AC: 200 V – 264 V.
Rated Power:
12,000 W (Three-phase 380 V input).
3,000 W (Single-phase 220 V input).
Output Parameters: 62 VDC at a rated current of 194 A.
Recharge Speed: Charges a DB2160 Intelligent Flight Battery from 30% to 95% in approximately 8–9 minutes under three-phase power.
Dimensions: 456 mm × 291 mm × 107 mm.
Weight: 13.13 kg (approx. 28.95 lbs).
DJI Agriculture
DJI Agriculture
+7
Operational Features
Compatibility: Optimized for DB2160 and DB1580 batteries.
Protective Safeguards: Includes monitors for over-temperature, over-voltage, under-voltage, short circuits, and fan stall.
Operating Conditions: Rated for environments between 0°C and 40°C (32°F to 104°F).
Physical Protection: Ruggedized, weather-resistant casing with integrated heat-dissipation fans.
