DJI Ligh-T 4 Tethering Station

Ligh-T 4 Tethering Station for Matrcie 30 Series (Demo Unit)

SKU 297402218247
Save 42% Save 42%
$44,475.00
$44,475.00 - $44,475.00
$44,475.00
$25,692.00
$25,692.00 - $25,692.00
$25,692.00

Key features

This DJI Ligh-T 4 Tethering Station is perfect for professionals and hobbyists alike, designed to work seamlessly with the Matrice 30 series. With its robust design and reliable performance, it's a game-changer for anyone looking to elevate their drone experience. The station's advanced features make it easy to capture stunning footage and photos, while its durable construction ensures it can withstand the rigors of frequent use. Whether you're a seasoned pro or just starting out, this tethering station is sure to take your drone flying to the next level. Brand    DJI
Model    Ligh-T 4 Tethering Station
Type    Professional Drone Accessory
Compatibility    Matric 30 Series

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Ligh-T 4 Tethering Station for Matrcie 30 Series (Demo Unit)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Elistair Ligh-T is a compact and rugged tether station for drones, offering extended flight time to drone operators. The micro-tether provides a continuous power supply, secure and high-speed data transfer and physical security against fly away. Easily transportable and deployable on various types of terrain, the Ligh-T is compact, and can be operational in minutes. Designed to meet the requirements of the NF EN 60950-1 standard and French Civil Aviation laws, the Ligh-T brings a greater legal flexibility to drone operations.

The Ligh-T 4 includes:

  • Dual-Mode Winch: Automatic Tether Management system, with motorized auto-tensioning, adjustable to your mission needs. This Enables the user to switch from motorized to manual mode easily, depending on the mission.
  • Data Transfer: Up to 200 Mb/s Ethernet datalink, secured and unjammable.

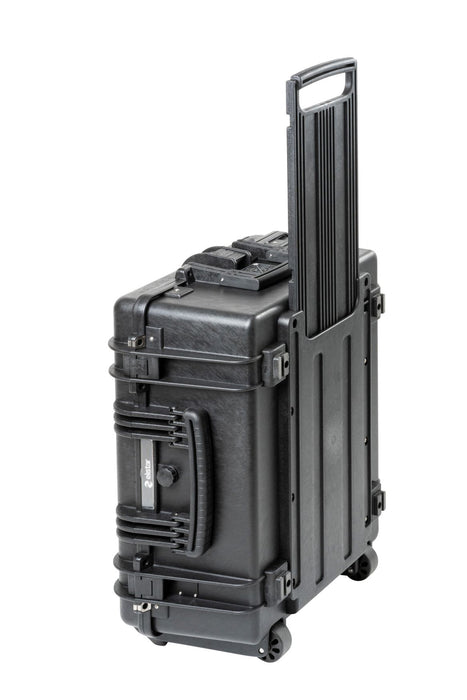

Non-conducting and crushproof, the Ligh-T case is tailored for demanding field operations. Its padded handle makes it easily transportable whilst the foam integrated lid protects and secures the micro-tether’s integrity during transportation.

Please Note: A minimum 3000 W Generator/Inverter is required, and if it has an "eco/quiet mode' ensure that it is turned off, as it dampens the power output.

Power Source Requirements:

  • 30 VAC, 50-60 Hz, 4 kW min for power source
  • 120 VAC, 50-60 Hz, 3 kW min for power source
  • 30mA differential circuit breaker needed

When using a generator as the external power source, choose a pure sinewave inverter.

Item Includes

  • Ligh-T 4 Tethering Station for Matrcie 30 Series (Demo Unit)

Item Includes

Dimensions 627x475x292 mm (25x19x12 in)
 Weight 20 kg (44 lbs.)
Built-in protection Fuse
Power Supply Cable Type E
Micro-Tether Management Dual-mode Winch: Manual with handle or Motorized
Wi-Fi Connectivity

Protocol 802.11 b/g/n, Frequency 2.4G-2.5G (2400M-2483.5M) Encryption WEP/TKIP/AES, Security WPA/WPA2. T-Monitor Android application (WIFI)
Carriage 3 + telescopic handle and wheels
Torques Position 1 = 1 N Position 2 = 2 N Position 3 = 4 N Position 4 = 6 N



Micro-tether configurations Power Supply

Power Supply 120 VAC
Length 70 m (230 feet)
Linear Weight 16 g/m
Total Weight 1120 g
Tensile Strength 150 daN
Diameter 3,5 mm
USB Power Supply 5 V / 1.5 A
Power Source Requirements

120 VAC
50-60 Hz
3 kW min
pure sinewave inverter
Max continuous Power

120 VAC: 900 w
230 VAC: 1200 w
Peak Power 10 s

120 VAC: 1200 w
230 VAC: 1500 w
Peak Power 3 s

120 VAC: 1500 w
230 VAC: 2000 w
Recommended Safety Battery

120 VAC: 6S 5Ah 35C
6S 8Ah 35C
Tether operating range

30 to 70 m
60 to 200 ft
Operational temperature

-10° to 40° C
(14° to 95° F)
Data - data speed

80Mb/s minimum (up to 200Mb/s, depends on the packet size)
Data - data connectors

Ethernet RJ45 (Air Module and Ligh-T)

Standard Air Module

Dimensions 168x109x54 mm
Weight 700 g
Output Voltage 6S / 24 V (±2 V) or 12S / 48 V (±3 V)
Safety Battery Cable dimension 15 cm
Safety Battery Cable Connector XT90 Male (to be connected to XT90 female with anti-spark)
Drone Cable dimension 15 cm
Drone Cable Connectors AS150 RED Female, XT150 Black Female
