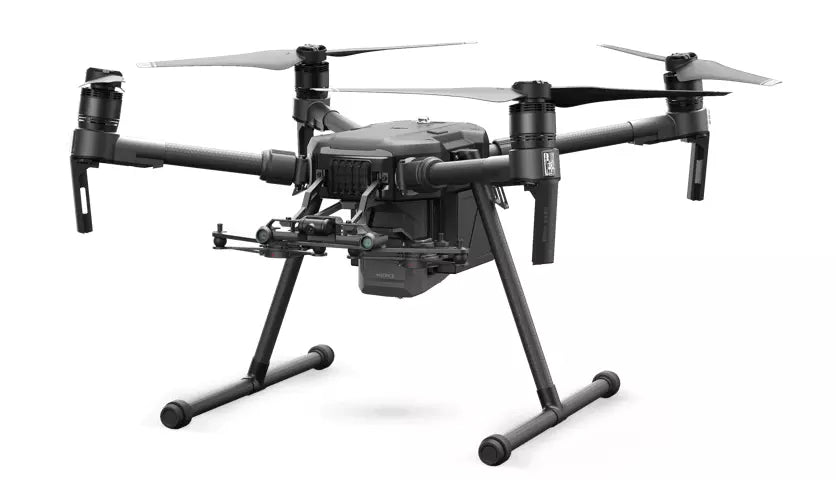

DJI MATRICE 210 RTK (G) V 1.0

Flight Performance
Max Flight Time: Up to 38 minutes (varies with payload).

Max Speed: 23 m/s (51.5 mph) in Sport Mode.

Wind Resistance: 15 m/s (33.6 mph) – stable in tough conditions.

Operating Temp.: -20°C to 50°C (-4°F to 122°F) – works in extreme climates.

IP43 Rating: Splash & dust-resistant (not fully waterproof).

Precision Positioning
RTK & GNSS (GPS + GLONASS + BeiDou) for cm-level accuracy.

RTK Mode: 1 cm (Horizontal) / 1.5 cm (Vertical) precision.

Non-RTK: ~1.5 m (Horizontal) / ~3 m (Vertical).

Dual IMU & Barometer for stable hovering.

Dual Payload Flexibility
Two Gimbal Ports: Simultaneously carry thermal + zoom, LiDAR + RGB, or other combos.

Compatible Cameras:

Zenmuse XT S (Thermal Imaging)

Zenmuse Z30 (30× Optical Zoom)

Zenmuse X4S (20MP 4K Camera)

Zenmuse X5S (Micro Four Thirds)

Intelligent Flight Modes
Spotlight Pro: Auto-tracks moving subjects.

Terrain Follow: Maintains altitude over uneven terrain.

Waypoint Missions: Pre-programmed flight paths.

Obstacle Sensing: Forward & downward sensors (no side avoidance).

Battery & Power
Hot-Swappable TB55 Batteries (x2) – 97.58 Wh each.

Quick Charging: ~60 mins per battery.

• 1x Aircraft Body
• 1x Cendence Remote Controller
• 2x Landing Gear
• 1x Battery Charger
• 1x WB37 Intelligent Battery
• 1x IN2CH Charging Hub
• 1x Carrying Case ** Item Note: Missing 2x TB50 Batteries; C13 Cable for Battery Charger
• 1x WB37 Intelligent Battery; 1x CrystalSky 7.85 " Monitor
• 1x WCH2 Charging Hub

• Aircraft: Folding Method

  Folded Inward

• Aircraft: Diagonal Wheelbase

  25.3" (64.26cm)

• Aircraft: Number of Batteries

  2

• Aircraft: Maximum Payload

  Approx. 1.87kg (with two TB50 standard batteries )

• Aircraft: Hovering Accuracy

  (P-mode with GPS)
  Vertical: +/-1.64' (0.5m) or +/-0.33' (0.1m, Downward Vision System enabled)
  Horizontal: +/-4.92' (1.5m) or +/-0.98' (0.3m.Downward Vision System enabled)

• Aircraft: Maximum Angular Velocity

  Pitch: 300 deg. /s
  Yaw: 150 deg. /s

• Aircraft: Maximum Pitch Angle

  P Mode: 35 deg. (Forward Vision System enabled: 25 deg.)
  A Mode: 35 deg.
  S Mode: 35 deg.

• Aircraft: Maximum Ascent Speed

  16.4 ft/s (5 m/s)

• Aircraft: Maximum Descent Speed

  Vertical: 9.8 ft/s (3 m/s)

• Aircraft: Maximum Speed

  P-mode: 61 kph (17 m/s)
  S-mode/A-mode: 83 kph (23 m/s)

• Aircraft: Maximum Service Ceiling

  Above Sea Level: 1.86 mi (3000m)

• Aircraft: Maximum Wind Resistance

  32.8 ft/s (10 m/s)

• Aircraft: Maximum Flight Time

  27min (No Payload, with TB50)
  13min (Full Payload, with TB50)

• Aircraft: Motor Model

  DJI 3515

• Aircraft: Propeller Model

  1760S

• Aircraft: Retractable Landing Gear

  Standard

• Aircraft: Operating Temperature

  -4 to 113 deg. F (-20 to 45 deg. C)

• Aircraft: IP Rating

  IP43

• Gimbal Installation

  Downward Gimbal Mount: Supported
  Upward Gimbal Mount: Supported
  Downward Dual Gimbal: Supported

• Battery: Capacity

  4280 mAh

• Battery: Voltage

  22.8V

• Battery: Battery Type

  LiPo 6S

• Battery: Energy

  97.58 Wh

• Battery: Operating Temperature

  -4 to 113 deg. F (-20 to 45 deg. C)

• Battery: Storage Temperature

  Less than 3 months: -4 to 113 deg. F (-20 to 45 deg. C)
  More than 3 months: 72 to 82 deg. F (22 to 28 deg. C)

• Battery: Charging Temperature

  41 to 104 deg. F (5 to 40 deg. C)

• Battery: Maximum Charging Power

  180W

• Charger: Voltage

  26.1V

• Charger: Rated Power

  180W

• Forward Vision System: Obstacle Sensing

  Range: 2.3-98.4' (0.7-30m)

• Forward Vision System: FOV

  Horizontal 60 deg.,Vertical 54 deg.

• Forward Vision System: Operating Env.

  Surfaces with clear patterns and adequate lighting (> 15 lux)

• Downward Vision System: Velocity Range

  <32.8 ft/s (10 m/s) at the height of 6.56' (2m)

• Downward Vision System: Altitude Range

  <32.8' (10m)

• Downward Vision System: Operating Range

  <32.8' (10m)

• Downward Vision System: Operating Env.

  Surfaces with clear patterns and adequate lighting (> 15 lux)

• Downward Vision Sys.: Surfaces

  With clear patterns and adequate lighting (> 15 lux): 0.33-16.4' (10-500 cm)

• Downward Vision Sys.: Ultrasonic Sensor

  Operating Environment: Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

• Compatible Gimbals

  Zenmuse X4S
  Zenmuse X5S
  Zenmuse Z30
  Zenmuse XT

• Remote Controller: Operating Frequency

  2.400-2.483 GHz
  5.725-5.850 GHz

• Remote Controller: Transmitting Distance

  Maximum:
  2.4 GHz: 4.3 miles (7 km, FCC)
  2.2 miles (3.5 km, CE)
  2.5 miles (4 km, SRRC)
  5.8 GHz: 4.3 miles (7 km, FCC)
  1.2 miles (2 km, CE)
  3.1 miles (5 km, SRRC)
  (unobstructed, free of interference)

• Remote Controller: EIRP

  2.4 GHz: 26 dBm (FCC)
  17 dBm (CE)
  20 dBm (SRRC)
  5.8 GHz: 28 dBm (FCC)
  14 dBm (CE)
  20 dBm (SRRC)

• Remote Controller: Video Output Ports

  USB, HDMI

• Remote Controller: Power Supply

  Built-in battery

• Remote Controller: Charging

  DJI charger

• Remote Controller: Dual User Capability

  Host-and-Slave connection

• Remote Controller: Mobile Device Holder

  Tablet or Smart Phone

• Remote Controller: Maximum Mobile Device

  Width: 170mm (6.69")

• Remote Controller: Output Power

  9W (Without supplying power to smart device)

• Remote Controller: Operating Temperature

  -4 to 104 deg. F (-20 to 40 deg. C)

• Remote Controller: Storage Temperature

  Less than 3 months: -4 to 113 deg. F (-20 to 45 deg. C)
  More than 3 months: 72 to 82 deg. F (22 to 28 deg. C)

• Remote Controller: Charging Temperature

  32 to 104 deg. F (0 to 40 deg. C)

• Remote Controller: Battery

  6000mAh 2S LiPo

• Remote Controller: USB Supply Power

  iOS: 1 A at 5.2 V (Max)
  Android: 1.5 A at 5.2 V (Max)

• Mobile Device System Requirements

  iOS 9.0 or later, Android 4.4.0 or later

• Supported Mobile Devices

  iOS: iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus

• Supported Mobile Devices (cont.)

  Android: Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1

• Upward Infrared Sensor: Obstacle Sensing

  Range: 0-16.4' (0-5m)

• Upward Infrared Sensor: FOV

  +/-5 deg.

• Upward Infrared Sensor: Operating Env.

  Large-sized object with diffuse reflecting surface or high reflective rate (>10%)

• Dimensions

  Aircraft:
  Unfolded: 34.9 x 34.6 x 16.1" (88.65 x 87.88 x 40.89cm)
  Folded: 28.2 x 9.5 x 9.3" (71.63 x 24.13 x 23.62cm)

• Weight

  Aircraft: Approx. 4.27kg (9.41 lbs) with TB50 battery
  Aircraft (Maximum Takeoff): 6.14kg (13.54 lbs)
  Battery: Approx. 520g (18.34 oz)
