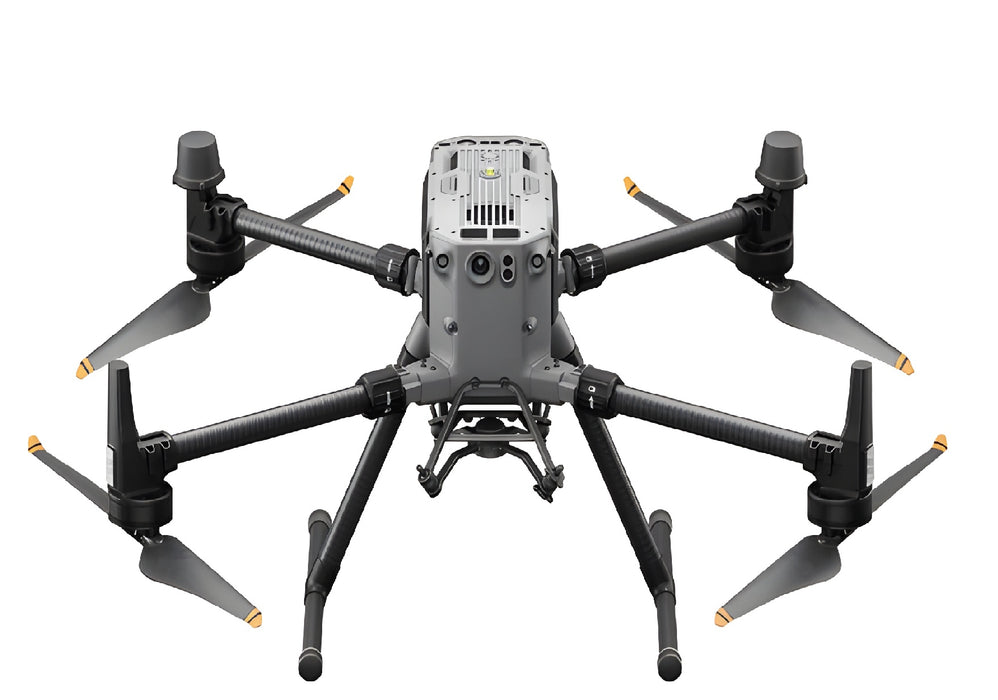

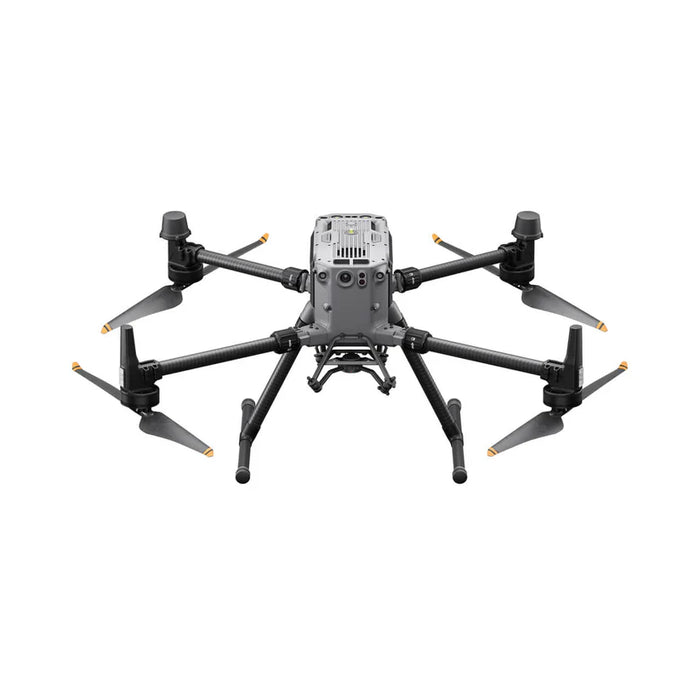

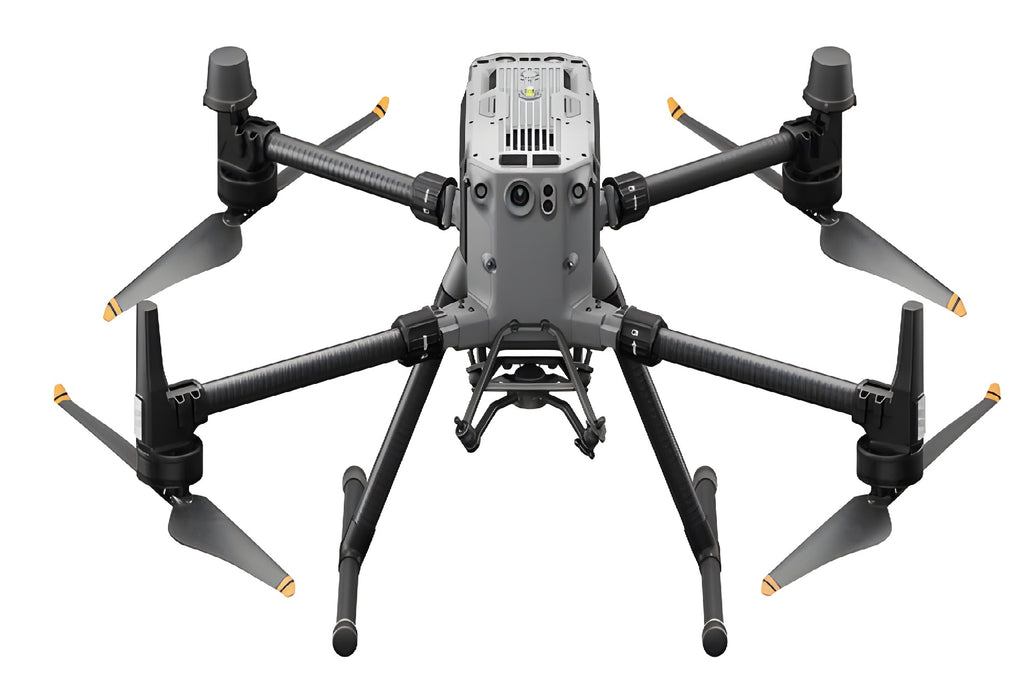

DJI Matrice 350 RTK SP Drone

The DJI Matrice 350 RTK is DJI’s most advanced flagship drone platform, engineered to meet the demands of modern enterprise missions. Whether you're performing precision mapping, powerline inspection, emergency response, or infrastructure surveillance, the M350 RTK delivers uncompromising reliability, flight performance, and operational efficiency.

Building on the success of its predecessor, this next-generation system introduces powerful upgrades including the O3 Enterprise transmission system, a ruggedized IP55-rated airframe, a hot-swappable dual-battery system, and enhanced AI mission automation. With expanded payload compatibility and support for advanced mapping and inspection software, the Matrice 350 RTK empowers teams to scale their aerial workflows with confidence.

Key Features:

• Up to 55 Minutes of Flight Time
  The TB65 dual-battery system supports hot-swapping and 400+ charging cycles—allowing extended missions and reduced cost per flight.

• O3 Enterprise Transmission
  Triple-channel 1080p video with a max transmission distance of 20 km. Four-antenna design improves stability and anti-interference.

• IP55-Rated All-Weather Design
  Designed to fly in rain, dust, and extreme temperatures (-20°C to 50°C), the M350 RTK performs in the harshest field environments.

• Powerful Payload Flexibility
  Supports up to 3 gimbals simultaneously and is compatible with Zenmuse H30, H30T, L2, P1, H20N, and more—including Payload SDK devices.

• Advanced Positioning & RTK Accuracy
  GNSS + RTK delivers centimeter-level precision, even in GNSS-challenged areas—ideal for surveying, construction, and inspection.

• DJI RC Plus Remote Controller
  Equipped with a 7" 1200-nit display, IP54 rating, and up to 6 hours of battery life with WB37 external battery.

• Automated & Repeatable Missions
  Live Mission Recording and AI Spot-Check enable automated flight paths and repeat inspections with pinpoint framing accuracy.

• Next-Gen Battery Station (BS65)
  Manage, charge, and transport batteries efficiently with modes like Ready-to-Fly and Storage Mode for long-term health.

• Cloud-Based Fleet Collaboration
  Integration with DJI FlightHub 2 enables real-time mapping, route sharing, and collaborative air-to-ground coordination.

• Data Security First
  Includes AES-256 encryption, Local Data Mode, one-tap device data wipe, and compatibility with private networks.

• Aircraft × 1
• RC Plus × 1
• WB37 Intelligent Battery × 1
• TB65 Intelligent Flight Battery × 2
• Carrying Case × 1
• BS65 Intelligent Battery Station × 1
• Landing Gear × 2
• Matrice 350 RTK 2110s Propellers (Pair) × 1
• Screws and Tools × 1
• Cleaning Tools × 1
• Spare Gimbal Damper × 4
• Rubber Port Cover (Set) × 1

Aircraft

• Unfolded Dimensions (no propellers): 810 × 670 × 430 mm

• Folded Dimensions (with propellers): 430 × 420 × 430 mm

• Diagonal Wheelbase: 895 mm

• Weight (without batteries): Approx. 3.77 kg

• Weight (with 2 TB65 batteries): Approx. 6.47 kg

• Max Takeoff Weight: 9.2 kg

• Max Payload (Single Gimbal Damper): 960 g

• Max Flight Time: Up to 55 minutes (no payload, windless)

• Max Flight Altitude:

  • 5000 m with 2110s propellers

  • 7000 m with 2112 High-Altitude Low-Noise Propellers

• Max Wind Resistance: 12 m/s

• Max Horizontal Speed: 23 m/s

• Max Ascent Speed: 6 m/s

• Max Vertical Descent Speed: 5 m/s

• Max Tilted Descent Speed: 7 m/s

• Max Pitch Angle:

  • 30° (manual)

  • 25° (N mode with forward vision enabled)

• Max Angular Velocity:

  • Pitch: 300°/s

  • Yaw: 100°/s

• Hovering Accuracy:

  • Vertical: ±0.1 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK FIX)

  • Horizontal: ±0.3 m (vision), ±1.5 m (GNSS), ±0.1 m (RTK FIX)

• RTK Positioning Accuracy:

  • Horizontal: 1 cm + 1 ppm

  • Vertical: 1.5 cm + 1 ppm

• Ingress Protection Rating: IP55

• Operating Temperature: -20°C to 50°C

• GNSS Supported: GPS + GLONASS + BeiDou + Galileo

• Gimbal Configurations Supported:

  • Single downward

  • Single upward

  • Dual downward

  • Downward + upward

  • Dual downward + upward

• Compatible Gimbals: Zenmuse H30, H30T, H20, H20T, H20N, L2, L1, P1

Remote Controller (DJI RC Plus)

• Display: 7.02” LCD touchscreen, 1920×1200, 1200 nits brightness

• Weight:

  • Without battery: 1.25 kg

  • With WB37 battery: 1.42 kg

• Built-in Battery:

  • 6500 mAh, 7.2 V

  • Charging via battery station or USB-C (max 65W)

  • Charging time: ~2 hours

• External Battery (WB37):

  • Capacity: 4920 mAh

  • Voltage: 7.6 V

  • Energy: 37.39 Wh

• Operating Time:

  • Built-in only: ~3.3 hours

  • With WB37: ~6 hours

• Ingress Protection: IP54

• Operating Temp: -20°C to 50°C

• Connectivity:

  • Wi-Fi 6 (2.4 / 5.2 / 5.8 GHz)

  • Bluetooth 5.1

Video Transmission

• System: DJI O3 Enterprise

• Antennas: 4 (2T4R)

• Max Transmission Distance:

  • FCC: 20 km

  • CE/SRRC/MIC: 8 km

Vision System

• Sensing Range:

  • Forward/Backward/Left/Right: 0.7–40 m

  • Upward/Downward: 0.6–30 m

• FOV:

  • Forward/Backward/Downward: 65° H, 50° V

  • Left/Right/Upward: 75° H, 60° V

• Operating Conditions: Requires surface textures and >15 lux lighting
