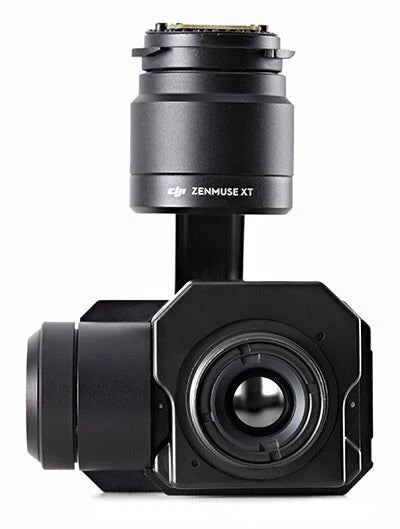

DJI Zenmuse XT 9Hz 640x512 Thermal Camera

DJI Zenmuse XT 9Hz 640x512 9mm ID:12112

SKU DJIZXT640
Save 52% Save 52%
$35,436.00
$35,436.00 - $35,436.00
$35,436.00
$17,125.00
$17,125.00 - $17,125.00
$17,125.00
Key Features
  • Gimbal with Integrated Thermal Camera
  • Mounts to Select DJI Aircraft
  • 640 x 512 Resolution
  • Full Frame Rate of 9 Hz
  • 9mm Camera Lens
  • 360° Gimbal Rotation
  • Reveals Subtle Temperature Differences
  • Designed for Emergency Responders
  • Helps Locate Missing People
  • Image Enhancement Software

Designed for use with:
All Drones
DJI Matrice 200
DJI Matrice 210
DJI Matrice 210 V2
DJI Wind-04

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

DJI Zenmuse XT 9Hz 640x512 9mm ID:12112

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

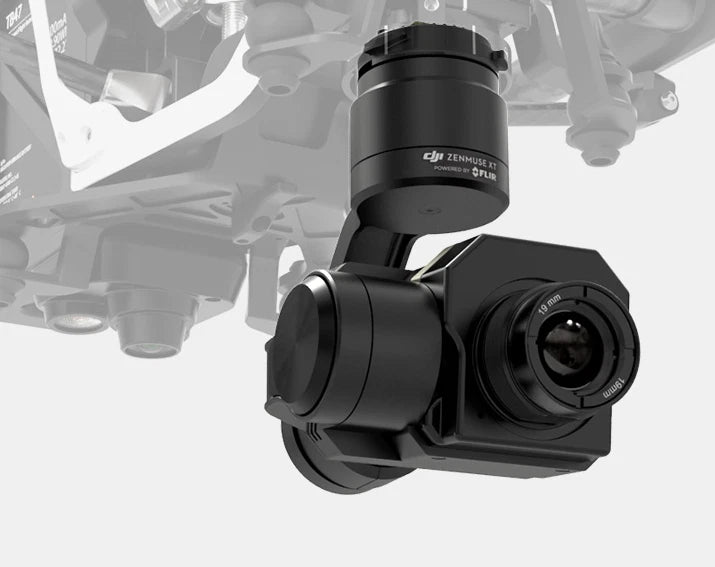

Unlock the possibilities of thermal aerial imaging with this Zenmuse XT Performance Temperature Camera from DJI. Combining DJI's gimbal and image transmission technology with a FLIR thermal camera supporting 640 x 512 resolution and a 9 Hz frame rate, the Zenmuse XT allows professionals to capture thermal images with pinpoint precision over large areas and save them for analysis and reporting. The Zenmuse XT mounts to a Matrice 100, Matrice 600, or Inspire 1 aircraft (all available separately). Seamless integration with the aircraft enables complete access to key features such as long-range video transmission, Intelligent Flight Modes, and customization through the DJI SDK.

The FLIR camera on the Zenmuse XT comes equipped with a 9mm lens that delivers high-sensitivity 50mK thermal imaging at 640/30 fps, providing accurate temperature measurements. The camera displays thermal imagery in real time while showing a temperature estimate at the center of the screen, which empowers emergency responders to quickly identify zones with contrasting temperatures in critical operations where each moment counts. Stabilized and controlled by a custom gimbal, the Zenmuse XT allows 360° rotational movement to ensure smooth, clear images.

Quickly Visualize Temperature Differences
Engineered for emergency responders, this camera displays thermal imagery in real time while showing a temperature estimate at the center of the camera view. This makes it possible to quickly identify large temperature differences, a crucial aid in search and rescue operations.
Seamless Integration
The Zenmuse XT is designed to be mounted to a Matrice 100, Matrice 600, or Inspire 1 aircraft, allowing you to take off and capture detailed thermal aerial images in seconds.
Purpose-Built Applications
Purpose-built apps such as XT Pro, DJI Pilot, DJI GS Pro, and DJI GO are available separately, enabling you to use your mobile device to enhance your control of the Zenmuse XT thermal camera in a wide range of mission profiles.
Image Enhancement Software
This camera features a suite of image enhancements designed by FLIR. These include Digital Detail Enhancement (DDE), Smart Scene Optimization (SSO) that accentuates extremes in bi-modal scenes, Active Contrast Enhancement (ACE) that adjusts scene contrast relative to its temperature difference, and Information-Based HEQ (IBHEQ) that compresses complex image data to create the best quality image.

Item Includes

  • DJI Zenmuse XT Performance Temperature Camera (640 x 512, 9 Hz, 9mm)
  • Limited 6-Month Manufacturer Warranty

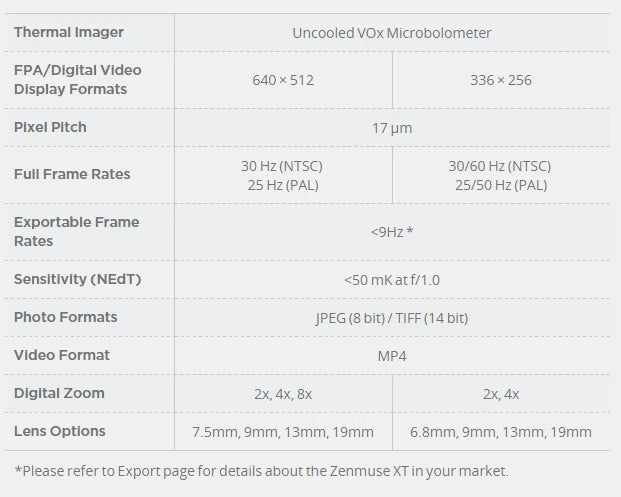

Item Includes

Camera
Thermal Imager
Uncooled VOx Microbolometer
Digital Video Format
640 x 512
Analog Video Format
NTSC: 720 x 480
PAL: 720 x 576
Pixel Pitch
17 μm
Spectral Band
7.5 to 13.5 μm
Full Frame Rates
9 Hz
Exportable Frame Rates
NTSC: 7.5 Hz
PAL: 8.3 Hz
Sensitivity
Up to 50 mK at f/1.0
Scene Range
High Gain: -13 to 275°F / -25 to 135°C
Low Gain: -40 to 1022°F / -40 to 550°C
Spot Meter
Temperatures Measured in Central 4x4
File Storage
microSD Card
Photo Formats
JPEG (8-Bit), TIFF (14-Bit)
Video Format
MP4
Focal Length
9 mm
Gimbal
Angular Vibration Range
±0.03°
Mount
Detachable
Controllable Range
Tilt: 35 to -90°
Pan: ±320°
Roll: ±15°
Mechanical Range
Tilt: 45 to -135°
Pan: ±320°
Roll: ±45°
Controllable Speed
120°/sec max
On Screen Display Controls
Digital Zoom
2x, 4x, and 8x
Other Functions
NTSC/PAL field switchable, image optimization, digital detail enhancement, polarity control (black hot/white hot), and color & monochrome palettes (LUTs)
Environmental
Operating Temperature Range
14 to 104°F / -10 to 40°C
Non-Operating Temperature Range
-22 to 158°F / -30 to 70°C
Temperature Shock Test
5°C/minute
Humidity
5 to 95%
General
Dimensions
4.05 x 2.91 x 4.01" / 10.3 x 7.4 x 10.2 cm
Weight
0.59 lb / 270 g
