JVC DT-E21L4U 21.5" Multi-Format HD LCD Monitor

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

JVC DT-E21L4U 21.5" Multi-Format HD LCD Monitor

SKU DT-E21L4U
Save 55% Save 55%
$4,198.50
$4,198.50 - $4,198.50
$4,198.50
$1,882.44
$1,882.44 - $1,882.44
$1,882.44
  • JVC 21" Verite Series DT-V21G11Z LCD Monitor
  • AC Adapter
  • Stand for Installation
  • Limited 1-Year Warranty

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

JVC DT-E21L4U 21.5" Multi-Format HD LCD Monitor

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

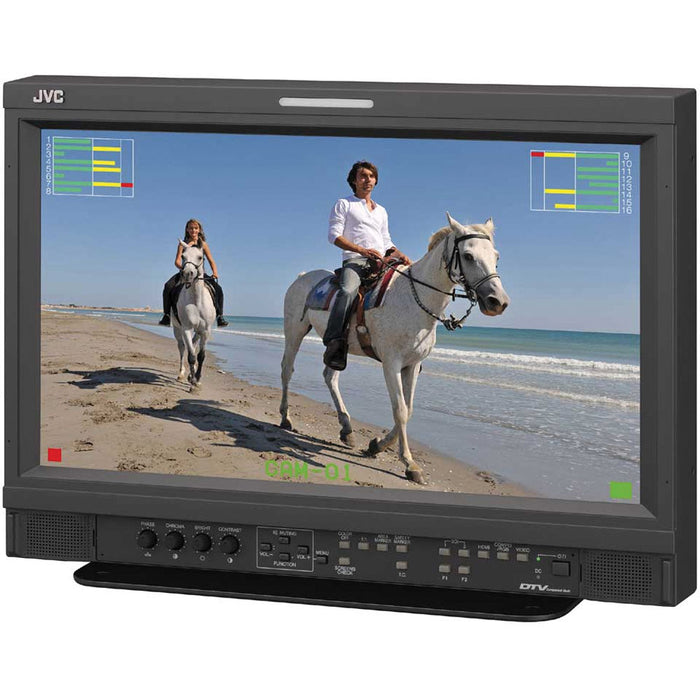

TheJVC DT-E21L4U 21.5" Multi-Format HD LCD Monitoris JVC's cost-effective alternative to its industry-standard DT-V high-end studio monitors.

The monitor consumes 20-30% less power than conventional CCFL monitors do. Other than cost and environmental efficiency, reduced consumption also makes possible for 12VDC support to be added for field use.

Inputs and outputs include HD/SD-SDI and HDMI. Resolution is full HD at 1920 x 1080, contrast ratio is 1000:1, and color processing is at 10 bit. LED backlighting provides improved contrast and black level. The monitor has built-in speakers and 16-channel embedded audio with a level indicator.

Additional features consist of low latency, area / center / safety markers, LTC and VITC time code support, and an In-Monitor Display function (IMD) based on TSL's UMD protocol version 4. A 3-way stand comes included for versatile installation.

Cost-Effective Alternative to DT-V Monitors

  • Consumes 20-30% less power than CCFLs
  • 1920 x 1080 resolution and a 1000:1 contrast ratio
  • 16.7 million display colors and 10-bit color processing
  • LED backlight provides improved contrast and black level
  • Comprehensive set of connectors include HD/SD-SDI / HDMI

Audio, Performance and Functionality

  • Low latency of less than one frame in field mode
  • Built-in speakers / 16-ch embedded audio with level meter
  • Area, center, safety markers and LTC / VITC time code support
  • In-Monitor Display function shows status with text and color tally lamps
  • Features panel buttons and controls. Functions can be assigned to F1 / F2
  • An AC adapter as well as a DC power input connector comes included with the monitor

Item Includes

  • JVC DT-E21L4U 21.5" Multi-Format HD LCD Monitor
  • AC Adapter
  • 12-17V DC Power Input Connector
  • 3-Way Stand for Versatile Installation
  • Limited 1-Year Warranty

Item Includes

Display21.5" LCD display (54.6 cm)
Aspect Ratio16:9
Resolution1920 x 1080 total pixels
Inputs(2) HD/SD-SDI on BNC
(1) HDMI
(1) Composite on BNC
(1) Component analog RGB on Mini D-Sub 15-pin
(1) L/R 3.5mm RCA audio
(1) RS-485 on 8-pin RJ-45
(1) RS-232C on 9-pin D-sub
Make/Trigger: 8-pin RJ-45
Outputs(1) HD/SD-SDI on BNC (switched / reclocked out)
(1) Composite loop-through on BNC
(1) L/R 3.5mm RCA audio
(1) Monitor audio out
(1) RS-485 on 8-pin RJ-45
Panel SurfaceNon-glare
Viewing Angle170 x 160
Contrast Ratio1000:1
Display Colors16.7M
BacklightMercury-free LED backlight
Power RequirementAC 120, 220-240V 50/60 Hz
DC 12-17V
Speaker Output1W x 2
VESA Standard3.93 x 3.93" / M4 x4 (10 x 10 cm)
Dimensions20.2 x 12.3 x 7.1" (51.5 x 13.8 x 18.1 cm)
Weight17 lbs (7.7 kg)
13.6 lbs without stand (6.2 kg)
Packaging Info
Package Weight21 lb
Box Dimensions (LxWxH)24 x 20 x 11.5"
