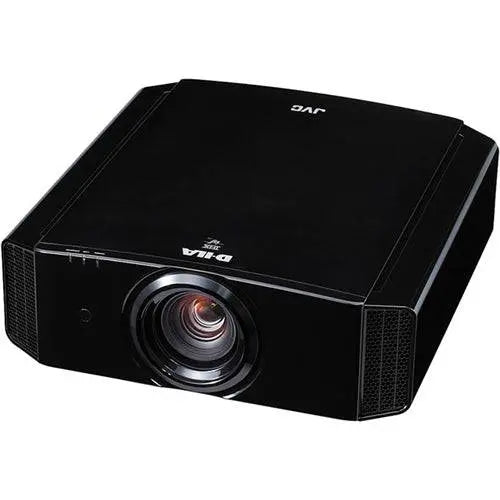

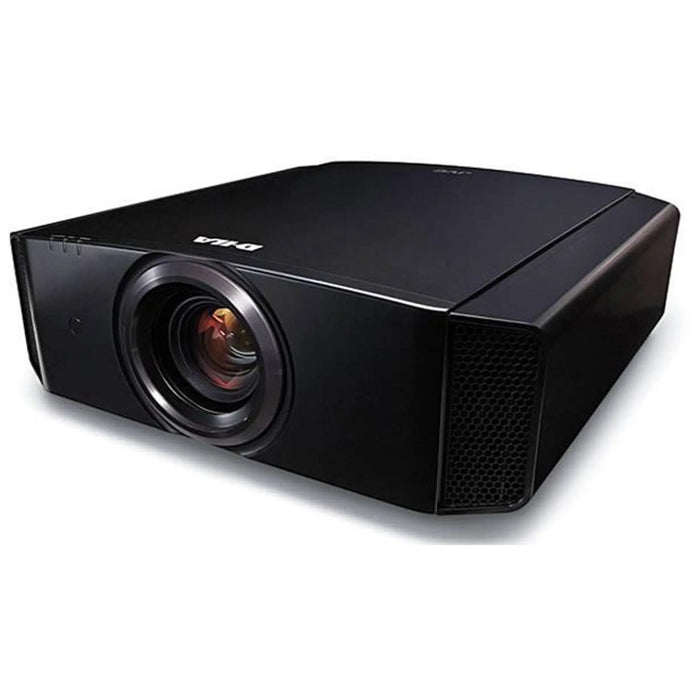

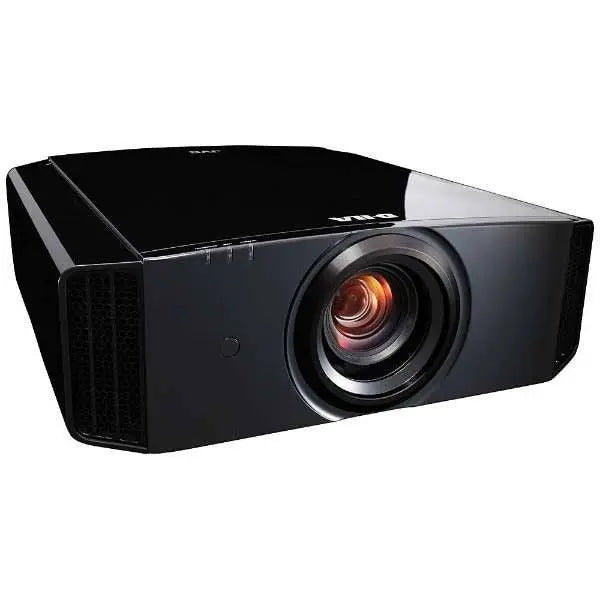

JVC Procision DLA-X770R - 3D 4K D-ILA Projector - 1900 lumens Projector

JVC Procision DLA-X770R - 3D 4K D-ILA Projector - 1900 lumens Projector

SKU DLA-X770R
Save 52% Save 52%
$11,504.00
$11,504.00 - $11,504.00
$11,504.00
$5,517.00
$5,517.00 - $5,517.00
$5,517.00

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

JVC Procision DLA-X770R - 3D 4K D-ILA Projector - 1900 lumens Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

130,000:1 Native Contrast Ratio 4K e-shift4 Dual Full Speed 18Gbps HDMI/HDCP 2.2 Compatible Inputs NEW - 1900 Lumens with High Power Lamp Motion Enhance (2D, 3D, 4K) with Upgraded Clear Motion Drive

Features

Device0.7 inch Full HD D-ILA (1920 X 1080) X3
4K e-shift4 TechnologyYes
Resolution3840 X 2160 *1
Lens2X Zoom, Motorized Focus, f=21.4 to 42.8mm/F3.2-F4
Lens Shift+/- 80% Vertical and +/- 34% Horizontal (Motorized)
Projection Display Size60 inch-200 inch (diagonal)
Light Source LampNSH 265W (lamp life approx. 4,500 hours when lamp is in Low mode)
Brightness1,900 Lumens *2
Contrast RatioDynamic: 1,300,000:1
Native: 130,000:1
Input TerminalHDMI X2 (Full Speed 18Gbps HDMI/HDCP 2.2 Compatible w/ HDR)
Output TerminalsTrigger (DC12V, 100mA), 3D Syncro (Mini DIN 3 pin)
Control TerminalsRS232C (D-sub 9 pin), LAN (RJ45)
Video Input Signal Format480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24, 3840x2160p 60/50/24, 4096x2160p 24 *3
PC Input Signal Format (HDMI)VGA/SVGA/XGA/WXGA/FWXGA/WXGA+/SXGA/WXGA++/WSXGA+/WUXGA
3D FormatFrame Packing: 720p 60/50, 1080p 24, 1080i 60/50
Side-by-Side (half): 720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & Bottom: 720p 60/50 1080p 24
Power ConsumptionTBA
Fan Noise21dB (When the lamp is in Low mode)
Power RequirementAC100V-240V, 50/60Hz
Dimensions (W x H x D)17 7/8" x 7" x 18 1/2"
Weight (net)34.4lbs
