Leica iCON robot 60 Robotic Total Station

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

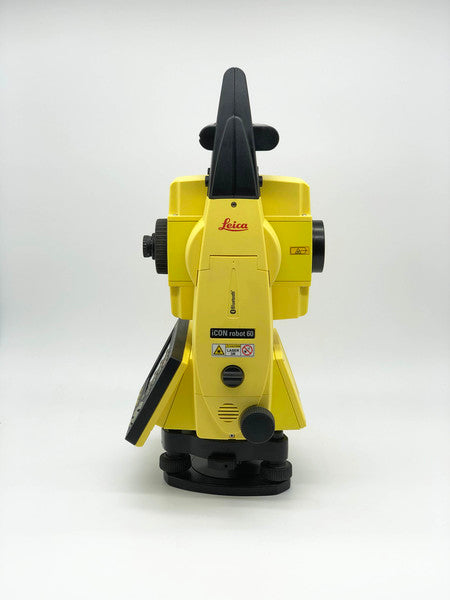

Leica iCON robot 60 Robotic Total Station

SKU Leica iCON robot 60
Save 7% Save 7%
$42,899.00
$42,899.00 - $42,899.00
$42,899.00
$39,999.00
$39,999.00 - $39,999.00
$39,999.00

The iCON robot 60 delivers one‑person construction layout with high‑precision tracking and automated setup. Its integrated iCONstruct software provides remote control for 3D machine‑control tasks. The instrument supports fast prism tracking, cube search and target snap for efficient point acquisition. Designed for rugged field use, it maximises productivity on diverse construction sites.

Key Features

  • Setup Pilot – world’s first fully automatic setup measurement method
  • Cube Search – boosts prism search to a maximum
  • Target Snap – ignores other prisms, just locks to yours
  • ATACK support for Leica PaveSmart 3D

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Leica iCON robot 60 Robotic Total Station

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Leica iCON 60 R1000 refers to a generation of total stations specifically designed for construction layout and 3D machine control. It is available in two main variants: the manual iCB60 (iCON builder) and the robotic iCR60 (iCON robot), both featuring high-precision reflectorless measurement technology with a range of up to 1,000 meters.
Leica Geosystems
Leica Geosystems
+1
Core Technology: PinPoint R1000
The "R1000" designation indicates the instrument is equipped with PinPoint EDM (Electronic Distance Measurement) technology, allowing for reflectorless measurements to any surface up to 1,000 meters (3,280 ft). This technology is characterized by:
Leica Geosystems
Leica Geosystems
+1
High Precision: Provides standard measurement accuracy of 1.0 mm + 1.5 ppm to prisms and 2 mm + 2 ppm for reflectorless measurements.
Targeting: A small laser dot size (approx. 8 x 20 mm at 50 m) ensures precise targeting of small objects or corners.
Leica Geosystems
Leica Geosystems
+1
Robotic Variant: Leica iCON iCR60
The iCR60 is a high-end robotic station designed for one-person operation. It includes several automation features to streamline site work:
Leica Geosystems
Leica Geosystems
+2
Setup Pilot: The world’s first fully automatic setup measurement method.
Cube Search: Accelerates prism searching by focusing on a specific area around the prism's last known position.
Target Snap: Intelligently ignores other prisms on site to lock exclusively onto the operator's target.
Machine Control: Optimized for precise 3D positioning with iCON 3D machine control solutions, such as graders or pavers.

Item Includes

  •  Leica Icon 60 R1000

Item Includes

Reflectorless Range: Measurements to any surface up to 1,000 m (3,280 ft).
Prism Range: Up to 3,500 m (12,000 ft) using a standard round prism (GPR1).
Precision (Prism): Standard measurement accuracy of 1.0 mm + 1.5 ppm with a typical measurement time of 2.4 seconds.
Precision (Reflectorless): Accuracy of 2 mm + 2 ppm with a typical measurement time of 3 seconds.
Laser Dot Size: Approximately 8 x 20 mm at a distance of 50 meters
