Features

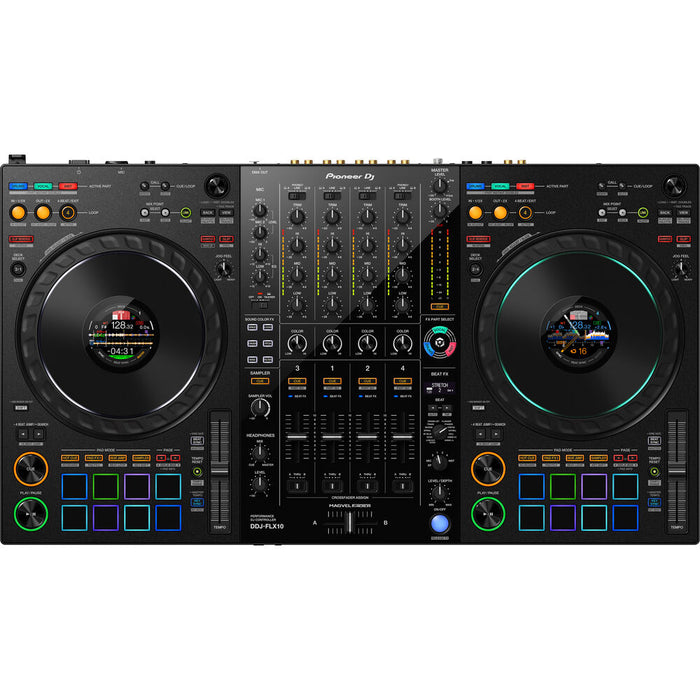

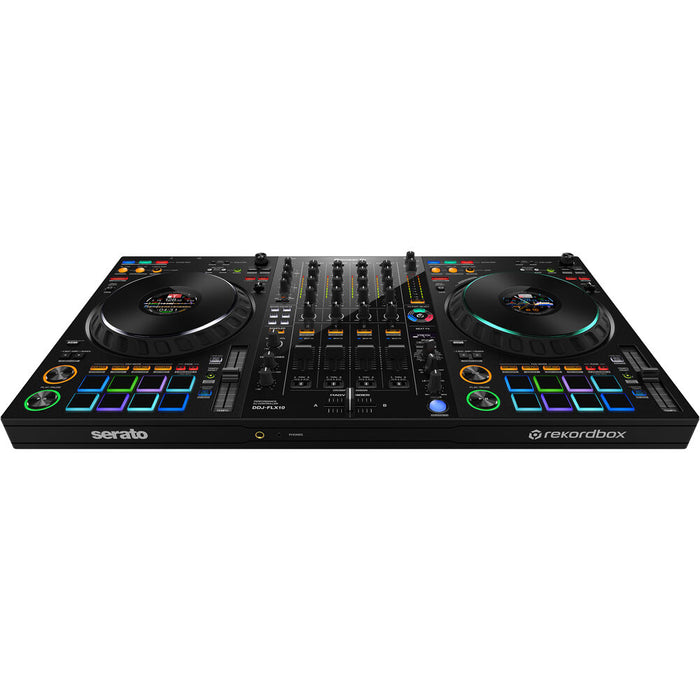

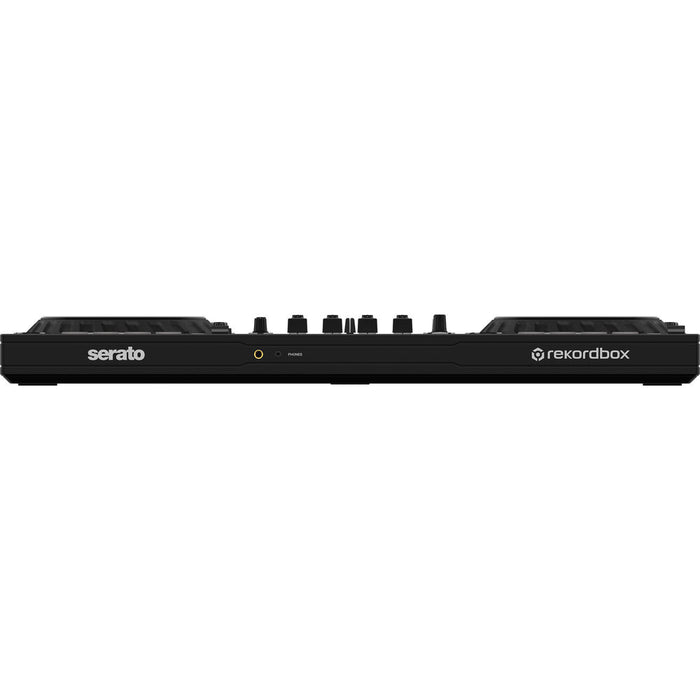

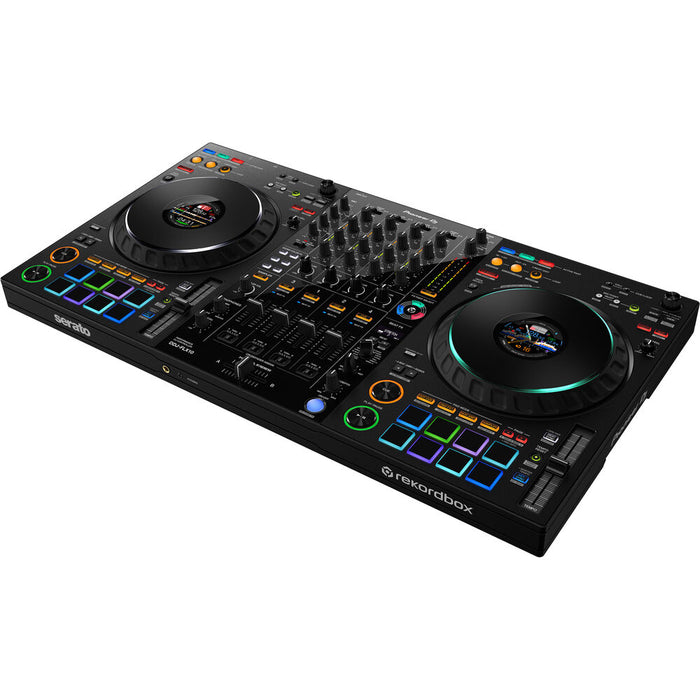

Pioneer DJ DDJ-FLX10 Overview
With cutting-edge technology, the next-generation Pioneer DDJ-FLX10 is a 4-channel DJ performance controller for rekordbox and Serato DJ Pro. The controller unlocks both rekordbox DJ and Serato DJ Pro software without the need for a subscription. The format of the controller borrows heavily from the flagship DJM and CDJ line of equipment. Full-sized jog wheels feature on-jog displays with four modes including Deck Info, Waveform Mode, Artwork Display, and DJ Logo Display.
The DDJ-FLX10 features track separation technology, allowing DJs to load songs from their music library and use the controller to manipulate the tracks vocals, drums, and various instruments for live remixes and mashups. DJs can also take advantage of the Mix Point Link, a new feature for setting your next track to start automatically, allowing your hands to remain free for creating mashups and performance effects. Other notable features include a dedicated DMX out for intelligent lighting and an updated MAGVEL FADER system with four sensors.
The controller's ergonomic design features 8 multicolor and velocity-sensitive performance pads on each deck with four modes of operation including hot cue, roll, slicer, and sampler. You can load samples and tracks into Serato DJ Pro or rekordbox DJ and play with the onboard pads. The center panel of the DDJ-FLX10 is a 4-channel mixer with a built-in soundcard with four stereo RCA inputs as well as XLR and stereo RCA masters and a pair of 1/4" booth outputs. Two sets of headphone outputs (1/4" and 3.5mm) are available for any headphone style. The Pioneer DDJ-FLX10 ships with a USB-C cable, power cord, AC adapter, and a voucher for Serato DJ's Pitch 'n Time.
The DDJ-FLX10 includes track separation technology, allowing DJs to load songs from their music library and use the controller to manipulate the track’s vocals, drums, and various instruments for live remixes and mashups. There are dedicated color-coded buttons to control each part, so DJs always have a clear visual grasp of what’s playing.
- Active Part and Part Iso: individually adjust the volume for the vocals, drums, or instruments, including bass and synths, to mix in creative new ways. DJs can also choose to mute any combination of the 3 parts to make live mashups with other tracks.
- FX Part Select: select which part on a track to apply effects. For example, DJs can add echo to the vocals, but leave the other parts alone.
- Part Instant Doubles: isolate a specific part of the track and transfer it to another deck to scratch it.
The DDJ-FLX10 On-Jog Display keeps everything in one place by customizing information on the jogs. Choose from 4 modes as detailed below, some of which show 3Band Waveforms (rekordbox only), the same as the CDJ-3000 flagship multi player. DJs can also keep an eye on rekordbox vocal position analysis information, pad mode status, the optional rotating digital marker, and Mix Point Link information.
- Deck Info mode: shows information, including the overall waveform. (When using Serato DJ Pro, this mode shows the virtual deck of Serato DJ Pro.)
- Waveform mode: shows the zoomed waveforms for two decks.
- Artwork display: shows the artwork for the playing track.
- DJ Logo display: shows personal logo or image on each deck after using the Image Transfer Tool for Windows/Mac.
- DJs can take advantage of a completely new playback concept that enables them to create a slick musical progression in their sets by linking mix points on tracks, so the next song kicks in at the perfect moment.
- DJs might set the next track to start from the beginning of its melody when the vocal of the current song ends, ensuring a seamless transition without a sound clash. There’s no need to count down or press play manually, which also leaves their hands free to create mashups or add effects.
Simply connect DMX-compatible lighting equipment to the controller directly and use rekordbox to create custom lighting effects or set the software to automatically adapt the color and movement of the lights to progress with the music. There is no need for an external DMX interface with the DDJ-FLX10.
The DDJ-FLX10's new evolved MAGVEL FADER uses a 4-sensor system compared to its predecessor's two sensors. This allows users to make volume adjustments no matter how small the movement of the crossfader.
The DDJ-FLX10 offers free plug-and-play compatibility with rekordbox and Serato DJ Pro. DVS support is available through a rekordbox Core, Creative, or Professional plan subscription, or via a paid license/subscription to Serato DJ Expansions or Serato DJ Suite.
- Multicolored jog ring: Pioneer DJ’s first-ever multicolored jog ring indicates both the different parts of the track that are playing when using the track separation features and customizes the colors to a DJ’s preferred look.
- Intuitive design: the new track separation control features make a circle from three different, color-coded LEDs and reflect three layers overlapping.
- USB-C terminal: connect a Windows/Mac directly with a single cable to the controller’s USB-C terminal.
Item Includes
Configuration
4-Deck
Number of Channels
4x Stereo
1x Mic
Performance Controls
Band-Pass Filter, Beat Sync, Cues, EQ, Echo, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Pitch Control, Reverse, Sampler, Scratch, Search, Slip Mode, Transport Controls, Vinyl Mode
Show More
Sample Rates
44.1 kHz
Bit Depths
24-Bit (AD/DA Conversion)
Stems Processing
via Dedicated Controls: Vocals/Acapella, Instrumental, Drums/Percussion

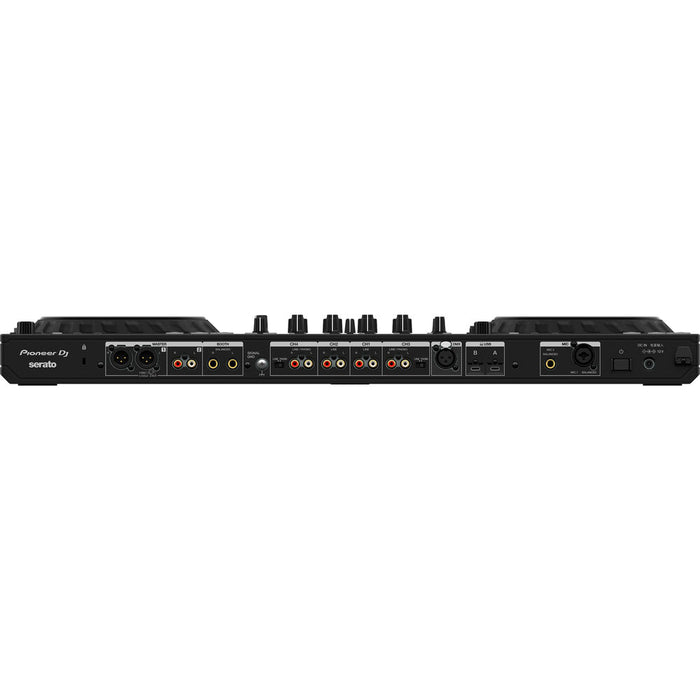

Audio Inputs
2x Stereo 2RCA TS Unbalanced Line Input
2x Stereo 2RCA TS Unbalanced Line/Phono Input
1x Combo XLR-1/4" 3-Pin Mic Input
1x 1/4" TRS Mic Input
Show More
Audio Outputs
2x XLR 3-Pin Balanced Master Output
1x Stereo 2RCA TS Unbalanced Master Output
2x 1/4" TS Booth Output
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output
Show More
USB
2x USB-C
Number of Channels
4x Stereo
1x Mic
Platter/Jog Wheel
2x Touch-Sensitive
Motorized Platters
No
Faders
4x Channel Level
1x Crossfader
2x Tempo/Pitch
Display
No
Sample Pads
8x Assignable per Deck (Backlit)
EQ
4x Channel EQ:
Hi
Mid
Low
Performance Controls
Band-Pass Filter, Beat Sync, Cues, EQ, Echo, FX, High-Pass Filter, Key Lock, Loop Points, Low-Pass Filter, Pitch Control, Reverse, Sampler, Scratch, Search, Slip Mode, Transport Controls, Vinyl Mode
Sample Rates
44.1 kHz
Bit Depths
24-Bit (AD/DA Conversion)
Stems Processing
via Dedicated Controls: Vocals/Acapella, Instrumental, Drums/Percussion
Connectivity
Audio Inputs
2x Stereo 2RCA TS Unbalanced Line Input
2x Stereo 2RCA TS Unbalanced Line/Phono Input
1x Combo XLR-1/4" 3-Pin Mic Input
1x 1/4" TRS Mic Input
Audio Outputs
2x XLR 3-Pin Balanced Master Output
1x Stereo 2RCA TS Unbalanced Master Output
2x 1/4" TS Booth Output
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output
USB
2x USB-C
Wireless
No
Media Card Slots
No
Internal Drive Bays
No
Performance
Frequency Response
20 Hz to 20 kHz
SNR
110 dB (USB)
94 dB (Line)
83 dB (Phono)
81 dB (Mic)
THD
0.002% (USB)
0.007% (Line)
0.025% (Phono)
Compatibility
Included Software
rekordbox DJ
Serato DJ Pro
Serato Pitch 'n Time DJ
Compatible Software (Not Included)
rekordbox
OS Compatibility
Computer: Windows 10 or Later / macOS 10.15 to 13
Mobile: Android/iOS
Processor Requirement
Intel Core i3
Intel Core i5
Intel Core i7
Intel Core i9
AMD
Apple M1
RAM Requirements
4 GB, 8 GB Recommended
Storage Requirements
2 GB
Minimum Display Resolution
1280 x 768
Internet Connection
Required for Registration
Power
Power Requirements
AC/DC Power Adapter (Included)
Power Supply Output
12 VDC
Current Consumption
1800 mA
Physical
Dimensions (W x D x H)
28.2 x 15.8 x 2.9" / 71.6 x 40.1 x 7.4 cm
Weight
14.8 lb / 6.7 kg
Packaging Info
Package Weight
20 lb
Box Dimensions (LxWxH)
30.8 x 19.1 x 6.8"
