Union Audio Orbit.6 Rackmounted 6-channel Rotary DJ Mixer - Black

SKU Orbit6Bk
Save 5% Save 5%
Original price $5,679.00
Original price $5,679.00 - Original price $5,679.00
Original price $5,679.00
Current price $5,411.00
$5,411.00 - $5,411.00
Current price $5,411.00

The Orbit.6 delivers six fully independent channels with rotary faders for precise level control, perfect for professional DJ setups. Rack‑mounted in a 4U chassis, it includes rear‑mounted XLR mic input, dedicated trim and 2‑band EQ per channel, and a sleek black finish for seamless integration into any studio or club environment.



STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Union Audio Orbit.6 Rackmounted 6-channel Rotary DJ Mixer - Black

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Discrete circuitry and unrivaled character

Unlike most mixers, Union Audio designed their Orbit.6 with a discrete circuit rather than the most common integrated circuit (IC). Each component of the circuit is individually chosen and connected rather than etched to a singular piece of silicon, as would be the case with an IC. Using a discrete signal path enhances listening with an unrivaled musicality, endowing Union Audio’s engineers a unique capacity to hand select parts for each Orbit.6 unit. This ensures each mixer is tailored to the nuances of its components, optimizing performance and playback through detailed precision and craftsmanship.

Forged with finesse

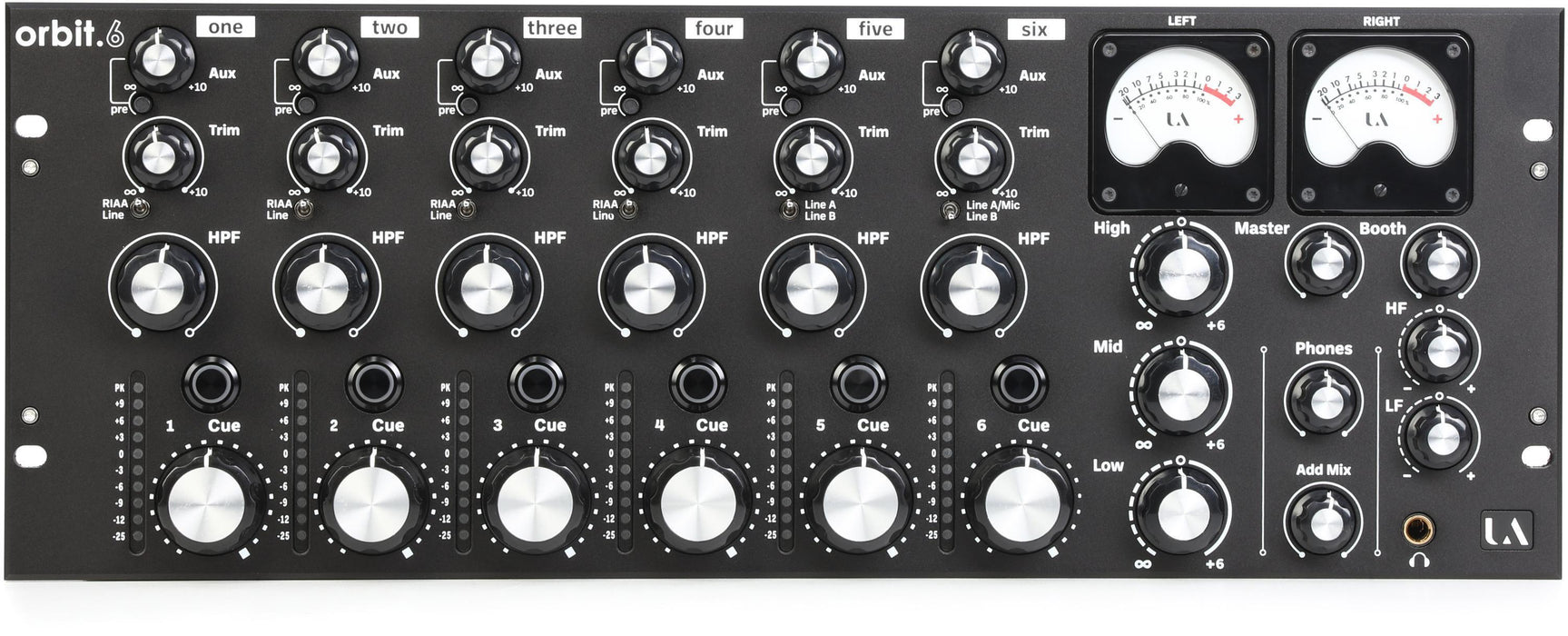

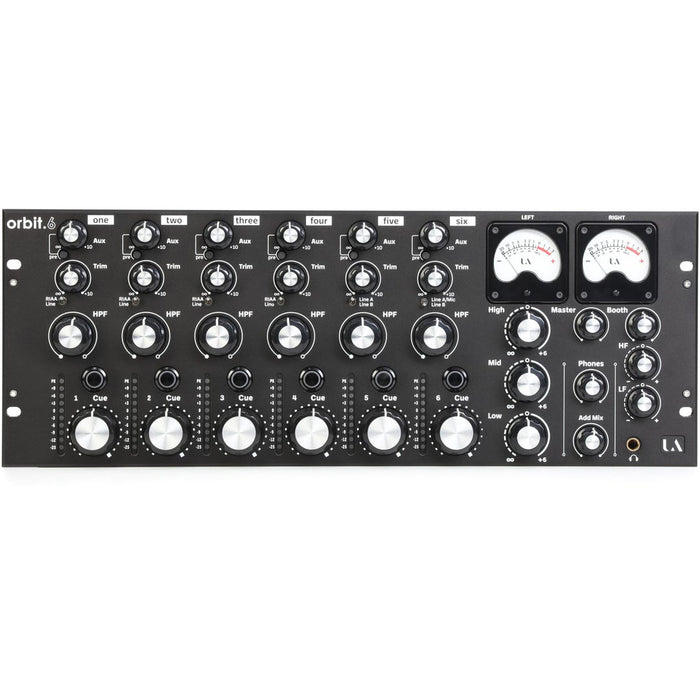

The features across the Orbit.6’s anodized, glass-bead blasted aluminum front panel and robust interfacing have been ergonomically optimized for complete sonic control. Each channel’s rotary fader was crafted with Union Audio’s custom-built damping system, balancing weight and precision for uninterrupted, detailed mixing and level adjustments. This same finesse abounds throughout the Orbit.6’s highpass filter, Trim, and Auxiliary knobs, as well as the Master output’s 3-band EQ and Isolator controls. Subtle lighting illuminates the base of each channel’s primary rotary knobs, coupled with the per-channel 10-LED VU display, Cue light, and Master left- and right-channel’s custom VU meters.

Versatile I/O and maximum performance prowess

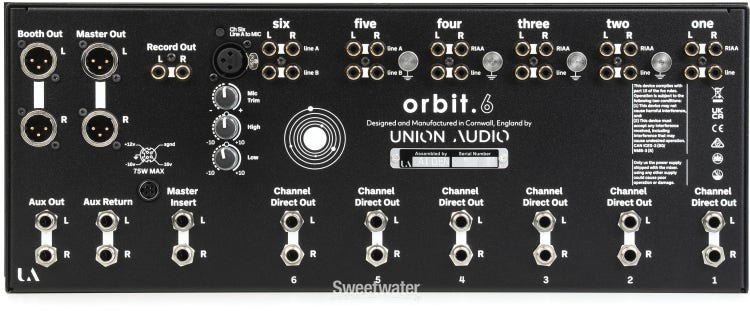

Each of the rotary mixer’s six channels includes line-level stereo RCA input pairs. Meanwhile, channels five and six are given a secondary line-level pair, and channels one through four feature RIAA stereo pairs. Inputs can be manually selected for each channel. At the same time, Trim and Auxiliary Send levels can be toggled between pre- and post-fader configurations, granting DJs and audiophiles unparalleled potential for interoperative use with external gear or effects. A rear-mounted, 3-pin XLR microphone input can be activated for use with channel six, with dedicated Trim and 2-band EQ controls for seamless use within your set. Both Master and Booth stereo outputs utilize 3-pin XLR connectors, complemented by an RCA stereo output for recording. Moreover, every channel features a designated Channel Direct output, with Master Insert, Aux Return, and Aux Out nearby, all of which utilize 1/4-inch TRS stereo pairs, ensuring comprehensive control over your sound.

Union Audio Orbit.6 Rackmounted 6-channel Rotary DJ Mixer Features:

  • Rackmountable 4U rotary mixer features a 6-channel architecture and masterful engineering for audiophile-grade playback with premium sound shaping
  • Custom-designed damping faders ensure precise mixing and level adjustments for exacting sonic control
  • Elegant interface blends ergonomic construction, satisfying tactility, and thoughtful lighting to maximize hands-on performance with detailed yet unobtrusive real-time feedback
  • Per-channel highpass filters are complemented by the Master output’s 3-band EQ and Isolator, expanding mixing opportunities to support long, thoughtful, musical blends
  • Dedicated auxiliary inputs for each channel support line-level and RIAA configurations
  • Auxiliary levels can be instantly toggled between pre- or post-fader arrangements to expand flexibility with external gear
  • Discrete circuit construction optimizes listening for every unit, imbuing a distinctive analog character to your playback to enrich any listening experience
  • Versatile I/O comprises RCA, 1/4-inch TRS, and 3-pin XLR connectors for maximum signal management and interoperative integration

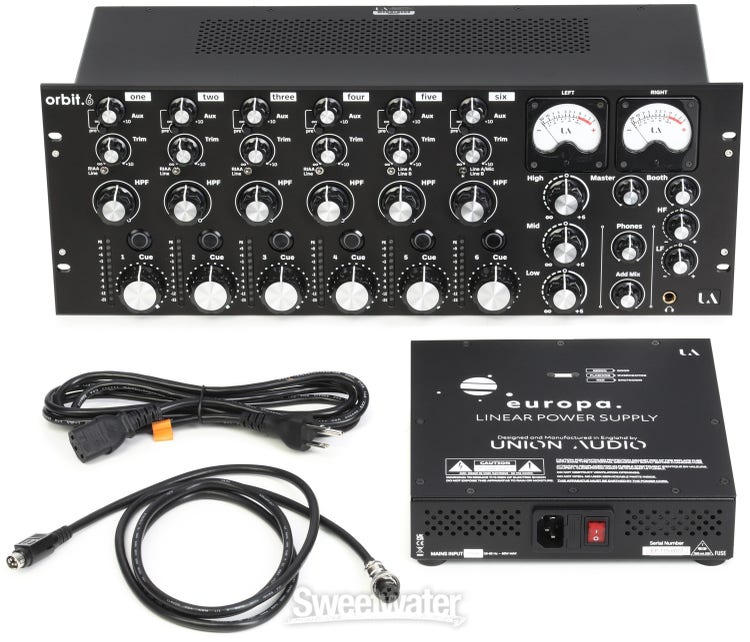

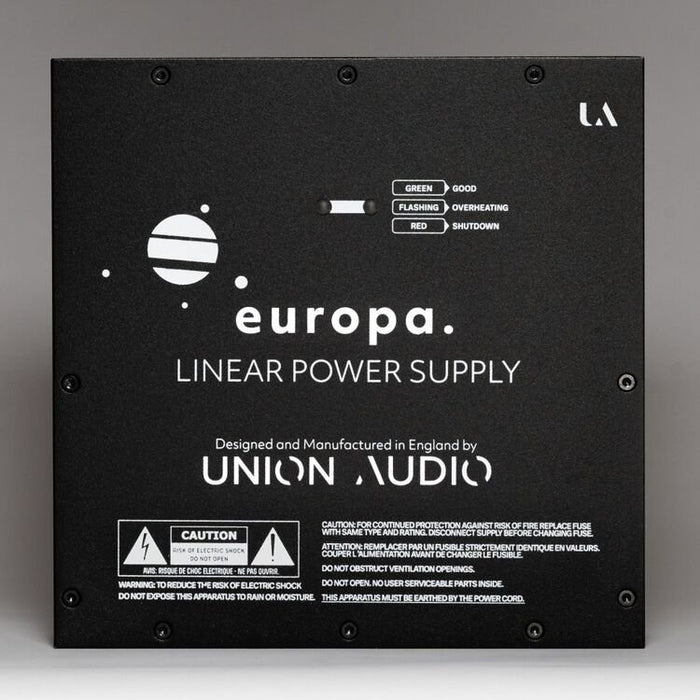

  • Europa PSU is configured for your region’s specific voltage needs, ensuring mains are tailored to handle the nuances of your specific mixer unit

Item Includes

  • Union Audio Orbit.6 Rackmounted 6-channel Rotary DJ Mixer - Black

Item Includes

  • Channels:6 x Line In
  • Analog Inputs:8 x Dual RCA Stereo (line), 4 x Dual RCA Stereo (RIAA), 2 x 1/4" TRS (aux return/insert), 1 x XLR (mic)
  • Analog Outputs:2 x XLR (master), 2 x XLR (booth), 1 x Dual RCA Stereo (record)
  • Headphones:1 x 1/4" TRS
  • Other I/O:12 x 1/4" (channel direct outs), 4 x 1/4" (aux out, return), 2 x 1/4" (master insert)
  • Faders:6 x Rotary Knobs
  • EQs:Adjustable Highpass Filter (per channel), 3-band EQ with Isolator Circuit (master)
  • Power Source:18V DC Power Supply
  • Height:6.92" (4U)
  • Width:19"
  • Depth:6.67"
  • Weight:7.16 lbs
  • Manufacturer Part Number:UA-OB6-BK-115
