ViewSonic PS501X 3500-Lumen XGA Short-Throw DLP Projector

SKU PS501X
Save 48% Save 48%
$1,197.00
$1,197.00 - $1,197.00
$1,197.00
$625.67
$625.67 - $625.67
$625.67
  • Brightness of 3500 Lumens
  • XGA (1024 x 768) Native Resolution
  • Short 0.61:1 Throw Ratio
  • HDMI, RCA Composite, 2x VGA Video Inputs
  • VGA Output for Loop-Through
  • Analog Audio Input and Output
  • Interactive Whiteboard-Compatible
  • Integrated 2-Watt Speaker
  • RS-232 Controllable
  • VGA Cable & IR Remote Included

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

ViewSonic PS501X 3500-Lumen XGA Short-Throw DLP Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Enjoy bright images in most environments with the ViewSonic PS501X 3500-Lumen XGA Short-Throw DLP Projector. Its 3500 lumens of brightness can overcome ambient light in many situations, making it well-suited for presentation areas such as boardrooms and classrooms. The XGA 1024 x 768 native resolution is suitable for displaying many file and document types, as well as HD video. The projector features a short 0.61:1 throw ratio, allowing you to place it near your projection surface to minimize cast shadows or to facilitate use in small rooms.

The PS501X has an HDMI input for connecting digital high-definition sources such as Blu-ray players and HD cable/satellite boxes, two VGA inputs for analog sources, and an RCA composite video input. Its HDMI input is 3D-capable for viewing 3D Blu-ray discs with other compatible equipment, which is available separately. A VGA output allows daisy-chaining of multiple projectors or displays. The PS501X includes a VGA cable and an IR remote control for added convenience.

SuperColor for Enhanced Color Accuracy
ViewSonic's SuperColor technology features a six-segment color wheel and dynamic lamp control capabilities, helping to provide a wide color range.
Large Images in Small Spaces
The short-throw lens enables large images to be projected from short distances, minimizing shadows or hotspots on the image while allowing you to project in small rooms.
3500 Lumens of Brightness
The PS501X combines 3500 lumens of brightness with a 22,000:1 dynamic contrast ratio to produce clear images in most environments. The dynamic contrast ratio is designed to enhance even the finest shades of gray to deliver enhanced quality and detail for sharp images.
HDMI Input & Powered USB Port
Wireless HDMI adapters, such as Google Chromecast, Roku Streaming Stick, Amazon Fire TV Stick, and others, can be plugged into the projector's HDMI port while receiving power via a USB cable plugged into the projector's powered USB output. The USB port can power most wireless adapters, so a separate power source isn't likely needed.
SuperEco Helps Extend Lamp Life
The SuperEco energy-saving feature reduces power consumption, extending the lamp life up to 15,000 hours.
Reduced Input Latency
The PS501X features a low 16 ms input latency to produce fast frame-by-frame action.
3D Blu-ray Ready HDMI Input
Enjoy 3D projection with your compatible 3D Blu-ray player and the optional PGD-350 shutter glasses, or any other compatible 3D glasses.
Interactive Whiteboard Module-Compatible
When paired with the optional PJ-VTOUCH-10S interactive whiteboard module, this projector can become an interactive projection solution. Multiple users can simultaneously interact and collaborate at the screen by using their fingers or styli.

Item Includes

  • ViewSonic PS501X 3500-Lumen XGA Short-Throw DLP Projector
  • Remote Control with Batteries
  • VGA Cable
  • Power Cable
  • Limited 3-Year Warranty on Projector
  • Limited 1-Year Warranty on Lamp

Item Includes

Key Specs
Display System
0.55" DMD DLP
Maximum Brightness
3500 Lumens
Throw Ratio
0.61:1
Image Display
Display System
0.55" DMD DLP
Supported Resolutions
Minimum: 640 x 480
Maximum: 1920 x 1080
Maximum Brightness
3500 Lumens
Aspect Ratio
Native: 4:3
DLP Link 3D
Yes
Supported 3D Formats
Frame Packing (up to 1080p)
Side by Side (up to 1080i)
Top Bottom (up to 1080p)
Color Wheel
6-Segment
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 15 to 102 kHz
Vertical: 23 to 120 Hz
Lens
Focus
Manual
Optical Zoom
No
Throw Distance
2.4 - 7.3' / 0.732 - 2.225 m
Throw Ratio
0.61:1
Projection Size
30 to 300" / 76.20 to 762.00 cm
Features
Keystone Correction
Vertical: ± 40°
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
Yes
Speaker Power
2W

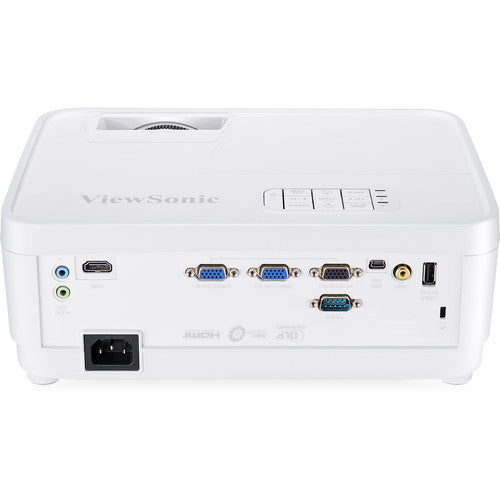

Input/Output Connectors
Inputs/Outputs
1x HDMI Audio, Video Input
2x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x RCA (Composite) Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x 1/8" / 3.5 mm Mini Audio Output
1x DE-9/DB-9 (RS-232) Control
1x USB-A 2.0 Power Output
1x Mini-USB 2.0 Service Input
Wireless LAN / Wi-Fi
No
General
Lamp Power
190 W
Expected Lamp Life
Full Brightness: 5000 Hours
Low Brightness: 15,000 Hours
Security
Cable Lock Slot
Power Consumption
Full Brightness: 260 W
Standby Mode (Lamp Off): < 0.5 W
Dimensions (W x H x D)
11.5 x 4.5 x 9.3" / 29.2 x 11.4 x 23.6 cm
Packaging Info
Package Weight
7.9 lb
Box Dimensions (LxWxH)
14 x 12 x 7.5"
