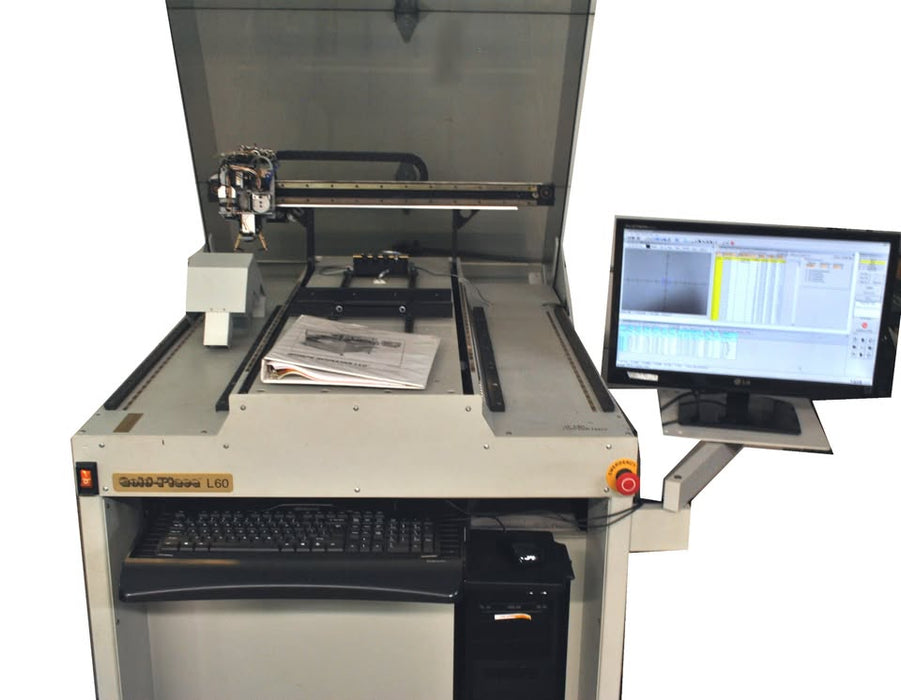

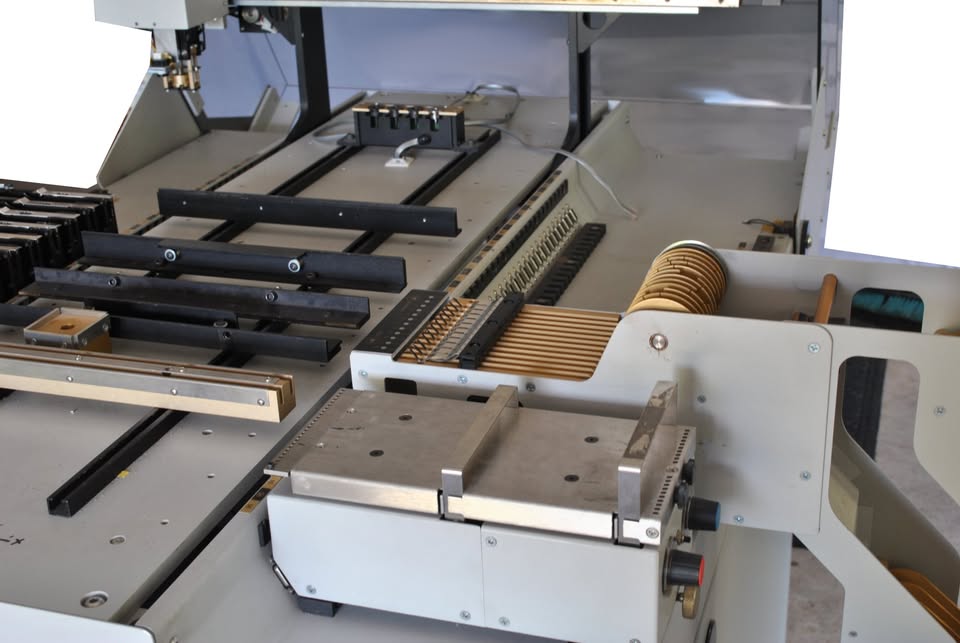

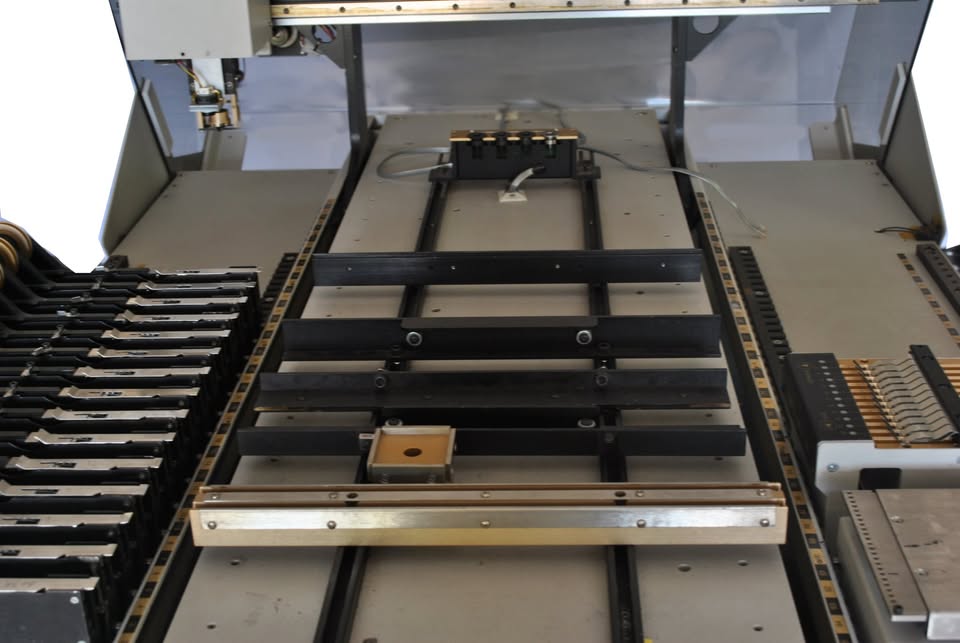

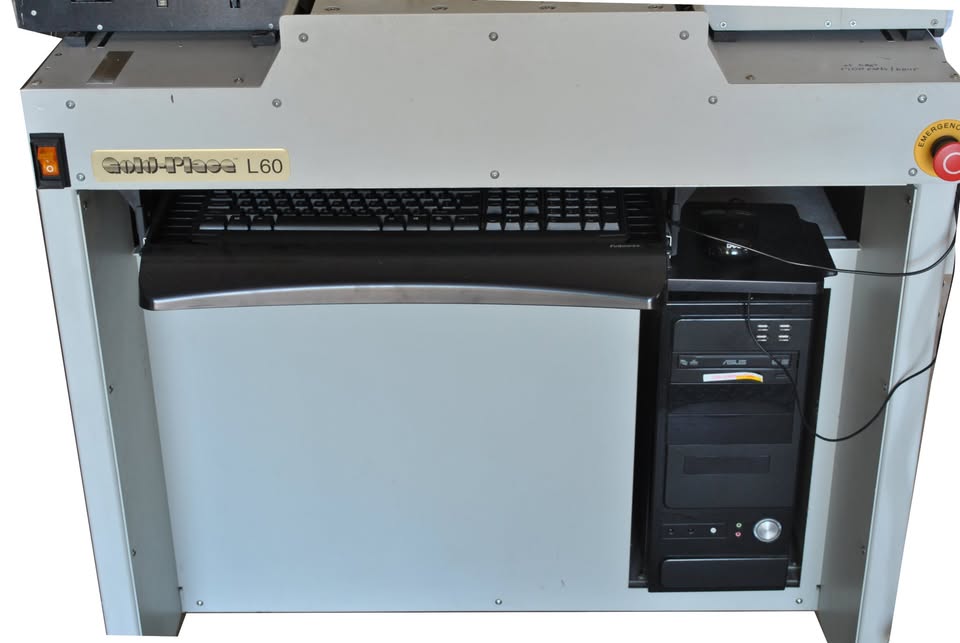

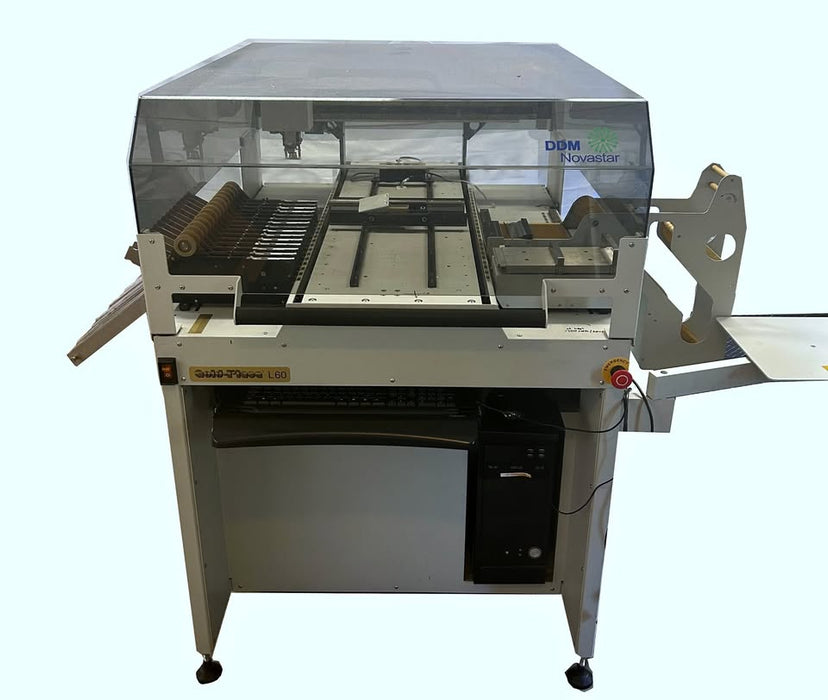

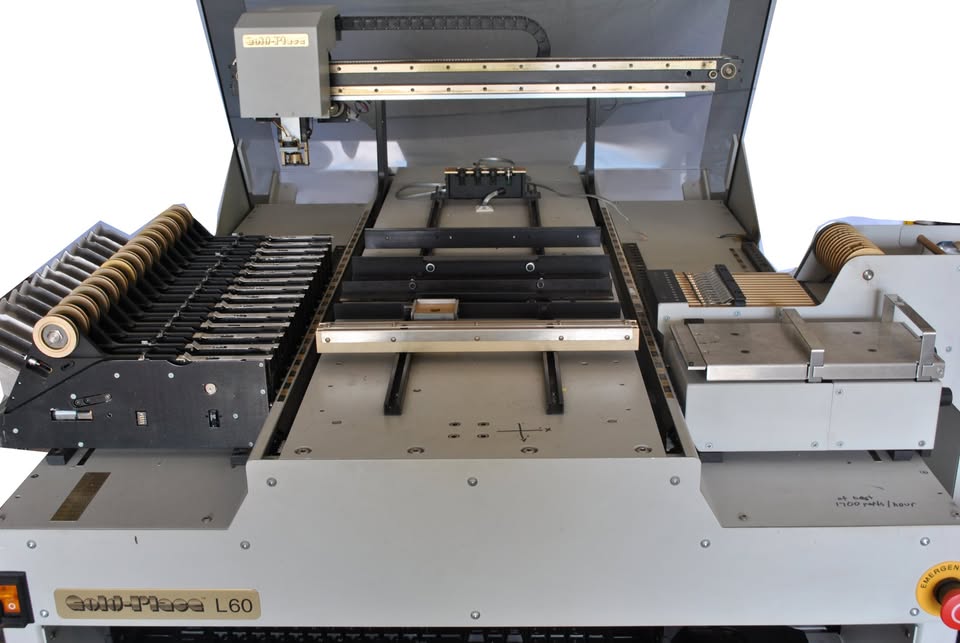

Request a quote →APS Novastar L-60 Pick & Place Machine 1700 CPH 96 Feeder Slots
The APS Novastar L-60 is a factory-refurbished pick and place machine upgraded in 2020 with a Renishaw Linear Magnetic encoder system, higher-quality flex tray cables, and updated internal circuit boards. It places 0402s, BGAs, QFPs, and fine-pitch components down to 15 mil with Ā±0.025 mm accuracy at a practical rate of 1,700 CPH.

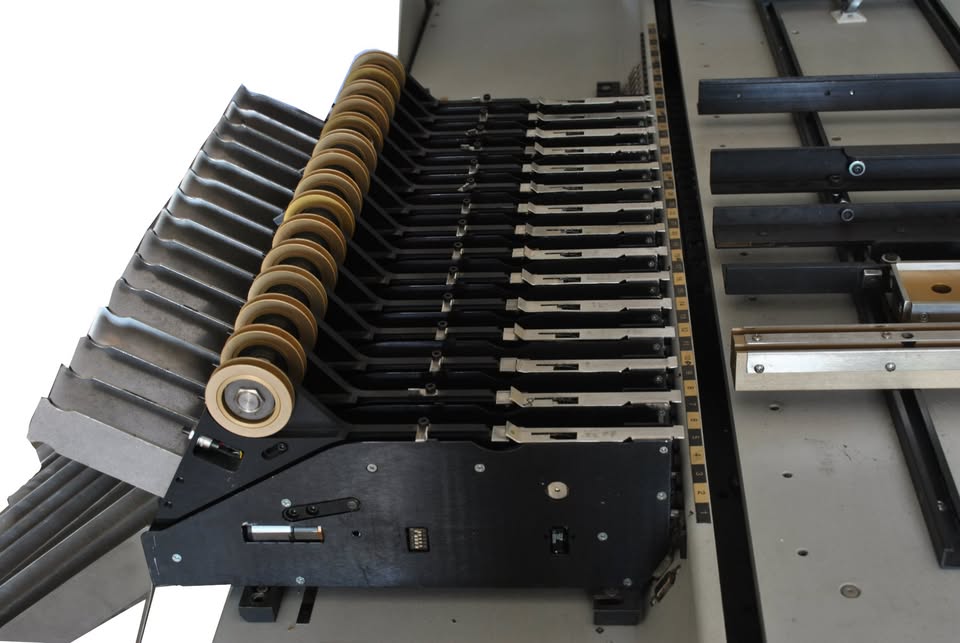

This system handles board lengths from 3 to 30 inches and widths up to 13 inches, supported by 96 feeder slots, an automatic 4-position nozzle changer, and Windows XP-based APS SMT software. The package includes 15 8mm feeders, 4 nozzles, a 12-lane 8mm feeder, a vibratory feeder, a squaring station, a loose tape feeder, PCB and tray clamps, documentation, and a PC with monitor and peripherals.
| Brand | APS |
| Model | Novastar L-60 |
| Condition | Used - Good |
| Placement Rate | 1,700 CPH |
| Placement Accuracy | Ā±0.001 in (Ā±0.025 mm) |
| Component Types | 0402s, BGAs, QFPs, fine-pitch (down to 15 mil) |
| Feeder Capacity | 96 slots |
| Board Size (Length) | 3 to 30 in |
| Board Size (Width) | Up to 13 in |
| Nozzle Changer | Automatic 4-position |
| Nozzles Included | 4 |
| Software | Windows XP, APS SMT Pick & Place System v2.0.15 |
| Machine Weight | 450 lbs |
| Machine Dimensions | 40 in W x 52 in D x 53 in H |
| Encoder System | Renishaw Linear Magnetic |
| Year Refurbished | 2020 |
| Power Requirements | Standard AC (verify with manufacturer) |
| Placement Head Type | Single-head with automatic tool change |
| Feeder Type | 8mm tape, vibratory, loose tape |
| Component Alignment | Vision-based |
| Minimum Component Size | 0402 (imperial) |
| Maximum Board Area | 30 x 13 in |
| Interface | PC with monitor, keyboard, mouse |
