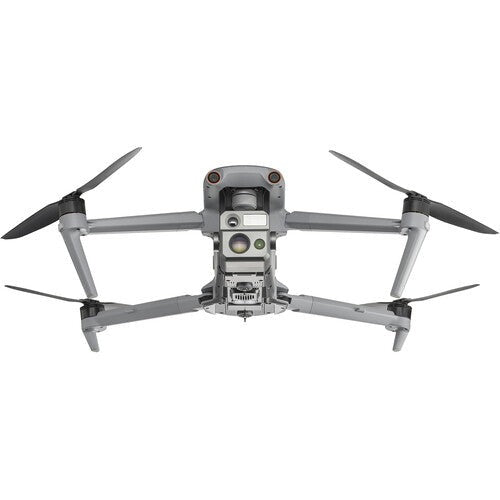

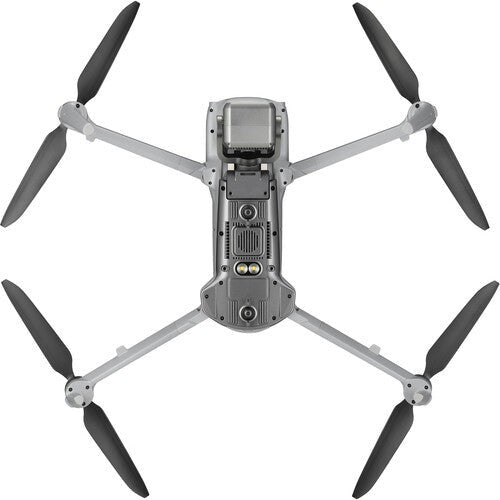

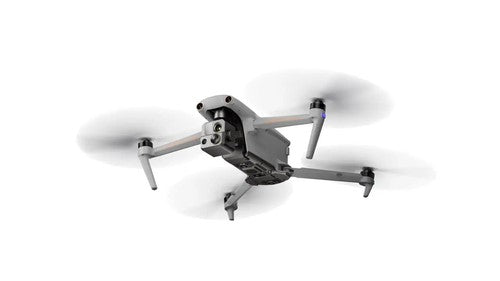

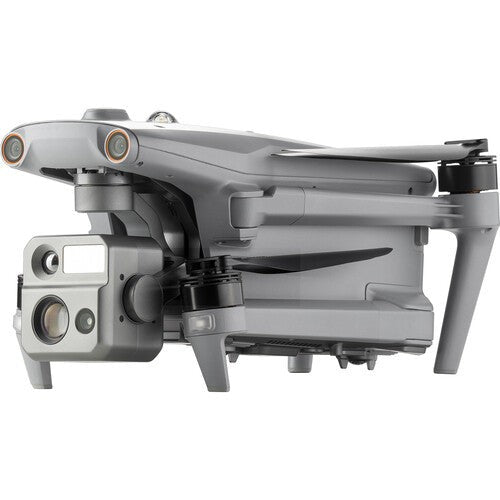

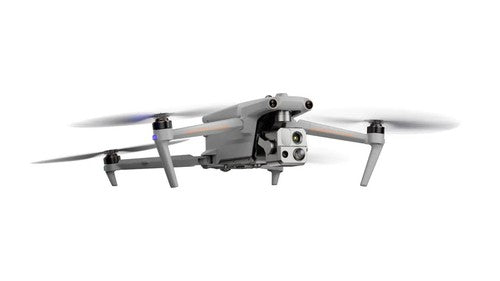

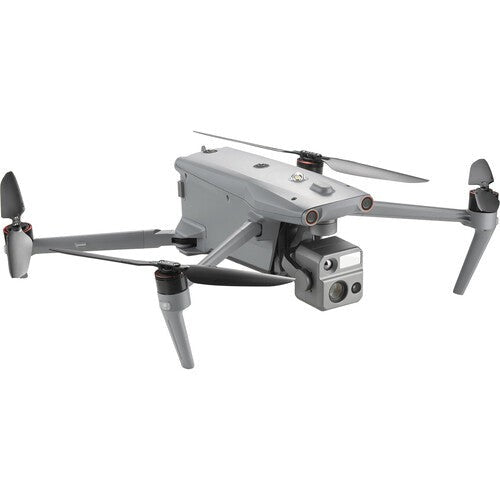

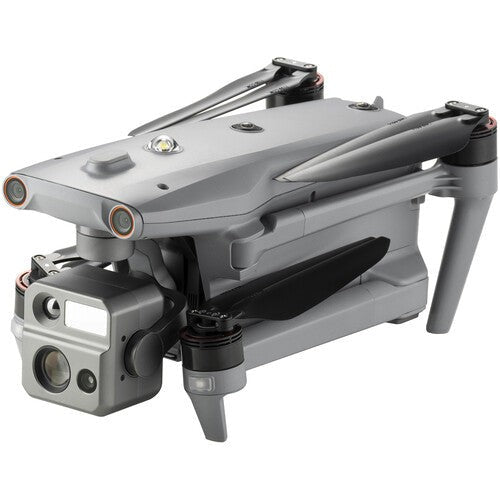

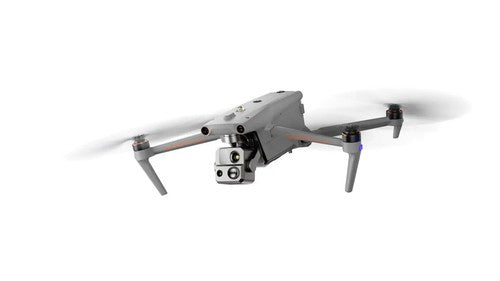

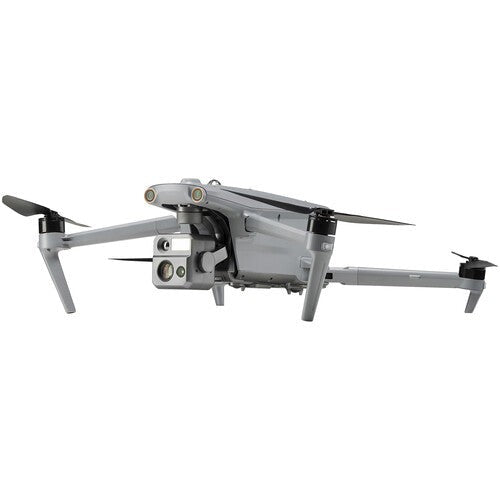

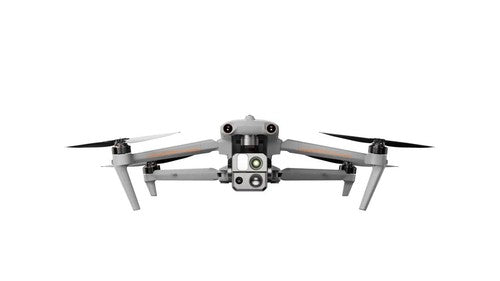

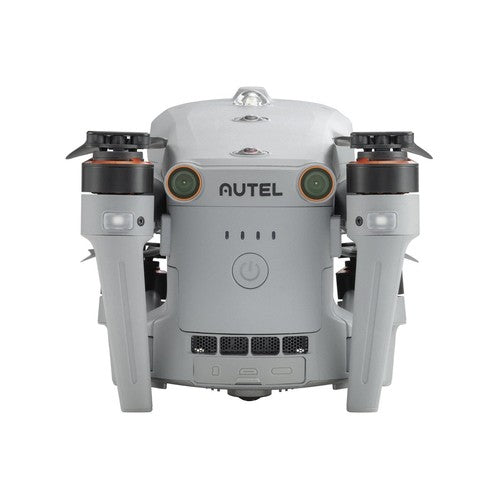

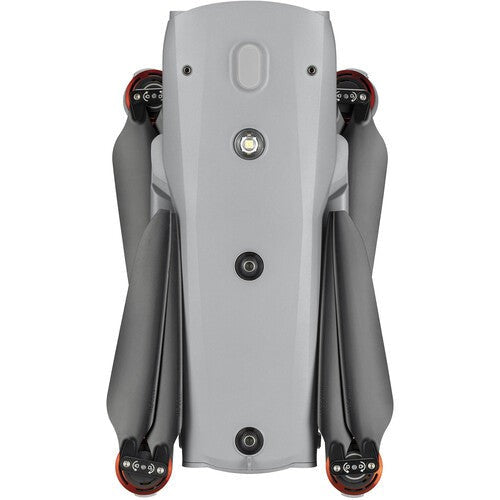

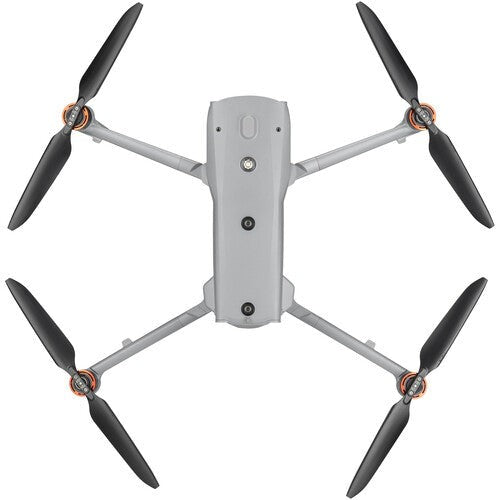

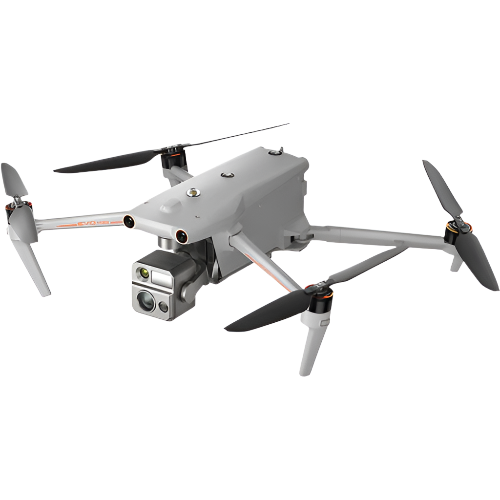

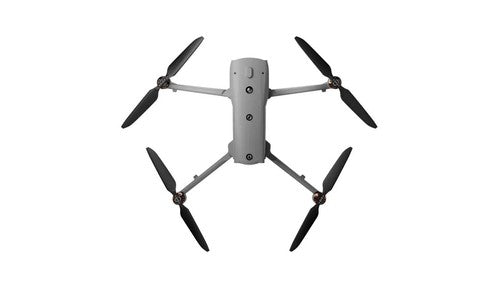

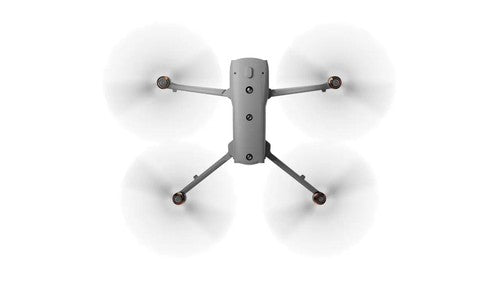

Autel Evo Max 4N Drone Bundle

The Autel EVO Max 4N bundle brings powerful technologies and advanced autonomy to users. The Autel EVO Max 4N assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors make a flight in GPS-unavailable areas possible, and the incredible new thermal payload unlocks new object identification and tracking scenarios. With a foldable, weather-resistant design, the Autel EVO Max 4N bundle is as portable as it is capable. Purchase this drone bundle online.

PRODUCT HIGHLIGHTS

• Skylink 3.0 is a system featuring 6 antennas, 4 frequency bands, AES-256 encryption, and optional 4G integration to provide users with the most advanced flight capabilities ever in an EVO.
• The Autel EVO Max 4N uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the users to fly confidently near power lines, critical structures, and complex areas.
• The new A-Mesh system enables drone-to-drone autonomous communication, connection, and collaboration.
• The Autel EVO Max 4N can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
• With A-Mesh, multiple aircraft in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
• Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
• Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.

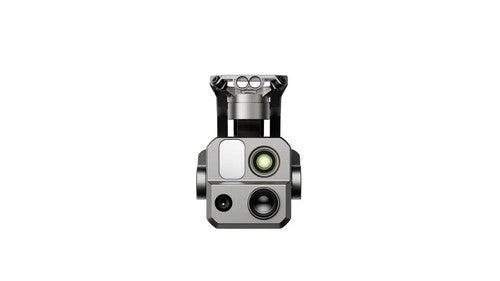

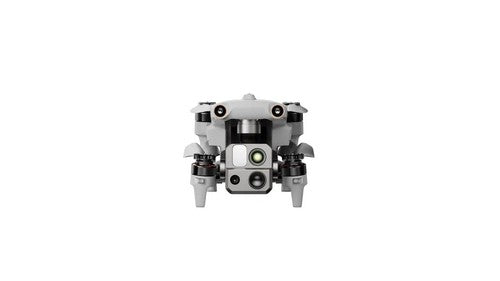

• The 4N payload integrates wide-angle, zoom, and thermal cameras with a laser rangefinder to meet a wide range of workflow requirements.
• Zoom Camera: Supports 8K 10x optical zoom, and 160x hybrid zoom with clear details on targets up to 1.24 miles away
• Wide Camera: A 50MP camera with the next generation of Moonlight Algorithm 2.0 boosts post-processing and allows the pilot to capture crisp, detailed images in low-light environments.
• Thermal camera: Equipped with 640x512 high-resolution thermal imaging camera, 30 fps, and 16x digital zoom Laser Rangefinder: Tap a target to get the coordinates and altitude rapidly from up to 0.75 miles away.
• The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4N's mission capability.
• 3D Map Planning: Plan, create, and execute a 3D waypoint mission plan on a 3D map.
• Mission Reproduction: With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max 4N will automatically
• Quick Mission: Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
• Privacy protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
• Encrypted Data Storage: Supports AES-256 encryption* for photos, videos, and flight logs, which are password-protected.
• The Autel SDK developer platform is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.

• EVO Max 4N Drone

• EVO RC Plus Remote Controller

• 3 × Intelligent Flight Batteries

• Battery Charging Hub

• Hard Case

• ND Filters Set

• Propellers & Tool Kit

• Weight:

  • Takeoff Weight: 4.35 kg (9.59 lbs)

  • Weight (Without Battery): ~3.2 kg (7.05 lbs)

• Dimensions (Folded): 410 × 320 × 220 mm

• Max Payload Capacity: 1.5 kg (3.3 lbs)

• Max Flight Time: ~42 minutes (no payload) / ~28 minutes (with payload)

• Max Speed:

  • 20 m/s (72 km/h or 45 mph) in Sport Mode

  • 10 m/s (36 km/h or 22 mph) in Normal Mode

• Wind Resistance: 12 m/s (Level 6)

• IP Rating: IP43 (Splash and dust resistant)

• GNSS: GPS + GLONASS + Galileo + BeiDou

2. Camera & Sensors

• Main Camera:

  • Sensor: 1/1.28" CMOS

  • Resolution: 50 MP (Stills), 4K/60fps (Video)

  • Zoom: 8× Hybrid (4× Optical + 2× Digital)

• Thermal Camera (FLIR Boson):

  • Resolution: 640 × 512

  • Frame Rate: 30 Hz

  • Thermal Sensitivity: <40 mK

• Laser Rangefinder: Up to 1,200 m range

3. Remote Controller (EVO RC Plus)

• Screen: 7.9" HD Touchscreen (1,200 nits brightness)

• Battery Life: ~4.5 hours

• Operating Frequency: 2.4 GHz & 5.8 GHz (Dual-band)

• Max Transmission Range: 20 km (FCC), 10 km (CE)

4. Battery & Charging

• Battery Type: Intelligent LiPo (6S)

• Capacity: 6,900 mAh

• Charging Time: ~90 minutes (with fast charger)
