Barco SP4K-20C 21,000-Lumen 4K Smart Cinema Laser Projector

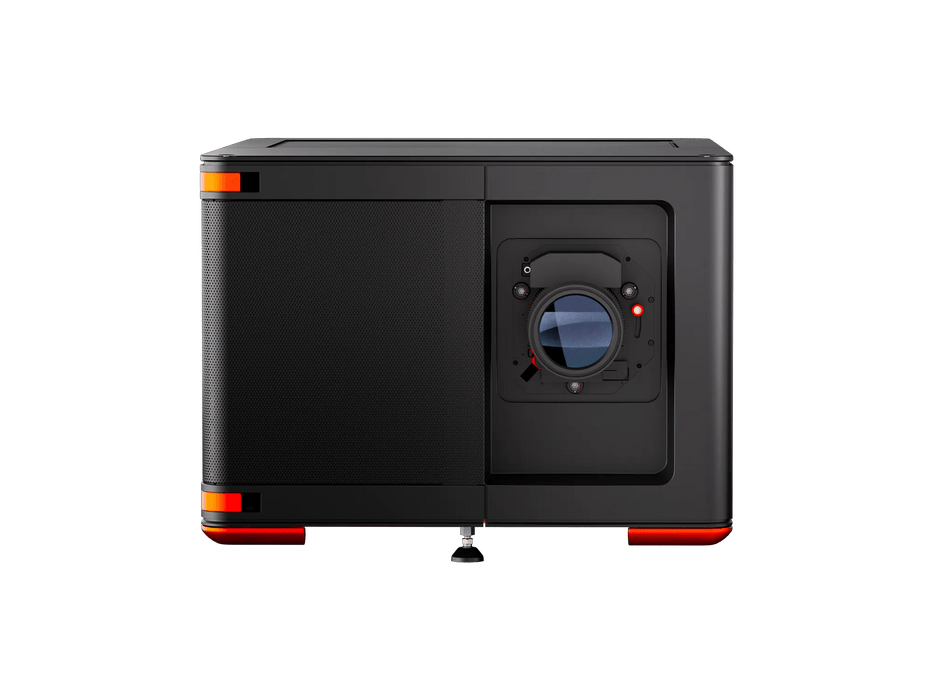

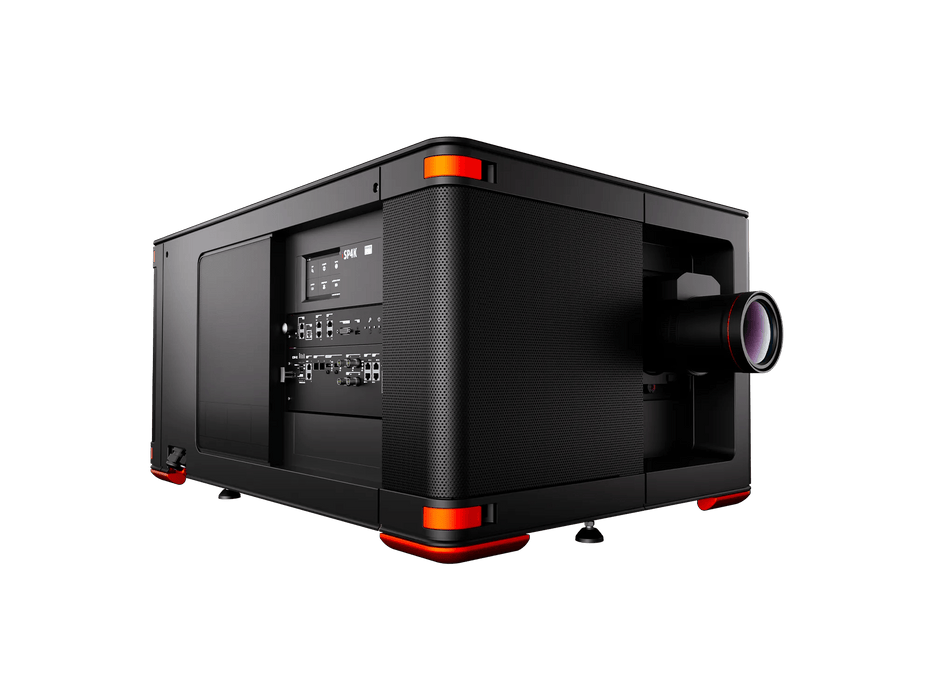

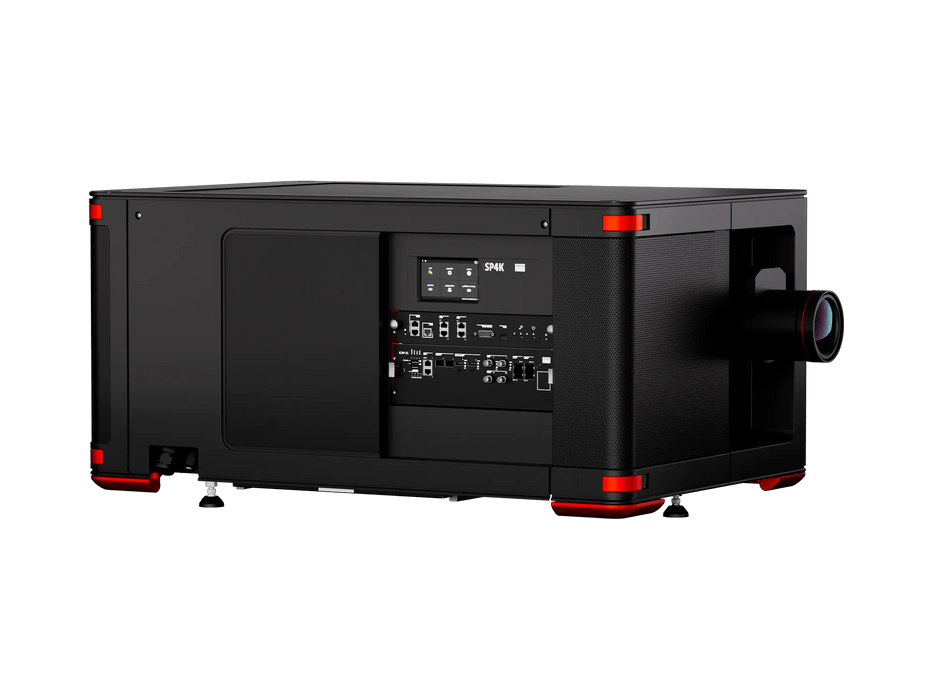

Barco SP4K-20C Smart Cinema Laser Projector

The Barco SP4K-20C is a 21,000-lumen native 4K DCI-compliant Smart Cinema laser projector. Part of the Barco Series 4 portfolio, it delivers brilliant image quality for the largest premium cinema screens and large-venue installations.

Key Specifications

• Native Brightness: 21,000 lumens (typical)
• Resolution: Native 4K (4096 x 2160)
• Native Contrast: 2700:1 (typical); up to 3500:1 with HC lens
• Light Source: RGB Laser
• Long-term Brightness Stability: 50,000+ hours at average usage
• Color Gamut: DCI P3 compliant; 98.5% of Rec. 2020
• Digital MicroMirror Device: 3x 0.98" DC4K
• Integrated Media Server: Barco mFusion ICMP-XS with SSD storage up to 16TB
• Power Requirements: Single phase or three phase 200-240V 16A (compatible with Sri Lankan power standards)
• Power Consumption: 2.0kW (3W in Eco mode)
• Dimensions (WxLxH): 710 x 1070 x 547 mm / 27.95 x 42.13 x 21.54 inches
• Weight: 105 kg / 231.5 lbs
• Noise Level: 50 dB(A) at 1m, max power
• Laser Class: Class 1 - Risk Group 3
• 3D: Active glasses and polarization systems on silver screens supported
• Country of Origin: Belgium

Key Features

• Brilliant image: Barco Active Image Management with patented precision brightness technology and automatic white balances
• Ready for tomorrow: Barco Colorgenic technology - fully enabled for 4K HFR and IAB audio
• Barco EcoPure: Silent running (50dB(A)), boothless operation, 10.5 lm/W power efficiency, remote wake on LAN
• Fit and forget: Modular design with toolless cover for cost-effective maintenance
• Lens compatibility: C-lens holder (multiple ratios from 0.8-3.9) or B-lens holder (multiple ratios from 1.01-6.95)

Article Numbers (configurations)

• R9012511 - SP4K-20C mFusion, 2TB drive, C-lens holder
• R9012512 - SP4K-20C mFusion, 4TB drive, C-lens holder
• R9012059 - SP4K-20C mFusion, 6TB drive, C-lens holder
• R9012060 - SP4K-20C mFusion, 8TB drive, C-lens holder
• R9012505 - SP4K-20C mFusion, 2TB drive, B-lens holder
• R9012506 - SP4K-20C mFusion, 4TB drive, B-lens holder
• R9012067 - SP4K-20C mFusion, 6TB drive, B-lens holder
• R9012068 - SP4K-20C mFusion, 8TB drive, B-lens holder

Pricing shown is estimated MSRP. Final pricing subject to current Barco dealer quote, configuration (lens, server storage, accessories), and volume discount. Lenses sold separately. Contact our sales team for firm quote and lead time.
