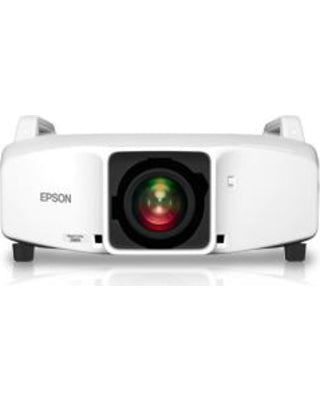

Epson PowerLite Pro G6170NL XGA 3LCD Projector without Lens

Epson PowerLite Pro G6170NL XGA 3LCD Projector without Lens

SKU V11H705920
Save 56% Save 56%
$5,196.00
$5,196.00 - $5,196.00
$5,196.00
$2,267.33
$2,267.33 - $2,267.33
$2,267.33

Projection System:High-aperture Epson 3-chip 3LCD technology
Native Resolution:XGA (1024x768)
Color Brightness:6500 lumens1
White Brightness:6500 lumens1

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Epson PowerLite Pro G6170NL XGA 3LCD Projector without Lens

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Device TypeLCD projector
Bundled Services3 years Epson Road Service Program
NetworkingEthernet
First Seen On Google ShoppingFebruary 2015
Brightness (White)6500 lumens
Brightness (Color)6500 lumens
Image Size50 in - 300 in
Uniformity90 %
ResolutionXGA - XGA (1024 x 768) (native) / 1400 x 1050 (resized)
Native Aspect Ratio4:3
Display Format786,432 pixels (1,024 x 768) x 3
Color Support1 billion colors
Max Sync Rate (V x H)85 Hz x 92 kHz
Lamp TypeUHE 380 Watt
Lamp Life CycleUp to 2000 hour(s) / up to 4000 hour(s) (economic mode)
FeaturesEdge blending, EPSON 3LCD technology, 16:9 aspect ratio support, Split Screen, 16:10 aspect ratio support, 4:3 aspect ratio support, AMX Device Discovery, Control4 Certified, 3x Brighter Colors
TypeNo lens
Keystone Correction DirectionHorizontal, vertical
Vertical Keystone Correction-30 / +30
Horizontal Keystone Correction-30 / +30
TV SystemNTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60
Analog Video SignalRGB, S-Video, composite video, component video
Video InterfacesVGA, HDMI, DisplayPort, component video, composite video, S-Video
Video Modes480p, 720p, 1080i, 1080p, 480i, 576i, 576p
LAN and Wireless Image Transferring ProtocolsWired LAN
Interfaces1 x VGA output - 15 pin HD D-Sub (HD-15) 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) 1 x component video input - BNC x 5 3 x audio line-in - mini-phone stereo 3.5 mm 1 x composite video input - RCA 1 x audio line-in - RCA x 2 1 x USB - 4 pin USB Type A 1 x composite video input - BNC 1 x S-video input - 4 pin mini-DIN 1 x serial RS-232C - 9 pin D-Sub (DB-9) ( management ) 1 x network - RJ-45 1 x HDMI - 19 pin HDMI Type A 1 x DisplayPort - 20 pin DisplayPort 1 x remote control - mini-phone 3.5 mm 1 x USB - 4 pin USB Type B ( management ) 1 x HDBaseT - RJ-45
Included AccessoriesWireless remote control, lens lock screw
Cables Included1 x VGA cable
Security FeaturesSecurity lock slot (cable lock sold separately), lens lock
Nominal VoltageAC 120/230 V ( 50/60 Hz )
Power Consumption Operational528 Watt
Power Consumption Stand by3.3 Watt
Software IncludedDrivers & Utilities
Width19.9 in
Depth15.9 in
Height6.7 in
Weight21.5 lbs
Service & Support3 years warranty
Service & Support DetailsLimited warranty - 3 years Limited warranty - lamp - 90 days Technical support - phone consulting - 3 years
Min Operating Temperature32 F
Max Operating Temperature113 F
Sound Emission39 dBA
Sound Emission (Economic Mode)31 dBA
BrandEpson
Part NumberV11H705920
GTIN00010343918481

Item Includes

  • Epson PowerLite Pro G6170NL Projector
  • Lens NOT included
  • Power cable
  • Computer cable (VGA)
  • Projector remote control with batteries
  • User manual CD
  • EasyMP software CD
  • Quick Setup Sheet
  • Lens lock screw

Item Includes

  • 3x Brighter Colors and reliable performance 3LCD, 3-chip technology*
  • One measurement of brightness is not enough look for both high color brightness and high white brightness.
    The PowerLite Pro G6170NL has:
        Color Brightness: 6500 lumens
    1
        White Brightness: 6500 lumens
    1
  • Brilliant images XGA (1024 x 768) resolution for presentations, videos, digital signage and more
  • Versatile connectivity easily integrate with any system; supports the latest connectivity options, including HDBaseT, HDMI and DisplayPort
  • Seamless control protocol support compatible with Crestron, AMX, Extron XTP and Control4 Simple Device Discovery Protocol (SDDP)
  • Easy installation features built-in Edge Blending, 360-degree installation flexibility and simple cloning functions
  • Advanced collaboration features simultaneously project from multiple devices over the network with Multi-PC projection, or side-by-side from different sources with Split Screen2
  • Convenient remote management remotely monitor and control the projector; includes scheduling function
  • Industry-leading service and support long-life air filter and easy maintenance tools, plus peace-of-mind ownership with next-business-day replacement3
  • Resolution:XGA (1024x768)
    Display Device:High aperture 3LCD
    Brightness:6500 Lumen Color and White Light Output
    Contrast Ratio:5000:1
    Video Signals:NTSC, PAL, SECAM
    Aspect Ratio:16:10
    Number of Colors:Up to 1 billion
    Lamp:380W UHE
    Typical Lamp Life:2000/4000 Hours (Normal/Eco Mode)
    Lens:LENS NOT INCLUDED
    Throw Ratio:Depends on Lens
    Image Size:Depends on Lens
    Throw Distance:Depends on Lens
    Keystone Correction:Horizontal and Vertical 30
    Projection Methods:Front/Rear/Ceiling Mount
    Inputs:HDBaseT x 1
    HDMI x 1
    DisplayPort x 1
    VGA x 1
    RCA A/V x 1
    BNC x 1
    S-Video x 1
    Audio In (MiniJack) x 3
    Hardwire Remote Jack x 1
    Outputs:VGA Out x 1
    Audio MiniJack Out x 1
    Speaker:None
    Audible Noise:39dB Normal / 31dB Eco
    Weight:21.5 lbs.
    Dimensions:19.88" x 15.94" x 6.73"
    Accessories:Power cable, VGA cable, Remote with batteries, User manual CD, EasyMP software CD, Quick Setup Sheet, Lens lock screw
    Remote Control:Remote Control included with batteries
    Mfg Warranty:3-Year limited warranty, 90-Day lamp warranty
