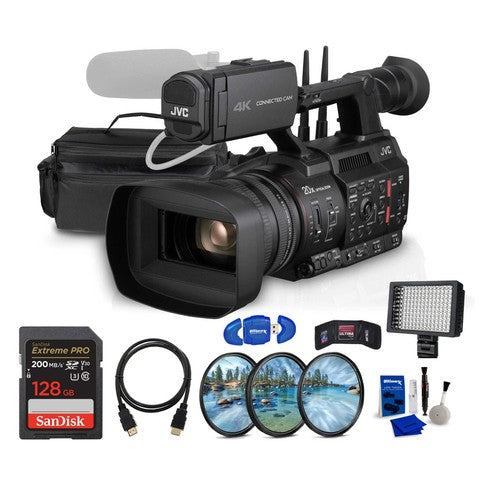

Item Includes
Image Sensor
1"-Type
Effective Sensor Resolution
9.35 Megapixel
Image Stabilization
Optical in Integrated Lens
ISO/Gain Sensitivity
Native: 400 to 25,600
Gain: -6 to 24 dB
Max Recording Modes
H.264 4:2:2 10-Bit
Up to UHD 4K at 24.00/25/29.97 fps
ProRes 422/ProRes 422 HQ/ProRes 422LT 4:2:2 10-Bit
UHD 4K up to 50/59.94 fps
MPEG-2
Up to 1080p
H.264
Up to 480p
Show More
Max Video Output
via HDMI
UHD 4K
via SDI/BNC
1080p
Show More
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended]
Video I/O
HDMI / 1/8" / 3.5 mm TRRS A/V / BNC
Mobile App Compatible
No
Battery
JVC BN-VC296G
Imaging
Image Sensor
1"-Type CMOS
Effective Sensor Resolution
9.35 Megapixel
Image Stabilization
Optical in Integrated Lens
Built-In ND Filter
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type
Video Only
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/10000 to 1/6 Second
ISO/Gain Sensitivity
Native: 400 to 25,600
Gain: -6 to 24 dB
Signal-to-Noise Ratio
Not Specified by Manufacturer
Sensitivity
f/11 at 2000 lux 89% Reflectance
White Balance
Presets: Auto, Daylight, Manual, Tungsten
Range: 2300 to 15,000K
Lens
Focal Length
9.4 to 188.6mm (35mm Equivalent: 28 to 560mm)
Zoom
20x Optical / 40x Digital
Maximum Aperture
f/2.8 to 4.5
Minimum Focus Distance
Not Specified by Manufacturer
Filter Size
82 mm
Control Rings
Focus
Zoom
Iris
Focus
Focus Mode
Automatic, Manual Focus
Video Capture
Internal Recording
H.264 4:2:2 10-Bit
3840 x 2160 at 24.00/25/29.97 fps
1920 x 1080 (8 to 50 Mb/s)
1280 x 720 (8 to 50 Mb/s)
ProRes 422/ProRes 422 HQ/ProRes 422LT 4:2:2 10-Bit
3840 x 2160 up to 50/59.94 fps
MPEG-2
1920 x 1080p (25 to 35 Mb/s)
1440 x 1080i (25 to 35 Mb/s)
1280 x 720 (25 to 35 Mb/s)
H.264
720 x 480 (8 Mb/s)
960 x 540 (1.2 to 3 Mb/s)
480 x 270 (1.2 to 3 Mb/s)
Video Output
via HDMI
3840 x 2160
via SDI/BNC
1920 x 1080p
Fast-/Slow-Motion Support
No
Interval Recording Modes
No
Audio Recording
MP4: 2-Channel, 16-Bit at 48 kHz via AAC/LPCM Audio
IP Streaming
MPEG2, RTMP, RTP, RTSP, TCP, UDP, ZIXI
640 x 360 to 1920 x 1080 at 50p, 59.94p (0.3 to 20.00 Mb/s)
Interface
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended]
Internal Storage
No
Video I/O
1x BNC (3G-SDI) Output
1x HDMI Output
1x 1/8" / 3.5 mm TRRS A/V (Composite) Output
Audio I/O
2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power)
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O
1x Barrel (12VDC) Input
Other I/O
1x 2.5 mm Sub-Mini
1x RCA (Timecode)
1x Unspecified USB (LAN) Data
1x RJ45 (LAN)
1x 2.5 mm Sub-Mini Control
Wireless
Wi-Fi 5 (802.11ac)
Mobile App Compatible
No
Global Positioning (GPS, GLONASS, etc.)
GPS
Monitor
Display Type
Primary Monitor: Articulating 4" Non-Touchscreen LCD
Resolution
Primary Monitor: 800 x 450
Viewfinder
Type
Electronic (LCOS)
Resolution
1280 x 960 (1,228,800 Dot)
Power
Battery
JVC BN-VC296G
Power Consumption
24 W
General
Shoe Mount
1x Cold Shoe
Tripod Mount
1/4"-20 Female
3/8"-16 Female
Accessory Mounting Thread
1x 1/4"-20
Built-In Video Light
No
Materials
Plastic
Dimensions (W x H x D)
7.7 x 9.1 x 17.5" / 195.6 x 231.1 x 444.5 mm
Weight
6.8 lb / 3.1 kg (Body Only)
Packaging Info
Package Weight
11.34 lb
Box Dimensions (LxWxH)
21.2 x 12.2 x 11.8"
