Lectrosonics Venue2 Six-Channel Modular Receiver (470.100 to 691.175 MHz)

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

Lectrosonics Venue2 Six-Channel Modular Receiver (470.100 to 691.175 MHz)

SKU VRM2WBL
Save 2% Save 2%
$7,999.00
$7,999.00 - $7,999.00
$7,999.00
$7,800.00
$7,800.00 - $7,800.00
$7,800.00

The Lectrosonics Venue2 is a six-channel, rackmountable modular receiver designed for demanding live sound environments where RF reliability and precise control matter. It delivers phase‑diversity UHF reception across a wide 221 MHz bandwidth, making frequency planning easier and more resilient in congested venues. With integrated monitoring and multiple control interfaces, Venue2 keeps your wireless setup streamlined from installation through show time.

Key Features
  • 6-Channel Modular Configuration, 1 RU
  • Ratio/Antenna Phase-Diversity Reception
  • 221 MHz Bandwidth
  • IQ Dynamic Tracking Filters
  • Emulation Modes for Analog Transmitters
  • Built-In Antenna Multicoupler
  • IR Port for Quick Transmitter Setup
  • Ethernet, USB & RS-232 Interface Ports

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Lectrosonics Venue2 Six-Channel Modular Receiver (470.100 to 691.175 MHz)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Lectrosonics Venue2 is a rackmount receiver frame that can be used with a variety of transmitters from Lectrosonics as well as transmitters from other manufacturers. Its wideband design offers the flexibility needed in congested RF environments. The Venue2 receiver is a "system" that consists of a master unit and up to six receiver modules and a software interface. It can be used for sound reinforcement applications such as live stage, theater, boardrooms, houses of worship, and more.

The Venue2 mainframe assembly houses the power supply, antenna and RF distribution, user interface and control ports, and up to six wireless receiver modules (sold separately), providing a significant reduced cost per channel with the modules sharing these resources. The built-in RF multicoupler allows up to three mainframes to operate from a single pair of antennas, resulting in an additional cost savings as a multi-channel system.

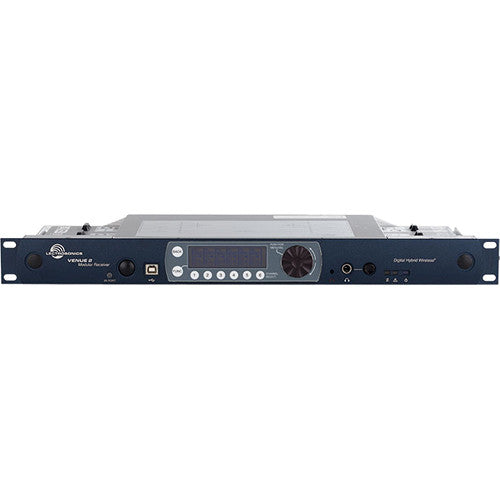

The mainframe front panel provides an LCD for system setup, monitoring, and troubleshooting during normal operation. The LCD shows RF and audio levels, diversity status, pilot tone status, and transmitter battery status for all six receivers at the same time.

Furthermore, a built-in analyzer scans the tunable spectrum of the receiver to assist in finding clear operating frequencies and presents the results in graphical format on the LCD. Also, a wireless designer software is included that simplifies setup and exposes all features in an easily navigable GUI.





Receiver Modules
Up to six receiver modules (not included) can be installed in each mainframe
Audio Outputs
Six balanced XLR audio-output jacks connect the Venue receiver to external equipment. By default, pin 2 is audio positive (+). The polarity of each output can be reversed in the LCD setup menus or with the included software
RS-232 Port
A serial RS-232 interface is provided for setup and control of a Venue2 system from computers or other devices using industry-standard RS-232 communication links
USB Port
Standard USB Version 1.1 port for setup and control of the receiver from computer systems using Windows 7, 8, 10, and Vista operating systems
Multicoupler Outputs
The built-in antenna multicoupler provides RF distribution for the six receiver modules and a "loop thru" output at the same level to deliver the RF signal to another Venue2 receiver
Antenna Inputs
The two outermost BNC connectors are provided for use with right-angle whip antennas, cables from remote antennas, or cables from another Venue receiver

Item Includes

  • Lectrosonics Venue2 Six-Channel Modular Receiver (470.100 to 691.175 MHz)
  • Lectrosonics DCR15/4AU Power Supply for DR and Venue2 Wireless Receivers
  • Lectrosonics MC65 TRS ¼" to 3.5mm Cable (10', 3.05 m)
  • USB Cable
  • Wireless Designer Software
  • Limited 1-Year Manufacturer Warranty
  • Not Included
  • Essential
  • XLR Cables

Item Includes

Wireless Technology
Analog UHF
Diversity
Yes
Max Operating Range
Not Specified by Manufacturer
Receiver Type
1x Rackmount (19")
Number of Audio Channels
6
Included Transmitters
No Transmitters Included
Microphone Type
No Microphone Included
Included Charging Case
No
System
Wireless Technology
Analog UHF
Diversity
Yes
RF Frequency Band
A1: 470.1 to 537.575 MHz
B1: 537.6 to 614.375 MHz
B2: 563.2 to 639.9 MHz
C1: 614.4 to 691.175 MHz
Max Operating Range
Not Specified by Manufacturer
Latency
1.5 to 3 ms (Selectable)
Encryption
No
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
No
Receiver
Receiver Type
1x Rackmount (19")
Mounting Options
Rackmount (with Included Hardware, 1 U)
Antenna
4x BNC Port (No Antenna Included)
Number of Audio Channels
6
Audio I/O
6x XLR 3-Pin Balanced Line Output
1x 1/4" TRS Headphone Output
Network I/O
1x RJ45 (Ethernet)
Word Clock I/O
No
USB/Lightning Connectivity
1x USB-A Female (Host Connection)
Frequency Response
32 Hz to 20 kHz ±1 dB
Display
Backlit LCD
Power Requirements
DC Input
Transmitters
Included Transmitters
No Transmitters Included
Microphones
Microphone Type
No Microphone Included
Power
Included Charging Case
No
AC/DC Power Adapter
10 to 18 VDC at 1.2 A (Included)
Physical
Environmental Resistance
No
Housing
Metal
Dimensions
19 x 7.7 x 1.7" / 482.6 x 195.6 x 43.2 mm
Weight
4.4 lb / 2 kg
Packaging Info
Package Weight
9 lb
Box Dimensions (LxWxH)
24.3 x 14.5 x 6.6"
