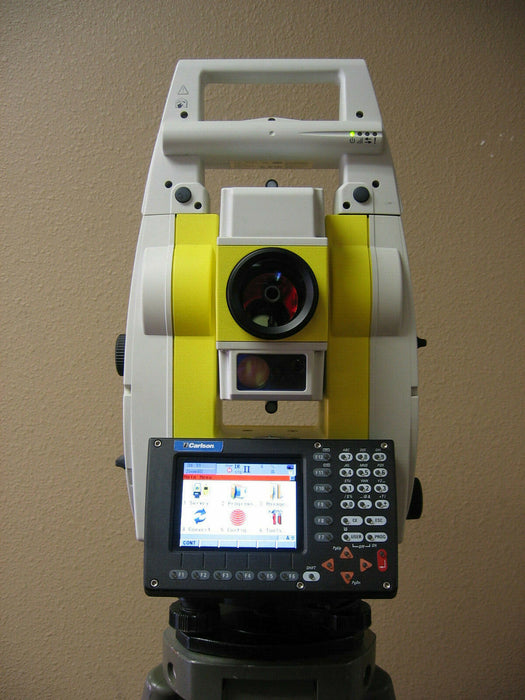

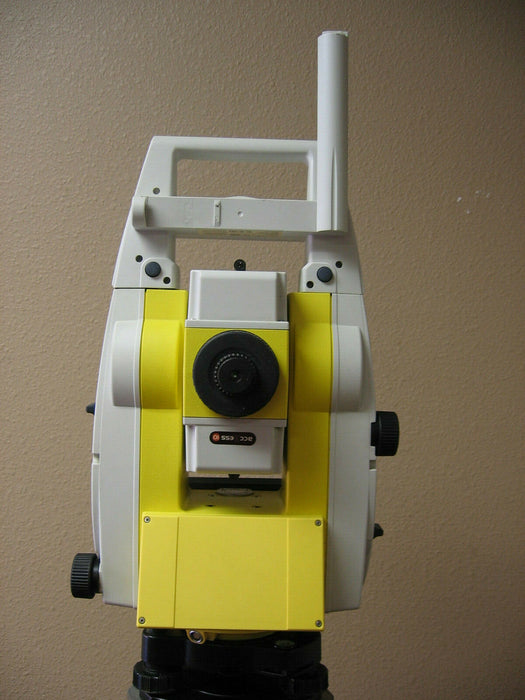

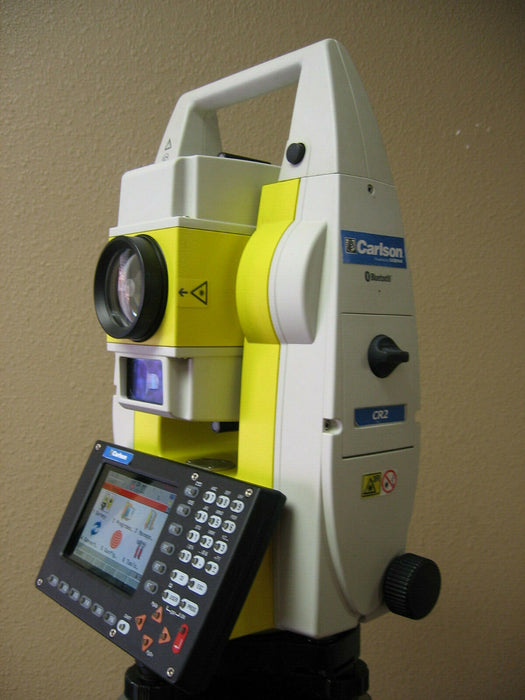

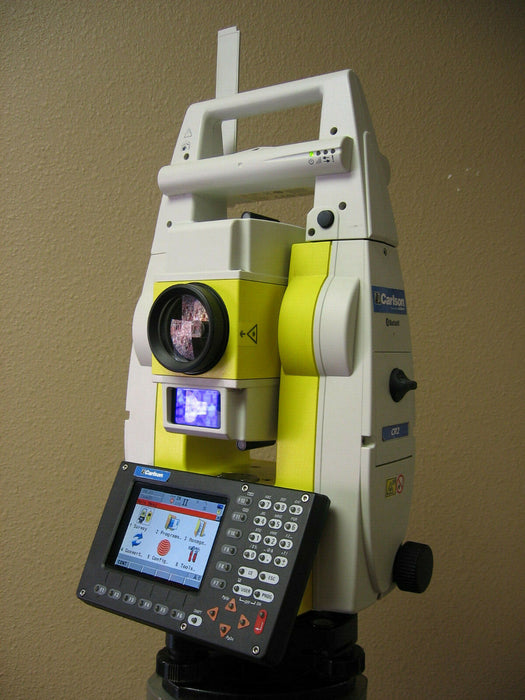

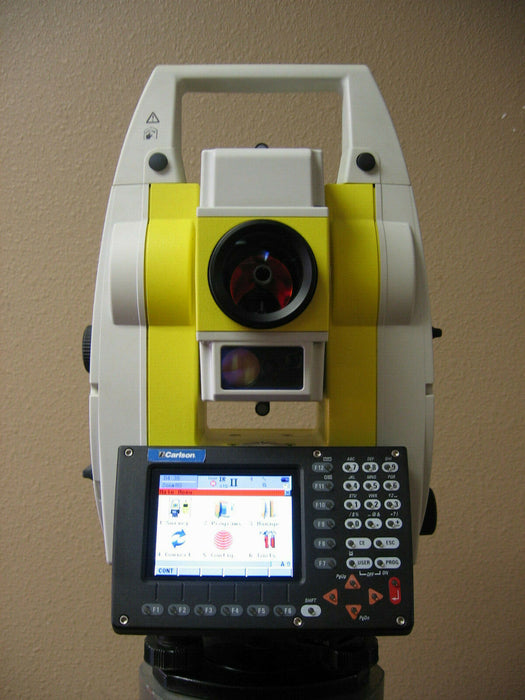

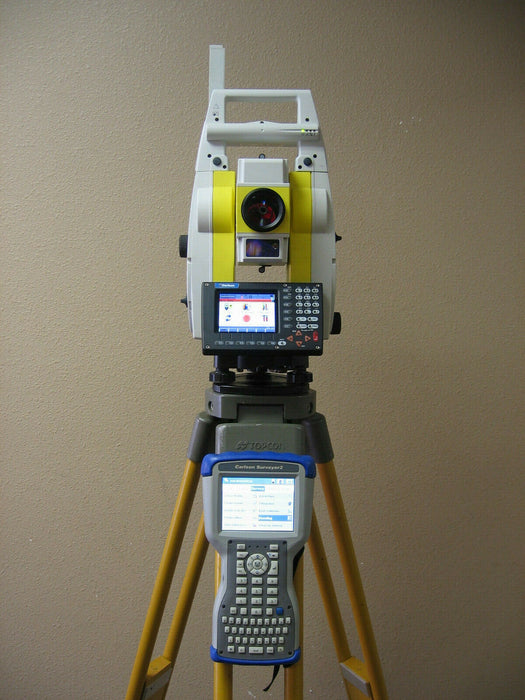

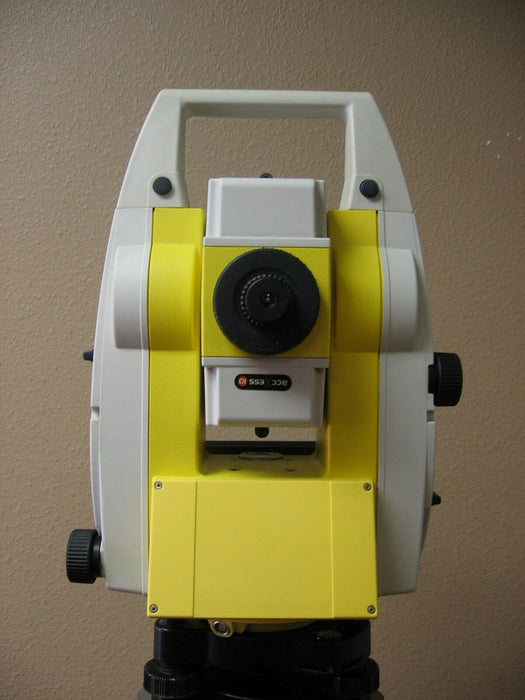

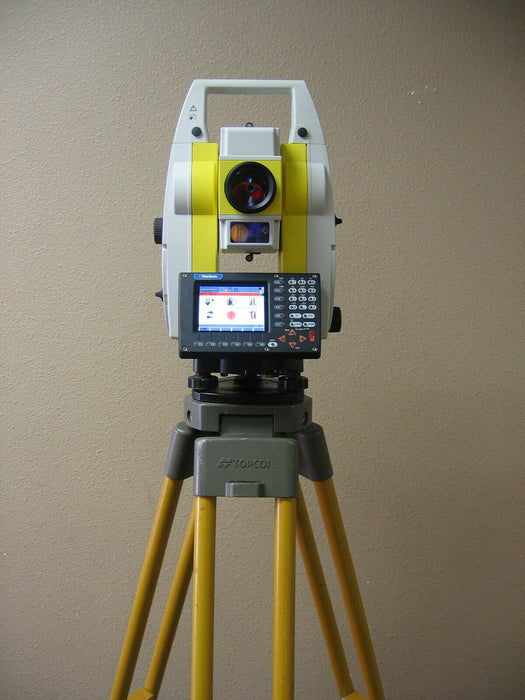

Leica Geomax Zoom80 Carlson CR2 Prismless Robotic Total Station

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

Geomax Zoom 80 Robotic Total station With Leica Prisms

SKU Zoom 80
Save 12% Save 12%
$6,499.00
$6,499.00 - $6,499.00
$6,499.00
$5,697.69
$5,697.69 - $5,697.69
$5,697.69

The Leica Geomax Zoom80 offers high‑precision prismless measurements for demanding surveying tasks. Its robust Carlson CR‑2 hardware ensures reliable robotic operation in challenging environments. Integrated zoom optics provide clear targeting up to 80 km, while the intuitive interface speeds data collection. Built for durability, this used unit delivers professional performance at a fraction of the cost.

Key Features

  • STReAM360 Technology: This suite of technologies enables fully automatic operation.
    • SCOUT360 quickly scans the work area to find the prism within seconds.
    • TRACK360 provides continuous tracking of a moving prism once locked on.
    • AIM360 ensures precise, automatic aiming at the center of any prism with repeatable accuracy.
  • Dual Mode EDM: The instrument offers both infrared (IR) and reflectorless distance measurement modes.
    • Prism mode: Measures up to 3,500 meters to a single prism with 1 mm + 1.5 ppm accuracy.
    • Reflectorless mode: Measures up to 1,000 meters (accXess EDM technology) using a visible red laser.
  • One-Man Surveying Capability: The system is designed for a single operator, with remote control options and a lightweight setup using a passive reflector.
  • User Interface: Features a large, high-contrast color LCD touch screen display and an illuminated 34-key keyboard for easy operation.
  • NavLight: A built-in alignment aid with flashing red and yellow lights guides the rodman quickly and accurately to the line of sight during stake-out tasks.
  • Data Management: Supports reliable data storage and transfer using removable CompactFlash cards and Bluetooth wireless technology.
  • Rugged Design: The total station has an IP54 rating, providing protection against dust and water.
  • Compatibility with Leica Prisms: The
    GeoMax Zoom 80
     is designed to work with Leica prisms, including the Leica GRZ122 360-degree prism, ensuring flexibility in equipment choice. The use of standard passive prisms reduces pole weight and the need for additional batteries.

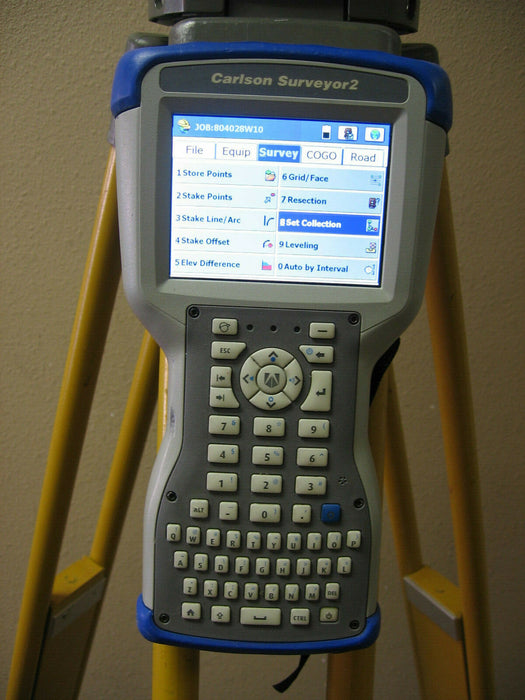

  • Software: The instrument runs on Xsite onboard software and is compatible with other field software like Carlson SurvCE.

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Geomax Zoom 80 Robotic Total station With Leica Prisms

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The GeoMax Zoom 80 Robotic Total Station is a specialized, high-efficiency surveying instrument designed for one-person operations, featuring fully automated prism search, tracking, and aiming capabilities. It is compatible with Leica prisms and other surveying accessories, providing a versatile solution for a wide range of surveying and construction tasks.

Product Overview

The GeoMax Zoom 80 is part of the Hexagon Group family of products and incorporates advanced technology for precision and productivity in the field. Its key operational features are centered around its STReAM360 Technology:

SCOUT360: Quickly scans a large working area to locate the prism automatically.

TRACK360: Once the prism is located, it provides continuous, reliable tracking of the moving target.

AIM360: Ensures high-precision, automatic aiming at the center of the prism, performing measurements with constant and repeatable accuracy.

Technical Specifications

Item Includes

  • Geomax Zoom 80 Robotic Total station With Leica Prisms


Item Includes

Category Specification

Angle Accuracy (ISO 17123-3) 1”, 2”, or 5” models available

Angle Measuring Method Absolute, continuous, diametrical

Distance Measurement (Prism) Range up to 3,500 m (11,483 ft) to a single prism; Accuracy of 1 mm + 1.5 ppm

Distance Measurement (Reflectorless) Range up to 1,000 m (3,280 ft); Accuracy of 2 mm + 2 ppm

Automatic Aiming (AIM360) Range up to 1,000 m (round prism); Accuracy of 1”

Automatic Search (SCOUT360) Range up to 300 m; typical search time 5-10 seconds; 360° horizontal search area

Automatic Tracking (TRACK360) Tracking speed up to 25 m/s at 100 m

Operating System Microsoft Windows Mobile® on controller (if used)

Display ¼ VGA color LCD, touch screen

Data Storage Removable CompactFlash card

Interfaces Bluetooth® wireless technology (long-range), RS232 serial port, ZRT80 radio modem

Power Supply Removable Li-Ion 7.4V, 4.4 Ah battery

Operating Time Typically 6–8 hours with internal battery

Weight 5.5 kg (12.1 lbs) when fully equipped

Environmental Protection IP54 dust and water resistant

Operating Temperature –20°C to +50°C (–4°F to +122°F)
