Nikon ZR 6K Cinema Camera

By combining RED color science and Nikon engineering, the Nikon ZR 6K Cinema Camera is a first-of-its-kind powerhouse designed to capture stunning cinematic images in one compact body. This tiny Z-mount cinema camera allows you to use a variety of lenses, and internal stabilization provides a smooth, steady image with 15+ stops of dynamic range. Features include 32-bit float audio, advanced autofocus, dual-base ISO, and up to 6K60 video capture in REDCODE, N-RAW, or ProRes RAW.

Nikon + RED Color Science

The partnership of Nikon and RED provides a wide range of compatibility with production workflows, offering REDCODE RAW R3D NE recording format along with Nikon's N-RAW, ProRes RAW HQ/422 HQ, and the high-quality compressed H.264 and H.265 codecs. REDCODE RAW (R3D NE) unlocks the same color space (REDWideGamutRGB) and Log curve (Log3G10) as RED cameras.



The camera captures resolutions up to 6K60, 4K120, and even 1080p240 for high frame rate, slow-motion recording.

Audio Capture

The ZR captures high-quality audio using dynamic 32-bit float and 24-bit recording, and it supports standard 48 kHz linear PCM for full video compatibility.



It features built-in configurable mics with five directional patterns (front/narrow, front, rear, omnidirectional, and binaural). There's also a line input that provides the ability to record with an external microphone, and the camera's digital accessory shoe that can utilize mics such as the ME-D10 shotgun mic. A headphone jack allows you to monitor the audio.

Recording and Output

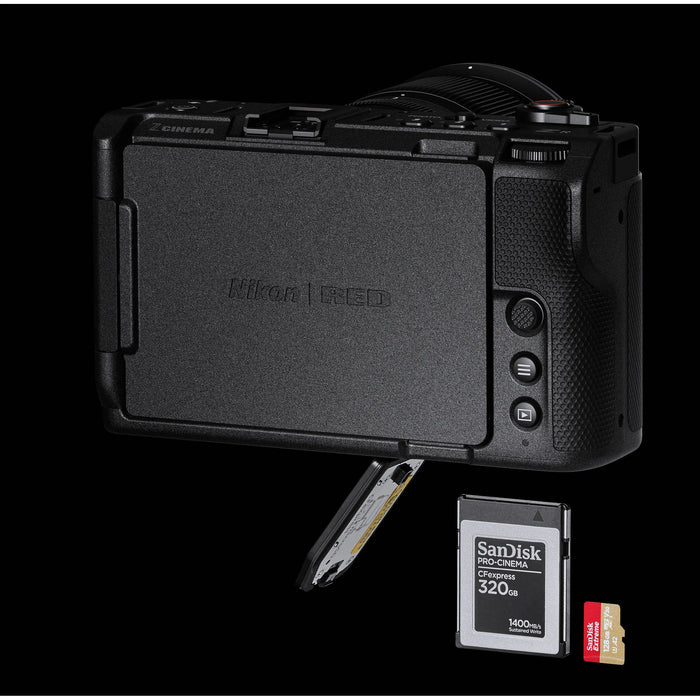

The camera records to a CFexpress Type B card slot that is accessed through the battery door to keep the camera compact and mobile, while a microSD card slot is available for proxy recording. There is also a micro-HDMI output that allows you to output to a display or recording device.

Advanced Autofocus

Nikon's advanced autofocus feature is powered by deep learning, providing up to 9-subject detection autofocus with automatic tracking of people, animals, and vehicles.

Nikon Z Mount and Accessory Ecosystem

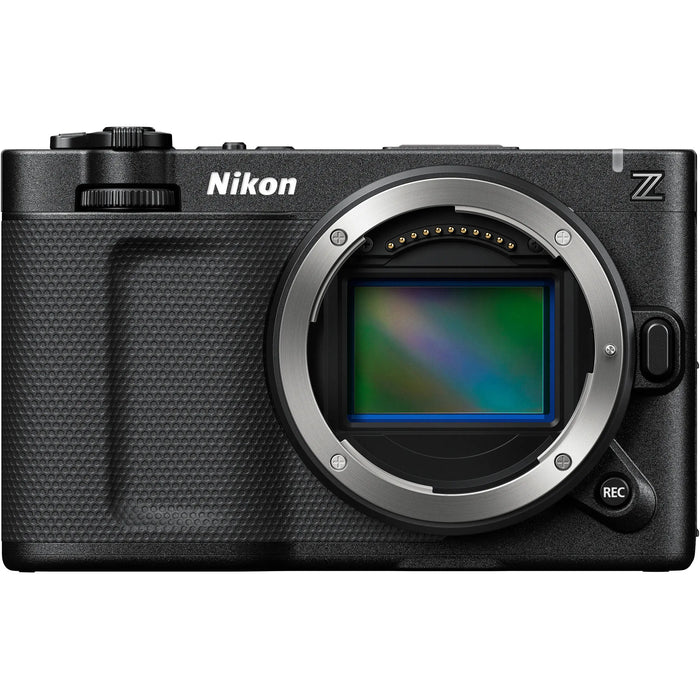

The Nikon Z mount is a wide, shallow full-frame mirrorless lens mount, which means it's also extremely adaptable, capable of supporting countless NIKKOR and third-party lenses.



There's an extended ecosystem of accessories for the ZR, such as camera cages, microphones, handheld accessories, and rigs, from Nikon and third-party brands such as SmallRig.

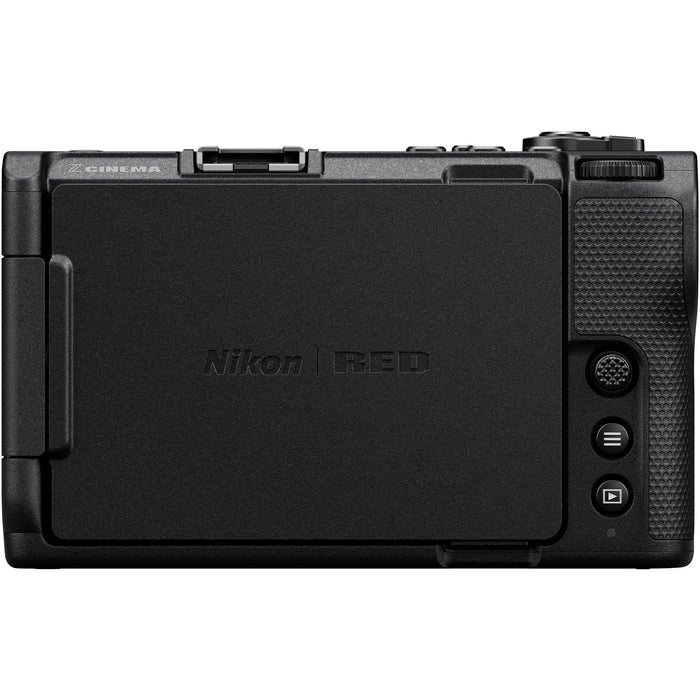

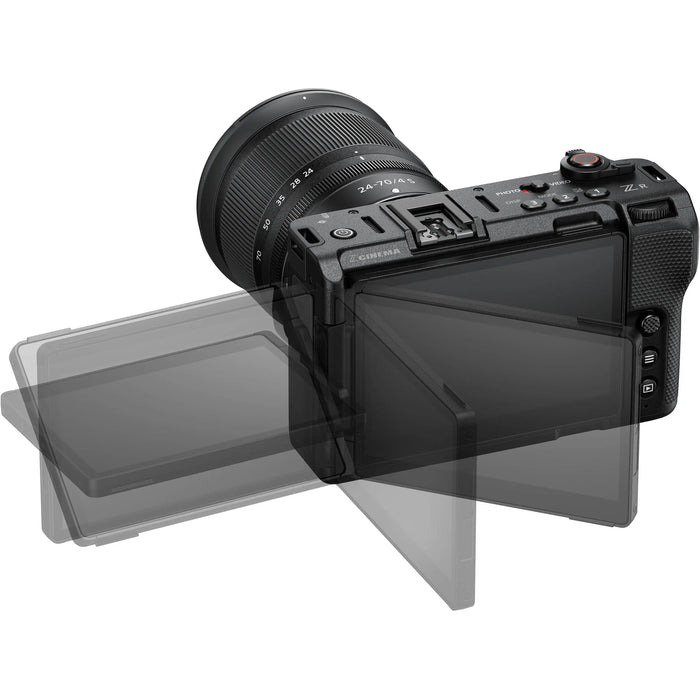

Large, Bright Display

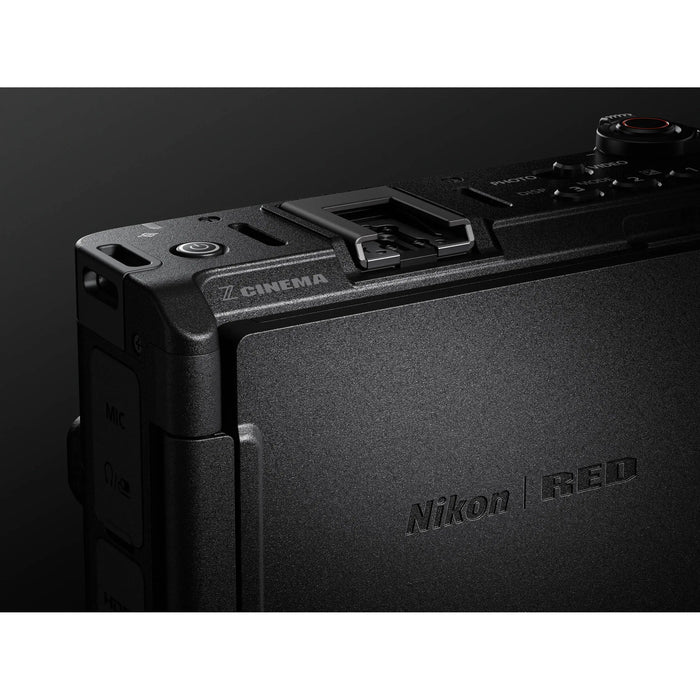

The built-in 4" variable-angle touchscreen display features a DCI-P3 color gamut, 1000 cd/m² brightness, and a 3.07 million dot resolution for viewing your controls and footage with ease.

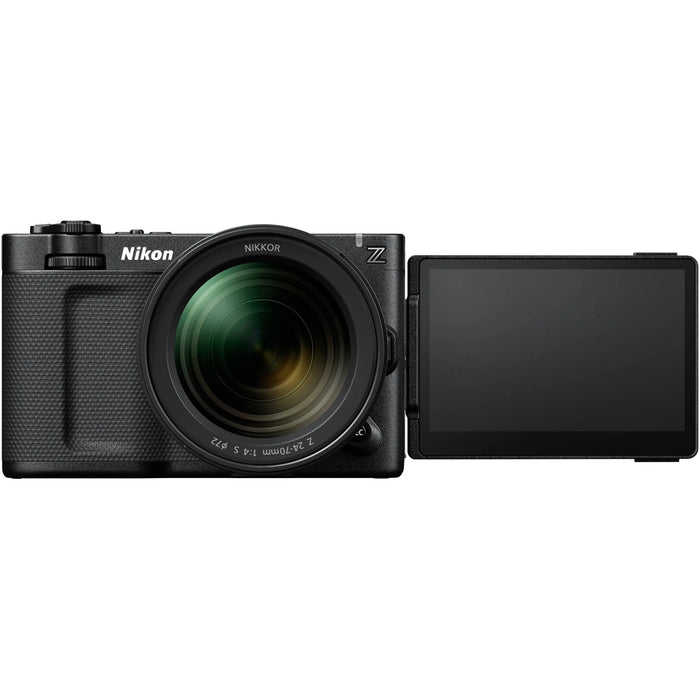

The display can automatically flip when you change from horizontal to vertical mode.

Custom LUTs

The camera provides the ability for the operator to load up to 10 LUTs into the camera for real-time preview on its display.

Lenses and Image Stabilization

The standard Z lens mount allows you to utilize the entire line of NIKKOR Z lenses and a wide range of third-party lenses and lens mount adapters.



The ZR provides integrated image stabilization with any prime or zoom lens at up to 7.5 stops to provide smooth, steady image capture.

Dual-Base ISO and Shutter Angle

The ZR provides extended ISO sensitivity to the base ISO with its dual-base ISO, providing 800/6400 for both Log3G10 and N-Log profiles.



You can also set the shutter angle to one of 15 steps between 5.6 and 360° for powerful exposure and blur control.

Frame.io Integration

The camera's companion app allows you to streamline your workflow by connecting the camera to your phone and utilizing the optional Frame.io cloud service, making asset control, post production, and live streaming easy.

Filmmaker-Oriented User Interface

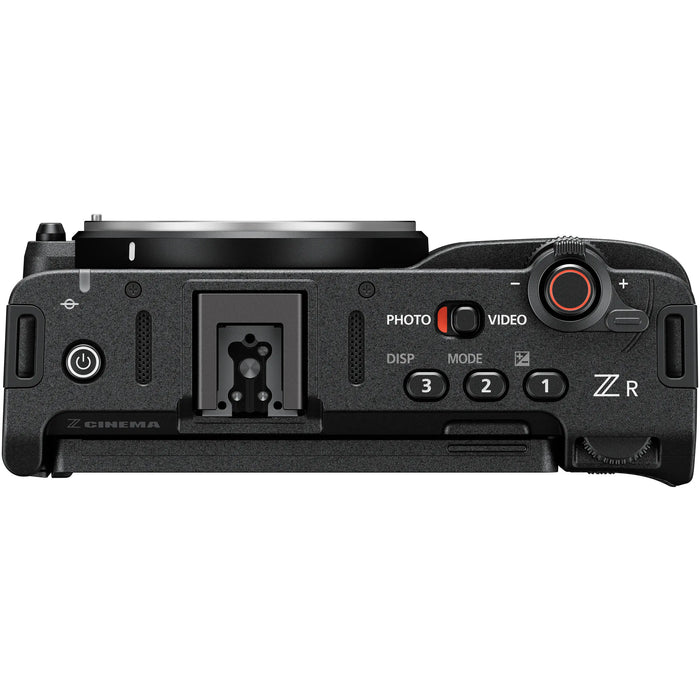

The ZR allows you to get started quickly with an accessible stills/video switch and multiple customizable Fn buttons.



The interface features a shortcut menu for easy access to key filmmaking settings such as grids, zebra, waveform, touch autofocus, focus peaking, and numerous other imaging tools.

Power Options

The camera is powered via one EN-EL15c battery in its battery slot, or it can be powered via USB-C using an external power source such as an optional power supply or power bank.

Ultracompact Design

This tiny camera is the size of a small mirrorless camera but packs in cinema camera technology.



Take the camera into the field, mount it onto a vehicle, stabilize it on a gimbal, or perform steadycam, drone, or POV shots - it's lightweight enough to perform just about anywhere.

• Nikon ZR 6K Cinema Camera
• Nikon EN-EL15c Lithium-Ion Battery (2280mAh)
• Nikon UC-E25 USB Cable
• Nikon BS-D1 Digital Accessory Shoe Cover

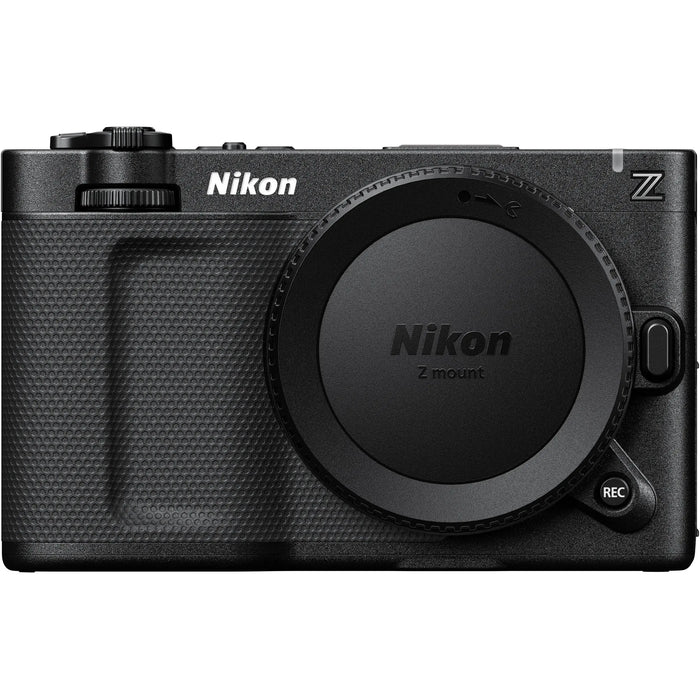

• Nikon BF-N1 Body Cap
• Nikon AN-DC26 Camera Strap
• Limited 1-Year Manufacturer Warranty

Not Included

Essential Photo Lenses

Essential Recording Media

Essential Chargers

Lens Mount

Nikon Z

Image Sensor

35.9 x 23.9 mm (Full-Frame) CMOS

Sensor Resolution

Effective: 24.5 Megapixel

Image Stabilization

Sensor-Shift

ISO/Gain Sensitivity

Dual Base: 800 / 6400

Native: 100 to 64,000

Internal Recording

ProRes RAW 12-Bit

UHD 6K (6048 x 3402) at 24.00/25/30.00 fps

DCI 4K (4030 x 2268) at 24.00/25/30.00/50/60.00/120 fps

UHD 4K (3984 x 2240) at 24.00/25/30.00/50/60.00 fps

REDCODE RAW 12-Bit

UHD 6K (6048 x 3402) at 24.00/25/30.00/50/60.00 fps

DCI 4K (4030 x 2268) at 24.00/25/30.00/50/60.00/120 fps

UHD 4K (3984 x 2240) at 24.00/25/30.00/50/60.00/100/120 fps

H.264 4:2:0 8-Bit

1920 x 1080 at 24.00/25/30.00/50/60.00 fps

H.265 4:2:0 8/10-Bit

5376 x 3024 at 24.00/25/30.00/50/60.00 fps

3840 x 2160 at 24.00/25/30.00/50/60.00/100/120 fps

1920 x 1080 at 24.00/25/30.00/50/60.00/100/120/200/240 fps

ProRes 422 HQ 4:2:2 10-Bit

5376 x 3024 at 24.00/25/30.00 fps

3840 x 2160 at 24.00/25/30.00/50/60.00 fps

1920 x 1080 at 50/60.00/100/120 fps

Show More

Video Output

Micro-HDMI

3840 x 2160

Media/Memory Card Slot

Slot 1: CFexpress Type B

Slot 2: microSD/microSDHC/microSDXC (UHS-I)

Video I/O

1x Micro-HDMI Output

Mobile App Compatible

Yes: Android & iOS

Battery

Nikon EN-EL15c

Imaging

Lens Mount

Nikon Z

Lens Communication

Yes: with Autofocus Support

Image Sensor

35.9 x 23.9 mm (Full-Frame) CMOS

Sensor Resolution

Effective: 24.5 Megapixel

Image Stabilization

Sensor-Shift, 5-Axis

Built-In ND Filter

No

Built-In CC Filter

No

Internal Filter Holder

No

Capture Type

Stills & Video

Exposure Control

Shutter Type

Electronic Rolling Shutter

Shutter Speed

Electronic Shutter

1/16000 to 900 Seconds

Shutter Angle

5.6 to 360°

ISO/Gain Sensitivity

Dual Base: 800 / 6400

Native: 100 to 64,000

Signal-to-Noise Ratio

Not Specified by Manufacturer

Advertised Dynamic Range

15 Stops

White Balance

Range: 2500 to 10,000K

Presets: Auto, Cloudy, Color Temperature, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade

Exposure Modes

Auto, Manual

Focus

Focus Mode

Automatic, Continuous-Servo AF, Full-Time Servo, Manual Focus

Video Capture

Internal Recording

ProRes RAW 12-Bit

UHD 6K (6048 x 3402) at 24.00/25/30.00 fps

DCI 4K (4030 x 2268) at 24.00/25/30.00/50/60.00/120 fps

UHD 4K (3984 x 2240) at 24.00/25/30.00/50/60.00 fps

REDCODE RAW 12-Bit

UHD 6K (6048 x 3402) at 24.00/25/30.00/50/60.00 fps

DCI 4K (4030 x 2268) at 24.00/25/30.00/50/60.00/120 fps

UHD 4K (3984 x 2240) at 24.00/25/30.00/50/60.00/100/120 fps

H.264 4:2:0 8-Bit

1920 x 1080 at 24.00/25/30.00/50/60.00 fps

H.265 4:2:0 8/10-Bit

5376 x 3024 at 24.00/25/30.00/50/60.00 fps

3840 x 2160 at 24.00/25/30.00/50/60.00/100/120 fps

1920 x 1080 at 24.00/25/30.00/50/60.00/100/120/200/240 fps

ProRes 422 HQ 4:2:2 10-Bit

5376 x 3024 at 24.00/25/30.00 fps

3840 x 2160 at 24.00/25/30.00/50/60.00 fps

1920 x 1080 at 50/60.00/100/120 fps

Video Output

Micro-HDMI

3840 x 2160

Fast-/Slow-Motion Support

Yes

Gamma Curve

Nikon N-Log, REDWideGamutRGB

Built-In Microphone

Stereo

Audio Recording

ProRes, Raw: 2-Channel, 32-Bit

ProRes, Raw: 2-Channel, 24-Bit

IP Streaming

No

Interface

Media/Memory Card Slot

Slot 1: CFexpress Type B

Slot 2: microSD/microSDHC/microSDXC (UHS-I)

Internal Storage

No

Video I/O

1x Micro-HDMI Output

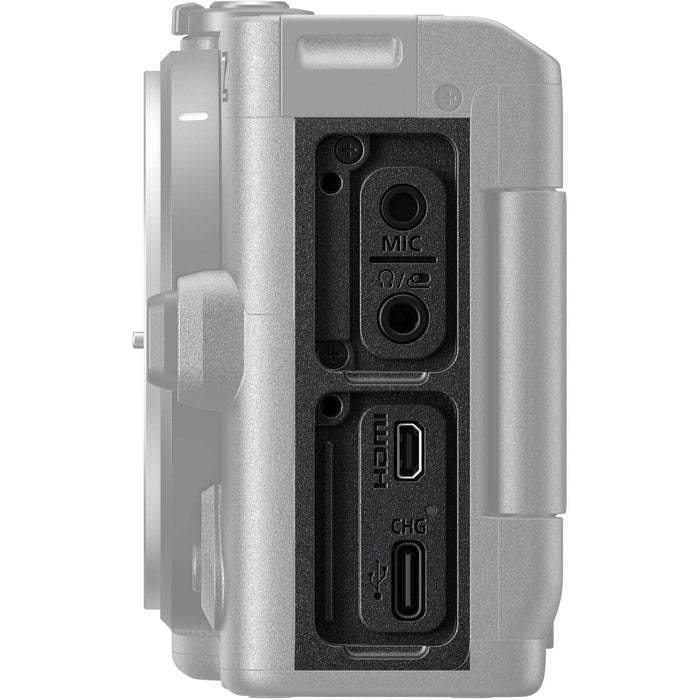

Audio I/O

1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input

1x 1/8" / 3.5 mm TRS Stereo Headphone Output

Power I/O

1x USB-C Input

Other I/O

1x USB-C (USB 3.2 / 3.1 Gen 2) Data (Shared with Power Input)

Wireless

Wi-Fi / Bluetooth

Mobile App Compatible

Yes: Android & iOS

App Name: SnapBridge

Global Positioning (GPS, GLONASS, etc.)

No

Monitor

Display Type

Primary Monitor: Articulating 4" Touchscreen LCD

Resolution

Primary Monitor: 3,070,000 Dot

Power

Battery

Nikon EN-EL15c

General

Shoe Mount

1x Intelligent Hot Shoe

Tripod Mount

1x 1/4"-20 Female (Bottom)

Accessory Mounting Thread

No

Dimensions (W x H x D)

5.2 x 3.2 x 1.9" / 133 x 80.5 x 48.7 mm

Weight

1.19 lb / 540 g (Body Only)
