Onkyo TX-RZ800 7.2-Channel Network AV Receiver

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

Onkyo TX-RZ800 7.2-Channel Network AV Receiver

SKU TX-RZ800
Save 55% Save 55%
$2,374.50
$2,374.50 - $2,374.50
$2,374.50
$1,069.01
$1,069.01 - $1,069.01
$1,069.01



  • 135W Per Channel at 8 Ohms
  • Advanced AccuEQ Room Calibration
  • 4K Video Pass-Through & HDCP 2.2
  • 8 x HDMI-In / 2 x HDMI-Out
  • Wi-Fi, DLNA, Bluetooth, & AirPlay
  • DLNA and Internet Music Streaming
  • DTS:X Surround Sound Compatible
  • Dolby Atmos up to 5.1.2-Channel Support
  • High-Current Amplifier Design
  • THX Select2 Plus Certified

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Onkyo TX-RZ800 7.2-Channel Network AV Receiver

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

  • The Onkyo TX-RZ900 7.2-Channel Network AV Receiver delivers powerful and immersive multi-channel audio. This receiver features a high-current amplifier design and delivers up to 135W per channel at 8 ohms for robust audio playback. Integrated Advanced AccuEQ room calibration uses the included microphone to automatically adjust sound parameters according to the characteristics of your listening environment. Built-in AirPlay and Bluetooth allow you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. On-board Wi-Fi and Ethernet connectivity gives you the ability to stream music from Internet radio sources and use DLNA technology to share content with compatible networked devices. Two Wi-Fi antennas are on the rear of the receiver for optimized signal range.

    The Onkyo TX-RZ800 has eight HDMI inputs for interfacing audio and video sources and the pass-through of 3D and 4K video sources. It is also HDCP 2.2 compliant, with dedicated HDMI ports. Other connectivity options include digital optical, digital coaxial, stereo RCA inputs, and more. These interfaces allow you to connect a wide variety of source components. Its dual HDMI outputs allow you to connect to external displays. Onkyo also offers a free remote app for controlling your receiver from a smartphone or tablet. Built-in high-resolution audio support allows you to take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD.

    High-Current Amplifier Design
    The TX-RZ800 reproduces ultra-low-frequencies down to 5 Hz. Its high-current amplification system also enhances control of the speakers for accurate and dynamic sound.
    Realistic Audio Quality
    Wide Range Amp Technology (WRAT) prevents phase shifting by pushing the roll-off point higher than the listening level frequency. Amplifying sound without phase shift is engineered to create clear, focused, and realistic audio.
    Vector Linear Shaping Circuitry (VLSC)
    Onkyo developed Vector Linear Shaping Circuitry (VLSC) to reassemble the signal in its original form following processing. Unlike conventional filters, VLSC removes pulse noise generated in D/A conversion, allowing the sound wave to be reproduced with extremely high fidelity for a smooth analog signal. The signal's data is converted between sampling points and joined with analog vectors in real time to produce a smooth output wave form. The result is designed to be virtually noiseless and smooth while revealing the subtle nuances in music sources.
    THX Select2 Plus
    The TX-RZ800 meets the demanding and rigorous performance guidelines for THX Select2 Plus certification. To achieve this, it has to pass 2,000 tests across 75 test categories, covering 14,000 data points. THX Select2 Plus is recommended for a screen-to-seat viewing distances of 10-12'.
    DTS:X Surround
    DTS:X is an object-based surround sound technology that includes height channels to deliver a fully-immersive listening experience. DTS:X provides listeners with flexibility, immersion, and interactivity. Unlike channel-based audio, you will be able to personalize your audio experience. For example, you can turn up just the dialog within a mix. DTS:X allows you to customize to your room layout as well as control dialog and dynamic range.
    Supports Dolby Atmos Up to 5.1.2-Channels
    This format combines a channel-based audio bed with object-oriented sound to place and move specific effects around the room. This is designed to create a realistic and captivating sonic atmosphere. Sound designers and artists are free to mix in a 3D space, steering effects through surround channels and adding a seamless overhead dimension with discrete height channels. Additionally, the Dolby surround up-mixer allows for your current channel-based content (that has not been mixed for Dolby Atmos) to be expanded to fill the flexible speaker layouts of a Dolby Atmos system. Please see the manufacturer's website for DTS:X availability.
    Ready for Ultra HD
    This receiver supports HDCP 2.2 compatibility. This HDMI specification offers an increase in bandwidth (up to 18 Gb/s) to support features such as 4K at 50/60 Hz (2160p), which offer 4-times the clarity of 1080p/60 Hz video resolution, and 4:4:4 color space. This Onkyo receiver also enables the transmission of High Dynamic Range (HDR) formats, and provides enhanced picture quality by simultaneously enabling greater detail for both the dark and bright parts of an image.
    Multi-Zone Audio and Video
    The TX-RZ800 features powered zone 2 and zone 2/3 pre/line-outs for distributed audio playback, including Zone 2 digital audio and network audio output. You can control the audio content in the zones via the free remote app; play the same song in all zones using whole house mode; or enjoy a different song in each room.

    Furthermore, there is a Zone 2 HDMI output for HD video in a second Room, with Zone 2 HDMI supported on inputs 1, 2, 3, 4 & 5. Use the HDMI sub out to connect a second display in another room. This allows you to route 1080p content from the media players connected to your receiver and play it back on another TV with easy smartphone control.
    Convenient Control Options
    An RS232 input, an IR input, and a 12 Volt Trigger out give the TX-RZ800 an array of control capabilities.
    Bluetooth, AirPlay, and Wi-Fi
    The TX-RZ800 has Bluetooth, AirPlay, and Wi-Fi technologies built-in. The free Onkyo Remote app puts a range of streaming options at your fingertips, from universal hi-res audio via network-attached devices to internet streaming services to music on your smartphone and tablet. You can also wirelessly stream audio from your Bluetooth sources directly to the receiver. It also comes loaded with Spotify, Pandora, SiriusXM Internet Radio, Slacker, and TuneIn. You can select a station and search for music available on these services via the Onkyo Remote app on your smart device.
    384 kHz/32-Bit High-Grade Digital-to-Analog Converter
    This receiver incorporates a premium-quality AK4458 digital-to-analog converter (DAC) from Asahi Kasei. This DAC implements unique low-distortion filtering technologies for clear sound, that's designed to unlock the potential of any audio format, including compressed, lossless, and hi-res audio (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM, and Dolby TrueHD).
    Amplifier
    • WRAT (Wide Range Amplifier Technology)
    • H.C.P.S (high current power supply) and massive high-power toroidal transformer
    • Continuous 6 ohms rated and certified for 4 ohms performance
    • Discrete output stage circuitry
    • 3-Stage inverted Darlington circuitry
    • Push-pull design (Parallel)
    • Independent block construction
    • 2 independent power supplies
    • Bi-amp capability for front channels
    Processing
    • 32-Bit digital signal processing engine
    • Dolby Decoder: Atmos, Surround
    • DTS Decoder: DTS: X, DTS-HD Master Audio
    • Onkyo Game Surround Modes: Rock, Sports, Action, RPG
    • Theater-dimensional virtual surround
    • THX processing mode
    • Phase-matching bass boost
    • Direct/Pure mode
    • Pure direct analog path mode
    • Advanced Music Optimizer (Bluetooth Included)
    Connectivity
    • HDMI Support for High Dynamic Range (HDR), 3D, Audio Return Channel (ARC), Consumer Electronics Control (CEC), Deep Color, x.v.Color, LipSync, DVD-Audio, SACD, multichannel PCM
    • Analog-to-HDMI upconversion
    • 7.2-channel analog pre-outs
    • Phono input for turntable connections
    • Zone 2 digital to analog audio conversion (S/PDIF, NET, USB)
    • Zone 3 line out(fixed)
    • Made for iPod, iPhone, iPad
    • Supports Onkyo Remote App (iPod touch/iPhone and Android-powered devices)
    • Internet radio capable (Pandora, Spotify, Sirius, Slacker, Aupeo!, TuneIn)
    • Spotify Connect support
    • Streaming audio from PC/Network (DLNA, Home Media)
    • Hi-resolution streaming audio formats (Apple Lossless, DSD 2.8/5.6 MHz, Dolby TrueHD, FLAC 192/24, LPCM, Ogg Vorbis, WAV, WMA)
    • Streaming audio from USB
    Additional Features
    • Learning remote control
    • On-screen remote programming
    • Hybrid standby function (to reduce power consumption)
    • Smart grid-ready
    • Advanced "Home" GUI
    • Graphical overlaid on-screen display (OSD) via HDMI
    • Solid aluminum front panel and volume control knob
    • 40 FM/AM and 40 Internet radio station presets
    • Onkyo-RI system control
    • RIHD (Remote Interactive over HDMI)
    • 12V trigger

Item Includes

  • Onkyo TX-RZ800 7.2-Channel Network AV Receiver
    • Power Cord
    • Speaker Setup Microphone

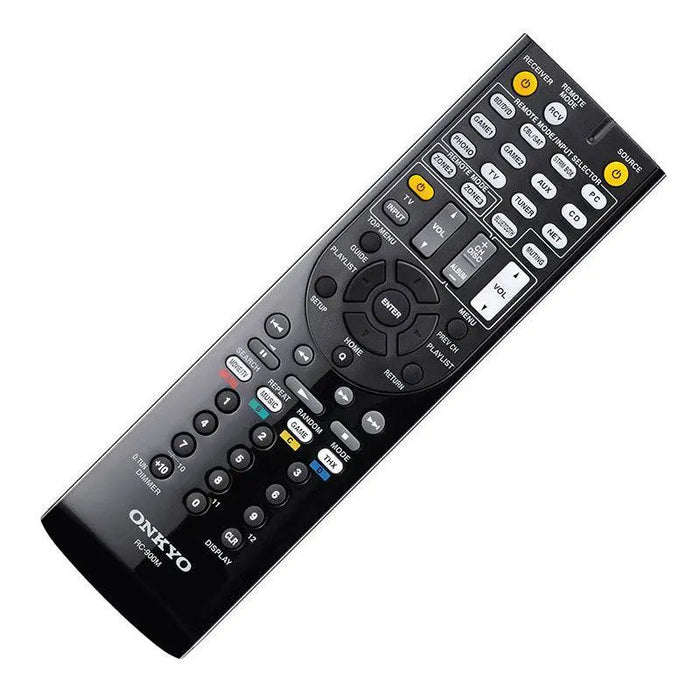

    • Remote Control
    • Limited 2-Year Warranty

Item Includes

  • Channels7.2
    Power Output6 Ohms: 185 W per channel (1 kHz, 0.9% THD, 1-channel driven)
    8 Ohms: 135 W per channel (20 Hz-20 kHz, 0.08% THD, 2-channels driven)
    Dynamic Power per Channel300 W (3 ohms, front)
    250 W (4 ohms, front)
    150 W (8 ohms, front)
    THD & Noise0.08 % (20 Hz - 20 kHz, half power)
    Damping Factor>40 (Front, 1 kHz, 8 ohms)
    Input Sensitivity and Impedance200 mV / 47 kOhms (line)
    3.5 mV / 47 kOhms (phono MM)
    RCA Output Level and ImpedancePre Out: 1.0 V / 470 ohms
    Subwoofer Pre Out: 1.0 V / 470 ohms
    Zone Out: 100 mV / 2.2 kOhms
    Zone Pre Out: 1.0 V / 2.2 kOhms
    Phono Overload70 mV (MM, 1 kHz, 0.5%)
    Frequency Response5 Hz - 100 kHz / +1 dB, -3 dB (direct mode)
    Tone Control± 10 dB, 20 Hz (bass)
    ± 10 dB, 20 kHz (treble)
    Signal-to-Noise Ratio106 dB (line, IHF-A)
    80 dB (phono MM, IHF-A)
    Speaker Impedance4 - 16 ohms or 6 - 16 ohms
    Crossover AdjustmentEach Channel: 40, 50, 60, 70, 80, 90, 100, 120, 150, 200 Hz
    Digital-to-Analog Converter (DAC)384 kHz/32-bit (8-channels x 1)
    Video
    Input Sensitivity/Output Level and Impedance1.0 Vp-p / 75 ohms (component Y)
    0.7 Vp-p / 75 ohms (component PB/CB, PR/CR)
    1.0 Vp-p / 75 ohms (composite)
    Component Video Frequency Response5 Hz - 13.5 MHz / +0 dB, -3 dB
    UpscalingNone
    Pass-ThroughUp to 4K
    Deep Color / x.v. Color SupportYes
    HDMI CECYes
    3D SupportYes
    HDCP Version2.2
    FM Stereo
    Tuning Frequency RangeFM: 87.5 MHz - 107.9 MHz
    AM: 530 kHz - 1,710 kHz
    FM/AM Preset Memory40 Stations

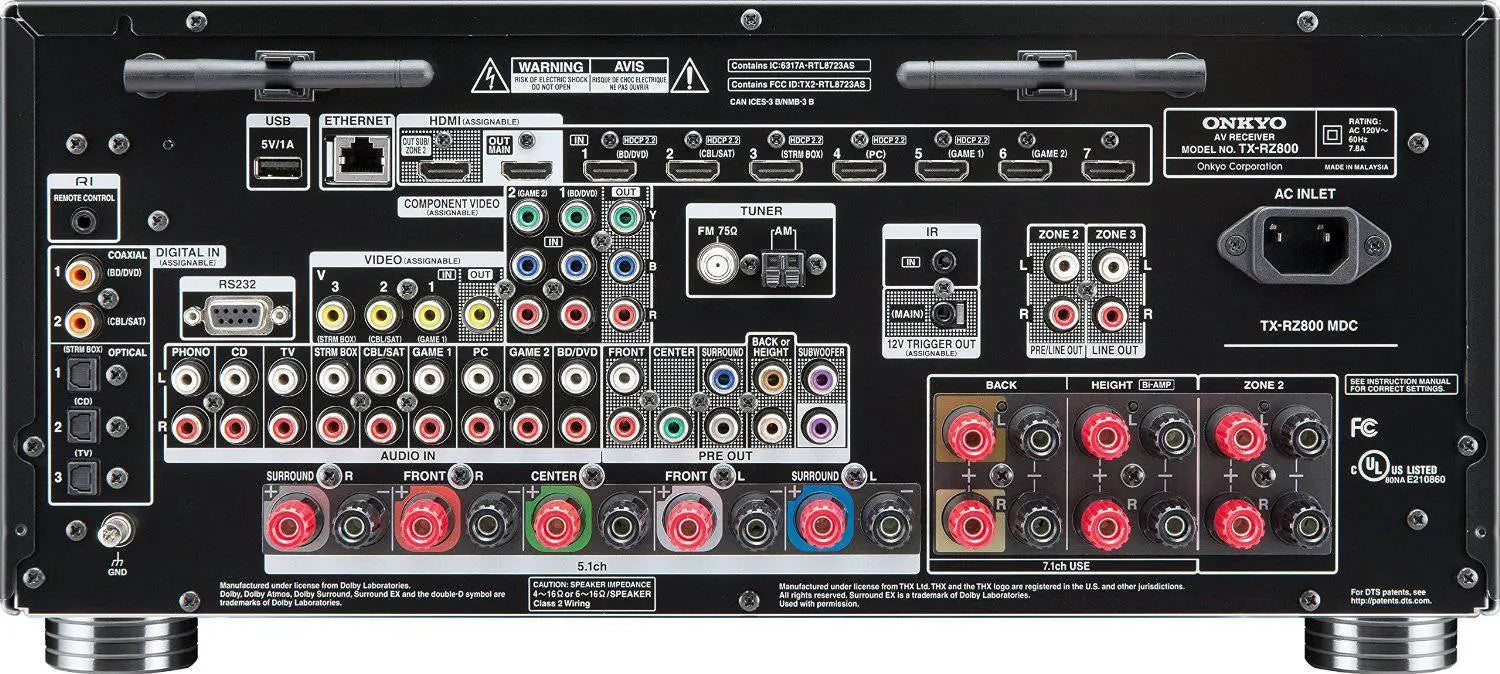

    Connectivity
    Wi-FiYes
    BluetoothYes
    AirPlayYes
    DLNA CertifiedYes
    Bi-Amp CapabilityYes
    Audio Return Channel (ARC)Yes
    Inputs8 x HDMI (1 front)
    2 x Component video
    3 x Composite video
    2 x Digital coaxial
    4 x Digital optical
    8 x Stereo RCA
    1 x Stereo RCA phono
    1 x USB (5 V / 1 A)
    1 x IR
    Outputs2 x HDMI
    1 x Stereo RCA zone 2
    1 x Stereo RCA zone 3
    1 x Stereo RCA front left/right pre-out
    1 x RCA center pre-out
    1 x Stereo RCA surround left/right pre-out
    1 x Stereo RCA surround/height left/right pre-out
    2 x Subwoofer pre-out
    1 x Headphone (front)
    1 x 12 V trigger
    Other Interfaces1 x Ethernet
    1 x RI Remote control
    1 x Calibration microphone (front)
    1 x AM Antenna
    1 x FM Antenna
    1 x RS232
    1 x AC power
    Speaker ConnectorsCenter
    Front left
    Front right
    Surround left
    Surround right
    Surround back left
    Surround back right
    Height/bi-amp left
    Height/bi-amp right
    Zone 2 left
    Zone 2 right
    Audio Return Channel (ARC)Yes
    General
    Power Consumption>No Sound: 90 W
    Standby: 0.15 W
    Power Requirements120 VAC, 60 Hz
    Dimensions (WxHxD)Wi-Fi Antennas Down: 17.1 x 7.9 x 17.1" / 435.0 x 201.5 x 433.5 mm
    Wi-Fi Antennas Up: 17.1 x 10.3 x 17.1" / 435.0 x 261.5 x 433.5 mm
    Weight39.7 lb / 18.0 kg
    Packaging Info
    Package Weight44.0 lb
    Box Dimensions (LxWxH)22.0 x 20.0 x 12.0"
    •
