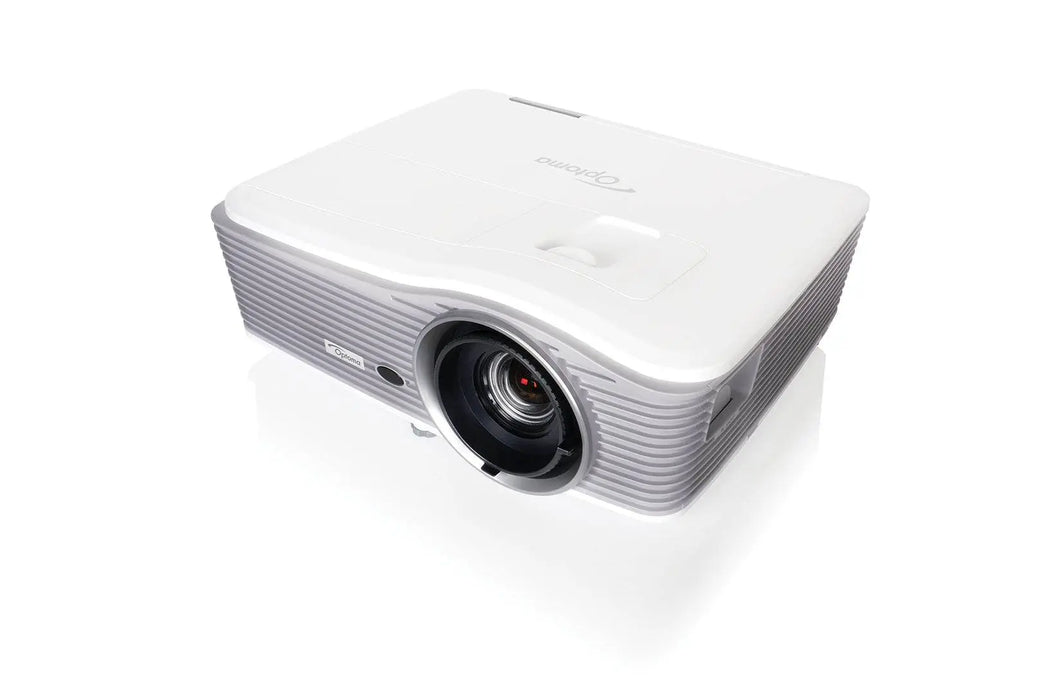

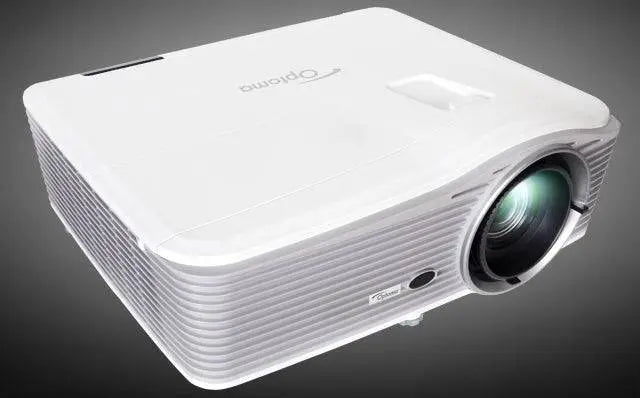

Optoma EH515 5500lm Full HD Professional DLP Projector

Name: Optoma EH515 5500lm Full HD Professional DLP Projector
Brand: Optoma
SKU: EH515
Price: 1296.64 USD
Availability: InStock

SKU EH515

Save 38%

$2,078.00

$2,078.00 - $2,078.00

$2,078.00

$1,296.64

$1,296.64 - $1,296.64

$1,296.64

4 corner Geometric Correction for easy installation of basic stacking solutions or on uneven walls
1.8x Zoom - excellent image from a short or long distance
Vertical/ Horizontal keystone and lens shift for various applications
Bright Projection at 5500 ANSI lumens for large installations
Full Control over LAN and RS-232 using Crestron, IP Link, Extron PJ-Link, and Telnet
Two 10-Watt speakers for excellent sound

Quantity

Our Customers & Partners

Features

The Optoma EH515 is a Full HD professional Installation projector, ideal for corporate environments, houses of worship and Pro-AV installs. EH515 DLP technology provides accurate colors and great contrast for dark and white images. Part of Optoma’s #1 high-definition fixed lens installation family of projectors, the EH515 is furnished with advanced features to facilitate quick installation, high brightness and low total cost of ownership.
Features include: Four corner correction (ideal for image stacking or uneven walls), Horizontal and Vertical Lens shift and Keystone together with x1.8 zoom ratio, permit a quick setup and easy usability from any angle.
Equipped with a variety of inputs, including HDMI built in MHL technology, allows you to connect to a wide variety of HD devices to easily display your content. In addition, the environmentally friendly EH515 has energy saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both time and money by prolonging your lamp life.

High Contrast

Add more depth to your image with a high contrast projector; with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.

Full 3D

Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting and the latest generation games consoles. Support for 144Hz rapid refresh rate provides ultra-smooth flicker free images.

Full HD

Full HD (1920 x 1080) has more than twice the resolution of HD Ready (1280 x 720). EH515 is compatible with HDTV broadcasts and high-definition media to project impressive full 1080p images and video in their original digital brilliance.

Integrated speaker

The built-in speaker offers excellent audio support. Easy to set up without the need for costly external speakers.

Energy saving

Using the specially designed lamp modes, you can reduce the power consumption by up to 70%. Each mode also has a positive effect on the lamp life, while lowering the total cost of ownership and reducing maintenance.

Auto power off

There may be instances when the projector is left running when not in use. To help save energy, the "Auto Power Off" feature automatically turns off the projector after a set period of time if it is not being used.

Eco AV mute

Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen by blanking the image when no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.

PureShift

Simplify installation with PureShift, which provides a wide range of projector placement possibilities.

Four-corner adjustment

Individually warp each corner of the image to create a perfectly square image. Ideal for image stacking, uneven walls or where projector placement is awkward and needs to be installed at an angle.

Brightness matching

The brightness of a projector will vary throughout its life. To correctly match multiple units, the projector has set lamp power modes (stepped lamp dimming) to help match the brightness of both projectors.

Large zoom range

A large zoom range enables multiple placement possibilities at a variety of distances from the projection screen. An advantage to this is that expensive interchangeable lens projectors can be substituted with a more cost effective solution whilst still retaining a diverse choice of positioning options.

Long lamp life

Reduce the number of lamp changes with long lamp life

MHL

Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL, enabling you to view presentations and documents, stream videos and share photos on the big screen.

Networking and control

Featuring a wide range of options you can remotely control and monitor the projector.

RS232

Optoma projector’s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

AMX Compatibility

Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

LAN Control

Using the compatible RoomView® software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer.
Schedule the projectors to power on/off.
Control and alter the projector settings using the simple web browser.
Emergency text broadcast capabilities for urgent or important announcements.
Automatically receive email updates for lamp maintenance.

Color guarantee

Enjoy dazzling colors for years to come; guaranteed by Optoma for five years’ consistent performance.

Amazing colors

For vibrant, natural looking images, Optoma projectors incorporate BrilliantColor™ multi-color processing technology.

Quick resume

This feature allows the projector to be instantly powered on again, if it is accidentally switched off.

USB power

Use the USB-Power to power an HDMI dongle, such as Google Chromecast or the Optoma WHD200 wireless HDMI device.

Image stacking

Double your image brightness without significantly increasing your installation cost; with warp adjustment, you can achieve any brightness you want. Image stacking permits flexible installations and greater redundancy; an image can be displayed without interruption while swapping lamps. Alternatively, images can be realigned to be perfectly square if aligned beyond the lens shift range.

Wired remote

The wired remote connection allows all aspects of the projector to be individually controlled without requiring a line-of-sight to the projector; invaluable when using multiple units during live events.

Item Includes

EH515 projector
AC power cord
VGA cable
Remote control
Batteries
Multilingual CD-ROM user’s manual
Basic user manual
Warranty card

Item Includes

Display Technology	Single 0.65" 1080p chip, DLP® Technology by Texas Instruments™
Native Resolution	1080p 1920 x 1080
Brightness	5500 ANSI Lumens
Contrast Ratio	10,000:1 (full on/full off)
Lamp Life² Eco/Bright	4000/3000 (hrs)
Throw Ratio ³	1.2:1~2.16:1
Zoom Type	1.8x Manual
Lens Shift	Vertical: +20%; Horizontal: ±10% (constraints apply see user manual for details)

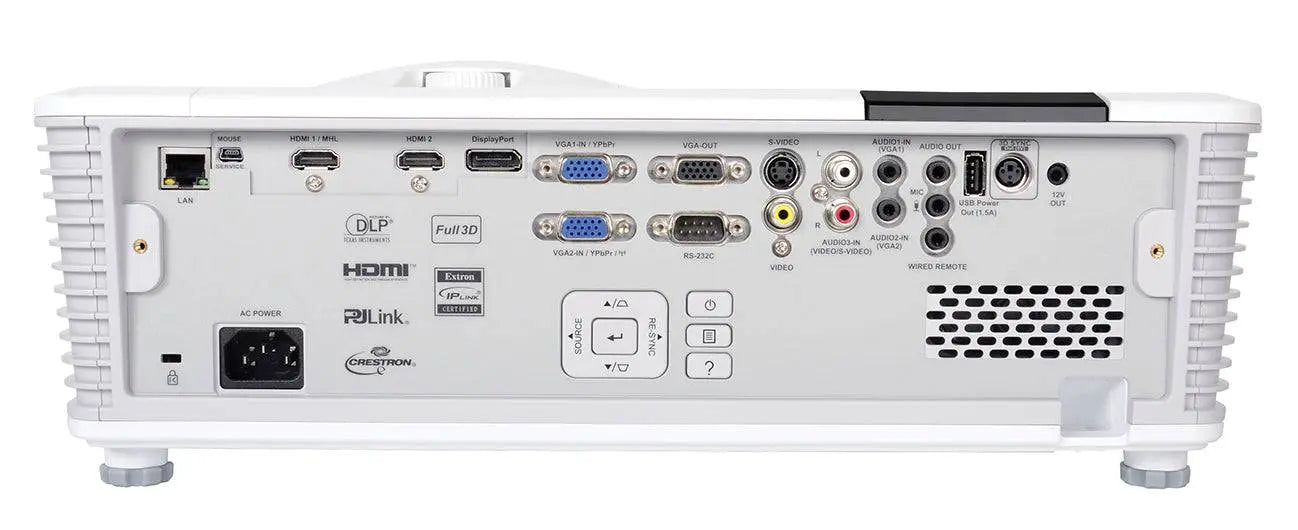

I/O Connectors	1x Display port, 2x HDMI 1.4a + MHL, 2x VGA-In, 1x VGA out, Composite Video, S-Video, 3x Audio-In (stereo, 3.5mm and RCA), 1x Audio-Out (3.5mm jack), 1x Mic in (3.5mm jack), 12v trigger, USB type-A 5V, 3D Sync vesa port, RS-232C, mini-USB (service/control), RJ45, AC power (3 pin)
Speaker (Watts)	Two 10-Watt (stereo)
Audio	20-Watt
Keystone Correction	± 30° Vertical ± 30° Horizontal
Weight	13 lbs (5.9 kg)
Dimensions (W x H x D)	16.7" x 6.3" x 13.5" (424 x 160 x 344 mm)
Aspect Ratio	16:9 Native, 4:3 Auto Compatible
Offset	Vertical: 105% (±5% Variance)
Projection Screen Size	27.2"~301.1" (0.69~7.64 m) diagonal 16:9
Projection Distance	4.27'–26.24' (1.3–8.0 m)
Projection Lens	F=17.63~31.36 mm; manual focus
Uniformity	80%
Maximum Resolution	1080p (1920 x 1080)
Computer Compatibility	UXGA, SXGA, XGA, SVGA, VGA, WXGA, HD, Mac
Video Compatibility	PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J, 3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25MHz, 4.4MHz, 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)
3D Support	Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
3D Compatibility	Side-by-Side:1080i(50/60Hz) Frame-pack: 1080p(24Hz), 720p(50/60Hz) Over-Under: 1080p(24Hz), 1080i(50/60Hz), 720p(50/60Hz) 3D glasses are needed and are sold separately. Refer to user manual for details.
Horizontal Scan Rate	15.375~91.146 KHz
Vertical Scan Rate	24– 85 Hz (120 Hz for 3D feature projector)
Displayable Colors	1.07 Billion
Noise Level (Eco mode)	28 dB
Power Supply	AC input 100–240V @ 50–60 Hz, auto-switching
Power Consumption	445W (Bright), 335W Max (ECO), <0.5W (Standby)
Lamp Type	365W
Operating Conditions	41–113°F (5~45°C), 85% max humidity
Operating Temperature	41–113°F (5~45°C), 85% max humidity
Security	Kensington® lock port, security bar, password protection
Remote Control	IR and wired control
Standard Accessories	EH515 projector, AC power cord, VGA cable, remote control, batteries, multilingual CD-ROM user’s manual, basic user manual, and warranty card
Optional Accessories	Universal ceiling mount, Optoma screen, DLP® Link™ 3D glasses, wireless HDMI system
Optional Wireless	Yes
360’ Operation	Not supported
Portrait Mode	Not supported
Color Wheel	6 Segment; RYGCWB
RoHS	Compliant
Projection method	Front, rear, ceiling mount, table top
Features	V/H Lens Shift, PC-Free / LAN presentation, Crestron RoomView®, PJ-Link
Warranty	3-Year Optoma Express Service, 1-Year on Lamp
