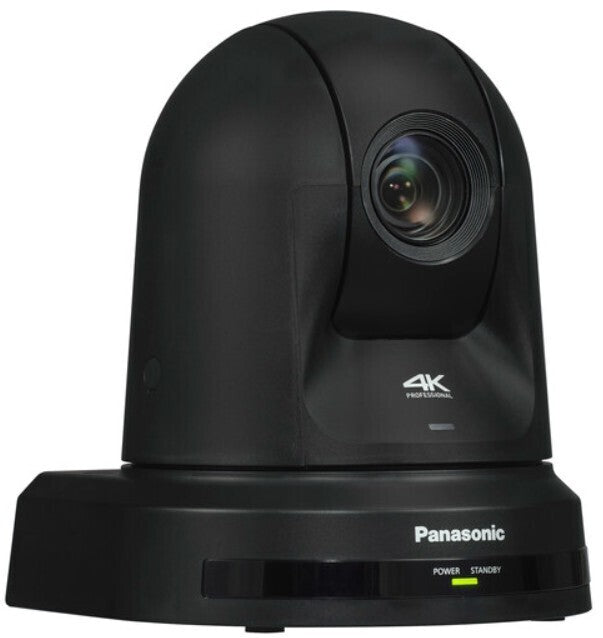

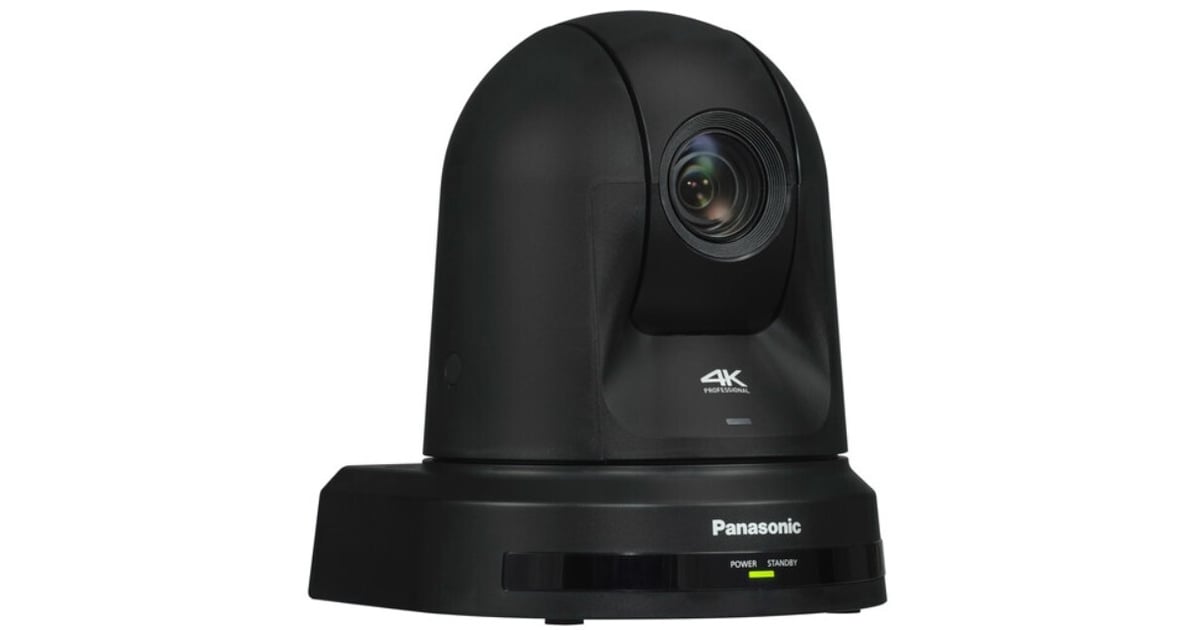

Panasonic UE40 4K30 HDMI PTZ Camera with 24x Optical Zoom (Black)

SKU AW-UE40KPJ5
Save 46% Save 46%
$4,875.21
$4,875.21 - $4,875.21
$4,875.21
$2,630.00
$2,630.00 - $2,630.00
$2,630.00

Bring UHD 4K quality video to your production with the black UE40 4K30 HDMI PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K30 over HDMI 1.4, and it supports IP live streaming up to 1080p to fit into any environment such as a conference room or classroom. The camera can also be used as a webcam with the built-in USB-C port. It features a large 1/2.5" MOS sensor, a 24x optical zoom with a wide 74.1° angle-of-view, built-in speaker auto-tracking, and PoE+ compatibility for single-cable operation.

Key Features
  • 1/2.5" 4K MOS Sensor
  • Up to UHD 4K30 & HD Simultaneous Out
  • HDMI 1.4, USB & IP Video Output
  • Built-In Auto-Tracking
  • 24x Optical, 28x UHD & 36x HD iZoom
  • Wide 74.1° Horizontal Angle of View
  • PoE+ Support, IP, USB & RS-422 Control
  • Stream 1080p to Platforms via H.264/265
  • Stereo Mini-Jack Audio Mic/Line Input

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Panasonic UE40 4K30 HDMI PTZ Camera with 24x Optical Zoom (Black)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features



Bring UHD 4K quality video to your production with the black UE40 4K30 HDMI PTZ Camera from Panasonic. This pro PTZ camera outputs up to UHD 4K30 over HDMI 1.4, and it supports IP live streaming up to 1080p to fit into any environment such as a conference room or classroom. The camera can also be used as a webcam with the built-in USB-C port. It features a large 1/2.5" MOS sensor, a 24x optical zoom with a wide 74.1° angle-of-view, built-in speaker auto-tracking, and PoE+ compatibility for single-cable operation.

The UE40 supports embedded audio as well as audio input via a stereo 3.5mm jack for embedding into your output stream. Its redesigned web interface is compatible with Windows and macOS computers as well as Android and iOS smartphones. Additional features include a red/green tally light, extended 28x UHD 4K digital zoom, extended 36x Full HD digital zoom, and live streaming via H.264/H.265 codecs. The camera can be remotely controlled via IP, RS-422, or via its USB-C port via UVC 1.0/UAC 1.0. The camera is upgradable to NDI/HX compatibility with a separately available license.

Stable Environment for Online and Offline
4K resolution with wide-angle and high-magnification zoom for capturing all aspects of your room.
Secure and stable streaming protocol for reduced risk of communication trouble.
Smooth playback of high-quality videos.
The camera's built-in auto-tracking function allows capturing a moving presenter and speaker. The camera follows the speaker without the need for detailed operation by the operator.
Compact Size and Quiet Operation
The compact dome-shape design blends in with the surroundings. Its lightweight and small size give added flexibility in camera installation.
Quiet operating sound allows the use of the camera in any situations.
Integrated optical image stabilization ensures stable video shooting.
Flexibility for Smooth Operation
Easy installation and operation, even for inexperienced staff or small staff.
Single computer via USB or optional IP or serial controller can manage and control multiple cameras.
The camera can be used as a USB webcam.
The camera can stream video directly to a live streaming service.

Item Includes

  • Panasonic UE40 4K30 HDMI PTZ Camera with 24x Optical Zoom (Black)
  • Power Supply
  • Limited 1-Year Manufacturer Warranty

Item Includes

Image Sensor
1/2.5"-Type
Sensor Resolution
Effective: 8.49 Megapixel
Shutter Speed
1/10000 to 1/25 Second
Max Optical Zoom
24x
Max Digital Zoom
36x ( in 1080p)
Video Output
RJ45 / USB
1920 x 1080p at 25/29.97/50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
640 x 360 at 25/29.97/59.94 fps
320 x 180p at 25/29.97/50/59.94 fps
4:2:2 10-Bit via HDMI
3840 x 2160 at 23.98/24.00/25/29.97 fps
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Show More
Broadcast Output
NTSC/PAL
IP Streaming
H.264/H.265/MJPEG via NDI HX/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP
320 x 180 to 1920 x 1080
Show More
Wireless
No
Mounting
1x M4 Female
Imaging
Image Sensor
1/2.5"-Type MOS
Horizontal Resolution (TV Lines)
1500 TV Lines
Sensor Resolution
Effective: 8.49 Megapixel
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1/25 Second
ISO/Gain Sensitivity
Gain: 0 to 36 dB
Minimum Illumination
3 Lux
Flip / Mirror Support
Image Flip
White Balance
Range: 2000 to 15,000K
Lens
Focal Length
4.1 to 98.9mm (35mm Equivalent: 25 to 600mm)
Max Optical Zoom
24x
Max Digital Zoom
36x ( in 1080p)
Field of View
Horizontal: 74.1 to 3.3°
Vertical: 46 to 1.9°
Diagonal: 81.8 to 3.8°
Maximum Aperture
f/1.8 to 4
Minimum Focus Distance
3.9" / 10 cm (Wide) to 47.2" / 120 cm (Tele)
Video Capture
Video Output
RJ45 / USB
1920 x 1080p at 25/29.97/50/59.94 fps
1280 x 720 at 25/29.97/50/59.94 fps
640 x 360 at 25/29.97/59.94 fps
320 x 180p at 25/29.97/50/59.94 fps
4:2:2 10-Bit via HDMI
3840 x 2160 at 23.98/24.00/25/29.97 fps
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Audio Recording
2-Channel 16-Bit 48 kHz AAC LC Audio
Broadcast Output
NTSC/PAL
IP Streaming
H.264/H.265/MJPEG via NDI HX/RTMP/RTMPS/RTP/RTSP/SRT/TCP/UDP
320 x 180 to 1920 x 1080
Control
Presets
100
Pan/Tilt
Pan: 350° (-175 to 175°) at 0.08 to 180°/s
Tilt: 120° (-30 to 90°) at 0.08 to 180°/s
Tally Light
Yes
Networking
Wireless
No
Interface
Video I/O
1x HDMI 1.4 Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O
1x RJ45 (LAN) Control Input
1x RJ45 (RS-422) Control Input
Built-In Microphone
No
Built-In Speaker
No
Power
Power I/O
1x Barrel (10.8 to 13.2VDC) Input
Power Consumption
Power Supply: 10.8 to 13.2 VDC at 1.8 A
PoE: 42 to 57 VDC at 0.6 A
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C at 20 to 90% Humidity
Storage Conditions
-4 to 122°F / -20 to 50°C
General
Mounting
1x M4 Female
Certifications
FCC Part 15 Class A
OS Compatibility
Computer: Windows 10 or Later / macOS 10.14 to 11
Mobile: iPadOS Only
Dimensions (W x H x D)
6.3 x 7.6 x 6.5" / 160 x 192.1 x 166 mm (Without Bracket, Protrusions)
Weight
4 lb / 1.8 kg (Body Only)
Packaging Info
Package Weight
7.885 lb
Box Dimensions (LxWxH)
15.2 x 13.3 x 11.5"
