Panasonic ET-YFB100G Digital Interface Switcher with HDBaseT/Digital Link output

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request

Panasonic ET-YFB100G Digital Interface Switcher with HDBaseT/Digital Link output

SKU ET-YFB100G
Save 45% Save 45%
$1,680.00
$1,680.00 - $1,680.00
$1,680.00
$928.54
$928.54 - $928.54
$928.54

  • Transmits digital signals with a single cable

  • Outputs high-quality images in their optimal form

  • Convenient functions expand system configuration potential

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Panasonic ET-YFB100G Digital Interface Switcher with HDBaseT/Digital Link output

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Panasonic ETYFB100G Digital Interface Box can transmit video, audio, and control signals over a single cable when combined with a DIGITAL LINK-ready projector. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.

Transmits Digital Signals with a Single Cable
  • Equipped with a DIGITAL LINK output terminal
  • Allows transmission of HDMI, uncompressed HD digital video / audio and control signals (Ethernet, RS-232C) for up to 328’ (100 m ) through a single CAT5e (STP) cable or higher
  • Abundant input terminals, including 2 sets of HDMI and RGB inputs
  • A separate audio output enables sound to be output when the projector power is turned off
  • ET-YFB100G input can be selected with the remote control of a Panasonic projector with DIGITAL LINK compatibility
Outputting High-Quality Images in Their Optimal Form
  • Digital transmission allows clear image and sound quality without any degradation even over long distances
  • Digital Cinema Reality converts interlaced motion image signals into beautifully smooth progressive images
  • PC signals are automatically resized and output in the optimal resolution to match the projector panel resolution
  • The Auto Setup function automatically distinguishes the input signal and adjusts it to output the optimal angle of view
  • 3D video format transmission is supported (pass through mode only)
Convenient Functions Expand System Configuration Potential
  • DIGITAL LINK is an original function added to technology based on the transmission standards used in Crestron’s DigitalMedia 8G+, Extron’s XTP Systems, etc.
  • Signals from the ET-YFB100G can also be relayed to a non-DIGITAL LINK-ready projector by using another manufacturer's equipment based on the same technology
  • Brackets included for various installation needs, including server rack (EIA standards) mounting
  • Eco mode automatically stops the DIGITAL LINK output when no input signal is detected
  • Closed caption compatible

Item Includes

  • Panasonic ETYFB100G Digital Interface Box
  • AC Adapter
  • 3 x Power Cord (6.56'/2 m)
  • AC Power Cord Holder
  • AC Power Cord Holder Screw
  • 2 x Mounting Bracket for Rack or Countertop Installation
  • Mounting Bracket for Rack Installation
  • 6 x Countersunk Screw
  • 4 x Leg
  • 4 x Screw for Installing Legs
  • Limited 1-Year Manufacturer Warranty

Item Includes

Power Supply
16 VDC (DC input terminal)
Power Consumption
16 W (when the power is off: 0.2 W) (including power consumption of the supplied AC adapter)
AC Adapter
Input: 100 to 240 VAC, 0.8 to 1.5 A, 50/60 Hz
Output: 16 VDC, 3.75 A
Scanning Frequency
HDMI In: 2 set, HDMI 19-pin, (HDCP, deep color compatible) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200),
Audio Signal: Linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)

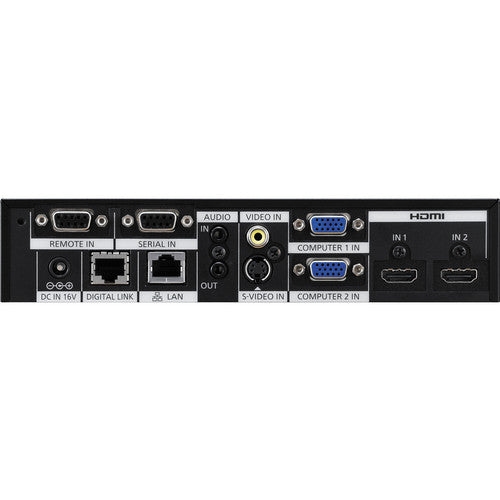

Computer In: 2 set, high-density D-Sub 15-pin (female) RGB/YPBPR/YCBCR x 2)
Video In Terminal: 1 set, RCA pin
S-Video In Terminal: 1 set, mini DIN 4 pin
Serial In Terminal: 1 set, D-Sub 9 pin female, for external control (RS-232C compatible)
Audio In Terminal: 1 set, M3 (L-R)
Audio Out Terminal: 1 set, M3 (L-R) (variable)
LAN Terminal: 1 set, RJ-45 network connection, 10Base-T/100Base-TX
Digital Link Terminal: 1 set, RJ-45 for DIGITAL LINK connection (video, audio and control signals)
Remote In Terminal: 1 set, D-Sub 9-pin female for external control (parallel)
Terminals
HDMI In: 2 set, HDMI 19-pin, (HDCP, deep color compatible) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200),
Audio Signal: Linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Computer In: 2 set, high-density D-Sub 15-pin (female) RGB/YPBPR/YCBCR x 2)
Video In Terminal: 1 set, RCA pin
S-Video In Terminal: 1 set, mini DIN 4 pin
Serial In Terminal: 1 set, D-Sub 9 pin female, for external control (RS-232C compatible)
Audio In Terminal: 1 set, M3 (L-R)
Audio Out Terminal: 1 set, M3 (L-R) (variable)
LAN Terminal: 1 set, RJ-45 network connection, 10Base-T/100Base-TX
Digital Link Terminal: 1 set, RJ-45 for DIGITAL LINK connection (video, audio and control signals)
Remote In Terminal: 1 set, D-Sub 9-pin female for external control (parallel)
Operating Environment
Operating Environment Temperature: 32 to 104°F (0 to 40°C)
Operating Environment Humidity: 20 to 80% (no condensation)
Dimensions
8.27 x 1.73 x 9.84" (210 x 44 x 250 mm)
Weight
Approximately 2.5 lb (1.15 kg)
Packaging Info
Package Weight
8.6 lb
Box Dimensions (LxWxH)
18 x 14 x 9"
