Panasonic PT-D10000U SXGA+ (1400 x 1050) Projector

Panasonic PT-D10000U SXGA+ (1400 x 1050) Projector

SKU PT-D10000U
Save 0% Save 0%
$49,000.00
$49,000.00 - $49,000.00
$49,000.00
$48,800.00
$48,800.00 - $48,800.00
$48,800.00

Key Features:

  • High brightness - 10,000-lumen
  • High contrast ratio - 5,000:1
  • High image quality - SXGA+
  • Minimal downtime, high efficiency, and a bright picture.
  • Provides 2,000 hours of use without filter maintenance.
  • Dramatically reduced the size, and enabled 120-VAC operation.
  • Full 10-bit picture processing
  • Horizontal/Vertical lens shift
  • Built-in multi-screen support system
  • Multiple terminals including DVI-D and LAN slots

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Panasonic PT-D10000U SXGA+ (1400 x 1050) Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Panasonic PT-D10000U is a small DLP system projector with 10,000 lumens of brightness. Panasonic's four lamp system, makes this possible. Because of the dynamic iris technology, the projector achieves a super-high 5000:1 contrast ratio. The projector features three chip DLP technology that provides high resistance to deterioration due to aging.

Multi-Lamp Optical System
With Panasonic's four lamp system, the PT-D10000U generates 10,000-lumen brightness. If one lamp burns out during operation, the remaining lamps provide plenty of light to continue projecting. A lamp relay mode is also included. Extended, continuous operation is possible by lamp mode selection.

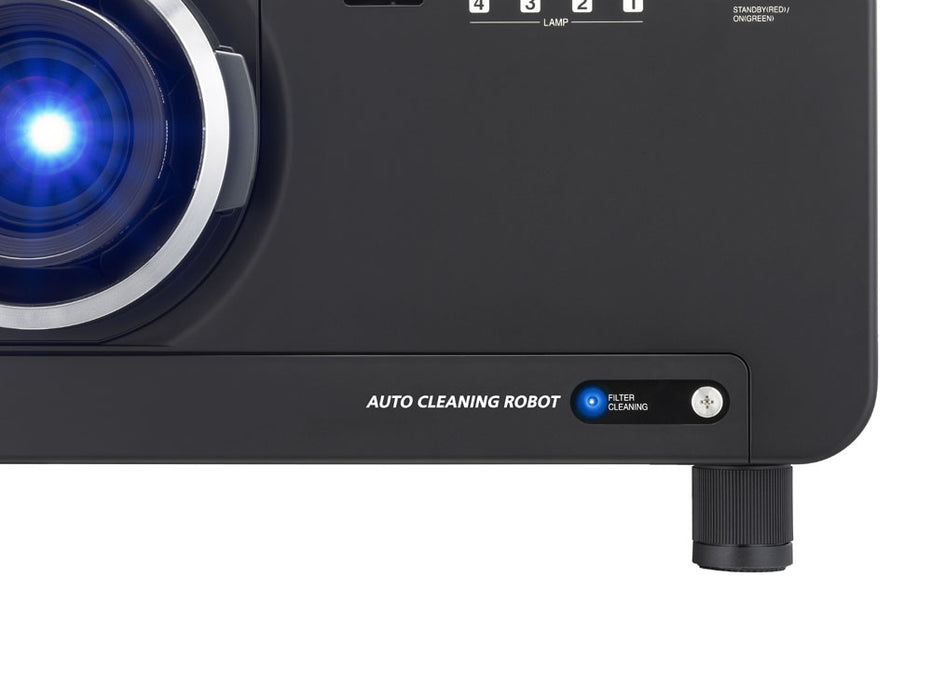

Auto Cleaning Robot (ACR)
The PT-D10000U has an automatic filter cleaning system. When you switch on the projector, the air filter operates and the brush of the auto cleaning "robot" removes dust from the filter. This prevents the clogging that results in malfunctions and other problems.
Micro Cut Filter
The filter in the air intake section traps dust particles that are 10 microns or larger. This guards against optical blocks and reduces the penetration of dust into to the interior to provide stable operation.
Liquid-Cooling System
Panasonic's liquid-cooling system made it possible to significantly downsize the PT-D10000U, making it one of the most compact in its class.
Web Browser Control
By using a computer's familiar web browser you can operate the PT-D10000U by remote control. You can also monitor the projector's status over a LAN network. The PT-D10000U sends an email message to notify the operator when an error has occurred, or a lamp needs to be replaced.
Lamp LED Indicator and Self-Diagnosis Function
The projector body is equipped with a temperature alarm LED and a burnt-lamp alarm LED (for lamps 1 to 4). The LED is visible from both front and top, so you can see it easily even if the unit is hung from the ceiling. Information on the location of the error is also given in the on-screen display. A self-diagnosis function is also provided. Error codes are displayed on the 3-digit, 7-segment LED on the side of the projector.
Dynamic Iris
Incorporating exclusive Panasonic technology, the dynamic iris opens and closes with exceptional speed and precision as the input signal changes, resulting in accurate, real-time control of the light striking the DLP chips. The dynamic iris is positioned immediately after the light synthesizer and before the integrator, so it has minimal adverse effect on the overall light uniformity across the screen.
10-Bit Processing
The use of a full 10-bit image processing system provides smooth tonal expression. For example, skin tones appear natural and true to life.
3D Color Management
Compensation provides optimal levels of color saturation, hue, and brightness that were not possible with conventional projectors. Colors approach those of the original image, even on large-screen displays.
Progressive Cinema Scan (3/2 Pull-down)
This interlace/progressive conversion technology automatically detects when the input signal is derived from filmed material and selects the optimum progressive processing method to assure faithful reproduction of the original image.
Dynamic Sharpness Control
The dynamic sharpness control circuit adjusts the video signal waveforms based on the difference in brightness of adjacent pixels for a sharp, clear picture that is relatively unaffected by signal noise.

Item Includes

  • Panasonic PT-D10000U SXGA+ (1400 x 1050) Projector
  • 4 x Projector Lamps Installed
  • Wired/Wireless Remote Control with Batteries
  • Remote Control Cable
  • AC Power Cord
  • Owner's Manual
  • 2-Year Warranty
  • 90-Day Lamp Warranty

Item Includes

Image Display
Projector Display System
0.95" DLP x3
Native Resolution
SXGA+ (1400 x 1050)
Number of Pixels
1,470,000 x3= 4,410,000
Lumens Brightness
10,000 ANSI Lumens
Contrast Ratio
5000:1
Aspect Ratio
4:3
System
NTSC, PAL, SECAM, NTSC4.43, PAL60, PAL-M, PAL-N
HDTV Compatibility
480i, 480p, 576i, 576p, 720/60p, 720/50p, 1035/60i, 1080/60i, 1080/50i
Lens System
Lens
Depends on Lens
Focus/Zoom Adjusting
Powered zoom and focus
Lens Shift
Yes
Recommended Projection Size
Depends on Lens
Features
Keystone Correction
Yes
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Projection Tilt Option
Yes
Built-In Speaker
No

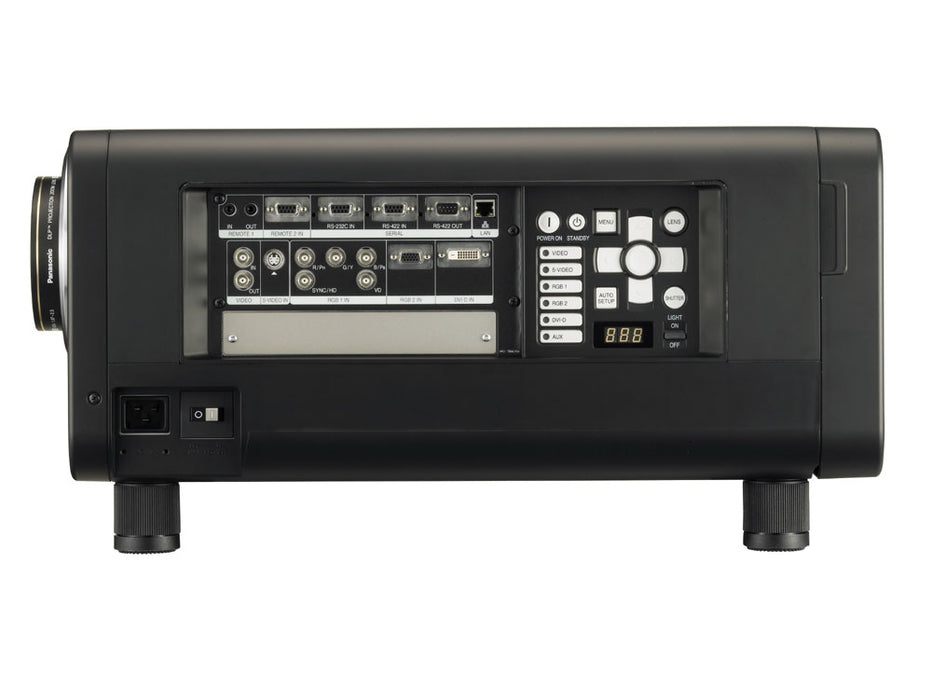

Input/Output Connectors
Input Terminals
Computer
VGA HD-15 pin x1
DVI-D 24 pin x1



Video
S-Video Mini DIN 4-pin x1
Component BNC x5
Composite Video BNC x1
Output Terminals
Video Out: BNC x1
Serial Out: D-sub 9-pin male x1 (RS422 x1)
M3 Jack x1 for Link Control
Control Protocol
Seaial In: D-Sub 9-pin Female x2 (RS232C x1, RS422 x1)
Remote 1 In: M3 Jack x1 for Wired Remote Control
Remote 2 In: D-sub 9-Pin Female x 1 for External Control (Parallel)
LAN Connector: RJ-45 (10 Base-T/100 Base-TX)
General
Lamp (Bulb)
250W UHM x4
Fan Noise
Not Specified by Manufacturer
Remote Control
Wireless
Power Requirements
1450W, 120V AC, 60 Hz
Dimensions
25.31 x 12.60 x 22.76" (643 x 320 x 578mm)
Weight
70.5 lbs (31.98 kg)
