Panasonic PT-DW5600U XGA (1040 x 768) 4:3

Panasonic PT-DW5600U XGA (1040 x 768) 4:3

SKU PT-D5600U
Save 8% Save 8%
$6,599.00
$6,599.00 - $6,599.00
$6,599.00
$6,099.00
$6,099.00 - $6,099.00
$6,099.00

Key features

  • 5000 LUMENS
  • XGA 1024 X 768
  • OPTIONAL LENSES

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Panasonic PT-DW5600U XGA (1040 x 768) 4:3

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

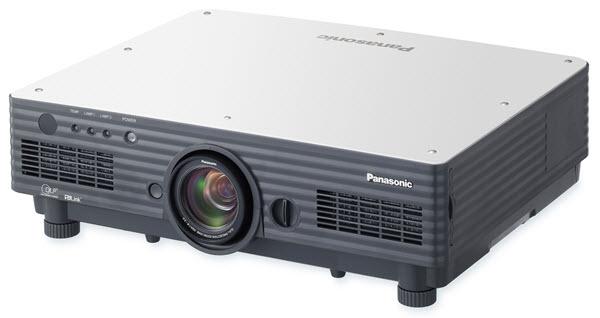

The Panasonic PT-DW5600U XGA (1280 x 768) 4:3 high resolution projector is perfect for presentations in large venues. This high quality projection system with 5000 ANSI lumens and a 2000:1 contrast ratio will provide brilliant, clear images even in a bright room.

Building on the highly reliable DLP single-chip technology, the PT-DW5600U delivers spectacular image reproduction, in a low maintenance, high performance package. Features like Vivid Color Control, a new 10-micron dust filter and a rubber sealed lens unit makes this projector ideal for conference rooms, auditoriums, theaters, and houses of worship. The supplied 25.6 to 33.8 mm zoom lens has a throw ratio of 1.7 to 2.1:1. With the PT-DW5600U, you don't just make a presentation, you're making a difference.

Vivid Color Control Technology
Vivid Color Control technology for higher uniformity of brightness by as much as 15%
3D Color Management
3D Color Management automatically corrects color saturation, hue and brightness, resulting a more accurate image reproduction
Liquid Cooled and Sealed DLP Engine
A liquid cooled and sealed DLP engine ensures efficient operation even in harsh environments and virtually eliminates maintenance issues with the light source
BriteOptic Dual-Lamp System
The use of the BriteOptic dual-lamp system increases brightness and eliminates the need to interrupt a presentation if a lamp burns out
Web Browser Control/Monitoring and E-mail Message Alert
Anybody can operate the DW5000UL by remote control or monitor its status over a LAN network, because it is all done using the computer's familiar Web browser; Furthermore, the PT-DW5000UL sends an E-mail message to notify the operator when an error has occurred, or a lamp needs to be replaced
Zoom Lens Included
The supplied 25.6 to 33.8 mm zoom lens has a throw ratio of 1.7 to 2.1:1

Item Includes

  • Panasonic PT-DW5600U XGA (1040 x 768) 4:3
  • Projection Lens
  • 2 x Projector Lamps Installed
  • Wired/Wireless Remote Control with Batteries
  • AC Power Cord
  • Owner's Manual
  • 2 Year Parts & Labor Warranty
  • 90 Day Lamp Warranty

Item Includes

Image Display
Projector Display System
0.7" DMD, DLP x1
Native Resolution
XGA (1040 x 768)
Number of Pixels
798,720
Lumens Brightness
5000 ANSI Lumens
Contrast Ratio
2000:1
Aspect Ratio
Native 4:3
System
NTSC, PAL, SECAM, NTSC4.43, PAL60, PAL-M, PAL-N
HDTV Compatibility
480i, 480p, 576i, 576p, 720/60p, 720/50p, 1035/60i, 1080/60i, 1080/50i
Lens System
Lens
F 1.7-2.0, f 25.6-33.8 mm Zoom Lens
Focus/Zoom Adjusting
Powered zoom and focus
Lens Shift
Yes
Recommended Projection Size
From 50 - 600" diagonal with a throw distance of 5.85 - 95.83'
Features
Keystone Correction
Yes
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Projection Tilt Option
Yes
Built-In Speaker
No
Input/Output Connectors
Input Terminals
Computer
VGA HD-15 pin x1
DVI-D 24 pin x1



Video
S-Video Mini DIN 4-pin x1
Component BNC x5
Composite Video BNC x1
Output Terminals
RS-232C out D-Sub 9 x1
Remote out M3 x1
Control Protocol
RS-232C in D-Sub 9 x1
Remote in M3 x1
Remote in D-Sub 9 x1
LAN connector: RJ-45 (10 Base-T/100 Base-TX)
General
Lamp (Bulb)
300W UHM x2
Fan Noise
High lamp mode: 35 dB
Low lamp mode: 29 dB
Remote Control
Wired/wireless
Power Requirements
770W, 120 V AC, 50/60 Hz
Dimensions
20.9 x 6.6 x 16.9" (530 x 167 x 429 mm)
Weight
32.0 lb (14.5 kg)
