Pioneer DJ DJM-750MK2 Overview

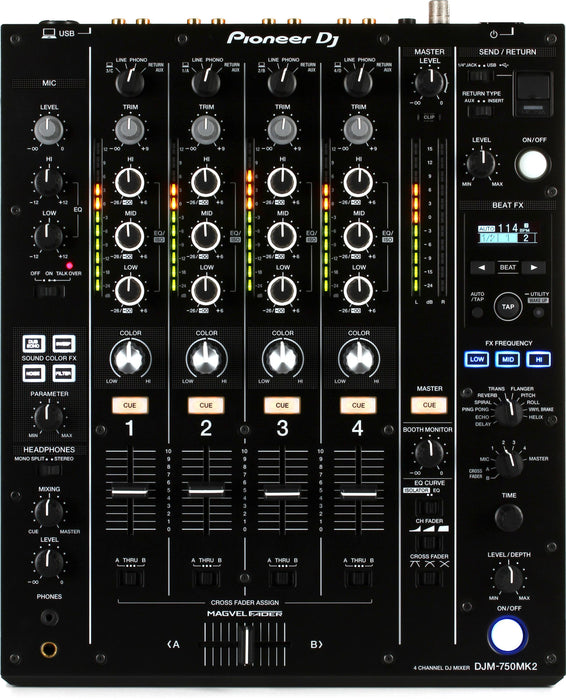

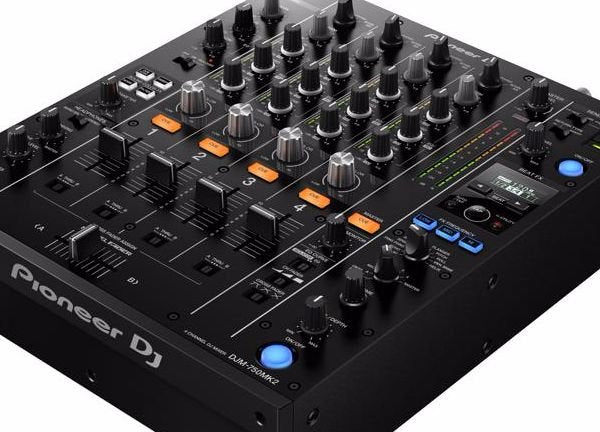

The Pioneer DJM-750MK2 is a professional DJ mixer, which inherits key features and design elements from the DJM-900NXS2, and is well suited for professional mobile DJs, nightclub installations, recording studios, and more. The mixer features a 4-channel layout, and an integrated USB soundcard with support for up to 4 stereo channels of 24-bit/48 kHz audio.

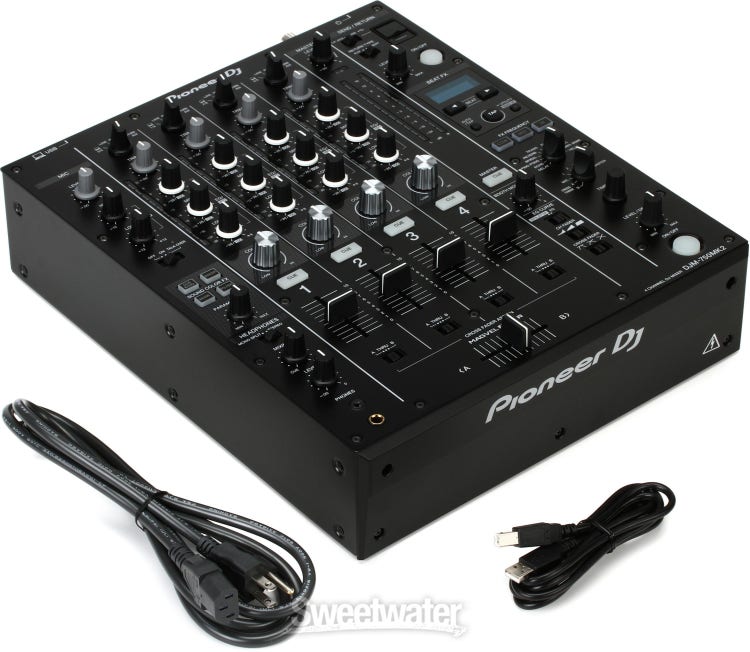

The mixer features Pioneer's Sound Color, Beat, and Frequency effects. There are four inputs for turntables, and four line-level inputs for digital decks. Additional features include a USB Type-B port for connecting a computer, and a USB Type-A top-mounted connector that supports iOS devices for use with synthesizers, samplers, and FX apps, such as Pioneer's optional RMX-1000 for iPad. An independent Send & Return section allows for external effects to be used simultaneously with the internal effects. The DJM-750MK2 ships with a power cord, a USB cable, and a key activation card for rekordbox dj and rekordbox dvs.
- Mixing on the DJM-750MK2 feels instinctive thanks to the layout design with 4 channels, and a display that draws on traits from the DJM-900NXS2 professional mixer, allowing you to practice in club conditions
- Add texture and flair to your mixes with professional FX inherited from the DJM-900NXS2. Two effects units combine Sound Color FX, and Beat FX including FX Frequency, which gives you the freedom to be creative with sound while always in control
- Beat FX: Add Delay, Echo, Ping Pong, Spiral, Reverb, Trans, Flanger, Pitch, Roll, Vinyl Brake, and Helix in sync with the BPM
- FX Frequency: Choose which frequency range you want to apply FX to; you can add echo to the vocals, for example, or double the rhythm of the hi-hat at the touch of a button
- Sound Color FX: 6 studio-quality sound FX — Sweep, Filter, Crush, Dub Echo, Noise, and Space — are available on every channel. Use the parameter control knob to fine-tune the FX
- Choose from Aux or Insert send/return to connect different types of FX units on iOS devices such as FX apps, synthesizers and samplers, and combine them with the mixer’s internal FX. A simple connection via USB will ensure high-quality sound
- Insert Send/Return: Use the Insert send/return to replace the original sound with the effected sound from the external hardware
- Aux Send/Return: The Aux send/return gives you the option to route the effected sound to a separate channel, and mix it with the original sound
- Whether you’re playing with digital or analog sources, high-quality sound is created by the 64-bit digital signal processor, dithering technology, 32-bit A/D/A converters
- The EQs and channel faders on the DJM-750MK2 feature curves equivalent to those on the DJM-900NXS2, which also inspired the Magvel cross fader. The latter is smooth, accurate, and durable for more than 10 million movements, and its cut lag has been improved for more assured and responsive performance
- A rekordbox dj license key is bundled with the mixer. Simply activate your license key for the DJ software, connect an optional controller, and start DJing
- A license key for rekordbox dvs is also included in the box for low-latency scratching with CDJs and XDJs. Or play and scratch with tracks from your rekordbox library using analog turntables, and the optional control vinyl
- The DJM-750MK2 lets you plug both an 1/4" stereo jack and 3.5-mm mini jack. Pick your size or attach 2 headphones when playing back-to-back
- The XLR terminal and gold-plated RCAs deliver premium sound quality on all connections, and the signal GND terminal easily attaches ground wires from analogue turntables
Use a microphone independently of the channel input
Item Includes
Configuration
DJ Mixer
Number of Channels
4x Stereo
1x Mic
Performance Controls
Brake, EQ, Pitch Bend
Built-In Effects
Delay (Stereo/Ping Pong), Echo (Type Unspecified), Flanger

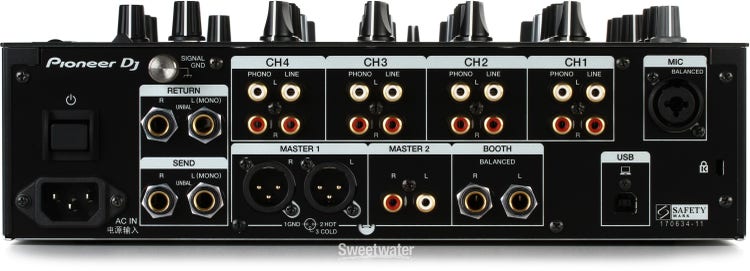

Audio Inputs
4x Stereo 2RCA Coaxial Phono Input
4x Stereo 2RCA Coaxial Line Input
1x Combo XLR-1/4" TRS Mic Input
2x 1/4" TS Return Input
Show More
Audio Outputs
2x XLR 3-Pin Master Output
1x Stereo 2RCA Coaxial Master Output
2x 1/4" TRS Booth Output
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output
2x 1/4" TS Send Output
Show More
USB
1x USB-A (Device Charging/Device Connection)
1x USB-B (Host Connection)
Number of Channels
4x Stereo
1x Mic
Platter/Jog Wheel
No
Faders
4x Channel Level
1x Crossfader
Meters
Channel Meter:
4x LED
Main Meter:
1x LED
Display
Main Display:
1x MonochromeLCD
Sample Pads
No
EQ
Channel EQ:
Hi: -26 to +6 dB at 20 kHz
Mid: -26 to +6 dB at 1 kHz
Low: -26 to +6 dB at 20 Hz
Mic EQ:
Hi: -12 to +12 dB at 10 kHz
Low: -12 to +12 dB at 100 Hz
Performance Controls
Brake, EQ, Pitch Bend
Built-In Effects
Delay (Stereo/Ping Pong), Echo (Type Unspecified), Flanger
Sample Rates
48 kHz
Bit Depths
32-Bit (Master Output)
32-Bit (A/D Conversion)
24-Bit (D/A Conversion)
Stems Processing
No
Connectivity
Audio Inputs
4x Stereo 2RCA Coaxial Phono Input
4x Stereo 2RCA Coaxial Line Input
1x Combo XLR-1/4" TRS Mic Input
2x 1/4" TS Return Input
Audio Outputs
2x XLR 3-Pin Master Output
1x Stereo 2RCA Coaxial Master Output
2x 1/4" TRS Booth Output
1x 1/4" TRS Headphone Output
1x 1/8" / 3.5 mm TRS Headphone Output
2x 1/4" TS Send Output
Phantom Power
No
USB
1x USB-A (Device Charging/Device Connection)
1x USB-B (Host Connection)
Wireless
No
Media Card Slots
No
Performance
Frequency Response
Line:
20 Hz to 20 kHz
Input Level
Phono:
-52 dBu
Line:
-12 dBu
Mic:
-57 dBu
Return:
-12 dBu
Output Level
XLR Master:
+6 dBu
+25 dBu (Max)
RCA Master:
+2 dBu
+21 dBu (Max)
Booth:
+6 dBu
Aux/Send:
-6 dB
Send/Insert:
-12 dB
Headphone:
+8 dBu
I/O Impedance
Phono Input:
47 Kilohms
Line Input:
47 Kilohms
Mic Input:
3 Kilohms
Return Input:
47 Kilohms
XLR Master Output:
300 Ohms
RCA Master Output:
680 Ohms
Booth Output:
300 Ohms
Send Output:
680 Ohms
Headphone Output:
≤10 Ohms
Load Impedance
Master Output:
10 Kilohms
Booth Output:
10 Kilohms
Send Output:
10 Kilohms
Headphone Output:
32 Ohms
Crosstalk
Line:
82 dB
SNR
Phono:
87 dB
Line:
105 dB
Mic:
79 dB
THD
Line/Master:
0.005%
Compatibility
Included Software
rekordbox DVS
Compatible Software (Not Included)
Traktor DVS
OS Compatibility
Computer: macOS / Windows
Mobile: iOS Only
OS Compatibility
macOS
Windows
Mobile App Compatible
Yes: iOS Only
App Name: DJM REC
Mobile Device Compatibility
iPhone
iPad
Required Hardware
USB 2.0 Port
Internet Connection
Required for Software/Driver Download
Power
Power Requirements
AC Input, USB Bus Power
Power Supply Output
Included
AC Input Power
110 to 240 VAC, 50/60 Hz
AC Power I/O
IEC
Power Consumption
40 W
0.3 W (Standby)
Physical
Anti-Theft Features
Kensington Security Slot
Operating Conditions
41 to 95°F / 5 to 35°C at 5 to 85% Humidity
Dimensions (W x D x H)
12.6 x 15.3 x 4.2" / 320.0 x 388.6 x 106.7 mm
Weight
14.6 lb / 6.6 kg
