Roland V-1HD+ STR Encoder Bundle with V-1HD+ HD Video Switcher and UVC-01 USB Video Capture
SKUV-1HD+ STR
Save 10%
Save 10%
Original price
$999.00
Original price
$999.00
-
Original price
$999.00
Original price
$999.00
Current price
$899.00
$899.00
-
$899.00
Current price
$899.00
| /
The V-1HD+ STR bundle delivers low‑latency live streaming with professional‑grade video switching. Integrated UVC-01 USB capture ensures plug‑and‑play recording to any computer. Advanced effects and transitions enhance production value for events, webinars, and broadcasts. Robust analog inputs with signal indicators provide reliable audio monitoring.
Key Features
Create engaging live streams with the Roland V-1HD+ STR Encoder Bundle today.
Enjoy low latency video switching for seamless broadcasts using this Roland encoder.
Easily capture and stream high-quality video via USB with the included UVC-01 capture.
Enhance your production with advanced video effects and transitions on the V-1HD+.
Get reliable performance for live events, webinars, and more with this Roland bundle.
This bundle supports multiple formats for flexible video and audio streaming needs.
89900
51725064208664
Roland V-1HD+ STR Encoder Bundle with V-1HD+ HD Video Switcher and UVC-01 USB Video Capture
10111488131352
Roland V-1HD+ STR Encoder Bundle with V-1HD+ HD Video Switcher and UVC-01 USB Video Capture
$899.00
Our Customers & Partners
Features

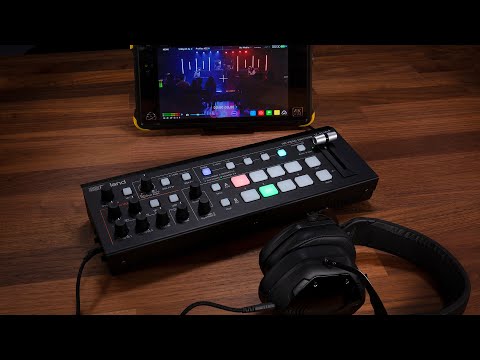

V-1HD+ Video Switcher. Switch, Mix, & Stream Like a Pro.
The V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect. The V-1HD+ delivers the superior performance you want and the production-critical reliability you demand—plus the Roland support and training resources you deserve.
A Legacy Of Success.
Since its release in 2015, the Roland V-1HD has been the most popular high-definition, four-channel HDMI video switcher available. The V-1HD+ extends this legacy with a deeper feature set for advanced applications—while still maintaining the simple operation, pro performance, and rugged reliability that’s made the V-1HD a favorite of users around the world.
No-Compromise Video I/O.
Video professionals shouldn't be forced into making technical compromises. With its full-featured video I/O, the V-1HD+ is inspired by your need to do more.
Four Video Inputs & Onboard Scaling.
Four HDMI inputs with frame rate conversion let you mix a variety of sources, including cameras, presentation computers, tablets, and video game consoles. And when you have a troublesome source that won’t display correctly, simply plug it into Input 4 and let the built-in video scaler sync and calibrate the image automatically.
Two Video Outputs.
Two independent HDMI outputs can be assigned to display one of three different video busses, providing the versatility you need for pro production. For example, you can use one as your main program output for a recorder or livestream, and the second output to turn any HD video monitor into an “up-next” input preview display or expanded multiviewer with 10 windows.
Pro Operation Made Easy.
Your passion for a simplified interface led our designers to add quick-action buttons for the most commonly used operations. With one-touch access to the system menu, downstream key on/off, transition type, picture-in-picture, effects on/off, and more, V-1HD+ production workflow is smooth and hassle-free.
The V-1HD+ also includes PGM and PST busses and a transition/fade bar, which are the most-recognized video switching controls in the industry—and the quickest for beginners and volunteers to learn. And with tactile audio volume knobs, signal/peak lights, and unity gain markers, it’s simple and intuitive to adjust sound levels on the fly.
14-Channel Audio Mixing With Effects.
The V-1HD+ allows a single operator to do more than switch cameras—they can mix professional sound too. The integrated 14-channel digital audio mixer blends HDMI audio with mic and line sources, and also offers a variety of onboard effects to sweeten mixes.
Audio Inputs.
With two XLR mic inputs and selectable phantom power, the V-1HD+ lets you bring pro-grade microphones into your productions, including condenser broadcast mics. There’s also an 1/8-inch input for a lavalier mic or stereo audio source like a smartphone, plus another stereo input on RCA jacks. Embedded stereo audio from the four HDMI inputs can be included in your mix as well.
Audio Outputs.
With the V-1HD+, there’s no need for a dedicated small audio console. Distribute analog sound to a PA system via two balanced ¼-inch TRS outputs, and use embedded digital audio in the HDMI outputs to feed recorders and livestream broadcasts.
Audio Effects.
Leave the outboard gear in the recording studio—each audio input on the V-1HD+ has its own three-band equalizer, high-pass filter, compressor, and noise gate, plus a sync delay to align audio with video if needed. The XLR and 1/8-inch inputs also include de-essers to clean up vocal sounds in real time. And with the limiter, three-band equalizer and compressor on the main outputs, you can deliver broadcast-quality sound every time.
Production-Critical Signal Monitoring.
Without proper signal monitoring, you’re running blind. The V-1HD+ incorporates several real-time monitoring tools that make it easy to keep your productions looking and sounding their best.
Multiviewer Display.
A 10-window multiviewer display can be applied to one or both HDMI outputs, helping you manage productions in real time. Cue up camera shots, preview presentations, and choose stored still images before taking them live to the program feed. Camcorder recording status can be monitored as well.
Audio Monitoring.
Even if your video looks perfect, poor sound will ruin the entire production. With the V-1HD+, you can always keep track of your audio quality. Each analog input has its own signal/peak indicator, and headphones can be plugged in to monitor the overall audio feed. When using the multiviewer display, signal level meters are shown for all inputs and the main outputs.
Effects, Keying, & Stills.
The powerful effects engine in the V-1HD+ keeps audiences engaged with visually appealing content while opening new revenue streams for customer graphics creation.
Four-Layer Effects Engine.
Savvy visual storytellers understand the power of layered graphics and visual effects. With four composition layers at your command, it’s simple to add lower-third titles, logos, social media comments, and more to inform your audience and keep them involved.
Keying.
The DSK (downstream keyer) layer lets you independently composite a picture-in-picture (PinP) window on a video feed, which is especially useful for live and online hybrid events. For example, when displaying onscreen graphics for a live presentation, you can also overlay a camera shot of the stage speaker that’s only viewable by the online audience.
Still Images.
When using the V-1HD+, you’ll never have to leave your audience with a blank screen when the presentation stops, the meeting goes on break, or the camera power goes down. Simply call up one of four still images you’ve stored in the V-1HD+, or capture stills from a connected input source. And with the versatile effects engine, these images can be used as DSK lower thirds or full-screen backgrounds.
Camera Tally.
A camera tally light visually directs talent to look toward the active camera, and also lets everyone know when the camera is live and “on-air.” The analog tally output on the V-1HD+ can be wired to most broadcast camera systems—refer to the V-1HD+ Reference Manual for wiring specifications.
Recording Control.
Many technical elements contribute to a successful recording—but forgetting to hit the record button means the difference between getting paid for the job or not. Via HDMI, you can trigger Atomos recorders to start and stop recording, bringing remote-control convenience to your busy workflow.
Legacy Support.
Budgets don't always allow you to upgrade every component in your video system at the same time. The V-1HD+ can interface with legacy systems and components via its RS-232 port, allowing you to keep working while saving up for that new piece of gear.
Features.
Professional HD switching solution for live events, liveStreaming, or both at once
Standalone video switcher and 14-channel audio mixer for single operators Compact and portable for fast set up
Familiar interface that's quick to learn and easy to use
Technology-assisted automatic video switching
Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
Pro audio I/O with legendary Roland sound quality
Eight memory presets to recall visual layouts on cue
Item Includes
V-1HD+ HD Video Switcher
UVC-01 USB Video Capture
AC Adapter
Power Cord
USB 3.0 Cable
Startup Guide
Roland 1 Year Limited Warranty
Item Includes
V-1HD+ Video Switcher: Video Jump to... Video Processing 4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors Input 1-3: HDMI type A x 3 Input 4: HDMI type A
Input Connectors Input 1-4: HDMI Type A x 4 Audio In 1-2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max Line In: RCA phono type MIC/AUX IN: Stereo miniature phone type (PLUG-IN power)
Output Connectors Output 1-3: HDMI Type A x 2 Audio Out L, R: 1/4-inch TRS phone type Phones: Stereo miniature phone type
Nominal Input Level Audio In 1-2: -60 to +4 dBu (Maximum Input level: +24 dBu) Line In: -10 dBu (Maximum Input level: +10 dBu) MIC/AUX IN: -51 to -10 dBu (Maximum Input level: +10 dBu)
Input Impedance Audio In 1-2: 10 k ohms Line In: 15 k ohms MIC/AUX IN: 10 k ohms
Audio Effects Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone Output
V-1HD+ Video Switcher: Others Jump to... Other Connectors USB Memory: USB A type (for USB flash drive) Remote: USB B type (for Remote control) RS-232: DB-9 type (male, for Remote control) TALLY: DB-9 type (female, for TALLY Output)
Other Functions Preset memory (8 types) Panel lock function EDID emulator Auto switching Auto Input detect
Power Supply AC adapter
Current Draw 2.1 A
Power Consumption 25.2 W
Operation Temperature 32 to 104 Degrees F (0 to 40 Degrees C)
Dimensions (W x D x H) 12.05 x 4.81 x 2.56" (316 x 121 x 65mm)
Weight 3.08 lbs (1.4kg) (excluding AC adapter)

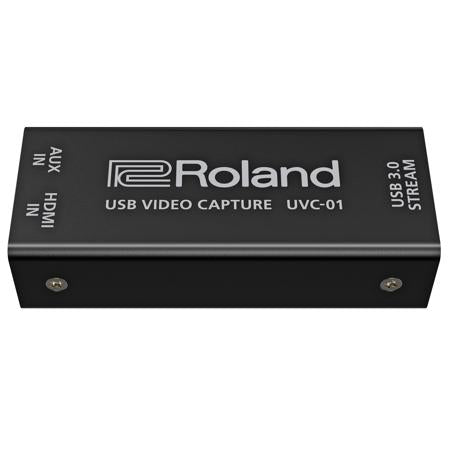

UVC-01 USB Video Capture: Video Jump to... Input Connectors HDMI IN connector: HDMI type A

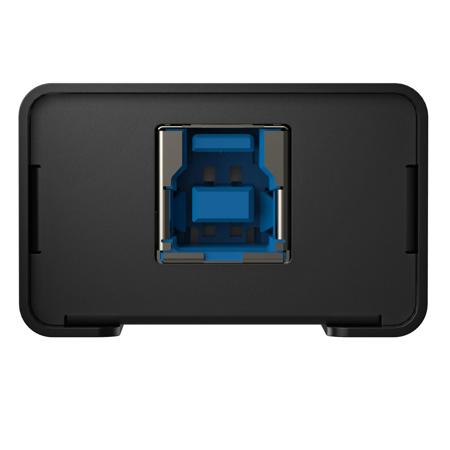

Output Connectors USB Stream port: USB 3.0 B type
Input Formats 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
USB Video Output Format YUY2 (Uncompressed)
USB Video Output Resolution 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
UVC-01 USB Video Capture: Audio Jump to... Audio Formats HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo USB Stream port: Linear PCM, 48 kHz, 16 bits, stereo
Input Connectors HDMI IN connector: HDMI type A AUX IN jack: Stereo miniature phone type
Output Connectors USB Stream port: USB 3.0 B type
Nominal Input Level AUX IN jack: -10 dBu (Maximum input level: +8 dBu)
Input Impedance AUX IN jack: 10 k ohms
UVC-01 USB Video Capture: Others Jump to... Power Supply Supplied from the computer via USB
Current Draw 500 mA
Operation Temperature 32 to 104 Degrees F (0 to 40 Degrees C)
Dimensions (W x D x H) 3.56 x 1.05 x 0.93" (90 x 37 x 23mm)
