Sharp NP-PV800-UL 8000-Lumen WUXGA 3LCD Laser Projector (No Lens, Black)

Sharp NP-PV800-UL 8000-Lumen WUXGA 3LCD Laser Projector (No Lens, Black)

SKU NP-PV800UL-B1
Save 25% Save 25%
$9,200.00
$9,200.00 - $9,200.00
$9,200.00
$6,944.73
$6,944.73 - $6,944.73
$6,944.73
  • Brightness of 8200 Center Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • HDBaseT & 2 x HDMI Inputs
  • 20,000 Hours of Laser Life

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Sharp NP-PV800-UL 8000-Lumen WUXGA 3LCD Laser Projector (No Lens, Black)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The black NEC NP-PV800UL 8000-Lumen WUXGA Laser 3LCD Projector is a bright, professional installation projector designed for mid-size corporate and higher education spaces. This 4K ready projector features HDBaseT and two HDMI 2.0 inputs to connect a wide variety of sources. A full line of optional lenses with motorized shift, focus, and zoom, and 360° roll-free orientation make for flexible and user-friendly installation.

4K Ready
Display stunning 4K60 content using NEC's proprietary high-performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from Ultra HD Blu-ray and 4K TV broadcasting are supported on all digital inputs.
HDBaseT
Simplify your installations with HDBaseT, which is optimized for video applications and supporting uncompressed full HD digital video, audio, ethernet, power, and various control signals. With only a single cable (up to 328') to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What's more, control signals are contained in the same cable.
Control System Support
Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP, and PJ Link allow for complete interactivity and control. Basic control of competitors product reduces the need for reprogramming of a control system.
NEC ProAssist
ProAssist is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.
Optional Lenses
Enjoy installation flexibility with motorized optional bayonet-style lenses, providing quick and easy exchanges. Lens throw distances range from 2.5 to 68.5 ft. Customers utilizing previous generation NEC PA Series projectors can use their existing lenses. The following are all compatible models, both legacy and current.





Throw Ratio Lens Type Model Number
0.79:1 Short-throw lens NP11FL
1.16-1.52:1 Standard-throw lens NP12ZL
1.46-2.95:1 Standard-throw lens NP13ZL
2.90-4.64:1 Long-throw zoom lens NP14ZL
4.59-7.02:1  Long-throw zoom lens NP15ZL
0.32:1 Ultra-short-throw lens NP44ML-01LK
0.6-0.76:1 Short-throw zoom lens NP50ZL
0.79-1.11:1 Short-throw zoom lens NP40ZL
1.30-3.02:1 Standard-throw zoom lens NP41ZL
2.99-5.93:1 Long-throw zoom lens NP43ZL





Additional Features
  • WUXGA native resolution
  • Motorized zoom and focus
  • Lens shift
  • Cornerstone correction
  • 3.5mm variable audio output
  • Quick power on/off
  • ECO Mode
  • 360° roll-free installation
  • Portrait mode
  • Control over LAN or RS-232
  • NaViSet Administrator 2
  • Built-in wall color correction
  • AutoSense
  • Auto power off

Item Includes

  • Sharp NP-PV800-UL 8000-Lumen WUXGA 3LCD Laser Projector (No Lens, Black)
  • RMT-PJ40 Remote Control
  • 2 x AAA Battery
  • Power Cord
  • Dust Cap for Lens Hole
  • Cable Cover
  • Limited 5-Year Manufacturer Warranty (Or 20,000 Hours, Whichever Comes First)

Item Includes

Image Display
Display System
3-Chip 0.76" RGB Liquid Crystal Shutter Projection System LCD
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness
8200 Lumens (Center)
Aspect Ratio
Native: 16:10
Dynamic Contrast Ratio
3,000,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Scan
Horizontal: 24 to 100kHz
Vertical: 50 to 85Hz
Includes Lens
No
Features
Keystone Correction
Manual to Vertical: ± 30°
Manual to Horizontal: ± 30°
HDR Support
Yes
Multi-Input Support (PIP/PBP)
Not Specified by Manufacturer
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes

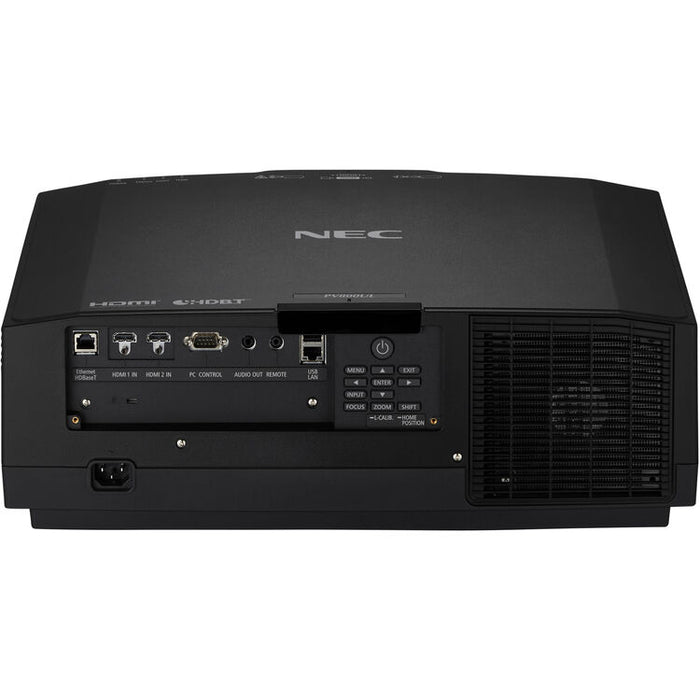

Input/Output Connectors
Inputs/Outputs
2x HDMI 2.0 Audio, Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
1x 1/8" / 3.5 mm Mini Audio Output
1x 1/8" / 3.5 mm Mini Remote Input
1x DE-9/DB-9 (RS-232) Control Input
1x USB-A 2.0 Control Input
1x RJ45 (Ethernet) Control, LAN Input
HDCP Support
Yes, Version 2.2
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Fan Noise
Full Brightness: 42 dB
Low Brightness: 33 dB
Security
Cable Lock Slot
Password Protection
Security Bar
Supported Languages
Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 490 W
Standby Mode (Lamp Off): < 1.7 W
Certifications
UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CSA C22.2 No.60950-1-07, 2nd edition, ICES-003 Issue(ANSI C63.4.2014)
Operating Conditions
32 to 113°F / 0 to 45°C at 20 to 85% Humidity
Storage Conditions
14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Dimensions (W x H x D)
19.8 x 6.6 x 16.2" / 503.0 x 168.0 x 411.0 mm
Weight
24.7 lb / 11.2 kg
Packaging Info
Package Weight
31.415 lb
Box Dimensions (LxWxH)
23.1 x 19.8 x 10.5"
