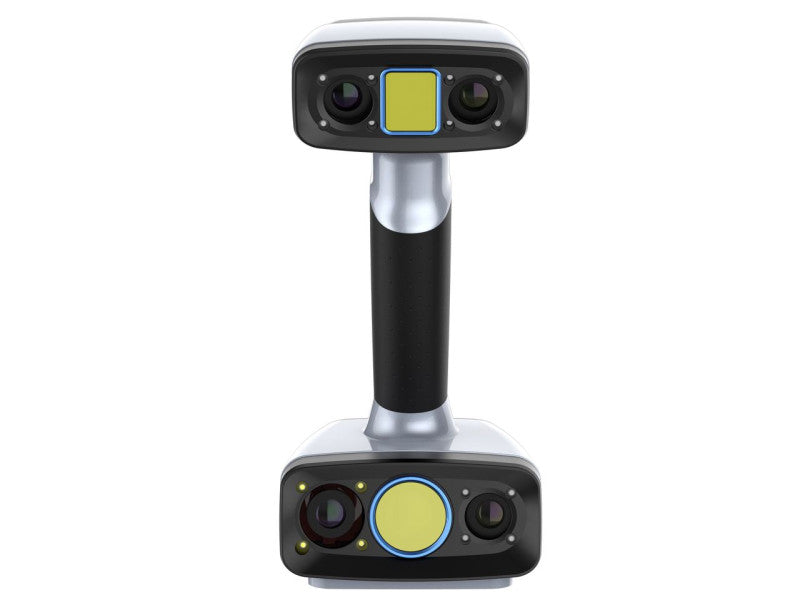

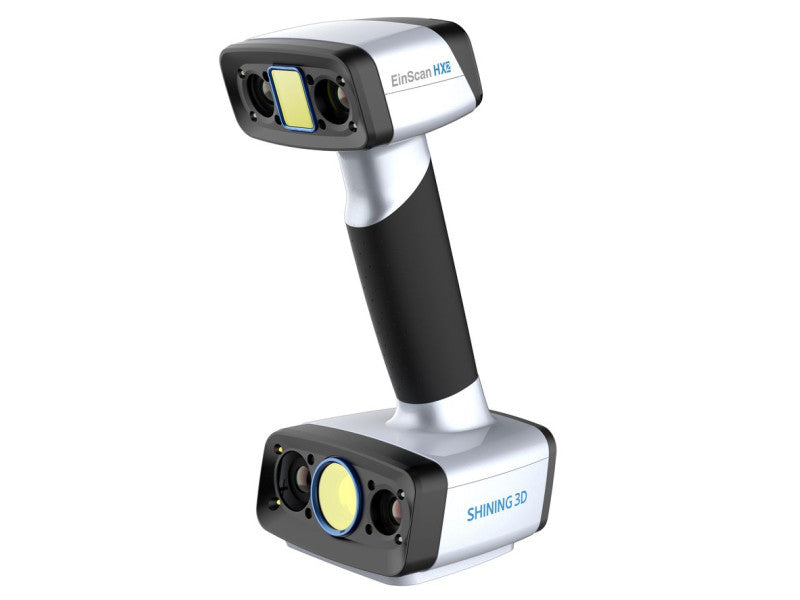

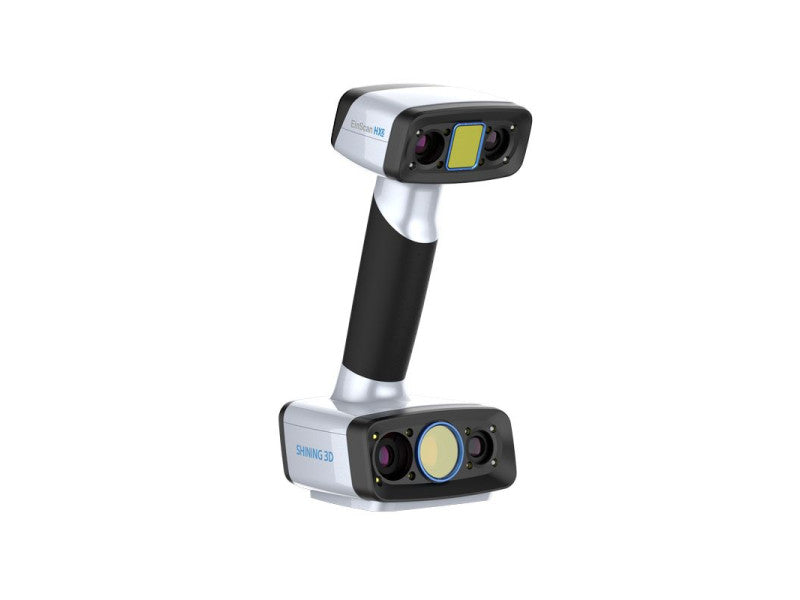

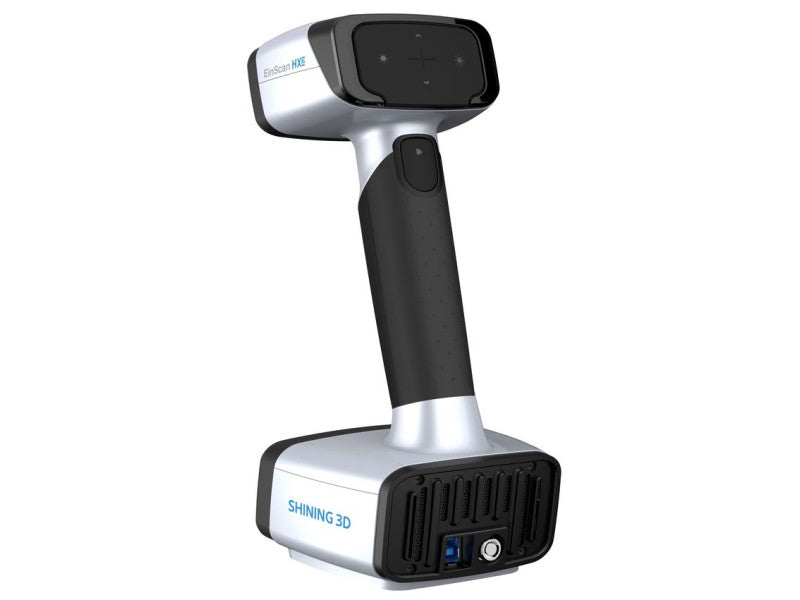

Request a quote →Shining 3D EinScan HX2 Hybrid Blue Laser and LED Handheld 3D Scanner
The Shining 3D EinScan HX2 is an industrial handheld 3D scanner integrating hybrid blue laser and LED structured light sources for versatile, high-precision data capture. It features 26 laser lines and improved scanning speeds up to 1,600,000 points/s, delivering accuracy up to 0.04 mm and resolution up to 0.05 mm across a wide range of object sizes from 30 to 300 cm. The lightweight, ergonomic design at 1.57 lb supports portable use in reverse engineering, manufacturing, heritage preservation, and healthcare applications.
Dual scanning modes adapt to varied surfaces: Rapid Scan mode uses LED light for fast, full-color texture capture with a 420 x 440 mm field of view, while Laser Scan mode handles dark and reflective surfaces with a 380 x 400 mm field of view and marker alignment. The included ExModel software provides professional editing tools including smoothing, hole filling, and sharpening for efficient post-processing.
| Brand | Shining 3D |
| Model | EinScan HX2 |
| Technology | Blue LED, Laser |
| Accuracy | Up to 0.04 mm |
| Volumetric Accuracy | Up to 0.04+0.06 mm/m |
| Max Resolution | Up to 0.05 mm |
| Number of Laser Lines | 26 |
| Scan Speed | Up to 1,200,000 points/s at 20FPS (LED); up to 1,600,000 points/s at 120FPS (Laser) |
| Point Distance | 0.25–3 mm (LED); 0.05–3 mm (Laser) |
| Depth of Field | 200–700 mm (LED); 350–610 mm (Laser) |
| Max Field of View | 420 x 440 mm (LED); 380 x 400 mm (Laser) |
| Working Distance | 470 mm |
| Align Modes | Feature, Marker, Texture, Hybrid |
| Texture Capture | Yes (LED mode only) |
| Connectivity | USB 3.0 |
| Output Formats | OBJ, STL, ASC, PLY, P3, 3MF |
| Recommended Object Size | 30–300 cm |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 10–90% |
| Safety | Eye-safe (LED); Class II (Laser) |
| Certifications | CE, FCC, ROHS, WEEE, KC |
| Weight | 1.64 lb |
| Dimensions | 4.3 x 4.3 x 9.3 in |
| Included Software | ExModel |
