Yamaha RX-S600 5.1-Channel Network AV Receiver

Yamaha RX-S600 5.1-Channel Network AV Receiver

SKU RX-S600BL
$595.76 - $595.76
$595.76
$595.76 - $595.76
$595.76

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Yamaha RX-S600 5.1-Channel Network AV Receiver

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

  • The slim and compactRX-S600 5.1-Channel Network AV ReceiverfromYamahaprovides high-quality audio and convenient functions including AirPlay, AV Controller Application, and MHL support.

    Slim and Compact Design
    When space is tight, make the most of this receiver without sacrificing performance. With its space-saving design, the RX-S600 Receiver will fit nicely in tight spaces.
    Total Purity Concept for High Sound Quality
    The Total Purity Concept encompasses high drive amp technology, high purity pre-amplification, anti-vibration technology, and independent pure power supplies. This unit has a fully discrete power amplifier that helps minimize distortion. It also adopts independent pure power supplies, allowing dedicated power supplies for the analog and digital circuitry to prevent digital noise from affecting analog circuitry. The anti-vibration heat sinks are designed to suppress vibration from transistors and sound pressure. Independent power supplies for the DACs are designed to further eliminate noise on certain models. Down to every detail, this AV receiver is designed with full emphasis on high sound quality.
    Brilliant Sound in a Compact Body
    The RX-S600 Receiver delivers a brilliant audio performance, thanks to a revamped ground and power supply pattern, as well as meticulously selected and custom designed parts, such as the transformer and heat sink. It also features analog discrete amplifier construction, a low-jitter PLL circuit, and high power output. Other top-grade features include an aluminum front panel and high-grade, large screw-type speaker terminals.
    Extensive Audio Codec and Format Support
    This AV receiver is compatible with many audio formats such as Dolby True HD and DTS-HD Master Audio. It is also compatible with FLAC/WAV 192 kHz playback. You will enjoy high sound quality from a Blu-ray Disc and other types of high-resolution sources.
    Ultra HD (4K) Pass-through
    This AV receiver provides advanced HDMI features including Ultra HD (4K) pass-through. Ultra HD (4K) refers to 4 times the resolution of a 1080p display. This receiver is capable of passing the Ultra HD (4K) data from the source to the display.
    HDMI with 3D and Audio Return Channel
    3D means the receiver can handle 3D signal data. The Audio Return Channel function enables data to be sent and received via the same HDMI cable, so you can hear the sound from the TV via a single HDMI cable, with no need for an extra optical cable.
    Network Functions
    This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet radio, Pandora, and operate your system via WebBrowser Control. The AV Controller App (from iTunes App Store or Google Play) lets you control various functions from your iPod, iPhone, iPad, or Android phones/tablets.
    AV Controller App for Easy, Convenient Operation
    This AV receiver lets you use the Yamaha AV Controller App that is downloadable from the iTunes App Store or Google Play to control power on/off and volume, select input and DSP modes, and operate other functions from an iPhone or Android devices. You can also use in as many as 23 different languages and customize the interface by hiding unused icons and renaming functions. A tablet version is also available.
    AirPlay Allows Streaming Music to AV Receiver
    This AV receiver supports AirPlay, which means it can accept wireless music streaming from iPod touch, iPhone, or iPad, as well as from iTunes on a Mac or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theater system. You can use view metadata such as song title, artist name, as well as album art via this AV receiver's on-screen display.1
    USB Digital Connection for iPod, iPhone, and iPad on the Front Panel
    A USB port on the front panel allows convenient connection of an iPod/iPhone/iPad, which also charges when connected. Because the digital signal from the iPod/iPhone/iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy optimal sound quality. In addition, you can use the receiver's remote control unit to operate the iPod/iPhone/iPad music playback functions.
    MHL (Mobile High-Definition Link) Support for High-Quality Video and Audio
    MHL provides easy, direct connection of compatible mobile phones and this AV receiver. Playback of up to 1080p video and multi-channel audio from the phones is supported. The receiver also charges the connected phone. Play, stop, and other basic operations can be controlled from the remote control.
    YPAO Sound Optimization for Automatic Speaker Setup
    YPAO uses a small microphone and sophisticated equalization to automatically set the best sound for any room, no matter where the speakers are. First, it checks the speaker connections and phase of each speaker. Then, it sends out tones which are captured by the microphone to analyze the room acoustics and sets a variety of parameters, such as the speaker size, the distance of the speakers, the sound pressure level, and more, for optimum sound in just a few minutes.
    SCENE for One-touch Start
    Pressing a SCENE button powers on the AV receiver and selects the input source and DSP mode. You can re-set the buttons for different sources by selecting a source and DSP mode, then pressing a SCENE button for more than 3 sec.
    HDMI CEC for Easy Operation
    Another benefit of HDMI is the availability of CEC functionality. When the unit is connected to a CEC-compatible TV, it will turn on and off together with the TV, and you can use the TV remote to control the volume. CEC also provides advanced functionality with other components. For example, you can use the receiver's remote unit to control player functions like skip and stop.2
    Input Selection in HDMI Standby Through Mode
    When the AV receiver is in HDMI Standby Through mode, the input source (Blu-ray Disc player, game console, and more) for viewing on the monitor can be changed via the remote control. There's no need to turn on the AV receiver in order to switch sources.
    Connection for YWA-10 Wi-Fi Adapter
    This AV receiver provides a DC out connection for the YWA-10 Wi-Fi adapter (optional accessory, sold separately). This lets you stream music wirelessly via a router from network components such as a PC or NAS.
    Connection for YBA-11 Bluetooth Wireless Technology Adapter
    This AV receiver provides a DC out connection for the YBA-11 Bluetooth wireless technology adapter (optional accessory). You'll be able to stream music wirelessly from a Bluetooth wireless technology capable smartphone, tablet or PC, without a Wi-Fi environment.
    HD Audio with CINEMA DSP 3D and Virtual Presence Speaker
    CINEMA DSP 3D provides a wide, high, and dense sound field. HD Audio format decoding lets you enjoy HD Audio sources. Virtual Presence Speaker delivers 3D sound without actual use of presence speakers.
    Subwoofer Trim for Improved Sound Imaging
    The Subwoofer Trim Control enhances the low frequencies by avoiding overlap with the front speaker output. This will result in a cleaner, more focused sound stage while providing a seamless frequency response. When subwoofer frequency overlap occurs in conventional systems, the overall sound is pushed toward the subwoofer. Subwoofer Trim takes care of this by separating the low subwoofer frequencies cleanly, thus stabilizing the front stage while providing a well-balanced enhanced bass sound.
    Compressed Music Enhancer
    When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha's Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
    Adaptive DRC (Dynamic Range Control)
    Adaptive DRC automatically adjusts the dynamic range of the sound according to the volume level. This ensures that you hear clear dialogue and vocals, and all sound effects at comfortable levels. There is no need to adjust the volume level as you listen; everything from whispers to big explosions will be heard clearly and comfortably at the same volume setting. It also tones down loud TV commercials, and is suitable for low-volume, late-night listening, when you do not want to disturb others.
    ECO Mode Lowers Power Consumption by up to 20%
    Yamaha's ECO Mode reduces power consumption by about 20%. It can be set from the top of the GUI menu.3
    Selectable Auto Power Down
    Auto Power Down lets you save energy by selecting to turn off the power after 2, 4, 8, or 12 hours.
    Low Standby Power Consumption
    This eco-friendly receiver has a low standby power consumption of 0.1W in IR Standby mode (1W in HDMI Standby Through mode, 2W in Network Standby mode).
    DLNA Certified
    DLNA certification ensures that this device has been tested and proven compatible with various CE, PC, and mobile devices designed according to the DLNA interoperability guidelines. It bears a logo that gives consumers peace of mind that the device they are purchasing has undergone rigorous testing and conforms to the interoperability guidelines.
    Pandora
    Pandora is free, personalized radio that plays music and comedy you'll love. Just start with the name of one of your favorite artists, songs, comedians, or composers and Pandora will create a custom station that plays similar tracks. With this feature, you can create up to 100 stations and easily switch between favorites.
    Dolby TrueHD
    Dolby TrueHD delivers tantalizing sound that is bit-for-bit identical to the studio master. When coupled with high-definition video, Dolby TrueHD offers an unprecedented home theater experience that lets you enjoy sound as stunning as the high-definition picture.
    dtsHD
    dtsHD feature allows the device to decode all streams required for dtsHD Master Audio and may have limitations in channel output and/or sampling frequency or may utilize post processing.
    Made for iPod/iPhone/iPad
    Made for iPod, iPhone, and iPad, this device has been designed to connect specifically to iPod, iPhone, and iPad and certified to meet Apple performance standards.
    SILENT CINEMA
    SILENT CINEMA makes it possible to hear large-scale surround sound through ordinary headphones. This is a variation of CINEMA DSP technology that Yamaha developed to let you listen in private to movies and other multi-channel sources for hours without listening fatigue.
    Compressed Music Enhancer
    Yamaha employs sophisticated digital signal processing with exclusive algorithms to enable playback that improves the performance of compressed music formats, including MP3 and WMA. With the Compressed Music Enhancer, highs and especially lows are richer and smoother, bringing music back to life to be as close to the original as possible.
    Other Notable Features
    5-channel powerful surround sound
    95W per channel (6Ω, 1 kHz, 0.9% THD, 1-channel driven)
    60W per channel (6Ω, 20 to 20,000 Hz, 0.09% THD, 2-channel driven)
    Burr-Brown 192 kHz/24-bit DACs for all channels
    Direct Mode for high-quality sound reproduction
    Low-jitter PLL circuitry helps optimize sound imaging
    Supports Deep Color (30/36 bit), x.v.Color, 24Hz refresh rate and auto lip-sync compensation
    Multi language color OSD for improved visibility (English, German, French, Spanish, Russian, Italian, Japanese, and Chinese)
    Audio input assigns capability for HDMI and component video input
    Audio delay for adjusting lip-sync (0 to 250 ms)
    40-station preset tuning/auto preset tuning

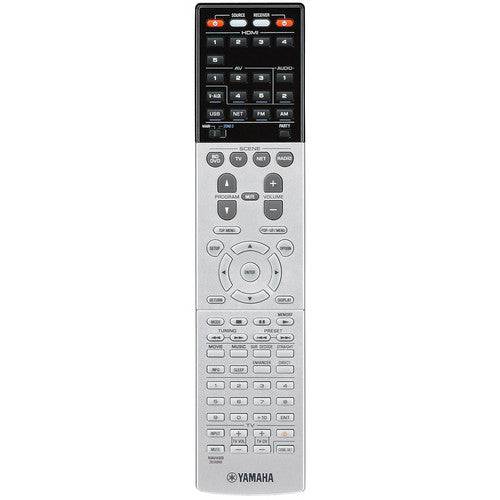

    Preset remote unit
    Background video feature (for radio only)
    Main Zone (3-channel) + Zone 2 (2-channel) configuration with Party Mode

Item Includes

Yamaha RX-S600 5.1-Channel Network AV Receiver
  • Limited 2-Year Warranty

Item Includes

  • Channel5.1
    Rated Power Output1 kHz, 1-Channel Driven: 95 W (6 Ω, 0.9% THD)
    20 to 20,000 Hz, 2-Channel Driven: 60 W (6 Ω, 0.09% THD)
    Dynamic Power per Channel8/6/4/2 Ω: 90 / 110 / 140 / 160 W
    DSP Programs17
    Audio Delay0 to 250 ms

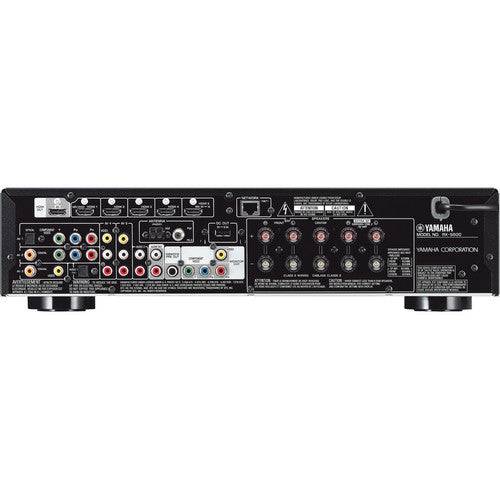

    HDMI Input & Output5/1
    HDMI CECSCENE, Device Control
    USB Input ConnectorsiPod / iPhone / iPad, USB memory, portable audio player
    Front Audio/Video InputUSB / Mini-jack / Composite
    PortNetwork
    Digital Audio InputOptical / Coaxial: 2
    Analog AudioInputs: 4 (1 front)
    Outputs: 1
    Component VideoInput: 2
    Output: 1
    Composite VideoInput: 4 (1 front)
    Output: 1
    Pre-OutSubwoofer
    Headphone Output1
    Tuner TypeFM/AM tuner
    Display TypeOn-screen
    SCENESCENE (4 sets)
    App ControliPhone / iPad / Android phone / tablet
    Remote Control UnitPreset
    Standby Power Consumption≤0.1 W (IR only)
    Dimensions (W x H x D)17.12 x 4.37 x 12.62" (434.85 x 111.00 x 320.55 mm)
    Weight17.20 lb (7.80 kg)
    Packaging Info
    Package Weight20.9 lb
    Box Dimensions (LxWxH)20.8 x 16.0 x 7.2"
