Optoma ZU2200 Laser 1-DLP Projector WUXGA

Optoma Technology ZU2200 18,500-Lumen WUXGA Laser DLP Projector (No Lens)

SKU ZU2200
Save 54% Save 54%
$67,500.00
$67,500.00 - $67,500.00
$67,500.00
$30,764.05
$30,764.05 - $30,764.05
$30,764.05

The Optoma Technology ZU2200 18,500-Lumen WUXGA Laser DLP Projector is a high brightness, professional-grade model capable of delivering 18,500 ANSI-lumens for large, high-end installations, including in the entertainment, exhibition, and digital signage markets. Additionally, the ZU2200 achieves superior color rendition through MultiColor Laser (MCL) technology.

Key Features
  • Brightness of 18,500 ANSI Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • MultiColor Laser (MCL) Technology
  • Uses Interchangeable Lenses, 8 Options
  • HDMI, DVI, DP, HDBaseT, VGA & 3G-SDI In
  • IP5X Dust Resistance Rating
  • Integrated Warping & Edge Blending
  • Input Failover with Fast Switching
  • 360° & Portrait Orientation Support
  • 24/7 Operation, 30,000 Hour Laser Life

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Optoma Technology ZU2200 18,500-Lumen WUXGA Laser DLP Projector (No Lens)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Ultra bright professional WUXGA laser projector

The high brightness ZU2200 professional laser projector fills a need for high-end installations, including the entertainment, exhibition, and digital signage markets. Part of Optoma’s Ultra Bright Series, this projector offers incredibly high brightness of 22,000 lumens as well as extreme flexibility with eight interchangeable lenses* to meet the needs of even the most complex installations.

As part of the Optoma DuraCore laser lineup, the Ultra Bright Series high-performance projectors feature 4K HDR compatibility, pure engine video processing and color matching to produce visually striking, lifelike images with exceptional detail and high color accuracy. Additionally, the ZU2200 achieves superior color rendition through MultiColor Laser (MCL) technology.

Strong reliability is at the core of the Ultra Bright Series projectors, with 24/7 operation capabilities, up to 30,000 hours of laser lifetime, and an IP5X rating for optimal and dependable performance, even under more extreme conditions up to 122 degrees Fahrenheit / 50 degrees Celsius.

With a robust metal chassis and modular design for easier maintenance, a multitude of connectivity options, and failsafe redundancy mode for instant source switching, the Ultra Bright Series projectors offer a solution for intricate installations, including multi-projector and dome projection applications.

Key Features:
  • High brightness WUXGA DLP laser projector: 22,000 lumens
  • Extreme installation flexibility: Eight interchangeable lenses
  • Ultimate reliability: Built-in redundancy mode
  • Striking lifelike images: Pure engine video processing and color matching

Item Includes

  • Laser 1-DLP Projector WUXGA, 22,000 Lumens,
  • 3/5-Year Warranty

Item Includes

DISPLAY/IMAGE
Display Technology DLP
Resolution
 WUXGA (1920 x 1200)
Brightness
 22,000 lumens
ANSI brightness
 18,500 lumens
Contrast ratio - dynamic
 1,000,000:1
Contrast ratio
 2,000,000:1
Native aspect ratio
 16:10
Aspect ratio - compatible
 16:9, 16:10
Screen size
 Dependent on lens
LIGHT SOURCE INFO
Light source type
 DuraCore MultiColor Laser
LASER life
 30,000 hours
OPTICAL
Throw ratio
 Dependent on lens
Projection distance
 Dependent on lens
Lens options
 BX-CTA11: 0.65~0.75:1
BX-CTA18: 0.84~1.02:1
BX-CTA19: 1.02~1.36:1
BX-CTA20: 1.2~1.5:1
BX-CTA21: 1.5~2.0:1
BX-CTA22: 2.0~4.0:1
BX-CTA23: 4.0~7.2:1
BX-CTA27: 7.2~10.8:1
CONNECTIVITY
Inputs
1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI
Outputs 1 x RS232, 1 x 3D sync, 1 x Wired remote, 1 x HDMI, 1 x 3G-SDI
Control 1 x RJ45, 1 x USB-A service, 1 x 12V trigger
GENERAL
Noise level (typical)
 38 dB
Noise level (max)
 40 dB
3D
 Full 3D
IP rating
 TBC
OSD / display languages
 11 languages: Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Spanish
24/7 operation
 Yes
360° operation
 Yes
Operating conditions
 Operating: 10~85% RH, non-condensing. Storage: 5~90% RH, non-condensing
Remote control

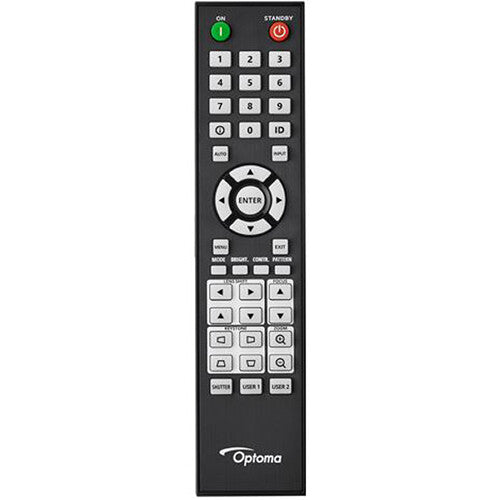

 Backlit ProAV remote
NETWORKING
LAN - display
 Yes
LAN - wireless networking
 No
LAN
 Yes

WEIGHT AND DIMENSIONS
Dimensions
(W x D x H)
 25.59" x 27.95" x 9.84" (650 x 710 x 250 mm)
Gross weight
 146.61 lb (66.5 kg)
Net weight
 119.05 lb (54.0 kg)
