DJI Matrice 3TD Autonomous Precision Mapping Thermal Inspection Enterprise Drone

DJI Matrice 3TD Autonomous Precision Mapping Thermal Inspection Enterprise Drone

SKU CP.EN.00000516.02
Save 6% Save 6%
$8,500.00
$8,500.00 - $8,500.00
$8,500.00
$8,010.00
$8,010.00 - $8,010.00
$8,010.00

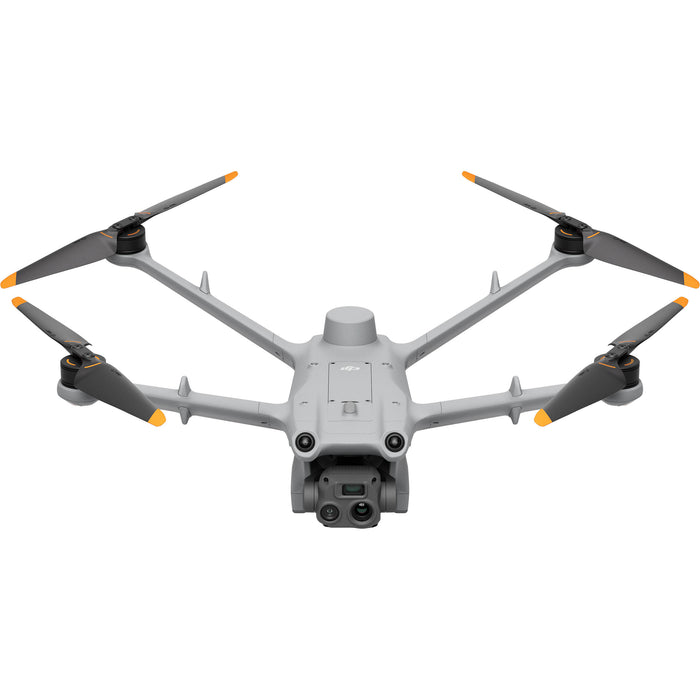

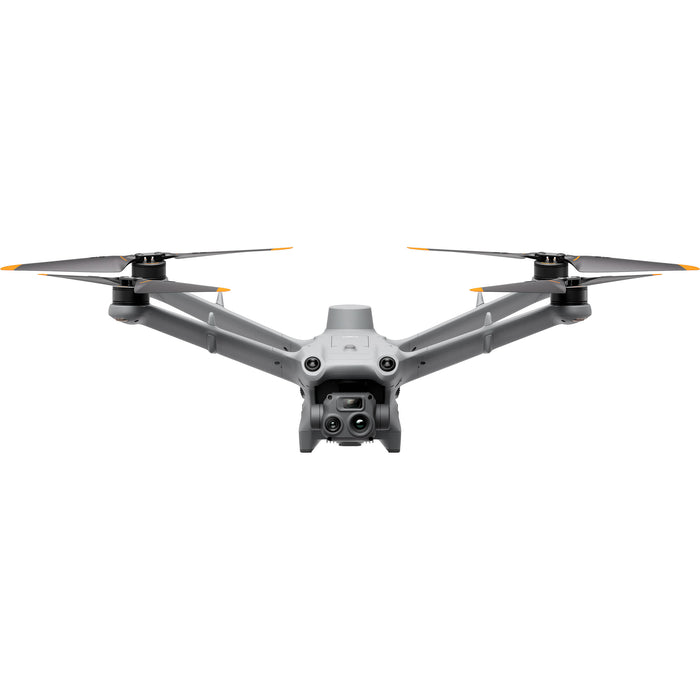

The DJI Matrice 3TD Drone is engineered for autonomous missions, integrating advanced triple-camera imaging with a 3-axis gimbal for diverse operational needs. It features 4K30 wide and telephoto lenses, alongside a high-resolution infrared thermal camera, enabling comprehensive visual and thermal data capture. Equipped with an RTK module for precise mapping and a 6-directional obstacle avoidance system, it ensures safe and accurate flight paths. This dustproof and waterproof drone offers up to 50 minutes of flight time, ideal for remote inspection, modeling, and security applications.

Key Features
  • Requires DJI Dock 2 Deployment System
  • Wide, Telephoto & Thermal Imaging
  • 3-Axis Gimbal with 4K30 Video Recording
  • Integrated 1.2"-Accurate RTK Module
  • 6-Direction Obstacle Avoidance System
  • Dustproof & Waterproof Construction
  • Cloud-Based Operation with FlightHub 2
  • Up to 50 Minutes of Flight Time
  • 6.2-Mile Effective Operating Radius

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

DJI Matrice 3TD Autonomous Precision Mapping Thermal Inspection Enterprise Drone

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Fly automated missions in remote locations with the DJI Matrice 3TD Drone. Matched with the required Dock 2 deployment system (not included), the Matrice 3TD is designed for precision remote mapping, modeling, security, and inspection missions. Operators can create and manage missions with a wide variety of features as part of its cloud-based operation system. When automatically released from the Dock 2 storage container, the 3-axis gimbal and triple-camera system can capture both visible and thermal footage. The system consists of a 4K30 wide and telephoto lens, an infrared thermal camera, and an RTK module for precision mapping. To keep flights safe, a 6-directional obstacle avoidance system can automatically dodge in-flight hazards.

Matrice 3TD Camera Payload
The Matrice 3TD camera payload offers three different imaging options. Both the wide-angle and telephoto lenses can record 4K30 video, with the wide lens able to snap 48MP stills and the telephoto supporting 12MP pictures. The third option is an infrared thermal camera with 28x digital zoom and either 640 x 512 resolution at 30 fps in Normal mode or 1280 x 1024 resolution at 30 fps in UHR Infrared Image mode. All footage can be stored internally on an optional microSD card with supported sizes reaching as high as 512GB.
Cloud-Based Operation
Utilizing the DJI O3 transmission system, operators can pilot or manage missions from a command center up to 9.3 miles away. Primarily using DJI's FlightHub 2 software, operators can take advantage of a host of features as part of the Matrice 3TD and Dock 2's cloud-based operation system.





  • Cloud Mapping: When a task (or route) is flown, FlightHub 2 can create a highly precise 3D model of the area based on internal flight data. This data can then be downloaded, annotated, and physical objects measured.
  • Flight Route Editor: When 3D models are created, operators more effectively plan missions and visually edit potential flight routes from a more realistic first-person viewpoint. This also gives the added benefit of simulating final imaging results.
  • AI Spot-Check: In a 3D model of the drone's destination, frame an area you want to capture. The Matrice 3TD will then automatically compare the real area to that model selection in order to accurately capture exactly what you want. Matrice 3TD can also remember that selection and capture it on repeated flights if desired.
  • FlyTo Tasks: Flight routes can be pre-planned automatically using precise 3D modeling. If pressed for time, a single click on a target can trigger the Matrice 3TD to automatically select the most efficient and safest route to it.
  • Live Flight Controls: FlightHub 2 or other third-party cloud platforms give operators manual control of the drone and its gimbal via keyboard and mouse.
  • Private Deployment: Developers can use Cloud API to create a customized management system or connect to a third-party cloud platform for efficient private deployment of the Matrice 3TD from the Dock 2.
  • Cloud-to-Cloud Coordination: FlightHub's Sync function can be used to link to third-party cloud platforms to manage operational data.
Additional Features
  • Dustproof and waterproof
  • Up to 50 minutes of flight time
  • +/- 1.2"-accurate RTK mapping
  • 6.2-mile effective operating radius from the Dock 2
  • Support for third-party payloads, such as speakers and lights
  • Edge computing expansion support for pre-processing media files
  • DJI TerraAPI support for 2D/3D scene reconstruction, mapping, and more

UPC: 190021099845

Item Includes

  • DJI Matrice 3TD Drone
  • Limited 1-Year Manufacturer Warranty (Excluding Lens, Battery & Propellers)
  • Limited 1-Year Manufacturer Warranty (Lens with Less Than 200,000 Shutter Uses)



Not Included

Essential
Drone Battery Chargers

Item Includes

Maximum Flight Time
50 Minutes
Remote ID
Yes
Camera System
Wide
48 MP, 1/1.3"-Type CMOS Sensor with 24mm-Equivalent, f/1.7 Lens (82° FoV)
Telephoto
12 MP, 1/2"-Type CMOS Sensor with f/4.4 Lens (15° FoV)
Maximum Video Resolution
Wide
Up to UHD 4K at 30 fps
Telephoto
Up to UHD 4K at 30 fps
Still Image Support
Wide
Up to 20 MP (JPEG)
Telephoto
Up to 12 MP (JPEG)
Sensing System
Omnidirectional (Optical Only)
Control Method
Included Transmitter
Weight
3.1 lb / 1410 g (Takeoff)
3.5 lb / 1610 g (with Maximum Payload)
Performance
Maximum Horizontal Speed
47.0 mph / 21 m/s
Maximum Ascent Speed
17.9 mph / 8 m/s
Maximum Descent Speed
13.4 mph / 6 m/s
Maximum Wind Resistance
26.8 mph / 12 m/s
Maximum Take-Off Altitude
2.5 Miles / 4000 m
Maximum Flight Time
50 Minutes
Maximum Hover Time
40 Minutes
Maximum Tilt Angle
25°
Hovering Accuracy
Vision Positioning
Vertical: ±0.3' / 0.1 m
Horizontal: ±1.0' / 0.3 m
RTK
Vertical: ±0.3' / 0.1 m
Horizontal: ±0.3' / 0.1 m
GNSS
Vertical: ±1.6' / 0.5 m
Horizontal: ±1.6' / 0.5 m
Maximum Angular Velocity
250°/s
Aircraft
Rotor Configuration
Quadcopter
Remote ID
Yes
Operating Conditions
-4 to 113°F / -20 to 45°C
Imaging
Number of Cameras
2 (Cannot Be Used Simultaneously)
Camera System
Wide
48 MP, 1/1.3"-Type CMOS Sensor with 24mm-Equivalent, f/1.7 Lens (82° FoV)
Telephoto
12 MP, 1/2"-Type CMOS Sensor with f/4.4 Lens (15° FoV)
Zoom
Telephoto
8x Digital
Thermal
28x Digital
Minimum Focus Distance
Wide
3.3' / 1 m
Telephoto
9.8' / 3 m
ISO Sensitivity Range
Wide
10 to 25,600
Telephoto
10 to 25,600
Night Vision
No
Shutter Speed
Wide
Electronic Shutter: 1/8000 to 8 Seconds (Photo/Video)
Telephoto
Electronic Shutter: 1/8000 to 8 Seconds (Photo/Video)
Maximum Video Resolution
Wide
Up to UHD 4K at 30 fps
Telephoto
Up to UHD 4K at 30 fps
Still Image Support
Wide
Up to 20 MP (JPEG)
Telephoto
Up to 12 MP (JPEG)
Media/Memory Card Slot
In Aircraft Body
microSD/microSDHC/microSDXC [512 GB Maximum]
Internal Storage
No
Gimbal
Number of Axes
3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Mechanical Range
Yaw (Pan): 54° (-27 to 27°)
Roll: 90° (-45 to 45°)
Pitch (Tilt): 180° (-135 to 45°)
Follow Speed
Tilt: 100°/s
Stabilization Accuracy
±0.005°
Avoidance/Sensing System
Sensing System
Omnidirectional (Optical Only)
Sensing System Capabilities
Forward
Measurement Range: 1.6 to 68.9' / 0.5 to 21 m
Detection Range: 1.6 to 656.2' / 0.5 to 200 m
Max Speed: 33.6 mph / 15 m/s
Field of View: 90° (Horizontal) / 90° (Vertical)
Backward
Measurement Range: 1.6 to 75.5' / 0.5 to 23 m
Max Speed: 26.8 mph / 12 m/s
Field of View: 90° (Horizontal) / 90° (Vertical)
Lateral
Measurement Range: 1.6 to 49.2' / 0.5 to 15 m
Max Speed: 22.4 mph / 10 m/s
Field of View: 90° (Vertical) / 104° (Horizontal)
Upward
Measurement Range: 1.6 to 68.9' / 0.5 to 21 m
Max Speed: 13.4 mph / 6 m/s
Field of View: 90° (Front-to-Back) / 90° (Side-to-Side)
Downward
Measurement Range: 1.6 to 45.9' / 0.5 to 14 m
Max Speed: 13.4 mph / 6 m/s
Field of View: 95° (Front-to-Back) / 110° (Side-to-Side)
Remote Controller / Transmitter
Control Method
Included Transmitter
Transmission System
OcuSync 3.0 (O3)
Frequencies: 2.4 GHz (2.400 to 2.4835) / 5.1 GHz (5.150 to 5.250) / 5.8 GHz (5.725 to 5.850)
Mobile App Compatible
Yes: Android & iOS
App Name: DJI Pilot & FlightHub
Flight Battery
Battery Chemistry
Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2)
Battery Capacity
7811 mAh / 115.2 Wh
Battery Configuration
4 S / 14.76 V
Maximum Charging Power
17 V
Charging Temperature
41 to 113°F / 5 to 45°C
Weight
1.2 lb / 544 g
General
GNSS Support
GPS, GLONASS, BeiDou, Galileo
Diagonal Size
18.2" / 463.2 mm
Overall Dimensions
15.7 x 6.0 x 13.2" / 398.0 x 153.0 x 335.0 mm
Weight
3.1 lb / 1410 g (Takeoff)
3.5 lb / 1610 g (with Maximum Payload)
