Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw 3LCD Projector

Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw 3LCD Projector

SKU V11H744620
$1,233.07 - $1,233.07
$1,233.07
$1,233.07 - $1,233.07
$1,233.07
  • Brightness of 3500 Lumens
  • WXGA (1280 x 800) Native Resolution
  • Ultra-Short 0.28 to 0.37:1 Throw Ratio
  • RCA Composite Video, 2x VGA, 3x HDMI-In

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw 3LCD Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Enjoy large images from short distances with theEpson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw 3LCD Projector. Its ultra-short 0.28 to 0.37:1 throw ratio can produce up to a 100" image from under 2' away, virtually eliminating shadows caused by presenters or passers-by. Its 3500 lumens of brightness, combined with its 14,000:1 dynamic contrast ratio, helps it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. The 1280 x 800 native resolution helps ensure that images and text are clear at most viewing distances.

The PowerLite 685W features RCA, two VGA, and three HDMI inputs to support a variety of source devices. One HDMI input is MHL-compatible for projecting from your compatible mobile device, and one VGA input can instead act as an output to daisy-chain multiple projectors or displays. An IR remote is included as an added convenience.

Designed to Produce Bright, Colorful Images

The PowerLite 685W offers 3500 lumens of color and white brightness for enhanced image quality.

Ultra-Short Throw Distance

The ultra-short throw distance allows you to project images up to 100" from less than 2' away.

HDMI Connectivity with MHL

Display HD content from your compatible mobile device with MHL compatibility.

iProjection Compatible

When used with the optional wireless LAN adapter, you can wirelessly project from your Windows, Mac, or Chromebook computer, or your Android or iOS device, and connect to and manage up to 50 devices simultaneously.

Designed for Long Lamp Life

The E-TORL lamp lasts up to 5000 hours in normal mode and up to 10,000 hours in ECO mode.

Additional Features

  • Compatible with the M685 and 885 SMART Board interactive whiteboards, including control via the SMART Extended Control Panel (ECP)
  • Manage your display and send announcements remotely with network connectivity and included software
  • RoHS-compliant, recyclable design

Item Includes

  • Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short-Throw 3LCD Projector
  • Remote Control with Batteries
  • Audio Adapter Cable for SMART Board
  • Null Modem Serial Cable
  • Software CDs
  • Template Sheet
  • Projector Feet
  • Password Protection Sticker
  • 15' Power Cord
  • Limited 2-Year Warranty on Projector
  • Limited 90-Day Warranty on Lamp

Item Includes

Image Display
Display System3-Chip LCD
Native Chip Resolution1280 x 800(WXGA)
Supported ResolutionsMaximum: UXGA - 1600 x 1200
Max BrightnessWhite: 3500 Lumens
Color: 3500 Lumens
Aspect RatioNative:16:10
Dynamic Contrast Ratio14,000:1
Color Depth10-Bit (1.07 Billion Colors)
Lens
FocusManual
Lensf/1.6 (f = 3.7 mm)
Optical ZoomNone
Throw Distance13.386 - 23.622" / 0.34 - 0.6m
Throw Ratio0.28 to 0.37:1
Projection Size60 - 100" / 152.40 - 254.00cm
Features
Keystone CorrectionManual-Vertical: 3
Manual-Horizontal: 3
Digital Zoom1.35x
Ceiling MountableYes
Rear Screen ProjectionYes
Built-In SpeakerYes(Mono)
Speaker Power16W

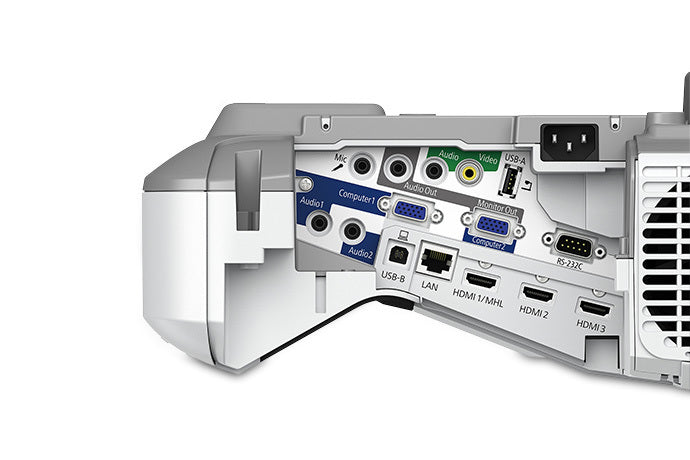

Input/Output Connectors
Inputs/Outputs2 xHDMI(HDMI Type-A) Audio, Video Input
1 xHDMI with MHL Support(HDMI Type-A) Audio, Video Input
1 xVGA(DE-15/DB-15) Video Input
1 xVGA(DE-15/DB-15) Video Input/Output
1 xComposite(RCA) Video Input
3 x1/8" / 3.5 mm Mini Audio Input
1 x1/8" / 3.5 mm Mini Microphone Input
1 x1/8" / 3.5 mm Mini Audio Output
1 xEthernet(RJ45) LAN Input
1 xUSB 2.0(USB Type-A) Data Input/Output
1 xUSB 2.0(USB Type-B) Data Input
1 xRS-232(DE-9/DB-9) Control Input
Hardware
Wireless LAN / Wi-FiNo, Optional Adapter Available
General
Light SourceLamp (1 x UHE)
Lamp Power250W
Expected Lamp LifeFull Brightness:5000 Hours
Low Brightness:10,000 Hours
Fan NoiseFull Brightness:35 dB
Low Brightness:29 dB
SecurityCable Lock Slot
Padlock
Password Protection
AC Input Power100 to 240 VAC, 50 / 60 Hz
Power ConsumptionFull Brightness:373W
Low Brightness:324W
Standby Mode (Lamp Off):
Dimensions (W x H x D)14.5 x 7.4 x 15.8" / 36.8 x 18.8 x 40.1cmIncluding feet
14.5 x 5.9 x 15.8" / 36.8 x 15.0 x 40.1cmExcluding feet
Weight12.6lb / 5.7kg
Packaging Info
Package Weight19 lb
Box Dimensions (LxWxH)21 x 19 x 10"
