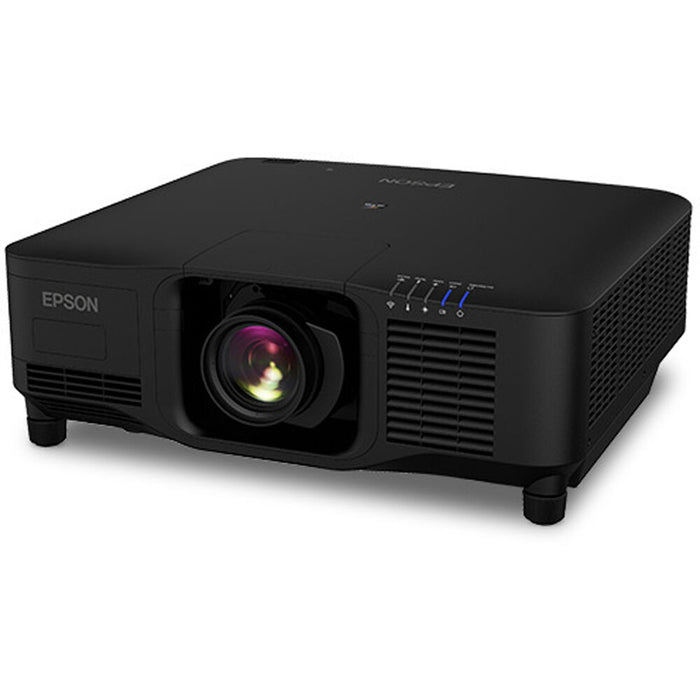

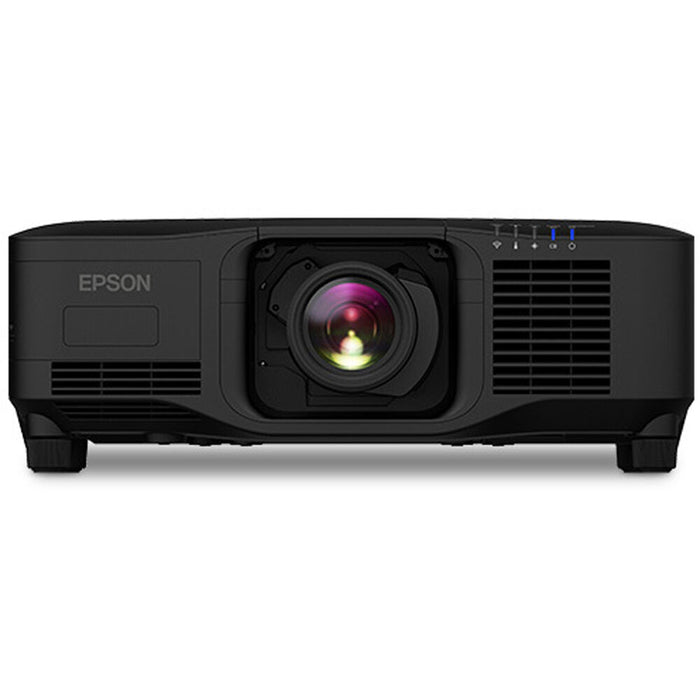

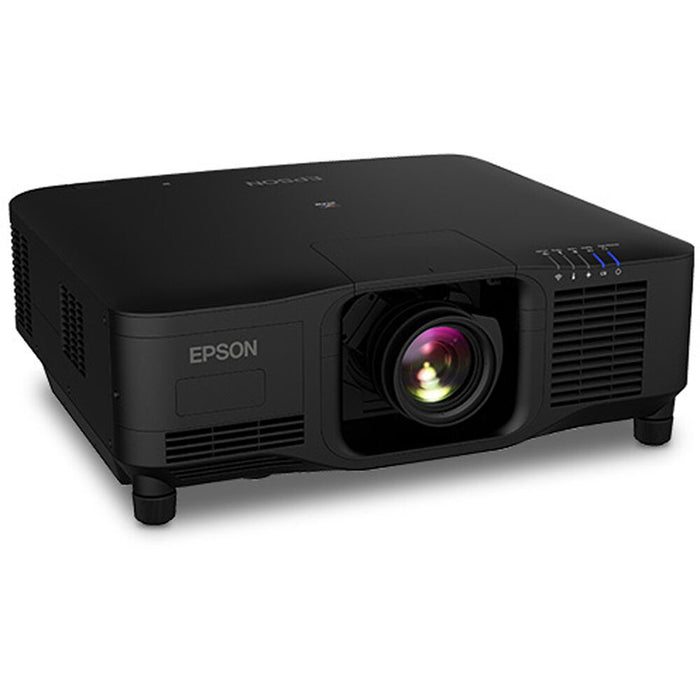

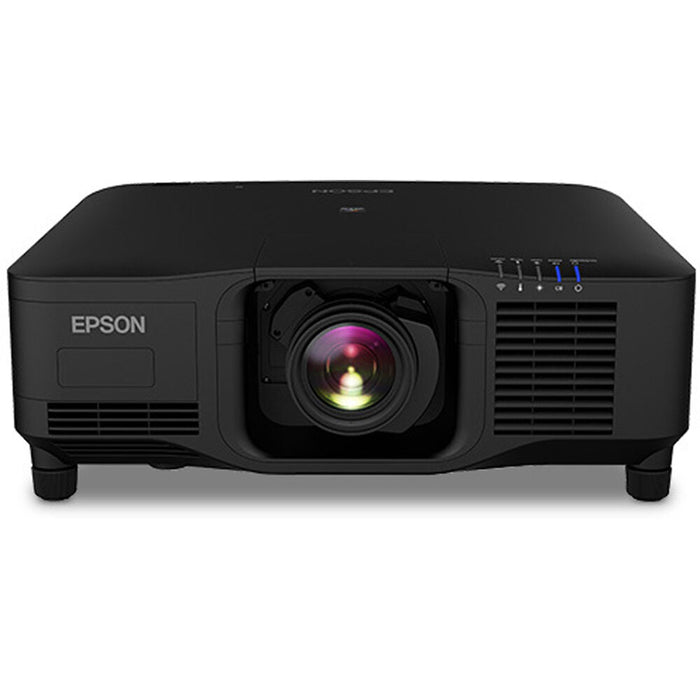

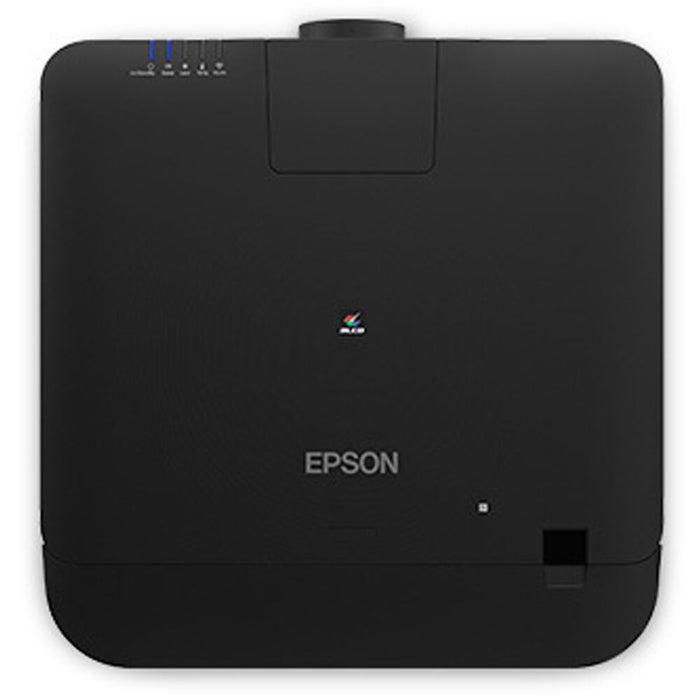

Epson EB-PU2220B 20,000-Lumen WUXGA Laser 3LCD Projector (No lens, Black)

Name: Epson EB-PU2220B 20,000-Lumen WUXGA Laser 3LCD Projector (No lens, Black)
Brand: Epson
SKU: V11HA66820
Price: 50660.00 USD
Availability: InStock

SKU V11HA66820

Save 4%

$52,550.00

$52,550.00 - $52,550.00

$52,550.00

$50,660.00

$50,660.00 - $50,660.00

$50,660.00

The Epson EB-PU2220B 20,000-Lumen WUXGA Laser 3LCD Projector delivers ultra-bright, vivid images suitable for expansive venue installations. Its long-lasting laser light source and 3LCD technology ensure exceptional color reproduction and durability in professional environments. Equipped with 3G-SDI, HDMI, DVI-D, HDBaseT, and VGA inputs, this projector supports up to 4K resolution and HDR content. Featuring a robust, filterless design for low maintenance, it offers simplified setup via optional motorized lenses and NFC functionality.

Key Features

Brightness of up to 20,000 ISO Lumens
WUXGA 1920 x 1200 Native Resolution
4K Enhanced On-Screen Resolution
20,000 Hours of Laser Life
9 Optional Powered Lenses Available
HDMI, 3GSDI, HDBaseT, DVI-D & VGA Inputs
H/V Keystone & Lens Shift Capabilities
Powered Shift, Focus & Zoom
IP5X Dust-Resistant Rating
Built-In NFC for Mobile Device Setup

Quantity

Our Customers & Partners

Features

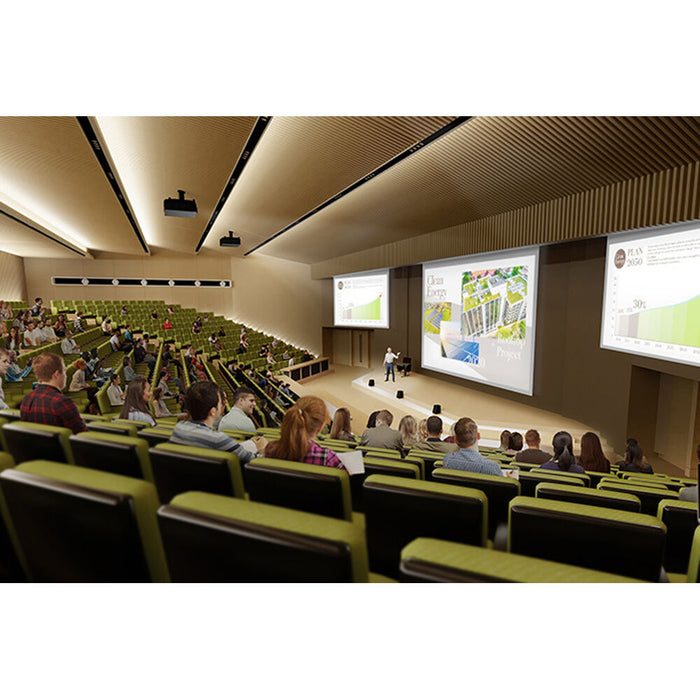

Experience the power and flexibility of the Epson EB-PU2220B 20,000-Lumen WUXGA Laser 3LCD Projector. This projector uses a long-lasting laser light source and vivid 3LCD color to produce ultra-bright images, up to 20,000 lumens using 220V, and up to 19,000 lumens using standard 120V AC, making it well suited for a wide variety of large venue installations.

Optimized for live events and professional applications, the EB-PU2220B features a black cabinet, 3G-SDI connectivity, and a mechanical shutter to protect the projector during laser light shows. The laser is housed in a hermetically sealed optical engine and filterless cabinet for high dust resistance and low-maintenance operation. In addition to 3G-SDI, sources can be connected via HDMI, DVI-D, HDBaseT, and VGA inputs, with support for up to 4K resolution and HDR color.

Simplified Setup

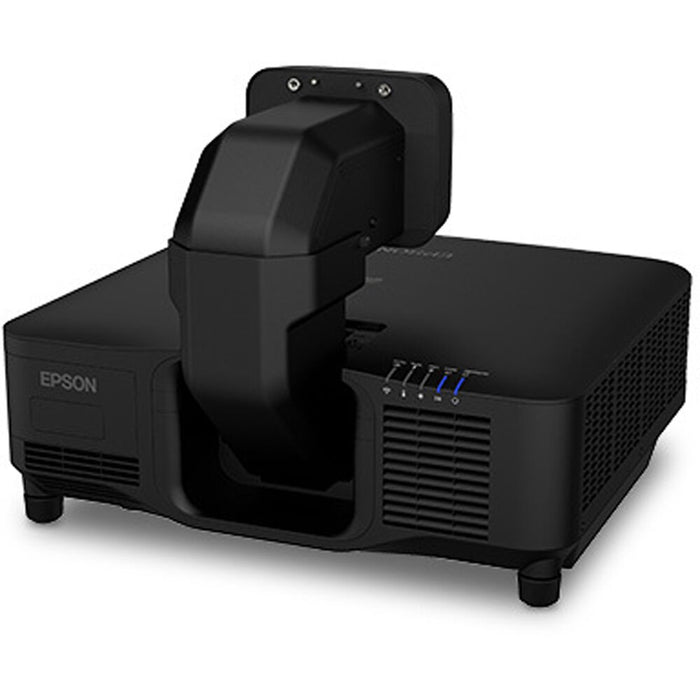

The EB-PU2220B pairs with nine optional motorized lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and an optional attachable PixAlign camera (sold separately) to streamline multi-projector setups.

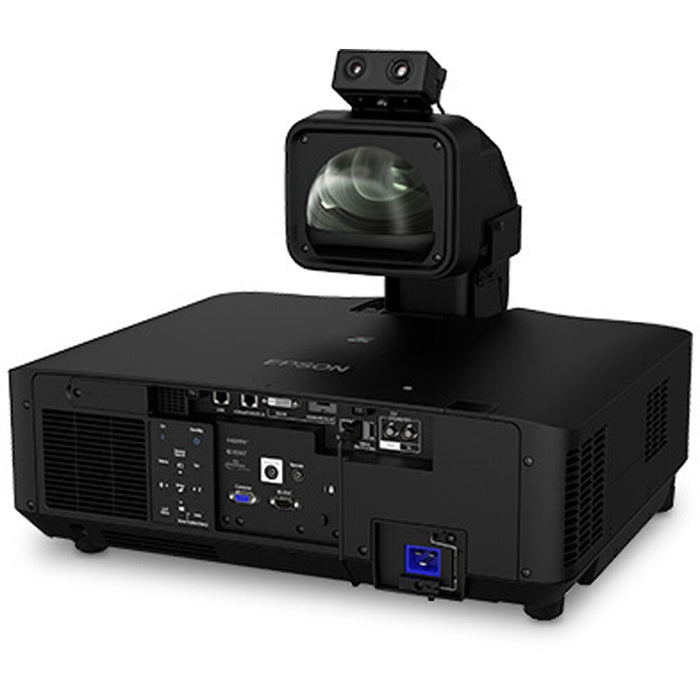

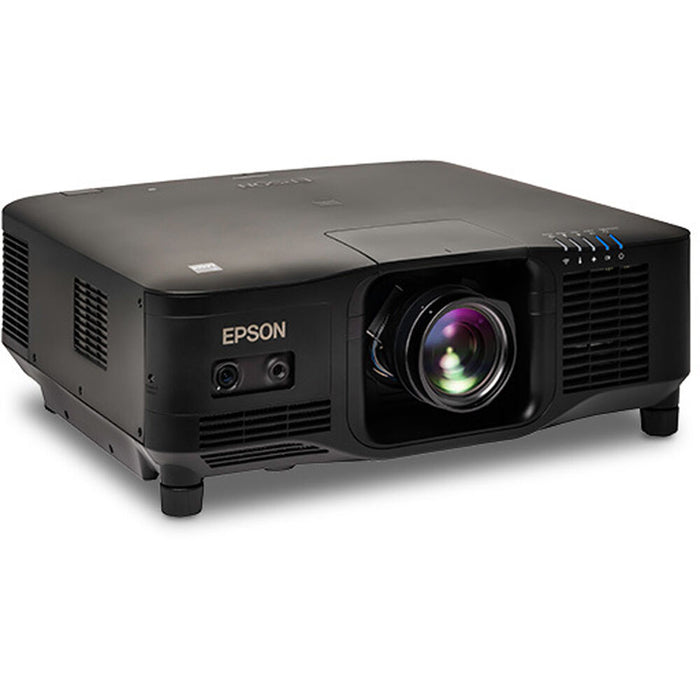

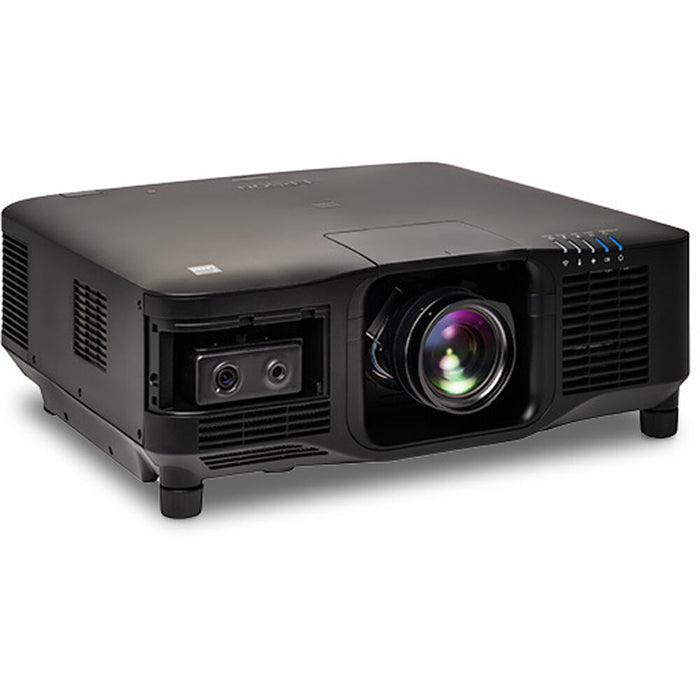

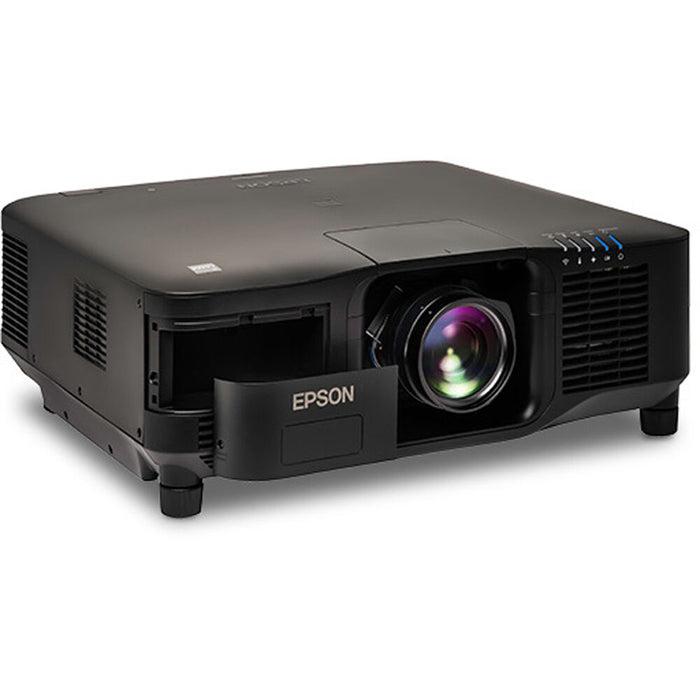

Optional Attachable PixAlign External Camera

Connecting the separately available PixAlign Camera (ELPEC01) provides access to powerful features, including projector stacking assist function, blending assist for edge blends, color calibration, and screen matching from the projector menu or Epson Projector Professional Tool (EPPT) app. It enables fast blending or stacking of two projectors using a remote control instead of conventional setup with a PC and router.

Additional Features

3G-SDI input and output easily accommodate daisy-chaining and long cable runs
Native WUXGA with 4K Enhancement Technology (1920 x 1200) x 2
Play content directly from USB storage media
Accepts 4K content and provides up to 4.6 million pixels onscreen
HDR support and scene adaptive gamma correction
Read and write setting information using Epson's mobile app

UPC: 010343968950

Item Includes

Epson EB-PU2220B 20,000-Lumen WUXGA Laser 3LCD Projector (No lens, Black)
Power Cable
Remote Control with Batteries
Cable Cover
Limited 3-Year Manufacturer Warranty

Item Includes

Display System
3-Chip Polysilicon TFT LCD
Native Resolution
1920 x 1200
Maximum Brightness
White: 20,000 Lumens (ISO)
Color: 20,000 Lumens
HDR Support
Yes

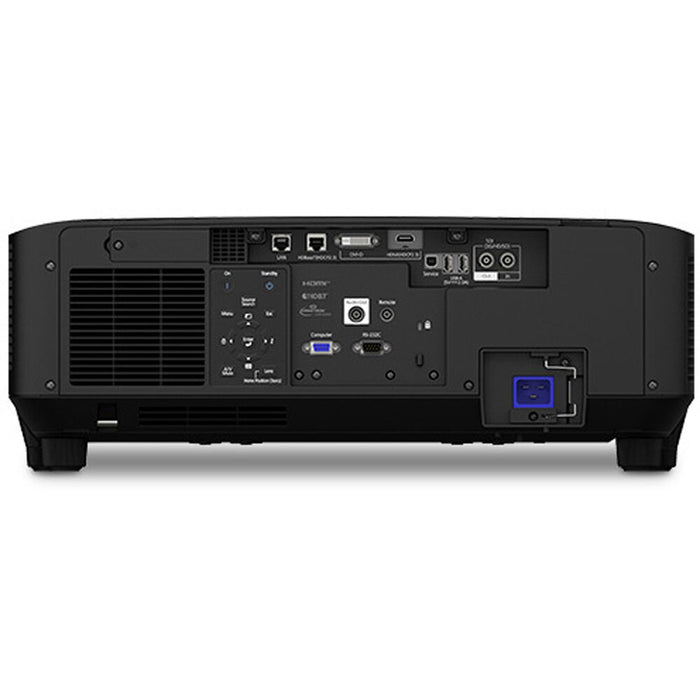

Inputs/Outputs
1x BNC (3G-SDI) Video Input
1x HDMI Audio, Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input/Output
1x DVI-D Video Input
1x DE-15/DB-15 (VGA) Video Input
1x BNC (3G-SDI) Video Output
1x 1/8" / 3.5 mm Mini Audio Output
2x USB-A Audio, Video Input
1x USB-A LAN Input
1x USB-B Service Input
1x DE-9/DB-9 (RS-232) Control Input
1x 1/8" / 3.5 mm Mini Remote Input
1x RJ45 (Ethernet) LAN Input
Show More
Light Source
Laser Phosphor
Image Display
Display System
3-Chip Polysilicon TFT LCD
Native Resolution
1920 x 1200
On-Screen Resolution
Up to 3840 x 2400 via Pixel-Shift Technology
Supported Resolutions
Maximum: 4096 x 2160
Maximum Brightness
White: 20,000 Lumens (ISO)
Color: 20,000 Lumens
Uniformity
85%
Aspect Ratio
Native: 16:10
Supported: 16:9
Supported: 4:3
Dynamic Contrast Ratio
5,000,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Lens
Includes Lens
No
Features
Keystone Correction
Vertical: + 45°
Horizontal: ± 30°
HDR Support
Yes
Multi-Input Support (PIP/PBP)
No
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
1x BNC (3G-SDI) Video Input
1x HDMI Audio, Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input/Output
1x DVI-D Video Input
1x DE-15/DB-15 (VGA) Video Input
1x BNC (3G-SDI) Video Output
1x 1/8" / 3.5 mm Mini Audio Output
2x USB-A Audio, Video Input
1x USB-A LAN Input
1x USB-B Service Input
1x DE-9/DB-9 (RS-232) Control Input
1x 1/8" / 3.5 mm Mini Remote Input
1x RJ45 (Ethernet) LAN Input
HDCP Support
Yes: Version 2.3
Media/Memory Card Slot
No
Hardware
Mobile App Compatible
Yes: Android & iOS
Wireless LAN / Wi-Fi
No, Optional Adapter Available
Bluetooth
No
General
Light Source
Laser Phosphor
Fan Noise
Medium Brightness: 45 dB
Low Brightness: 37 dB
Security
Cable Lock Slot
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: 1301 W
Low Brightness: 899 W
Standby Mode (Lamp Off): < 2 W
Certifications
FCC, ICES, RoHS
Operating Conditions
32 to 122°F / 0 to 50°C
Dimensions (W x H x D)
23.1 x 8.6 x 19.4" / 58.7 x 21.8 x 49.3 cm (Including Feet)
Weight
53.7 lb / 24.4 kg
