The RED KOMODO-X Z Mount camera expands the digital cinema lineup with a native Nikon Z mount, offering adjustable AF speeds, fluid iris control, and customizable lens responses. It integrates a redesigned 6K S35 global shutter sensor, delivering superior image quality, enhanced shadow detail, and vibrant color science. Frame rates reach up to 80 fps in 6K and 120p in 4K, ensuring versatile capture options. This ultracompact camera supports advanced IP workflows, including live broadcasting and remote control via built-in Wi-Fi and USB-C connectivity, making it ideal for high-end production.

Key Features

19.9MP Super 35 Global Shutter CMOS
Reinforced, Locking Nikon Z Lens Mount
Adjustable AF, Smooth Iris Control
Compact KOMODO Line Design
Up to 6K80 & 4K120 Video
12G-SDI, USB-C, 5-Pin Audio Ports
6K Streaming via RED Connect License
Wireless Control, File Offload via Wi-Fi
Integrated 2.9" Touchscreen
Includes AC Adapter

Quantity

Our Customers & Partners

Features

RED continues to expand its line of digital cinema cameras with the KOMODO-X Z Mount featuring a native Nikon Z mount offering adjustable AF speeds, fluid iris control, and customizable lens responses. It shares the global shutter 6K S35 sensor, powerful IP workflow, and advanced interfaces of the RF-mount KOMODO-X.

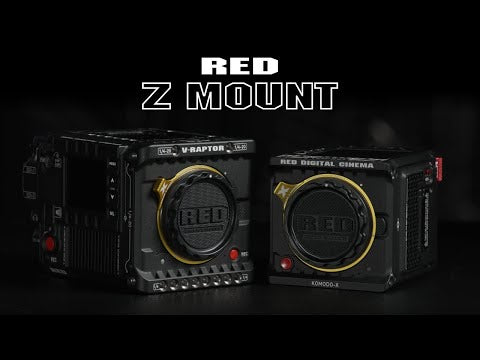

V-RAPTOR [X] Z MOUNT + KOMODO-X Z MOUNT | Official Introduction | #ShotonRED

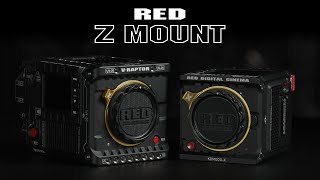

RED TECH | Z Mount Overview | Expanding Lens Options

6K Super 35 Global Shutter Sensor

While sized the same as the original 6K S35 global-shutter KOMODO sensor, the KOMODO-X Z Mount sensor has been redesigned from the ground up, offering key architectural improvements while producing excellent image quality and color science. Features include enhanced shadow detail and color and frame rates up to 80 fps in 6K and up to 120p in 4K.

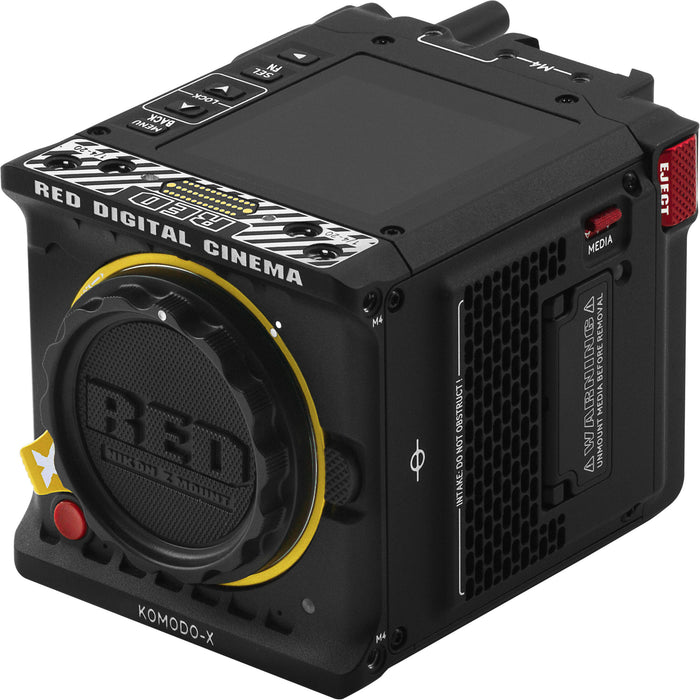

Compact KOMODO Form

The KOMODO-X Z Mount camera melds select DSMC3 features with the notably ultracompact KOMODO form. The KOMODO-X Z Mount has a built-in plate that enables the direct use of Micro V-mount batteries and is compatible with the PRO I/O Module for auxiliary power and full-size Gold and V-mount battery use. It also incorporates a full-size, 4-pin 11-17 VDC power input.

Integrated LCD

Users can preview their images and apply simplified controls via the integrated 2.9" LCD, an especially handy feature in tight setups. Pair the KOMODO-X Z Mount with the daylight-viewable, high-resolution DSMC3 7" Touch LCD for more precise monitoring and full control in a cable-free, decluttered form.

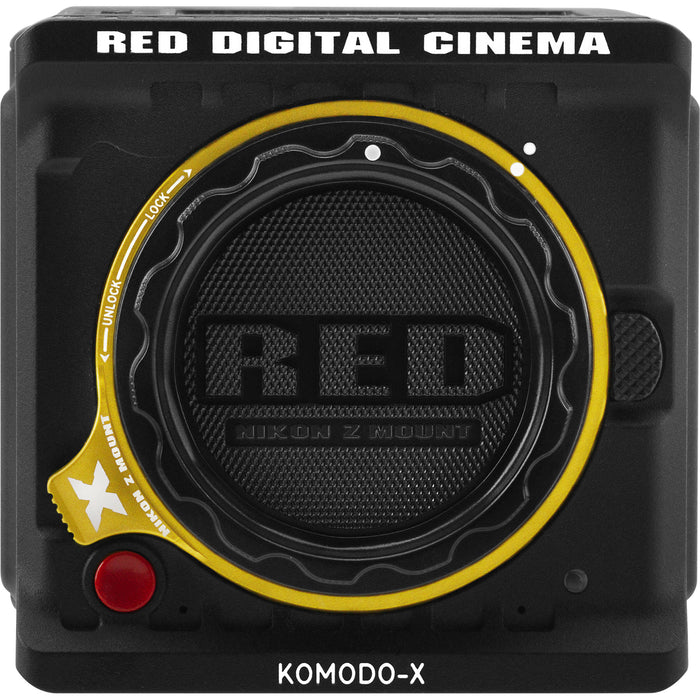

Nikon Z Lens Mount

The KOMODO-X Z Mount has a reinforced, locking Nikon Z lens mount with advanced iris, auto-focus, and lens response capabilities.
Pair the camera with a Nikon FTZ II mount adapter to use older Nikon F-mount lenses.
It offers toolless switching to additional RED mounts and compatibility with third-party adapters for use with a wide range of lenses.
Use the KOMODO-X Z Mount with the RED Z to PL adapter for compatibility with upcoming /i PL lenses.

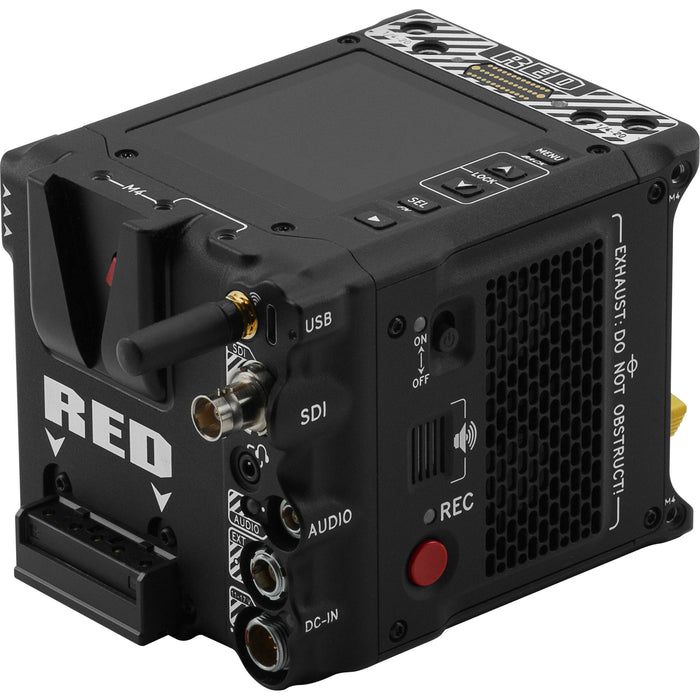

Live Streaming and Expanded In/Out

The KOMODO-X Z Mount's expanded interface includes:

12G-SDI video output up to 4K60p.
A USB-C port with Ethernet offload capabilities.
Built-in Wi-Fi for IP live streaming for web applications and in-app monitoring.

Advanced Connectivity

With a USB-C interface and an integrated Wi-Fi function, the KOMODO-X Z Mount shines at streamlined IP workflows like Virtual Production and live broadcasting. Use it with the RED Control or Control Pro apps to avail yourself of not only remote camera control but FTP media off-loading and in-camera Cloud uploading.
Add a RED Connect license to broadcast up to 6K live images over IP directly from the camera.
Multicamera and LED volume shooters will appreciate the KOMODO-X Z Mount's frame-accurate PTP or trilevel genlock syncing with on-the-fly offset ability.

CFexpress Type B

The KOMODO-X Z Mount has a single media slot for use with a high-capacity, fast CFexpress type B card.
Record up to 17 hours using a 4TB CFexpress type B card.
Offload data up to 3x faster than CFast media.

Audio Interface

Improved audio options include a locking, phantom-powered 5-pin connector that can be used with a 3.5mm adapter and KOMODO microphones or with a dual XLR adapter and a wide array of microphones.

UPC: 810016945130

Item Includes

RED DIGITAL CINEMA KOMODO-X Z Mount 6K Digital Cinema Camera (Nikon Z)
RED DIGITAL CINEMA DSMC AC Power Adapter Pack
Limited 1-Year Manufacturer Warranty

Not Included

Essential - Recording Media

Essential - Cine Lenses

Item Includes

Lens Mount

Nikon Z

Image Sensor

27.03 x 14.26 mm (Super35) CMOS

Sensor Resolution

Effective: 19.9 Megapixel (6144 x 3240)

Image Stabilization

No

Internal Recording

REDCODE RAW

6144 x 3240 up to 80 fps [560 Mb/s]

5120 x 2700 up to 96 fps [560 Mb/s]

4096 x 2160 up to 120 fps [560 Mb/s]

2048 x 1080 up to 240 fps [560 Mb/s]

ProRes 422LT/ProRes 422 HQ/ProRes 422

4096 x 2160 up to 120 fps [560 MB/s]

ProRes 4444 4:4:4

4096 x 2160 up to 80 fps [560 MB/s]

ProRes 4444XQ 4:4:4

4096 x 2160 up to 60.00 fps [560 MB/s]

Video Output

4:2:2 via SDI/BNC

DCI 4K (4096 x 2160) up to 60.00 fps

DCI 2K (2048 x 1080p) up to 60.00 fps

Media/Memory Card Slot

Single Slot: CFexpress Type B (CFexpress 2.0)

Video I/O

1x BNC (12G-SDI) Output

Mobile App Compatible

Yes: Android & iOS

Functionality: Remote Control

Battery

V-Mount

Imaging

Lens Mount

Nikon Z

Lens Communication

Yes: with Autofocus Support

Image Sensor

27.03 x 14.26 mm (Super35) CMOS

Sensor Resolution

Effective: 19.9 Megapixel (6144 x 3240)

Image Stabilization

No

Capture Type

Stills & Video

Exposure Control

Shutter Type

Electronic Global Shutter

Advertised Dynamic Range

16.5 Stops

Focus

Focus Mode

Automatic, Manual Focus

Video Capture

Internal Recording

REDCODE RAW

6144 x 3240 up to 80 fps [560 Mb/s]

5120 x 2700 up to 96 fps [560 Mb/s]

4096 x 2160 up to 120 fps [560 Mb/s]

2048 x 1080 up to 240 fps [560 Mb/s]

ProRes 422LT/ProRes 422 HQ/ProRes 422

4096 x 2160 up to 120 fps [560 MB/s]

ProRes 4444 4:4:4

4096 x 2160 up to 80 fps [560 MB/s]

ProRes 4444XQ 4:4:4

4096 x 2160 up to 60.00 fps [560 MB/s]

Video Output

4:2:2 via SDI/BNC

DCI 4K (4096 x 2160) up to 60.00 fps

DCI 2K (2048 x 1080p) up to 60.00 fps

Fast-/Slow-Motion Support

Yes

Built-In Microphone

Stereo

Audio Recording

2-Channel, 24-Bit at 48 kHz

IP Streaming

MJPEG

1920 x 1080 (5000.00 Mb/s)

Interface

Media/Memory Card Slot

Single Slot: CFexpress Type B (CFexpress 2.0)

Internal Storage

No

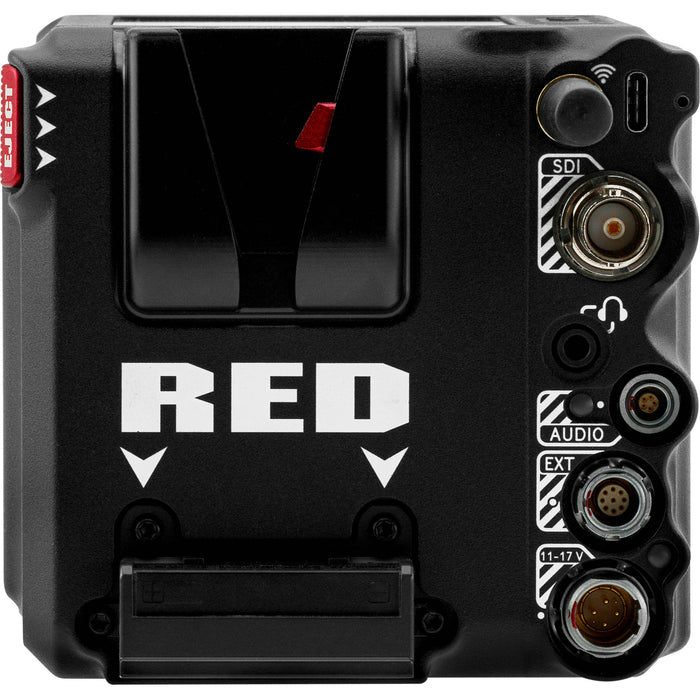

Video I/O

1x BNC (12G-SDI) Output

Audio I/O

1x 5-Pin LEMO Line Input on Camera Body

Power I/O

1x LEMO 6-Pin (11 to 17VDC) Input

Other I/O

1x 9-Pin (Genlock, GPI, Timecode)

1x USB-C (Camera Interface) Video/Data/Control Input/Output

1x RED Cable-Free Monitor Connection Output

Wireless

Wi-Fi

Mobile App Compatible

Yes: Android & iOS

App Name: RED Control

Functionality: Remote Control

Global Positioning (GPS, GLONASS, etc.)

No

Monitor

Display Type

Primary Monitor: Fixed 2.9" Touchscreen LCD

Resolution

Primary Monitor: 1440 x 1440

Viewfinder

Type

Optional, Not Included

Power

Battery

V-Mount

Environmental

Operating Conditions

32 to 104°F / 0 to 40°C

Storage Conditions

-4 to 122°F / -20 to 50°C up to85% Humidity

General

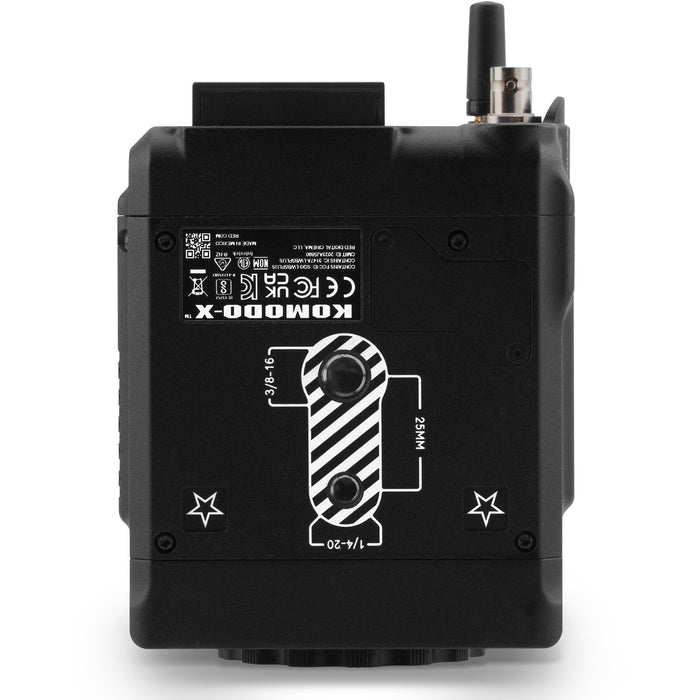

Tripod Mount

1/4"-20 Female (Bottom)

3/8"-16 Female (Bottom)

Accessory Mounting Thread

4x 1/4"-20

4x M4

Netflix Approved

Yes

Materials

Aluminum

Dimensions (W x H x D)

5.09 x 3.99 x 3.75" / 129.37 x 101.26 x 95.26 mm

Weight

2.62 lb / 1.19 kg (Body Only)

Packaging Info

Package Weight

7.355 lb

Box Dimensions (LxWxH)

12.2 x 9.3 x 6.2"
