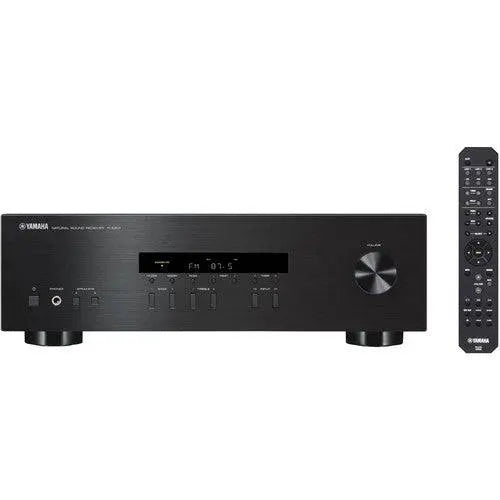

Yamaha R-S201 Stereo Receiver (Black)

Yamaha R-S201 Stereo Receiver (Black)

SKU R-S201BL
$594.99 - $594.99
$594.99
$594.99 - $594.99
$594.99
  • Up to 100W Per Channel at 8 Ohms
  • 4 x RCA-In / 1 x RCA-Out
  • Front Panel " Headphone Out

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Yamaha R-S201 Stereo Receiver (Black)

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

  • Optimized for stereo sound with simple connectivity, the blackYamaha R-S201 Stereo Receiverfeatures four stereo RCA inputs, one stereo RCA output for recording to an external device like a CD recorder, and a " headphone output. Its only other connections are the speaker outputs, which will allow you to set up two pairs of speakers in an A/B configuration. This will enable you to have either pair active, or both pairs active at the same time. The receiver outputs up to 100W per channel at 8 Ohms, and includes an AM antenna, an FM antenna, and an IR remote control

    Natural Sound Reproduction
    The R-S201 Receiver is based on the concept of Natural Sound for reproducing music as it originally sounded.
    100W per Channel Output Power, Optimized Circuit Design
    Along with two 100W (8 Ohm, 40 Hz to 20 kHz, 0.2% THD) channels, the R-S201 Receiver offers a design that minimizes the length of signal routes and optimizes the circuit layout. Positioning the power transformer near the power amplifier circuit reduces power loss while improving peak power supply capacity to enable high volume output. The signal ground and power supply ground are connected at one point, eliminating mutual interference to achieve a higher S/N ratio. The result is sound with enhanced clarity.
    40-Station AM/FM Preset Tuning
    You can register a total of up to 40 AM and FM stations, then select the station from either the receiver or the remote control. The Auto Preset feature lets you automatically search for FM stations within range. Frequencies appear on the display, so even when you want to listen to a new station, you can easily tune to its frequency.
    Simple Design
    The R-S201 Receiver features a simple design, with minimal connections, buttons, and knobs.
    Speaker Selector and Speaker Terminals for 2 Systems
    Equipped with speaker terminals for 2 systems, this receiver lets you connect 2 pairs of speakers. The speaker selector makes it easy to switch between speaker outputs, allowing you to hear the sound from one speaker system (A or B) or from both (A and B).
    Power Saving
    A power management function automatically switches to standby mode when the receiver has not been operated for a long time. It can be set to 2, 4, 8, or 12 hours, or can be turned off. In addition, the receiver consumes 0.5W in standby mode, offering energy-saving performance.
    Additional Features
    • Remote control which can also operate a Yamaha CD player
    • Headphone terminal

Item Includes

  • Yamaha R-S201 Stereo Receiver (Black)
    • Indoor FM Antenna
    • AM Loop Antenna
    • Remote Control
    • 2 x AA Batteries for Remote Control
    • Limited 2-Year Warranty

Item Includes

  • Audio Section
    Output Power100 W per channel at 8 Ohms, 40 Hz to 20 kHz, 0.2% THD
    Input Sensitivity/Impedance1 kHz, 100 W / 8 Ohms
    CD: 500 mV / 47 kOhms
    Output LevelRecording: CD (Input 1 kHz, 500 mV): 500 mV / 2.2 kOhms
    Phones: CD (Input 1 kHz, 500 mV, 8 Ohms): 470 mV / 470 Ohms
    Frequency ResponseCD (20 Hz to 20 kHz): 0 0.5 dB
    CD (10 Hz to 100 kHz): 0 3.0 dB
    Total Harmonic DistortionCD to Speakers (20 Hz to 20 kHz, 50 W, 8 Ohms): 0.2% or less
    Signal to Noise RatioIHF-A Network, CD to Speakers (500 mV Input Shorted): 100 dB or more
    Residual Noise70 ?V (IHF-A Network)
    Tone ControlBass Boost / Cut (50 Hz): 10 dB
    Treble Boost / Cut (20 kHz): 10 dB
    FM Section
    Tuning Range87.5 to 107.9 MHz
    Sensitivity50 dB (IHF, 1 kHz, 100% MOD), Mono: 3.0 ?V (20.8 dBf)
    Signal to Noise RatioMono: 72 dB
    Stereo: 70 dB
    Harmonic DistortionMono: 0.3% (1 kHz)
    Stereo: 0.5% (1 kHz)
    Antenna Input1 x 75 Ohm, unbalanced
    AM Section
    Tuning Range530 to 1710 kHz
    Antenna Input1 x Spring-clip connector
    Connectivity
    Inputs4 x Stereo RCA jacks
    Outputs1 x Stereo RCA jack
    4 x Speaker outputs (spring-clip connectors, L/R, A/B)
    1 x " (6.0 mm) Headphone jack (front)
    General
    Power Supply120 VAC, 60 Hz
    Power Consumption175 W
    Standby Power Consumption0.5 W or less
    Dimensions (W x H x D)17.13 x 5.50 x 12.63" (435.00 x 141.00 x 322.00 mm)
    Weight14.8 lb (6.7 kg)
    Packaging Info
    Package Weight17.85 lb
    Box Dimensions (LxWxH)19.5 x 15.7 x 5.8"
