Epson BrightLink 770Fi Laser 3LCD Projector

Epson BrightLink 770Fi Laser 3LCD Projector

SKU V11HA78020
Save 37% Save 37%
$3,000.00
$3,000.00 - $3,000.00
$3,000.00
$1,883.49
$1,883.49 - $1,883.49
$1,883.49
  • Color & White Brightness of 3600 Lumens
  • Full HD 1920 x 1080 Native Resolution
  • 0.25 to 0.35:1 Throw Ratio
  • 8-User Dual-Pen Interactivity
  • Works with New & Existing Touch Modules
  • Project Ultra-Wide 16:6/21:9 110" Image
  • Miracast Screen Mirroring
  • Automatic Pen Calibration
  • Built-In 16W Mono Speaker
  • 2 x Pens & Remote Control Included

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Epson BrightLink 770Fi Laser 3LCD Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

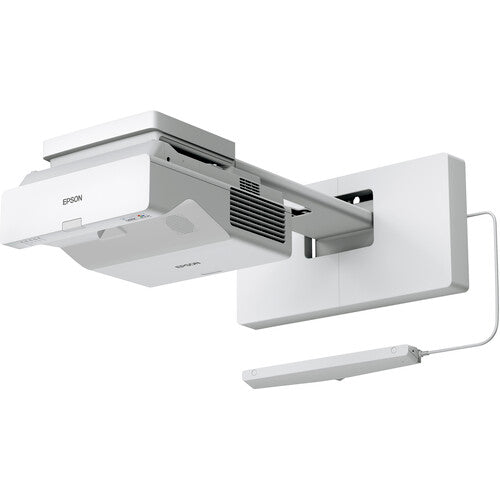

Turn any classroom wall or whiteboard into an interactive display when using the Epson BrightLink 770Fi 4100-Lumen Full HD Ultra-Short Throw Interactive Laser 3LCD Smart Projector in conjunction with an optional touch module. When mounted above your whiteboard or wall, the 3-chip 3LCD technology uses laser light to project a bright 4100-lumen 16:9 image up to 100" in size or an ultra-wide 16:6 or 21:9 image at 110". Either is large enough for up to eight users to collaborate at once with dual pen-enabled interactivity. With automatic pen calibration, you can be up and running in a new classroom quickly.

PC-Free Digital Whiteboard
Without a PC, you can view shared whiteboard content with other select BrightLink displays, and you can draw, save, print, and email your own BrightLink 735Wi-created content. Compatible displays include 725Wi, 735Fi, 760Wi, 770Fi, 1480Fi and 1485Fi.
Split Screen
When projecting at an ultra-wide 16:6 or 21:9, you can take advantage of split screen support to simultaneously display the whiteboard and digital content.
Share Content Wirelessly
With support for Wi-Fi 5 (802.11ac) connectivity and Miracast technology, you can use the Epson iProjection software to wirelessly share content to and from up to 50 compatible connected devices.
Additional Features
  • Interactive home menu with image preview for easy source selection
  • 1-year free trial of BrightLink GoBoard collaborative whiteboard software
  • Up to 20,000-hour laser lifespan
  • Supports popular applications, such as Microsoft Office 365 and Google Workspace
  • Up to six points of finger touch
  • Wired PC connection
  • Automatic or manual calibration
  • Built-in 16W mono speaker
  • Up to 1.35x digital zoom

Item Includes

  • Epson BrightLink 770Fi 4100-Lumen Full HD Ultra-Short Throw Interactive Laser 3LCD Smart Projector
  • Power Cable (6')
  • USB-A to USB-B Cable (16')
  • Remote Control with Batteries

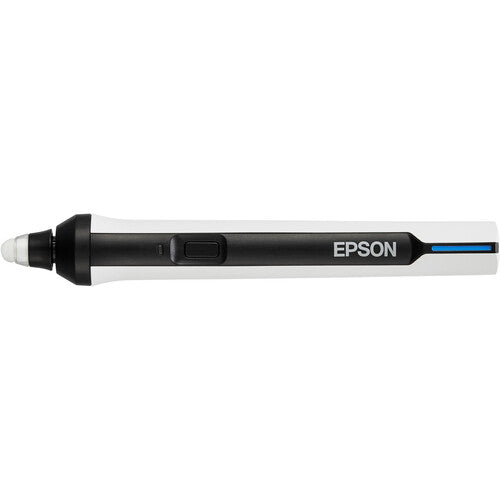

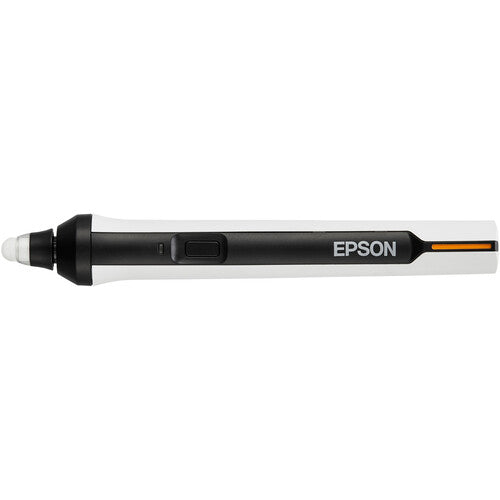

  • 2 x Interactive Pen

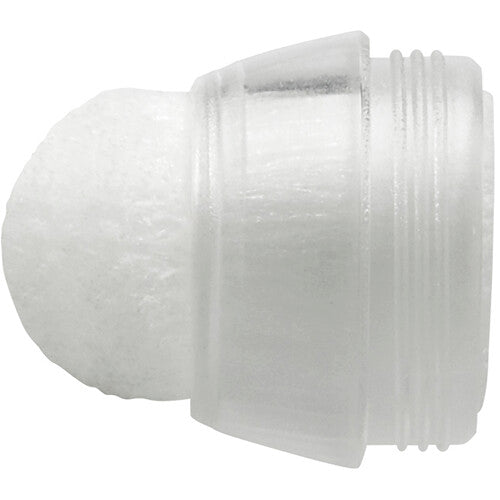

  • 4 x Soft Pen Tip
  • 2 x Hard Pen Tip
  • Pen Tray
  • 2 x AA Battery for Interactive Pens
  • Projector Feet
  • Corner Markers with Magnets
  • BrightLink GoBoard 1-Year Free Trial
  • Limited 3-Year Manufacturer Warranty

Item Includes

Image Display
Display System
3-Chip 0.62" LCD
Native Chip Resolution
1920 x 1080 (Full HD)
Maximum Brightness
White: 4100 Lumens
Color: 4100 Lumens
Aspect Ratio
Native: 16:9
Supported: 4:3
Supported: 16:10
Supported: 21:9
Dynamic Contrast Ratio
2,500,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Lens
Includes Lens
Yes
Focus
Manual
Aperture
f/1.6
Focal Length
3.7mm
Throw Distance
13.9 - 27.7" / 35.3 - 70.4 cm
Throw Ratio
0.25 to 0.35:1
Projection Size
100 to 110" / 2.5 to 2.8 m
Features
Keystone Correction
Manual-Vertical: ± 3°
Manual-Horizontal: ± 3°
Supported HDR Input Formats
No
Digital Zoom
1.35x
Multi-Input Support (PIP/PBP)
Not Specified by Manufacturer
Built-In Speaker
Yes (Mono)
Speaker Power
16W

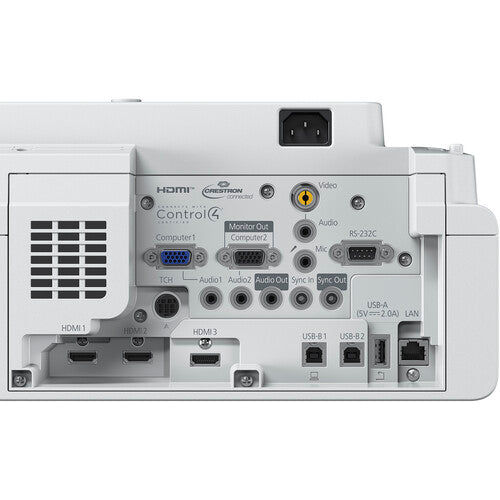

Input/Output Connectors
Inputs/Outputs
3 x HDMI Audio, Video Input
1 x RCA (Composite) Video Input
3 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
1 x 1/8" / 3.5 mm Mini Microphone Input
1 x USB-A Power Output
2 x USB-B Data Input/Output
1 x DE-15/DB-15 (VGA) Video Input
1 x DE-15/DB-15 (VGA) Video Output
1 x RJ45 LAN
1 x 1/8" / 3.5 mm Mini Control Input
1 x 1/8" / 3.5 mm Mini Control Output
1 x DE-9/DB-9 (RS-232) Control Input/Output
1 x Proprietary Service
Hardware
Mobile App Compatible
No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless LAN / Wi-Fi
Yes, Built-in
Bluetooth
Yes
General
Light Source
Laser/LED Hybrid
Expected Lamp Life
Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours
Fan Noise
Low Brightness: 27 dB
Medium Brightness: 37 dB
Security
Cable Lock Slot
Password Protection
Security Bar
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Low Brightness: 206 W
Medium Brightness: 267 W
Standby Mode (Lamp Off): 0.5 W
Certifications
RoHS
Operating Temperature
41 to 104°F / 5 to 40°C
Dimensions (W x H x D)
14.1 x 5.3 x 15.6" / 35.8 x 13.5 x 39.6 cm Excluding Feet
Weight
13.2 lb / 6 kg
Packaging Info
Package Weight
19.4 lb
Box Dimensions (LxWxH)
19 x 17.6 x 12.6"
