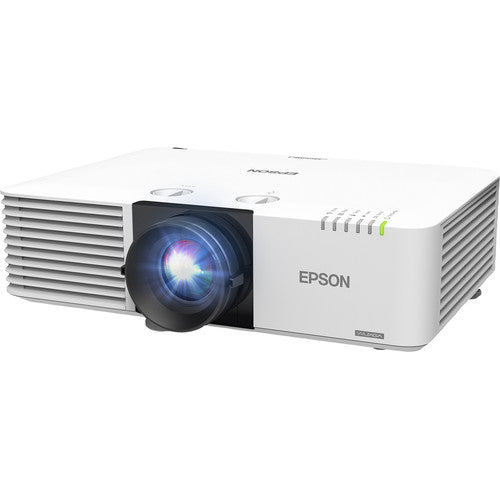

Epson PowerLite L510U 5000-Lumen WUXGA 3LCD Laser Projector

Epson PowerLite L510U 5000-Lumen WUXGA 3LCD Laser Projector

SKU V11H903020
Save 35% Save 35%
$2,969.00
$2,969.00 - $2,969.00
$2,969.00
$1,926.77
$1,926.77 - $1,926.77
$1,926.77
  • White & Color Brightness of 5000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • 1.35 to 2.2:1 Throw Ratio
  • HDBaseT, VGA, 2x HDMI Inputs
  • VGA Output for Loop-Through
  • Analog Audio Input and Output
  • Built-In 10-Watt Mono Speaker
  • Ethernet & RS-232 Controllable
  • Compatible with External Control Systems
  • VGA Cable & IR Remote Included

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

Epson PowerLite L510U 5000-Lumen WUXGA 3LCD Laser Projector

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

Enjoy bright, vibrant images with theEpson PowerLite L510U 5000-Lumen WUXGA 3LCD Laser Projector. Its 5000 lumens of brightness, combined with its 2,500,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. Its 1920 x 1200 native resolution helps ensure that images and text are clear at most viewing distances.

The PowerLite L510U features two VGA and two HDMI inputs to support various source devices. One VGA input can alternatively function as an output, enabling you to daisy-chain your video signal to additional projectors or displays. HDBaseT capability provides uncompressed digital video, audio, and control capability over a single Ethernet cable with compatible equipment. As an added convenience, a VGA cable and an IR remote control are included.

Display Features
  • Designed for bright, vivid color with up to 5000 lumens of color and white brightness
  • Images up to 500" with a native WUXGA (1920 x 1200) resolution
  • Laser light source lasts up to 20,000 hours and provides instant on/off capability
  • Enhanced detail with a 2,500,000:1 dynamic contrast ratio
  • RGB liquid crystal shutter projection system
  • Dichroic mirror separation and prism combine projection method
  • D10 VA LCD with CFine
  • Cross-stripe pixel arrangement
  • Micro lens array
  • 192 to 240 Hz refresh rate
Network Control & Management Features
  • Message broadcasting
  • Email notification
  • SNMP
  • Web remote & control
  • Secure HTTP
  • Compatible with PJLink (Class2), AMX Device Discovery, Crestron Integrated Partner, Crestron Connected, Extron IP Link, Extron XTP, and Control4 Simple Device Discovery Protocol for simplified access and maintenance
  • Optional wireless networking and wireless content sharing with Epson iProjection when used with the separately sold wireless module
Additional Features
  • Virtually maintenance-free operation for the life of the optical engine
  • Designed for flexible installation with up to 50% vertical and 20% horizontal manual lens shift
  • Connectivity options include VGA, Ethernet, 1/8" audio, 2x HDMI, and more
  • 360 installation flexibility with geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner, and more
  • Constant Brightness Mode fine-tunes the brightness setting to help maximize run time
  • Foot adjustment: front/rear -2 to +10, left/right 1.5
  • A/V mute
  • Contents playback
  • Image modes: Dynamic, Presentation, Cinema, sRGB, DICOM simulation mode, Multi-projection
  • Split screen
  • Customizable logo
  • Sleep mode with timer
  • Auto power on (off, HDMI1, VGA)
  • Quick startup
  • High Altitude Mode
  • Auto Source Search
  • QR code display
  • Firmware updates via LAN or USB
  • 7-second startup (with the Epson logo); <5 second startup via auto power on
  • Instant Off
  • 20,000-hour air filter maintenance cycle (Normal Mode, 77F)
  • Wireless remote functional up to 26.2' away
  • Remote front operating angle: L/R 60, U/D -20 to 30
  • Remote rear operating angle: L/R 30, U/D 10 to 50
  • RoHS compliant
  • Recyclable design

Item Includes

Epson PowerLite L510U 5000-Lumen WUXGA 3LCD Laser Projector

  • Remote Control with Batteries
  • VGA Cable
  • Cable Cover
  • Power Cord

Item Includes

Image Display
Display System3-Chip 0.67"Polysilicon TFTLCD
Native Chip Resolution1920 x 1200(WUXGA)
Max BrightnessWhite:5000Lumens
Color:5000 Lumens
Uniformity86%
Aspect RatioNative:16:10
Dynamic Contrast Ratio2,500,000:1
Color Depth10-Bit (1.07 Billion Colors)
ScanHorizontal:15 to 92 kHz
Vertical:50 to 85 Hz
Lens
FocusManual
Lensf/1.5 - 1.7 (f = 20 - 31.8mm)
Lens ShiftVertical: 50%
Horizontal: 20%
Optical ZoomManual:1.6x
Throw Distance4.724 - 78.215' / 1.44 - 23.84m
Throw Ratio1.35 - 2.2:1
Projection Size50 - 500" / 1.27 - 12.70m
Features
Keystone CorrectionVertical: 30
Horizontal: 30
Ceiling MountableYes
Rear Screen ProjectionYes
Built-In SpeakerYes(Mono)
Speaker Power10W
Projection Tilt OptionYes
Input/Output Connectors
Inputs/Outputs1 xHDBaseT(RJ45)Audio, Control, Remote, VideoInput/Output
2 xHDMI(HDMI Type-A)Audio, VideoInput
1 xVGA(DE-15)VideoInput
1 xVGA(DE-15)VideoInput/Output
1 xRS-232(DE-9)ControlInput/Output
1 xUSB 2.0(USB Type-A)ServiceInput
1 xUSB 2.0(USB Type-B)ServiceInput
1 xEthernet(RJ45)LANInput/Output
2 x1/8" (3.5 mm) MiniAudioInput
1 x1/8" (3.5 mm) MiniAudioOutput
Memory Card SlotNone
Wireless LAN / Wi-FiNo, Optional Adapter Available
General
Light SourceLaser Phosphor
Lamp Power205W
Expected Lamp LifeFull Brightness:20,000 Hours
Low Brightness:30,000 Hours
Fan NoiseFull Brightness:37 dB
Medium Brightness:25 dB
SecurityCable Lock Slot
Padlock
AC Input Power100 to 240VAC, 50 / 60Hz
Power ConsumptionFull Brightness:353W
Low Brightness:254W
Standby Mode (Lamp Off):2W
Max Operating Altitude4921' / 1499m
Dimensions (W x H x D)17.3 x 4.7 x 12.0" / 43.9 x 11.9 x 30.5cmExcluding feet
17.3 x 5.4 x 12.0" / 43.9 x 13.7 x 30.5cmIncluding feet
Weight18.7lb / 8.48kgApproximately
Packaging Info
Package Weight23.5 lb
Box Dimensions (LxWxH)22.0 x 21.2 x 8.2"
