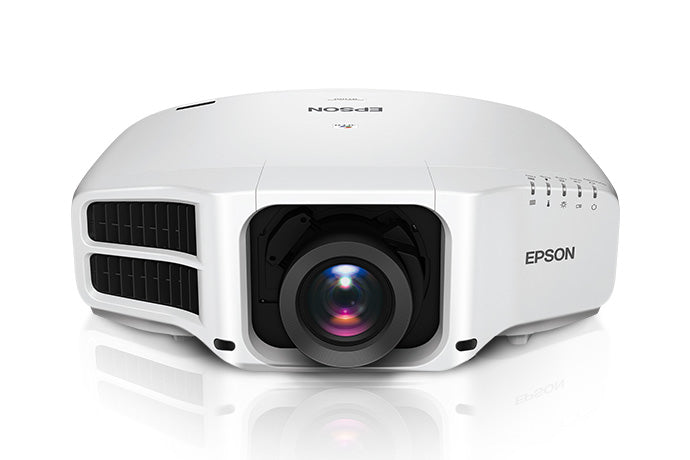

EPSON Pro G7100NL XGA 3LCD Projector without Lens

EPSON Pro G7100NL XGA 3LCD Projector without Lens

SKU V11H754920
Save 31% Save 31%
$3,427.35
$3,427.35 - $3,427.35
$3,427.35
$2,377.09
$2,377.09 - $2,377.09
$2,377.09
  • Bright and Colorful - Features 6500 lumens of color brightness (color light output) and 6500 lumens of white brightness (white light output)
  • XGA - 1024 x 768 resolution
  • HDBase-T - HDBase-T is an input source that combines HDMI, ethernet and RS-232 into one convenient Cat5e/6 cable, for expanded connectivity.
  • Muti-PC Projection and Moderator Function - Connect up to 50 devices over a network, and select up to 4 displays to project simultaneously - great for comparing students' work
  • Advanced Edge Blending - Take seamless panoramic, multi-screen edge blending even further, with curved surface and corner wall support.

STEP 1

Product Selection

STEP 2

Contact Information

STEP 3

Review Information

EPSON Pro G7100NL XGA 3LCD Projector without Lens

Enter the details below to request your custom quote in just a few minutes

Our Customers & Partners

Features

The Pro G7100NL large-venue projector delivers uncompromising image quality and XGA resolution. Offering 3x Higher Color Brightness* than competitive models, Epson® 3LCD projectors ensure vivid images. Ideal for events staging, auditoriums and sanctuaries, the innovative G7100NL features 6500 lumens of color brightness and 6500 lumens of white brightness1. Flexible integration features include an array of connectivity options, with support for HDBaseT, HDMI® and DVI-D inputs. It also offers ten optional interchangeable lenses with powered lens shift and lens memory (lens not included). Additional advanced capabilities include simultaneous projection from multiple sources and Web-based remote projector monitoring and control.

Item Includes

  • Pro G7100NL projector

Item Includes

Interface Provided
Connector Type:15 pin HD D-Sub (HD-15)
Interface (Output):VGA output
Qty:1
Connector Qty:X 5
Connector Type:BNC
Interface (Output):Component video input
Connector Type:19 pin HDMI Type A
Interface (Output):HDMI
Connector Type:Mini-phone stereo 3.5 mm
Interface (Output):Audio line-in
Qty:3
Connector Type:24 pin digital DVI
Interface (Output):DVI-D
Connector Type:4 pin USB Type B
Interface (Output):USB
Connector Type:4 pin USB Type A
Connector Type:RJ-45
Interface (Output):HDBaseT
Interface (Output):Network
Purpose Location:Management
Connector Type:9 pin D-Sub (DB-9)
Interface (Output):Serial RS-232C
Interface (Output):Audio line-out
Interface (Output):Remote control
Service
Support Details Full Contract Period:3 years
Support Details Type:Limited warranty
Support Details Full Contract Period:90 days
Audio Output
Form Factor:Integrated
Output Power Channel:10 Watt
Sound Output Mode:Mono
Type:Speaker(s)
Cable
Connectivity Details Type:VGA cable
Environmental Parameters
Humidity Range Operating:20 - 80% (non-condensing)
Max Operating Temperature:113 F
Min Operating Temperature:32 F
Sound Emission:35 dB
Sound Emission (Economic Mode):31 dB
Header
Brand:Epson
Compatibility:Mac , PC
Manufacturer:Epson Stylus Pro
Model:PRO G7100NL
Packaged Quantity:1
Product Line:Epson PowerLite
Miscellaneous
Color Category:White
Compliant Standards:CSA C22.2 No. 60950-1-07 , FCC Part 15 B , ICES-003 Class B , RoHS , UL 60950-1 Second Edition
Included Accessories:Cable cover , Wireless remote control
Security Features:Security lock slot (cable lock sold separately)
Networking
Connectivity Technology:Wired
LAN and Wireless Image Transferring Protocols:Wired LAN
LAN and Wireless Presentation:LAN
Wired Protocol:Ethernet
Power Device
Frequency Required:50/60 Hz
Nominal Voltage:AC 120/230 V
Power Source:AC
Video Input
Analog Video Format:NTSC , PAL , SECAM
Analog Video Signal:Component video , RGB
Video Interfaces:Component video , DVI , HDMI , VGA
Video Modes:1080i , 1080p , 480i , 480p , 576i , 576p , 720p
Dimensions & Weight
Depth:16.7 in
Height:6.5 in
Weight:28.44 lbs
Width:20.7 in
Projector Lamp
Lamp Capacity:400 Watt
Lamp Life Cycle:3000 hour(s)
Lamp Life Cycle (Economic Mode):4000 hour(s)
Lamp Type:UHE
Service & Support
Bundled Services:3 years Epson Road Service Program
Type:3 years warranty
Cable Details
Included Qty:1
Projector
Brightness:6500 lumens
Brightness (Color):6500 lumens
Brightness (White):6500 lumens
Class:Digital projector
Color Support:1 billion colors
Display Resolution Abbreviation:XGA
Dynamic Contrast Ratio:50000:1
Max Image Size:300 in
Max Screen Distance:48 ft
Min Image Size:50 in
Min Screen Distance:5 ft
Native Aspect Ratio:4:3
Native Resolution:1024 x 768
Portability:Non-portable
Projector Features:3x Brighter Colors , 6 Axis colour adjustment , Crestron RoomView , Crystal Clear Fine (C2 Fine) , Edge blending , EPSON 3LCD technology , EPSON Quick Corner , IRIS (Intelligent Room Illumination Sensor) , Split Screen
Recommended Use:Presentation and multimedia
Type:LCD projector
Projector Lens System
Lens:No lens
Service & Support Details
Component:

Lamp

  • ""
  • ""

    Bright Large-Venue Projector with Optional Lenses and HDBaseT

    The Pro G7100NL large-venue projector delivers uncompromising image quality and XGA resolution. Offering 3x Higher Color Brightness1than competitive models, Epson3LCD projectors ensure vivid images. Ideal for events staging, auditoriums and sanctuaries, the innovative G7100NL features 6,500 lumens of color brightness and 6,500 lumens of white brightness2. Flexible integration features include an array of connectivity options, with support for HDBaseT, HDMIand DVI-D inputs. It also offers 10 optional interchangeable lenses with powered lens shift and lens memory. Additional advanced capabilities include simultaneous projection from multiple sources and Web-based remote projector monitoring and control.

    • 3x Higher Color Brightness1and reliable performance 3LCD, 3-chip technology
    • One measurement of brightness is not enough look for both high color brightness and high white brightness. The Pro G7100NL has:
      • Color Brightness: 6,500 lumens2
      • White Brightness: 6,500 lumens2
    • Brilliant images XGA (1024 x 768) resolution for presentations, videos, digital signage and more
    • Ten optional interchangeable lenses with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces
    • Versatile connectivity supports the full range of inputs, including HDBaseT, HDMI, DVI-D, VGA and 5-BNC, for easy integration with any system
    • Advanced collaboration features simultaneously project side-by-side from different sources with Split Screen3
    • Web-based remote managementcontrol and monitor projector status via a Web browser
    • Multi-PC Projection connect up to 50 Windows, Mac, iOSor Android devices and display up to four screens simultaneously over the network (controlled via the Moderator4function from your PC)
    • Dynamic projection capabilities advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
    • Professional installation features full 360-degree installation flexibility, including Portrait Mode
  • ""

    Wide Portfolio of Powered Lens Options

    The Pro G Series offers increased installation flexibility with a total of 10 lenses that allow users to choose the motorized lens most suited for their environment. Choose from a variety of ranges including ultra short-throw, short-throw, middle-throw and long-throw lenses (sold separately). A tool-free, quick-release lever enables fast, easy lens exchange.
  • ""

    Powered Lens Shift

    Epsons advanced projection technology enables a wide range of lens shift capabilities for extraordinary installation flexibility. Pro G Series projectors feature an incredible range of up to 67 percent on the vertical axis and up to 30 percent on the horizontal axis (depending on the lens). Users can easily operate the lens shift functions using the remote control, the projector control panel, or control commands.
  • ""

    Lens Position Memory

    Powered lens memory means users can preset up to 10 positions for zoom, focus, lens shift and projection size for instant switching between installations. With the push of a button, recall the position of your previous installation for fast, efficient setup.
  • ""

    Zero-Offset Ultra Short-Throw Lens

    Transform your Pro G Series projector into an ultra short-throw projector. Featuring a 0.35 throw ratio and zero offset, this lens allows you to install the projector just inches from the screen or wall and still get large, clear, crisp projection. Its an ideal solution for installation in narrow spaces and rear-projection applications. Plus, the lens shift gives you even more flexibility when you need it.
  • ""

    HDBaseT and Diverse Connectivity

    Connect with virtually any system Pro G Series projectors include HDBaseT, HDMI, DVI-D, VGA, BNC and LAN inputs. Cutting-edge HDBaseT technology simplifies installation with just one CAT-5/6 cable carrying Full HD video, audio, network and control commands. And, its 328-foot cable length accommodates large venues. Theres no need for additional cables, signal repeaters or added labor.
  • ""

    Compatible with Leading Control Systems

    Pro G Series projectors are compatible with Crestron RoomView, AMX, ExtronXTPand Control4Simple Device Discovery Protocol (SDDP) to ensure easy integration with existing systems.
  • ""

    Installation Tools

    Epson knows that choosing, installing and using a projection device correctly is very important. We have collected helpful tips and resources to make the process easier. For additional information on documentation and installation tools, visit epson.com/largevenue.
  • 1Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. The projectors used by a third-party lab for measuring color brightness were leading Epson 3LCD business and education projectors and leading 1-chip DLP projectors, based on NPD sales data for June 2013 through May 2014 and PMA Research sales data for Q1 through Q3 2013.
    2Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
    3Consult your user manual for input combinations.
    4Moderator feature is part of EasyMP Multi-PC Projection software.
    5Emulation Mode is limited to certain code sets and may not support all codes. Contact Epson Support for the latest supported sets.
    6To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owners manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Not all Epson projectors are able to be networked. Availability varies depending on model.
    7Expedited shipping not available in all areas. Road Service orders must be in by 3 p.m. Eastern Time for Next-Business-Day delivery.
    8Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. The projectors used by a third-party lab for measuring color brightness were leading Epson 3LCD projectors and leading 1-chip DLP projectors, based on NPD sales data for June 2013 through May 2014 and PMA Research sales data for Q1 through Q3 2013.
    9Data source: ProjectorCentral.com, Feb. 2015. Average of 1,420 shipping models for which the manufacturers
